Magnetic track system
A 48V magnetic track system — 53 codes covering spots, lasers, linear and wall-washer luminaires plus the track, power supplies and connectors that carry them. Built in India since 2014.
A CIANA run is specified in this order.

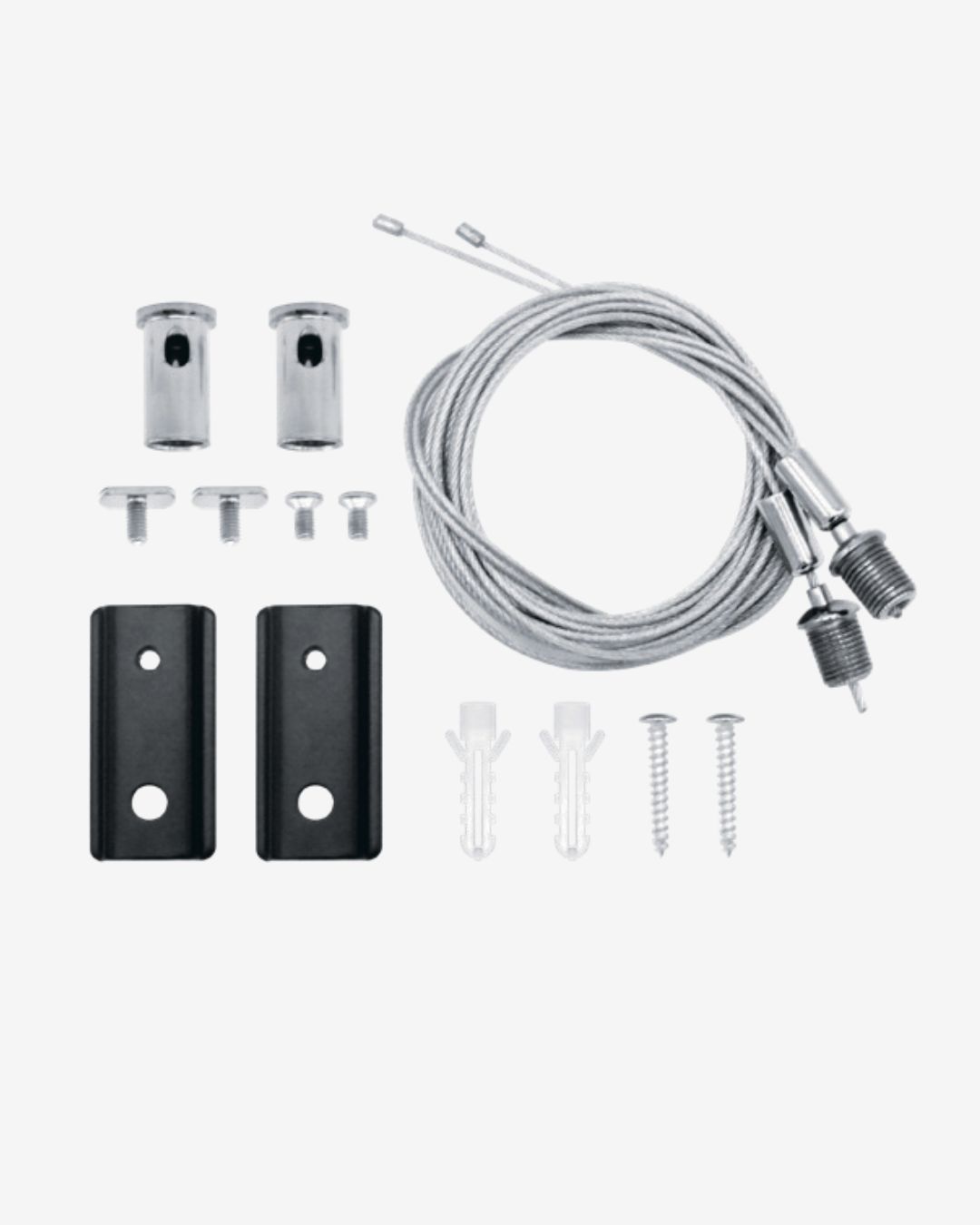

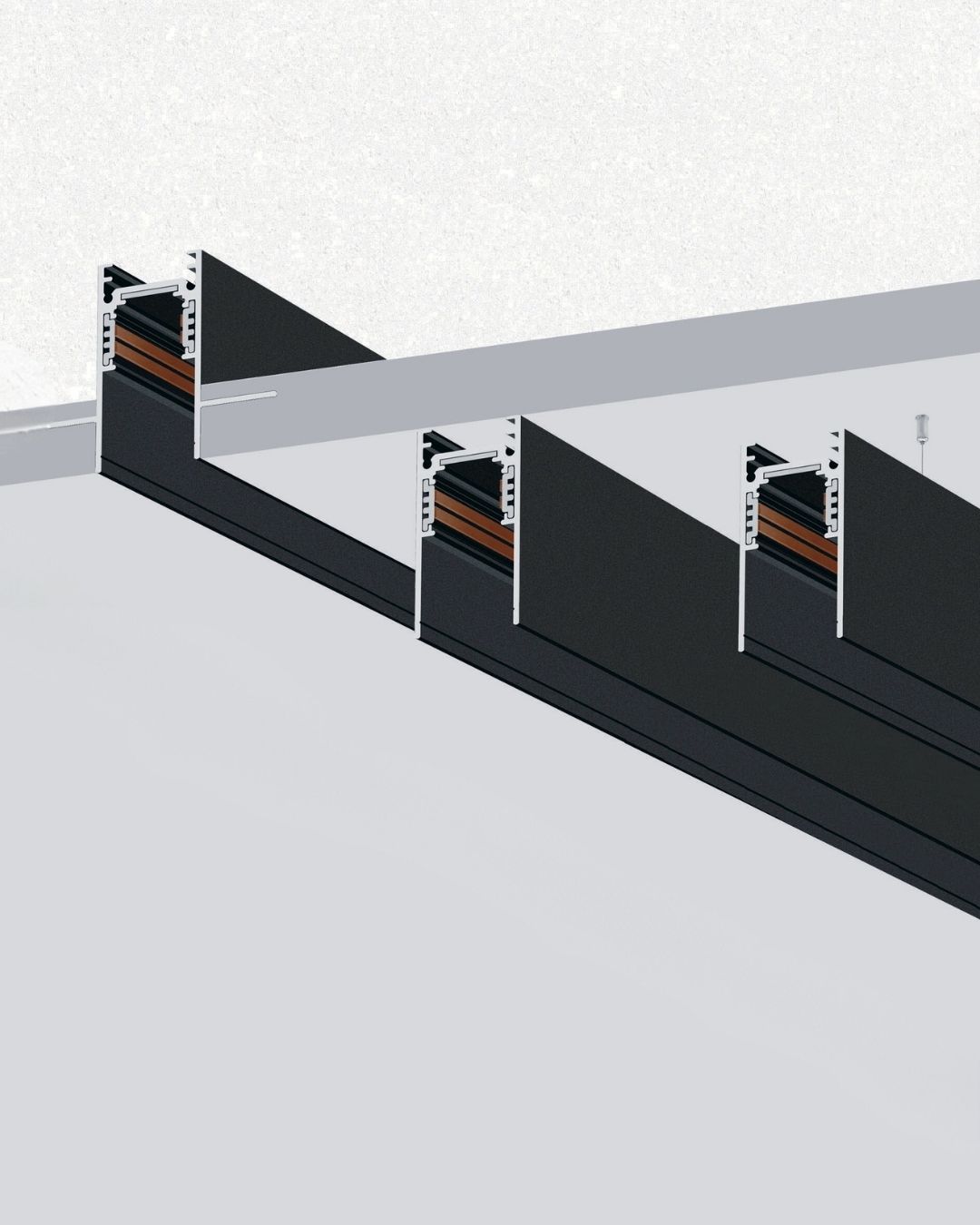

Surface (EN-MGTS) or recessed (EN-MGTR) channel, in 1, 2 and 3 metre lengths, with customised lengths also available. Each type has its own horizontal-to-horizontal and horizontal-to-vertical corner connectors, and the EN-MGTS hanging kit suspends the track. Black as standard; other body colours are priced in the add-ons.

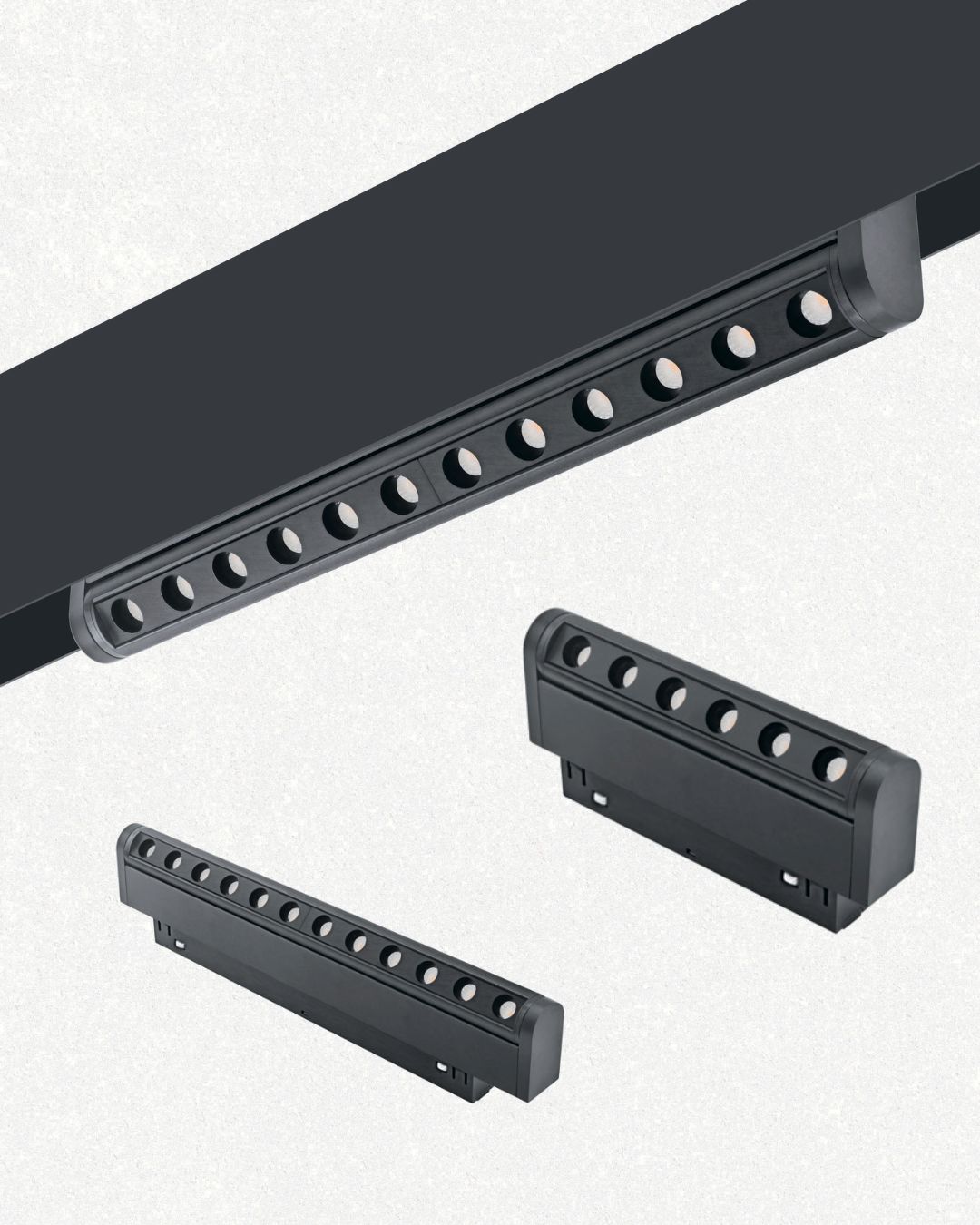

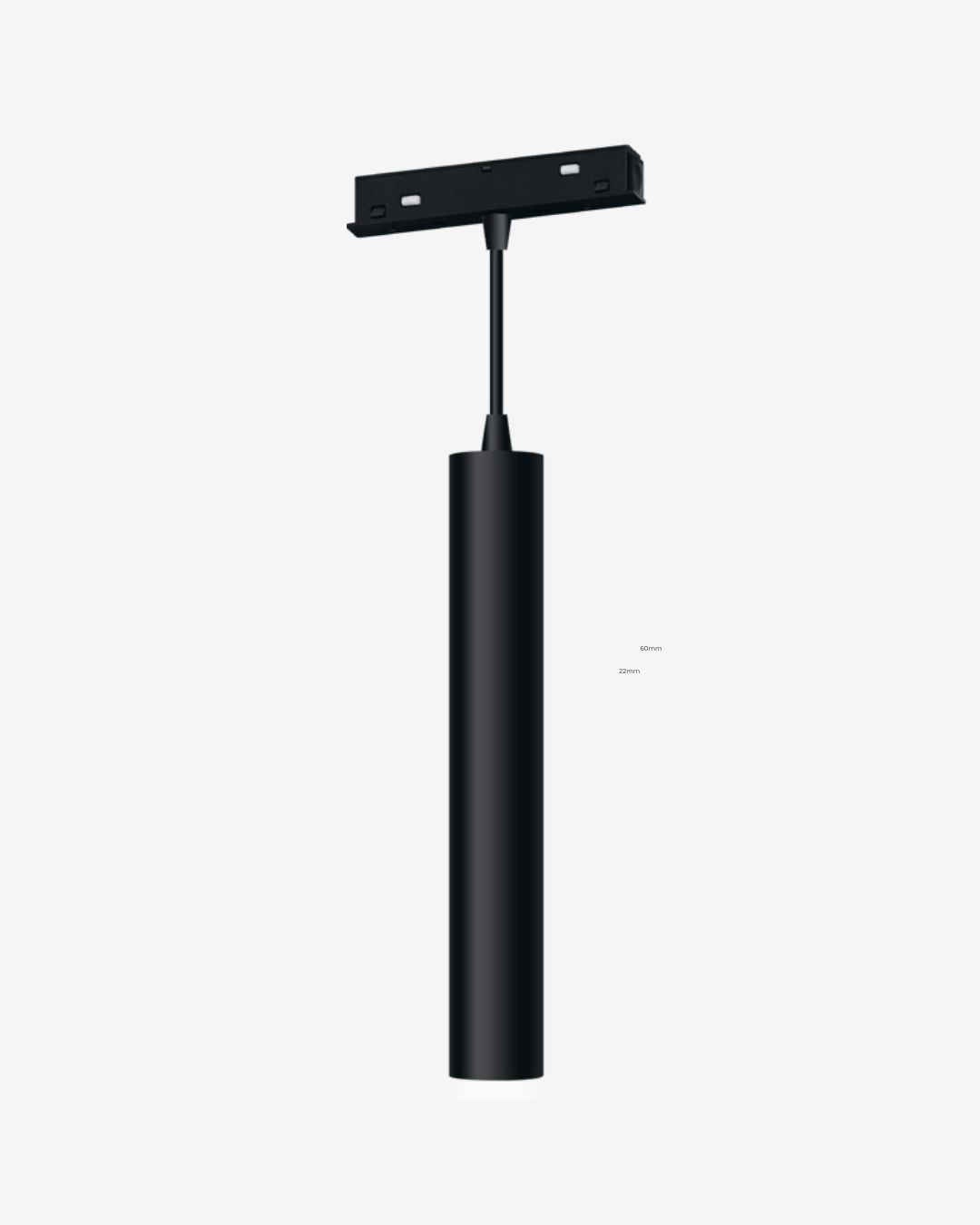

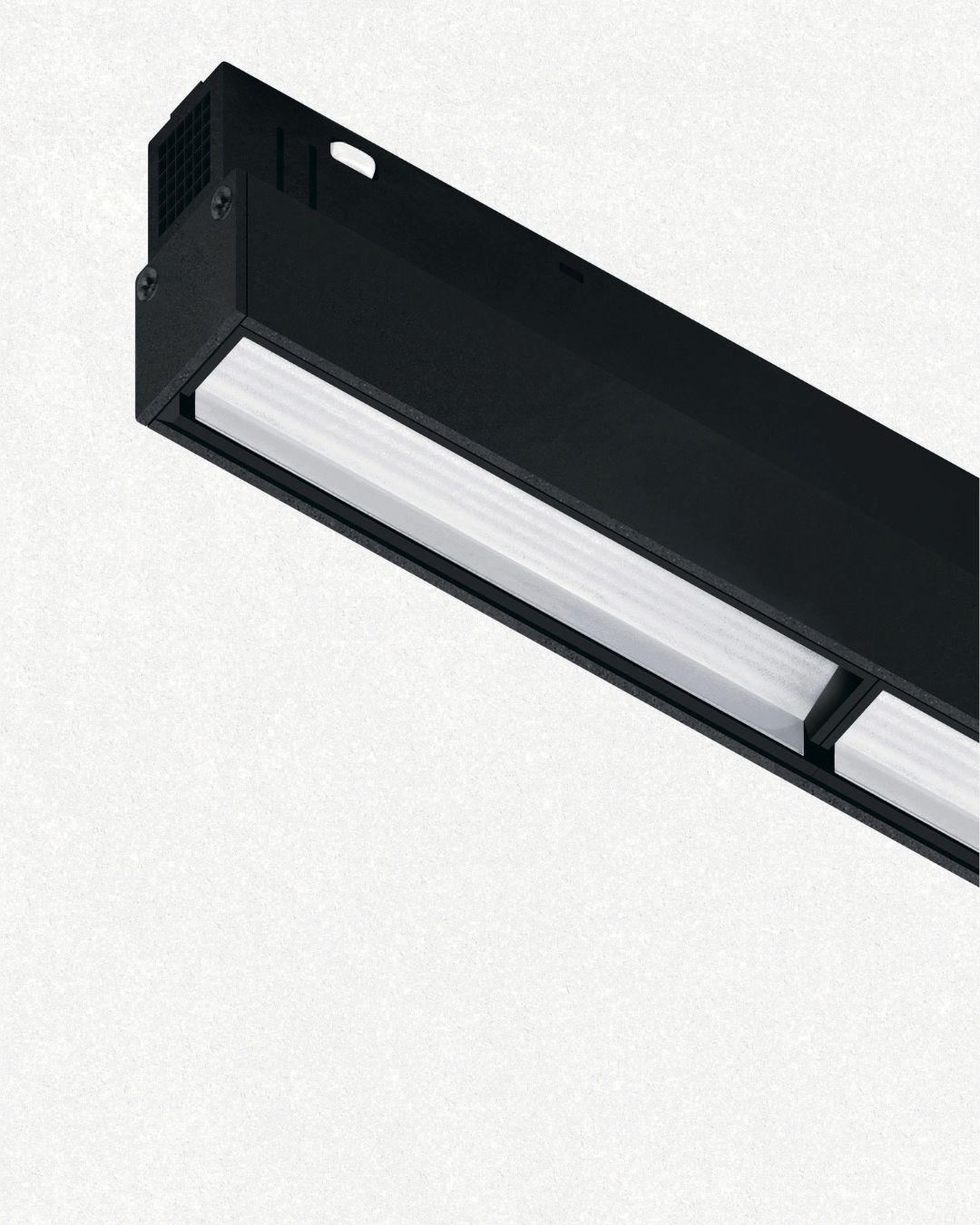

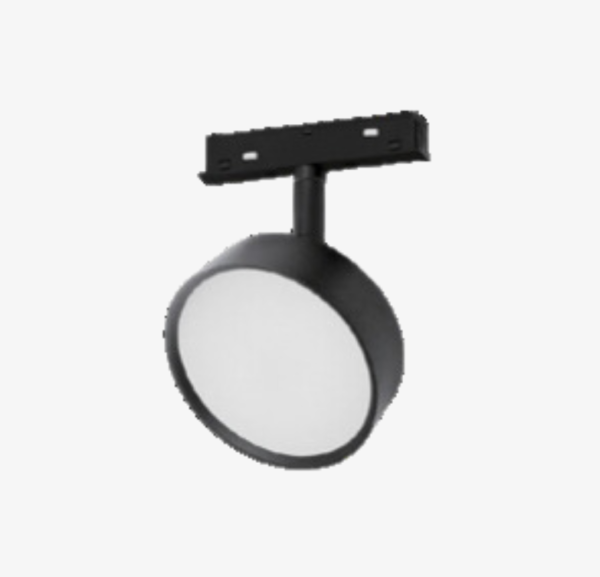

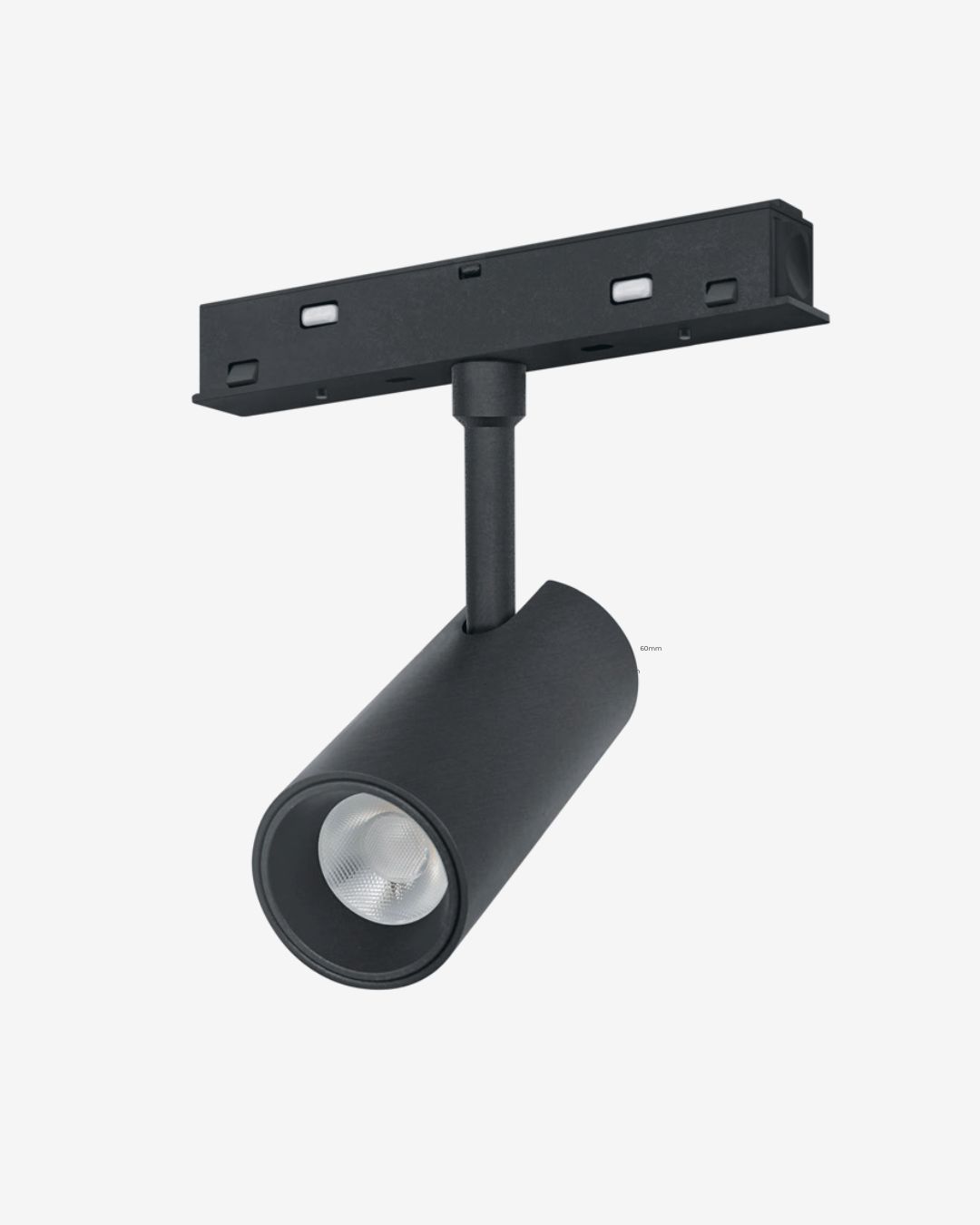

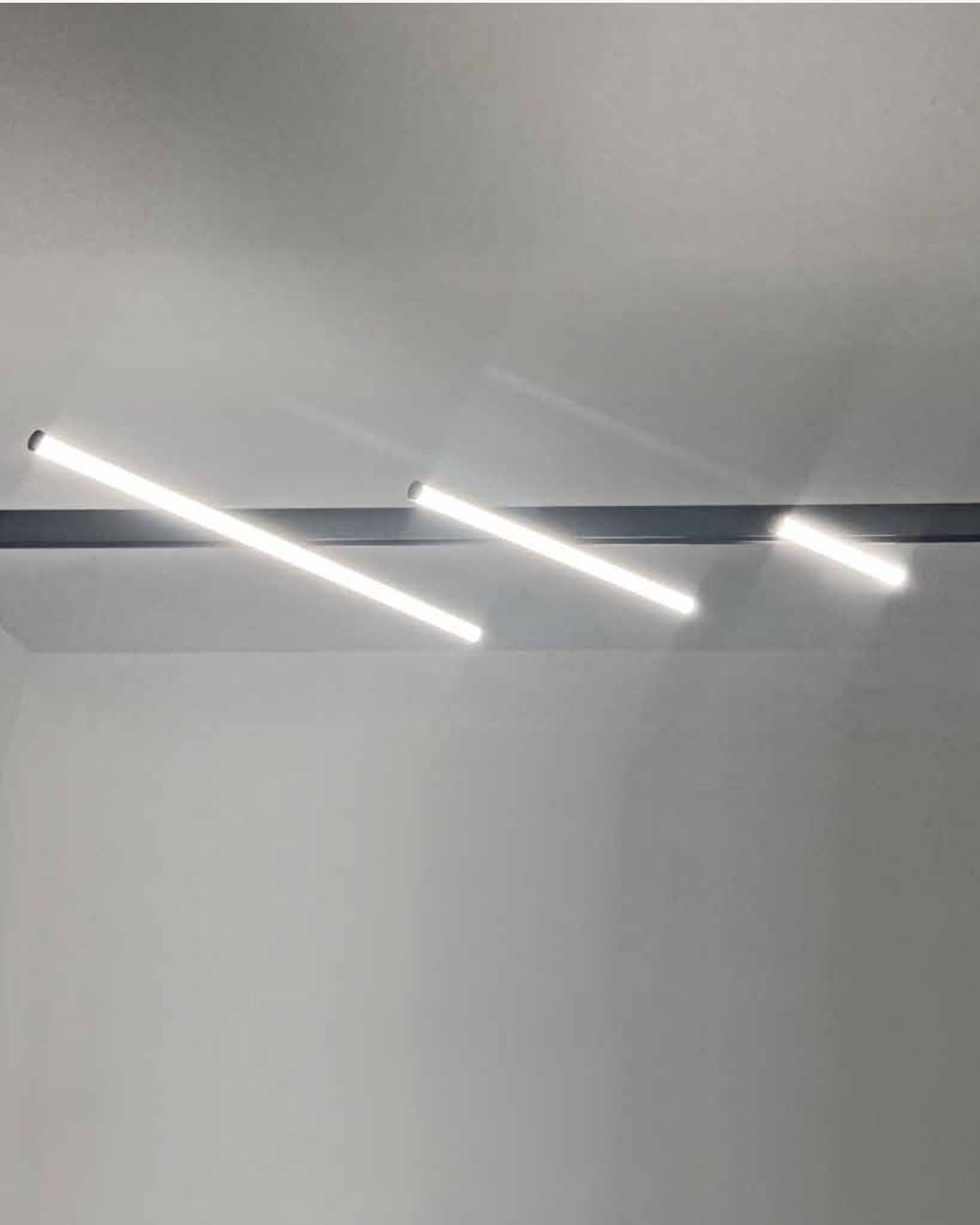

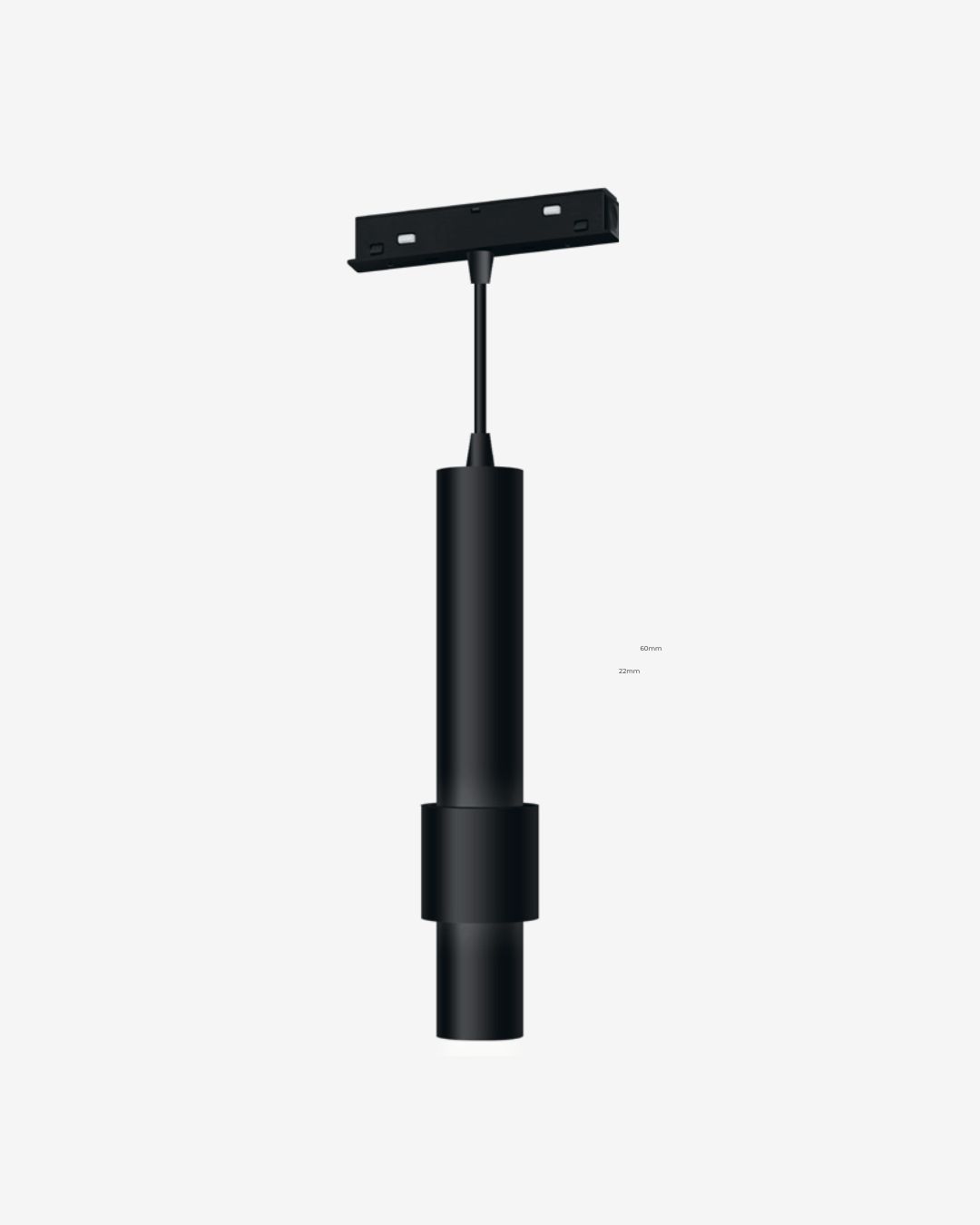

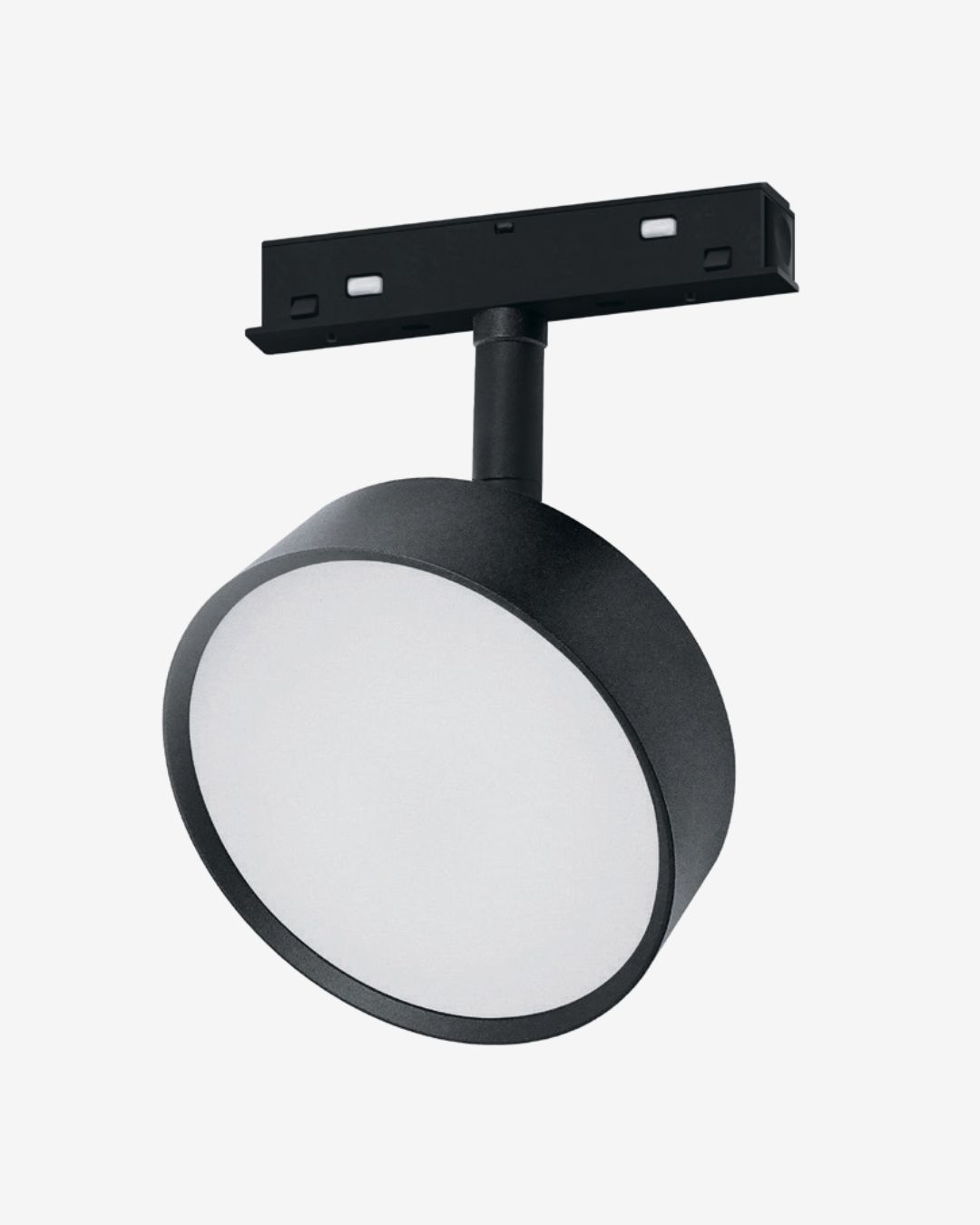

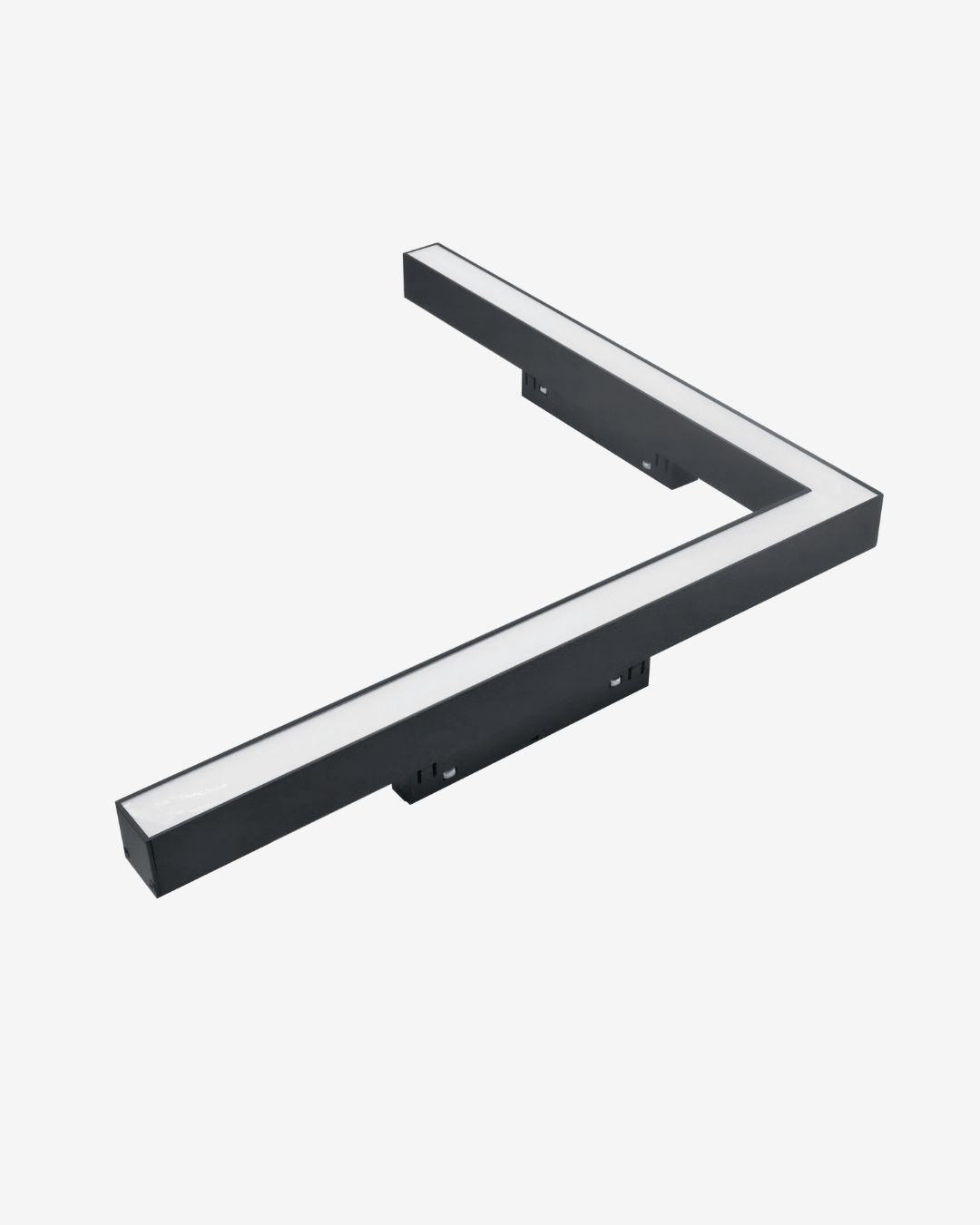

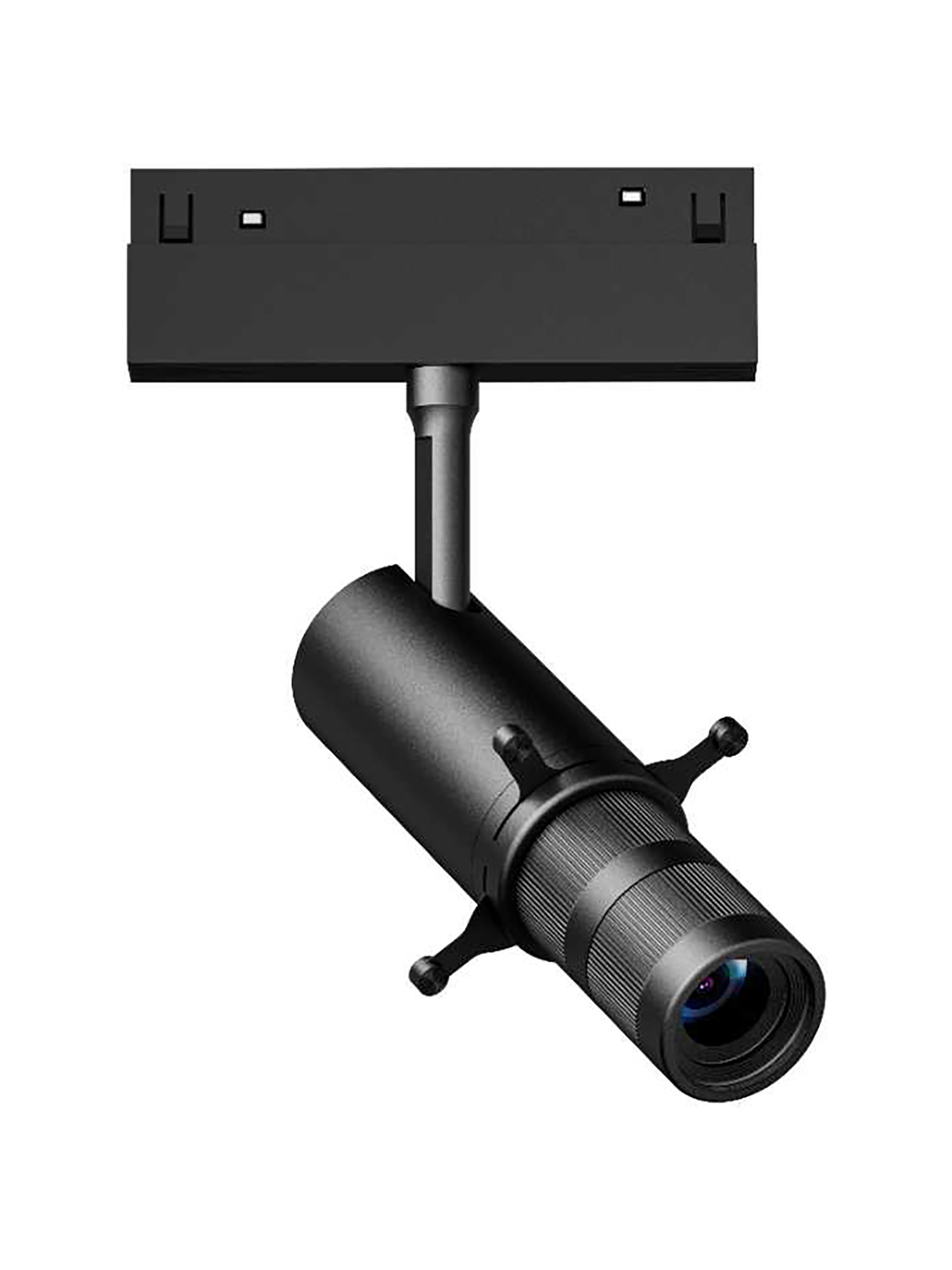

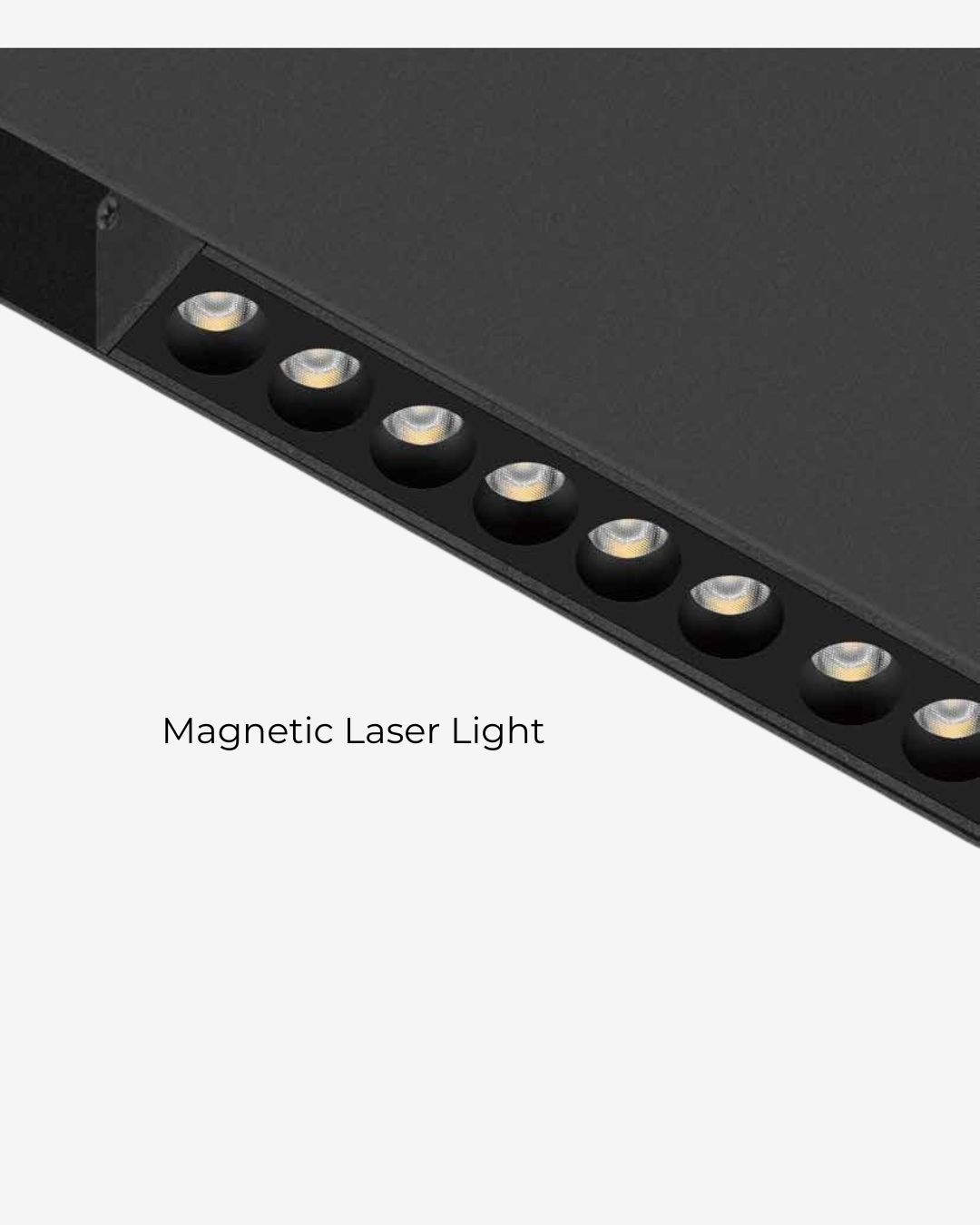

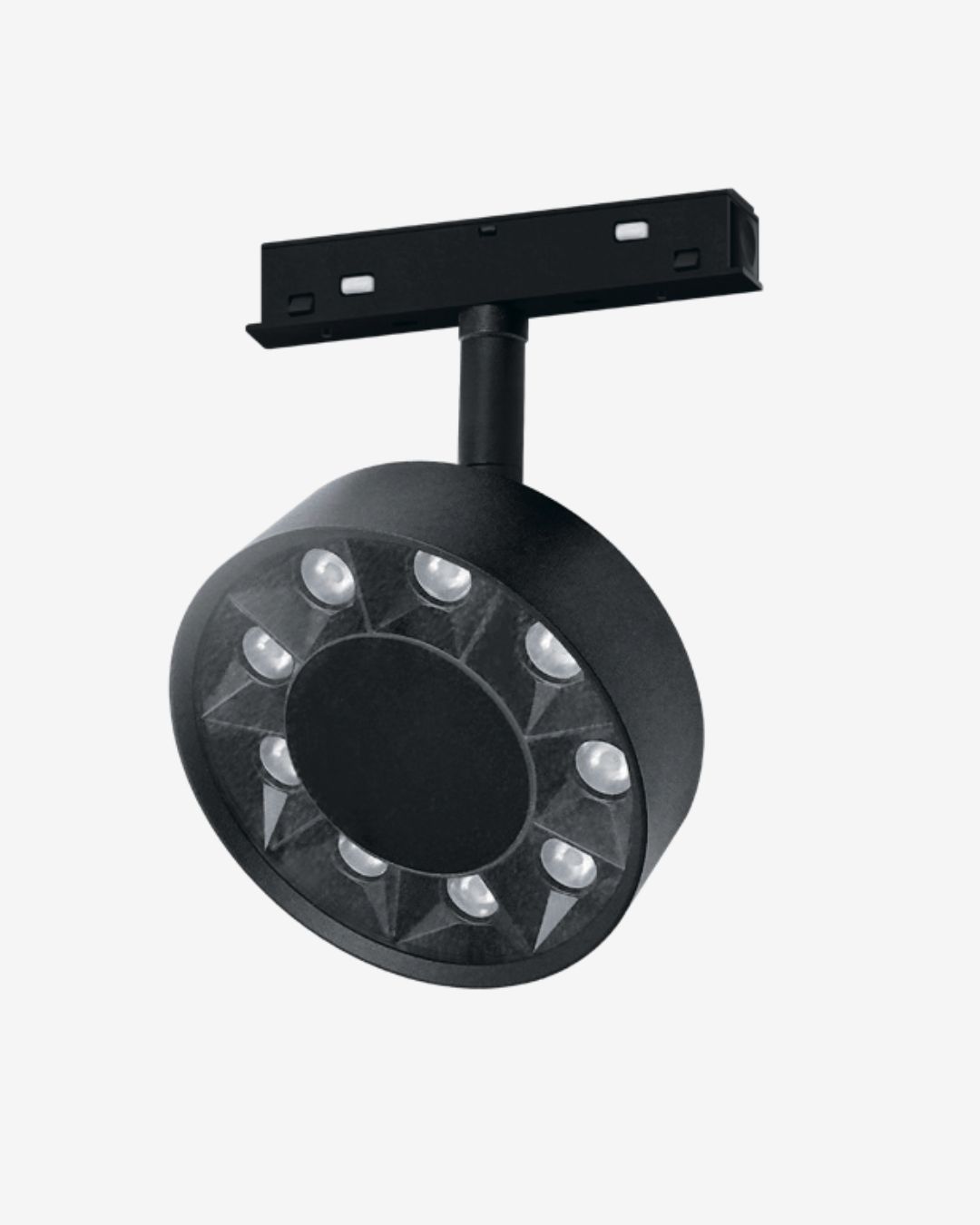

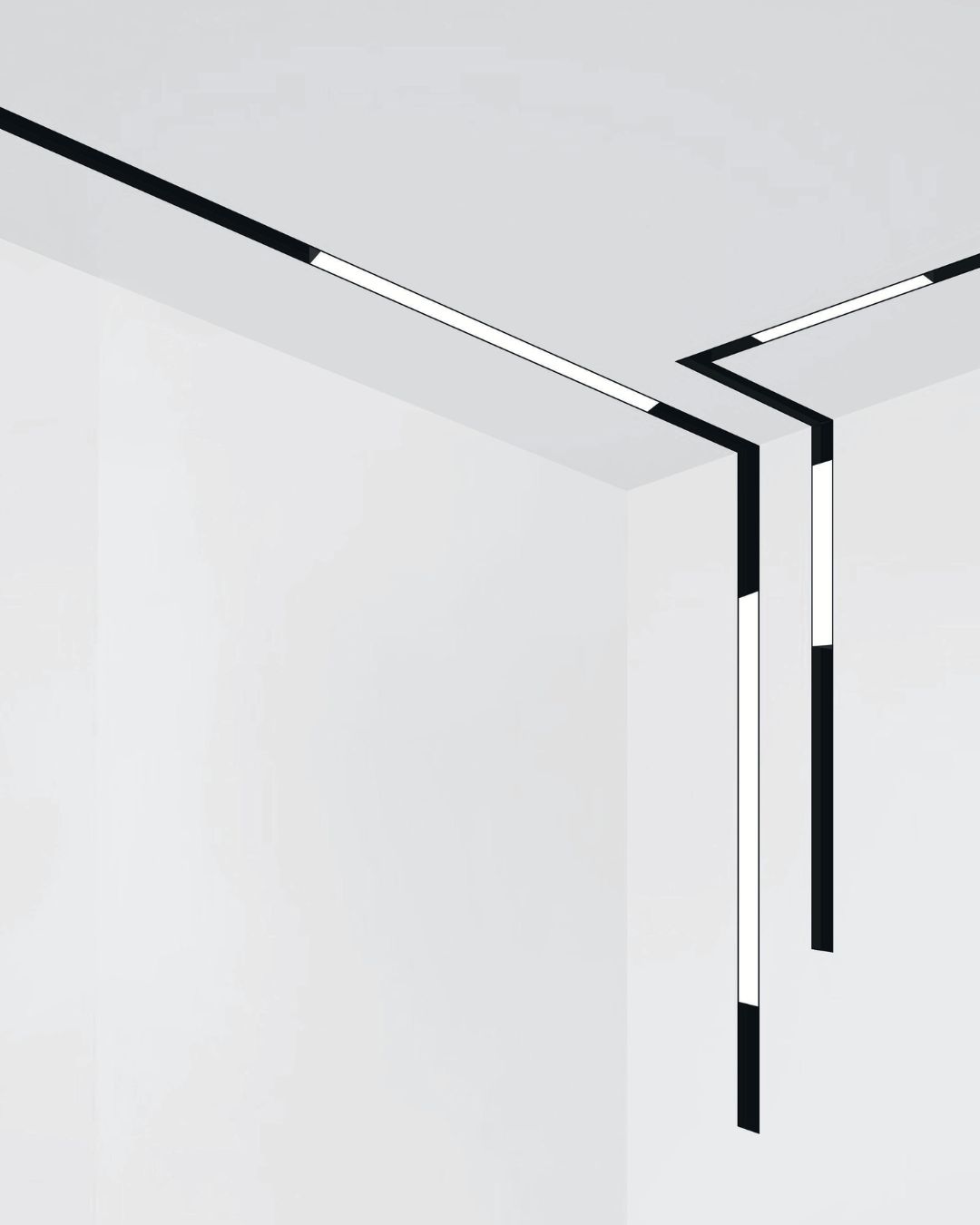

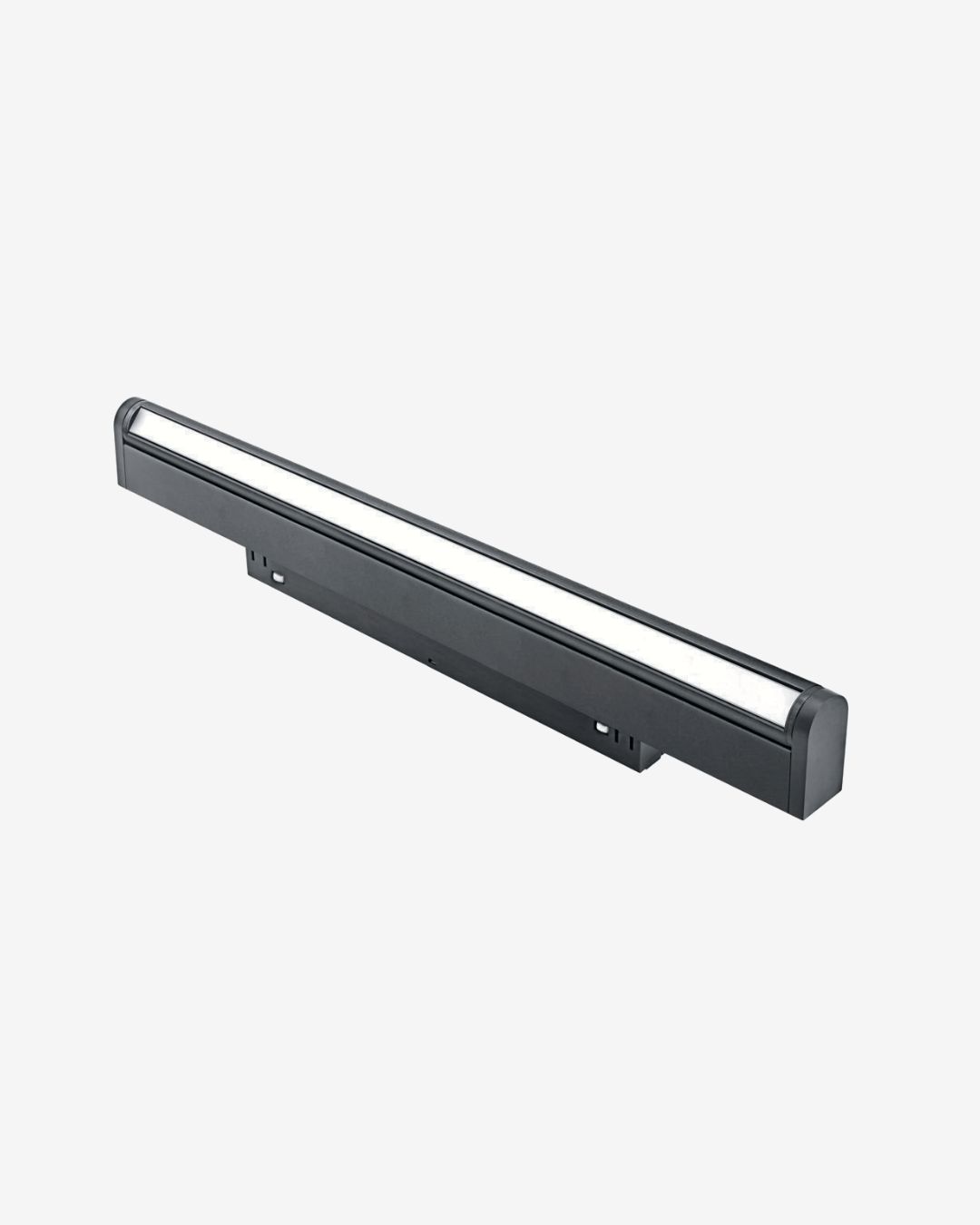

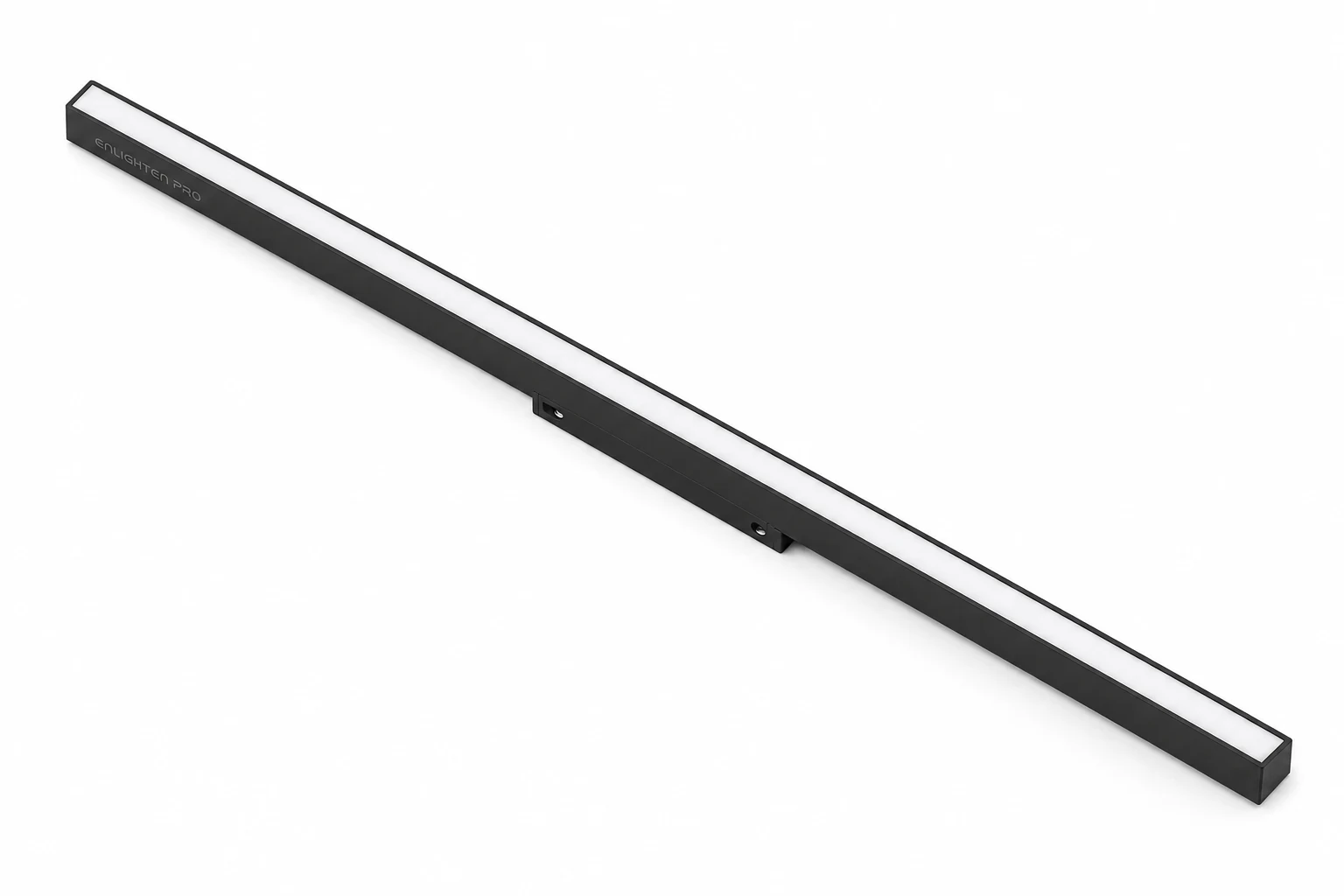

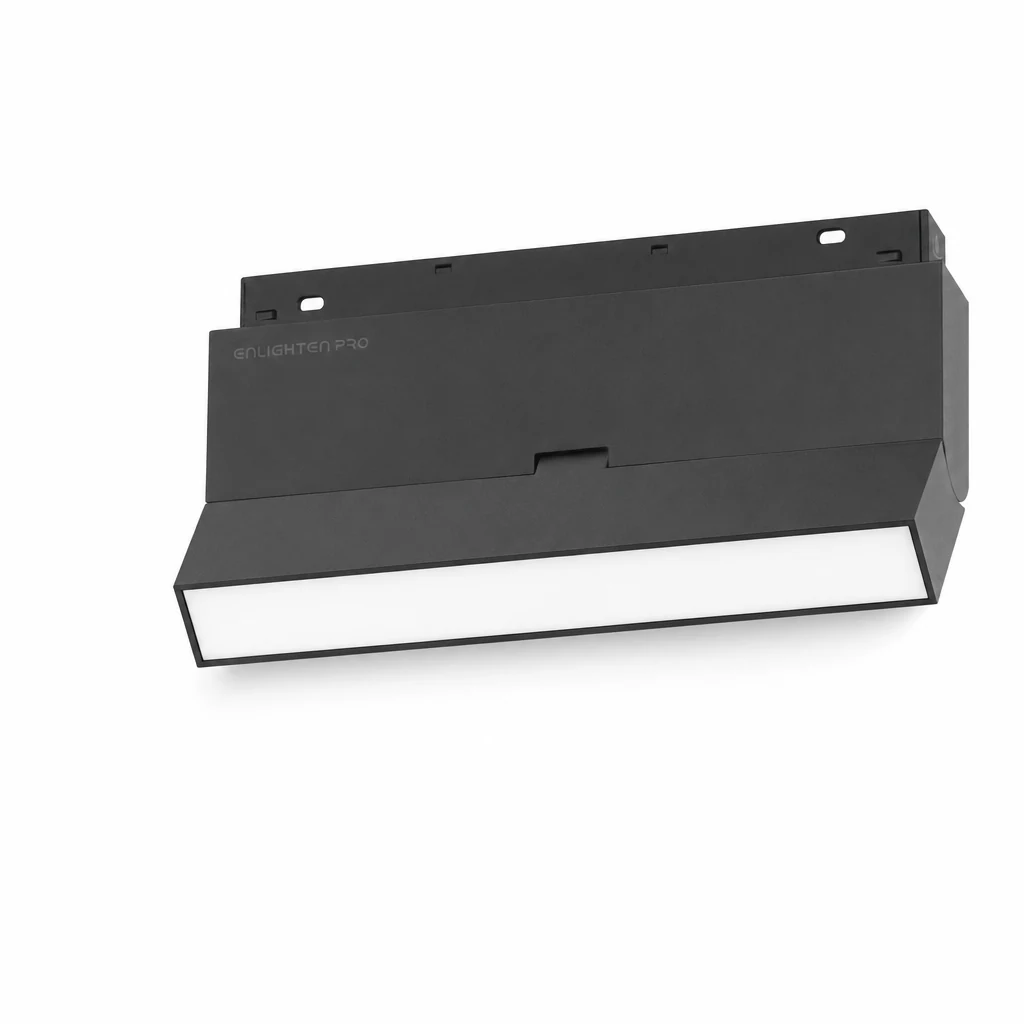

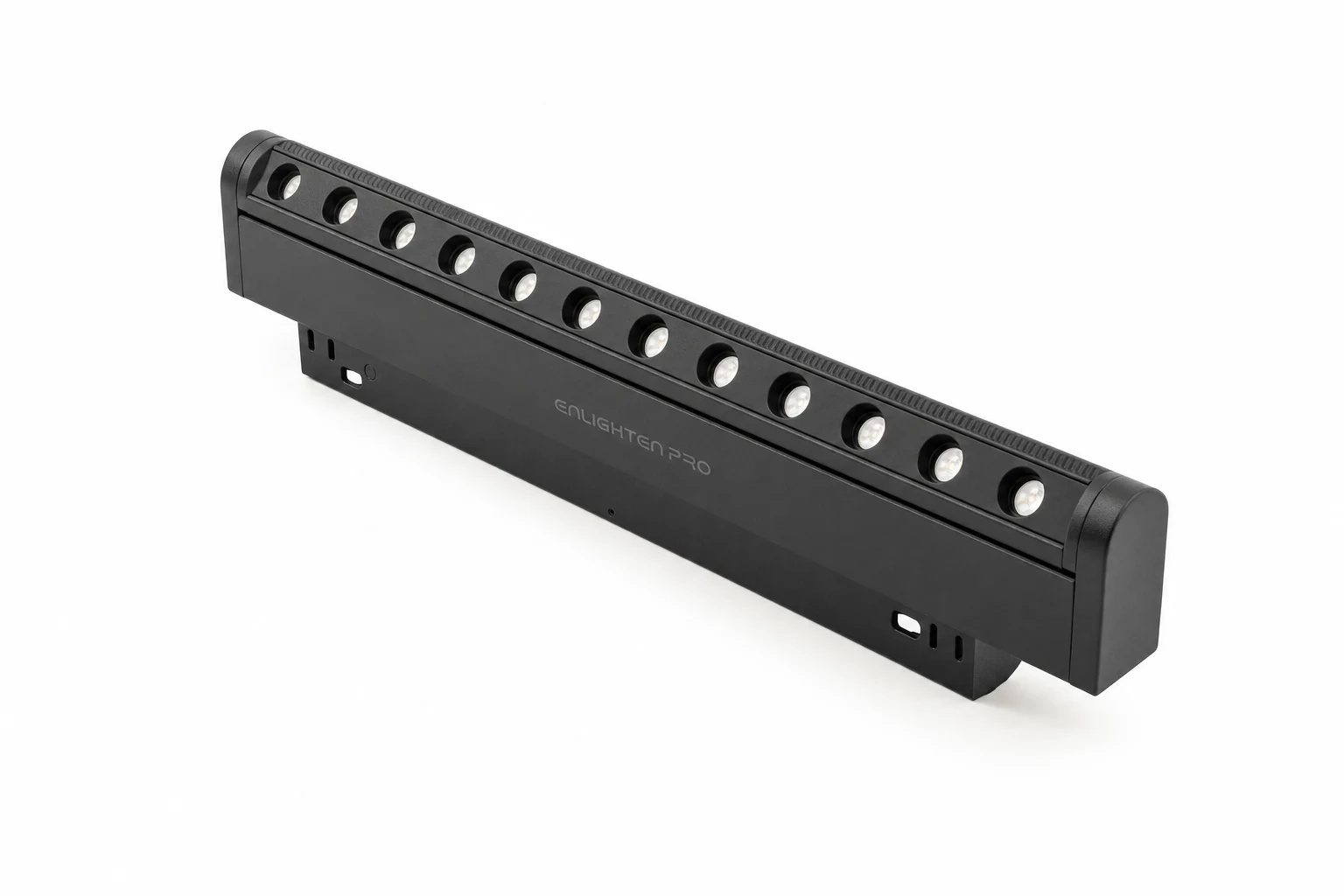

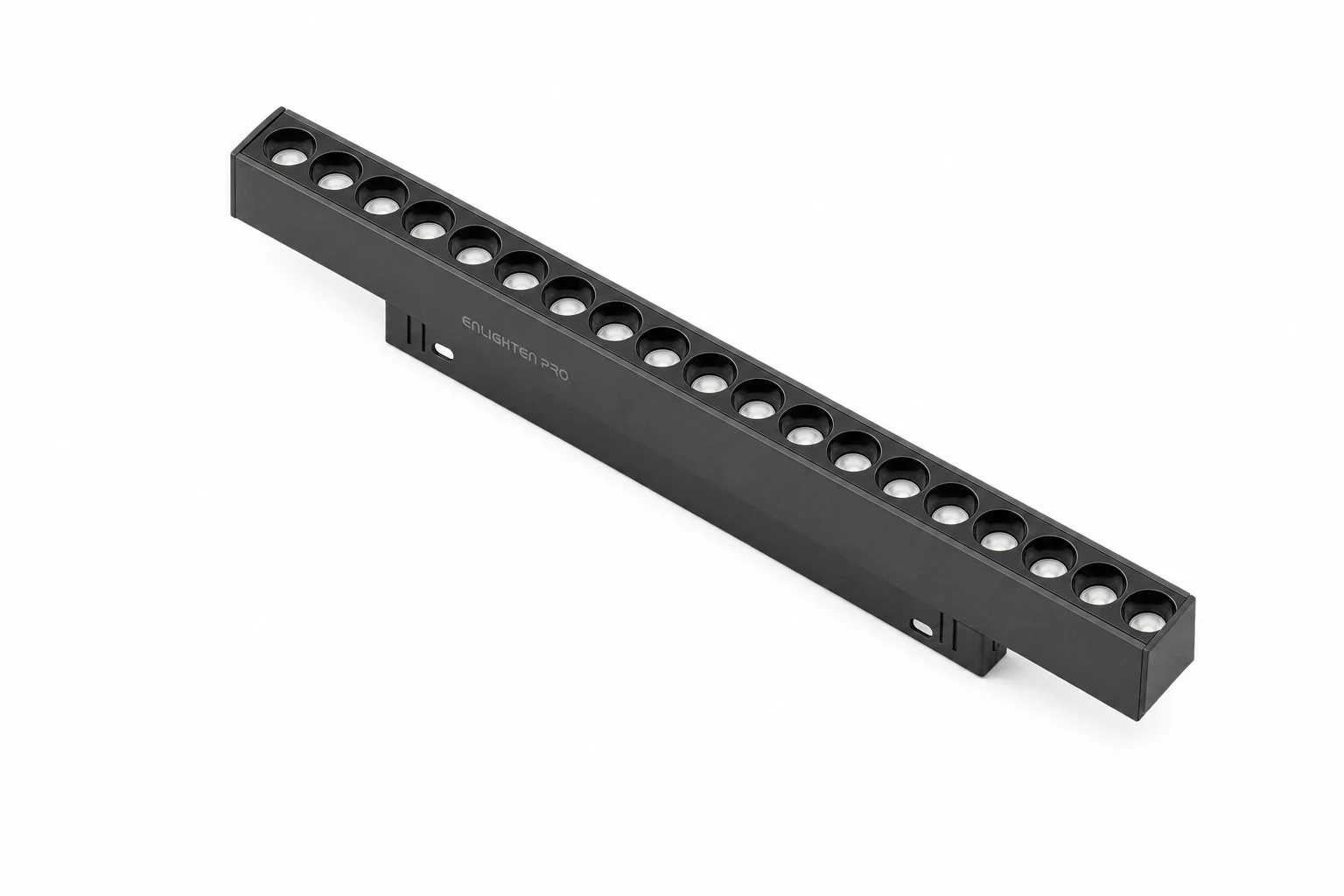

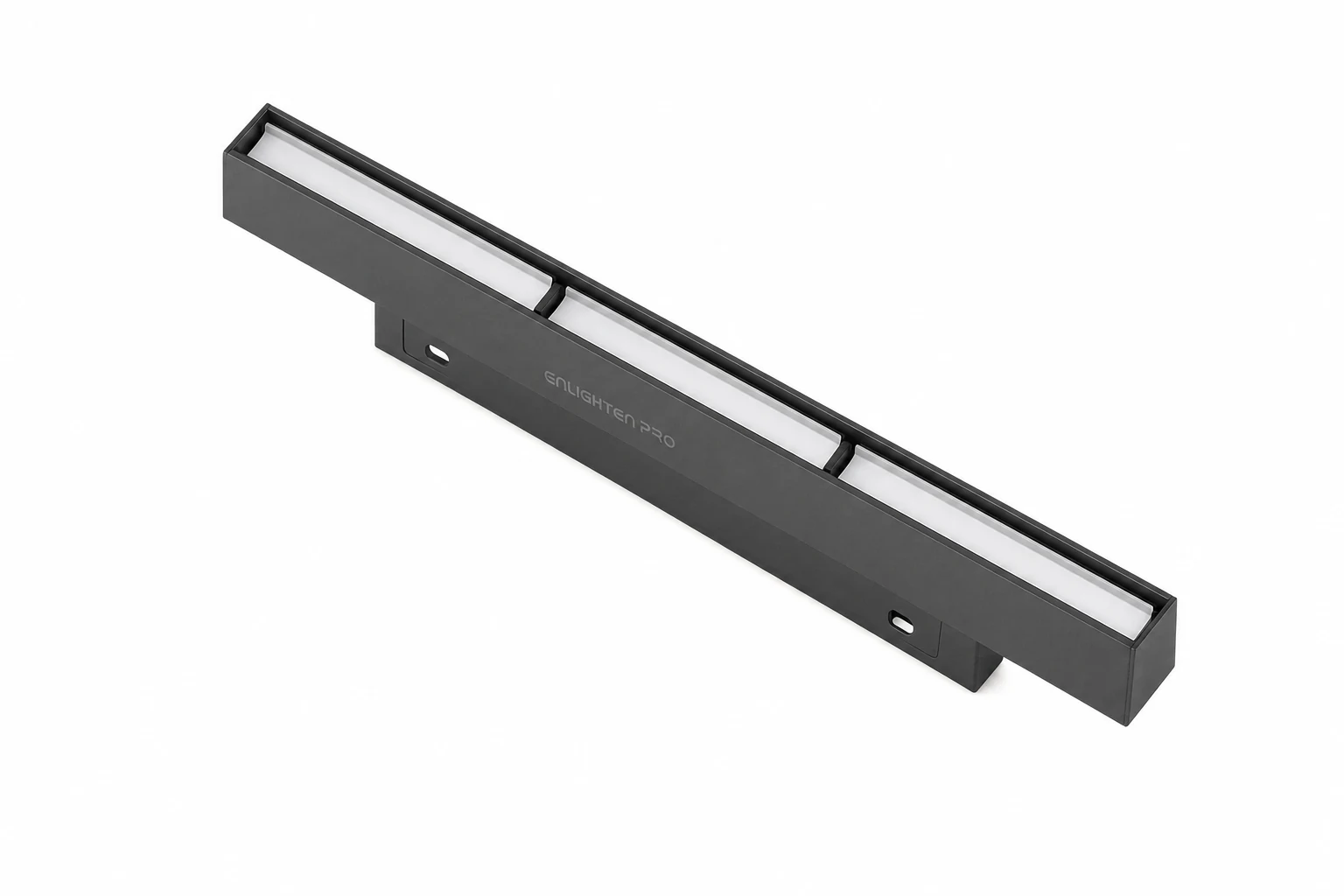

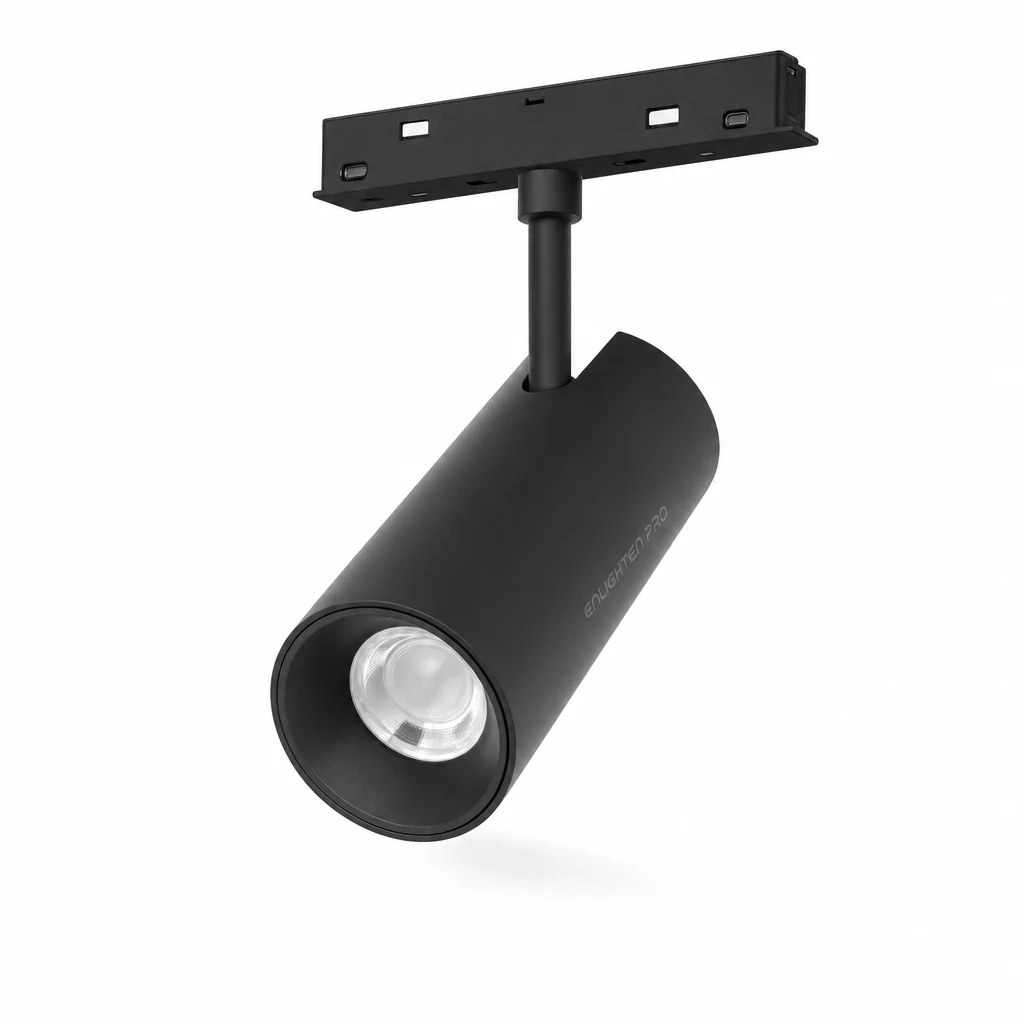

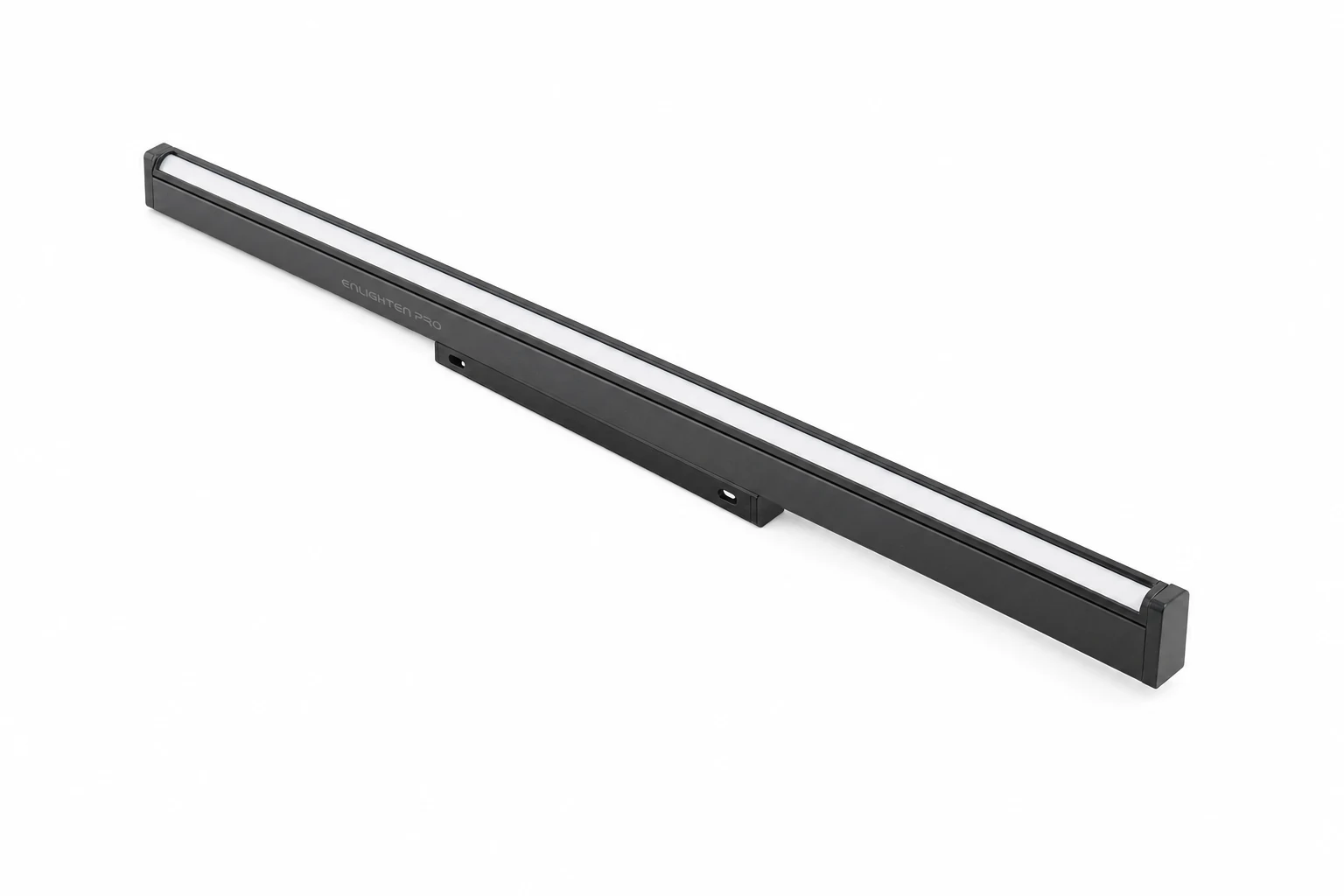

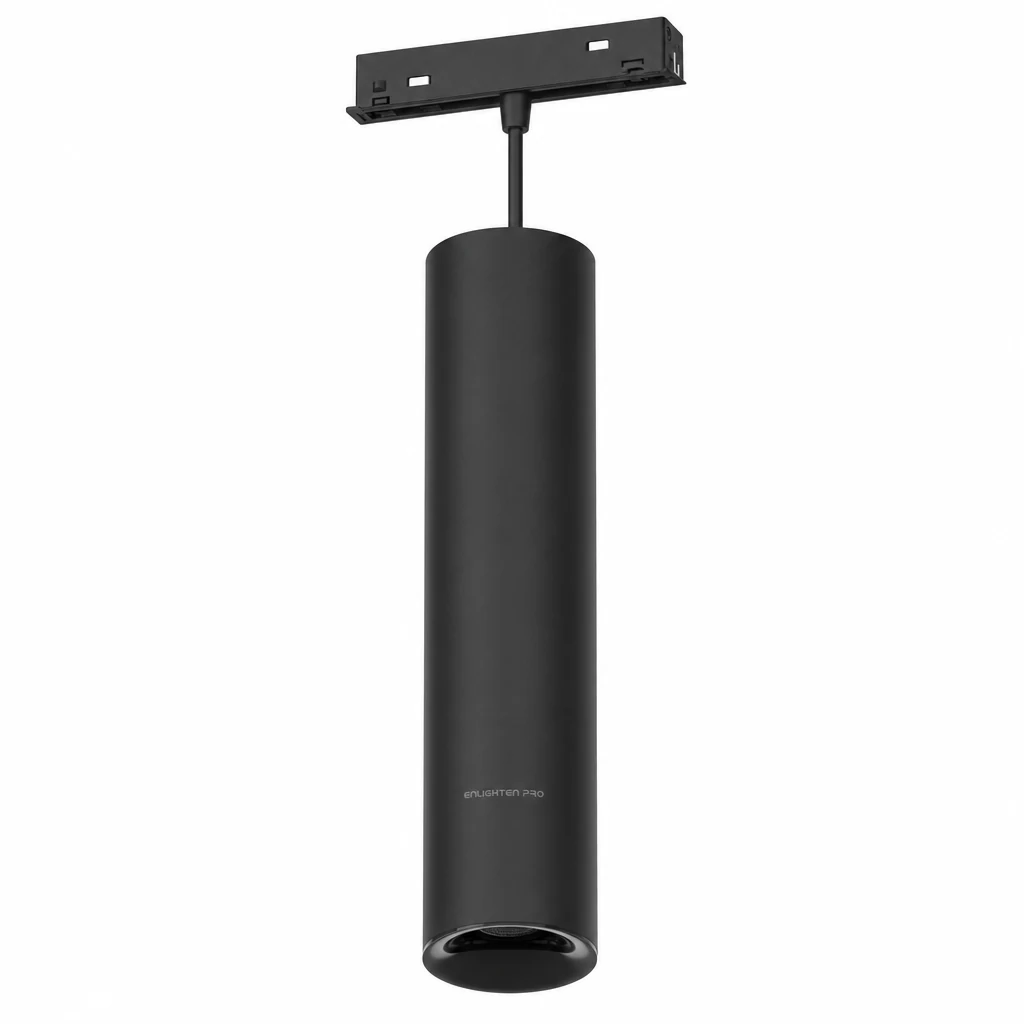

Spot, laser, diffused linear and wall-washer heads, in tiltable and rotatable versions, plus a corner linear and suspended pendants. Every head mounts magnetically along the run.

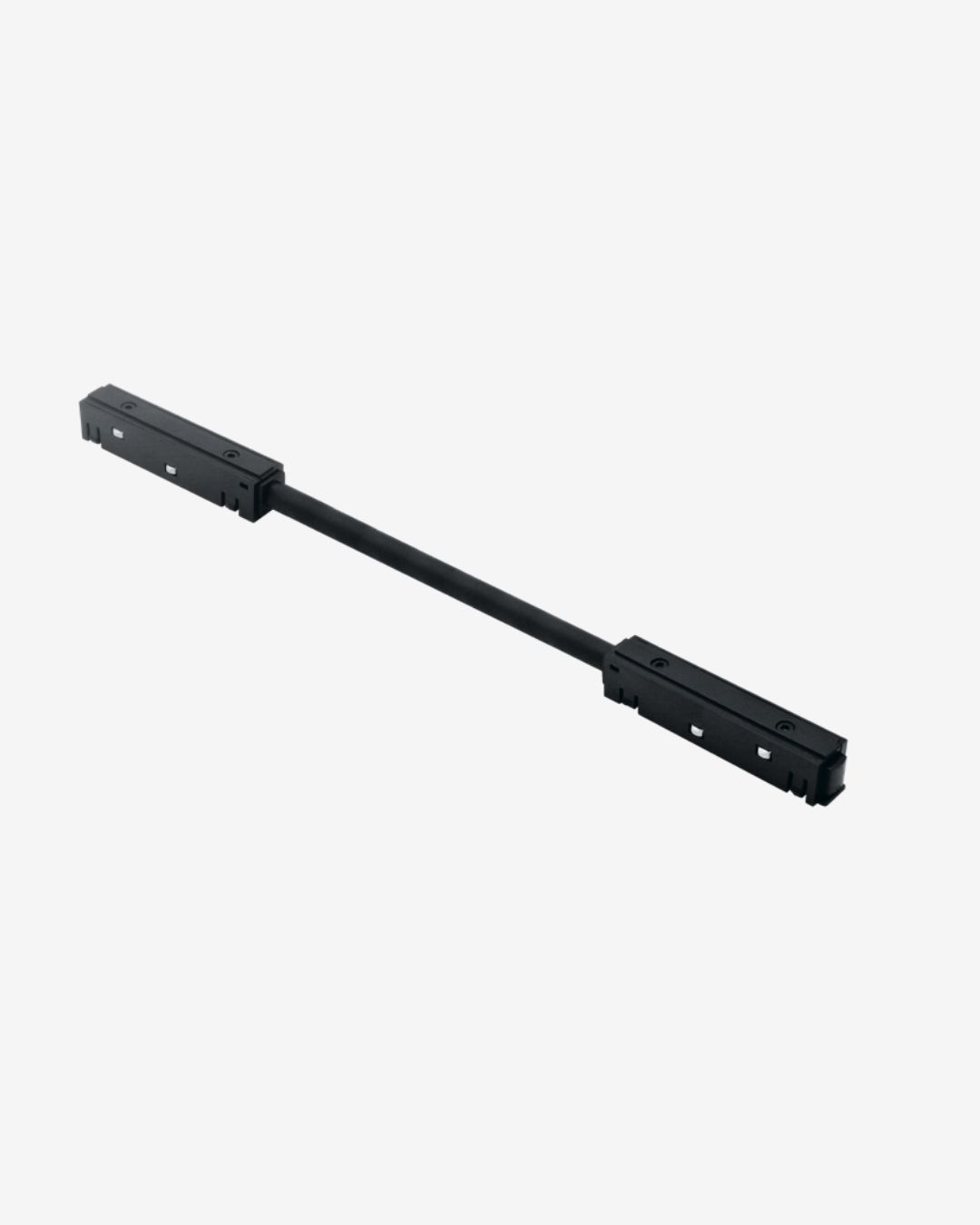

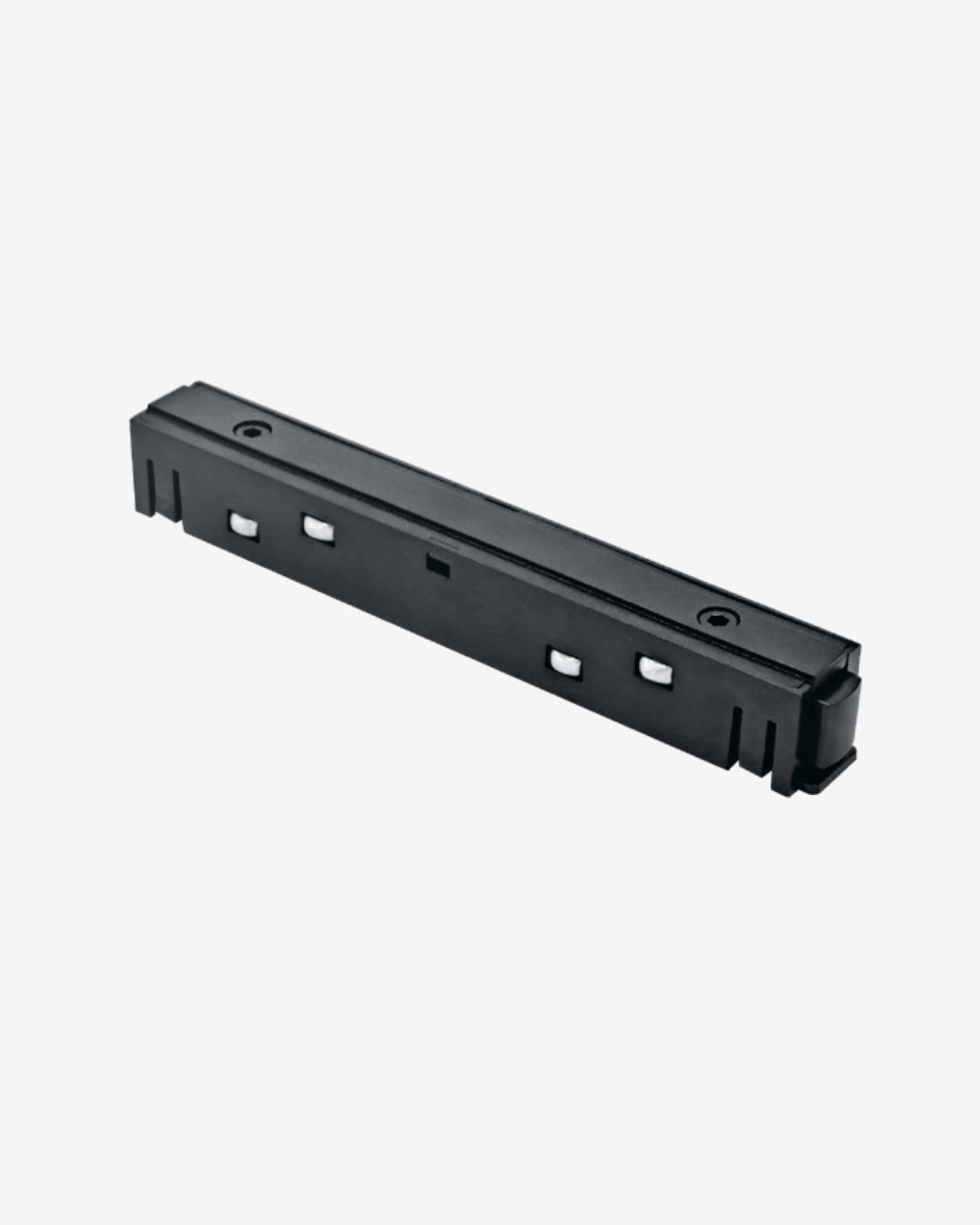

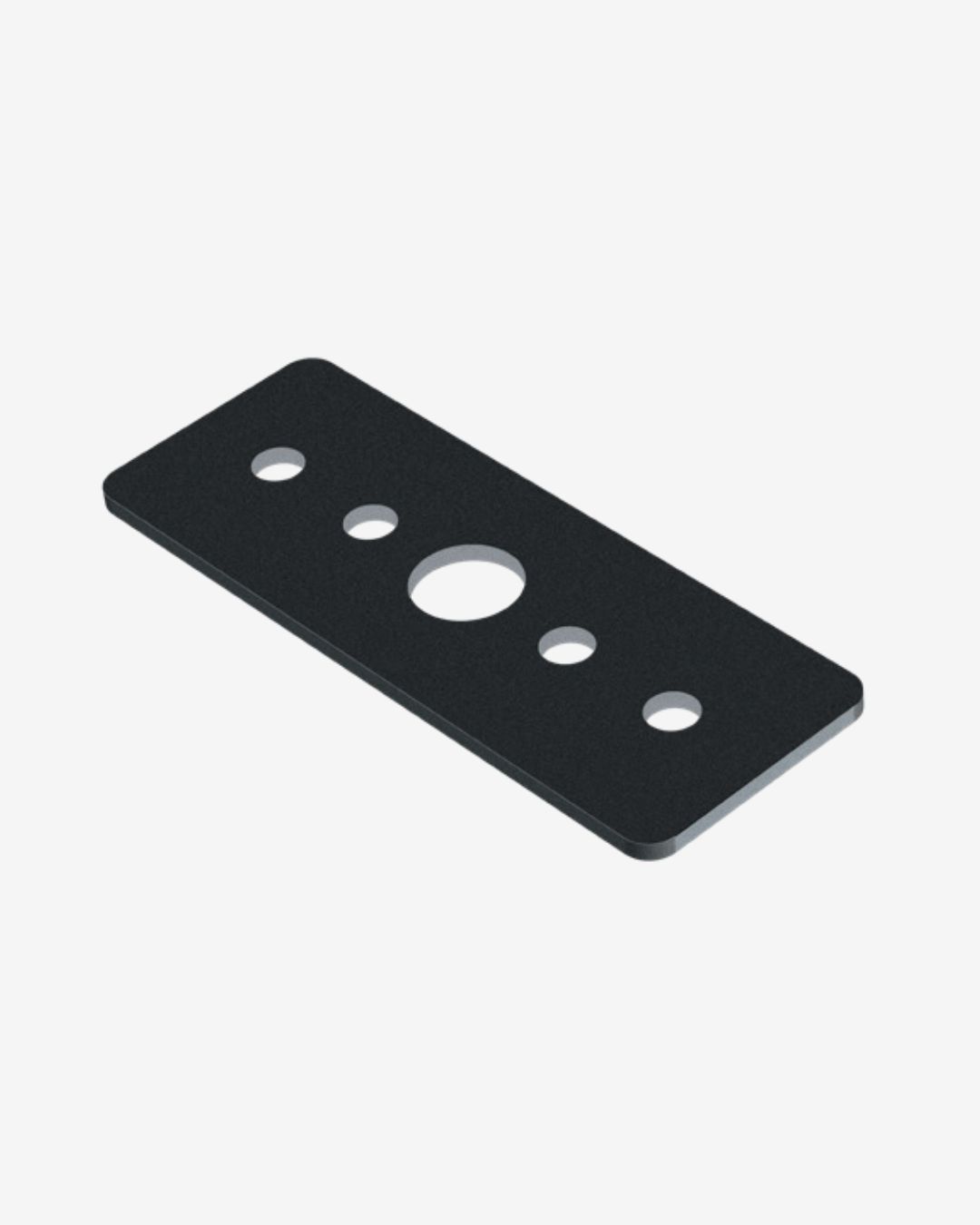

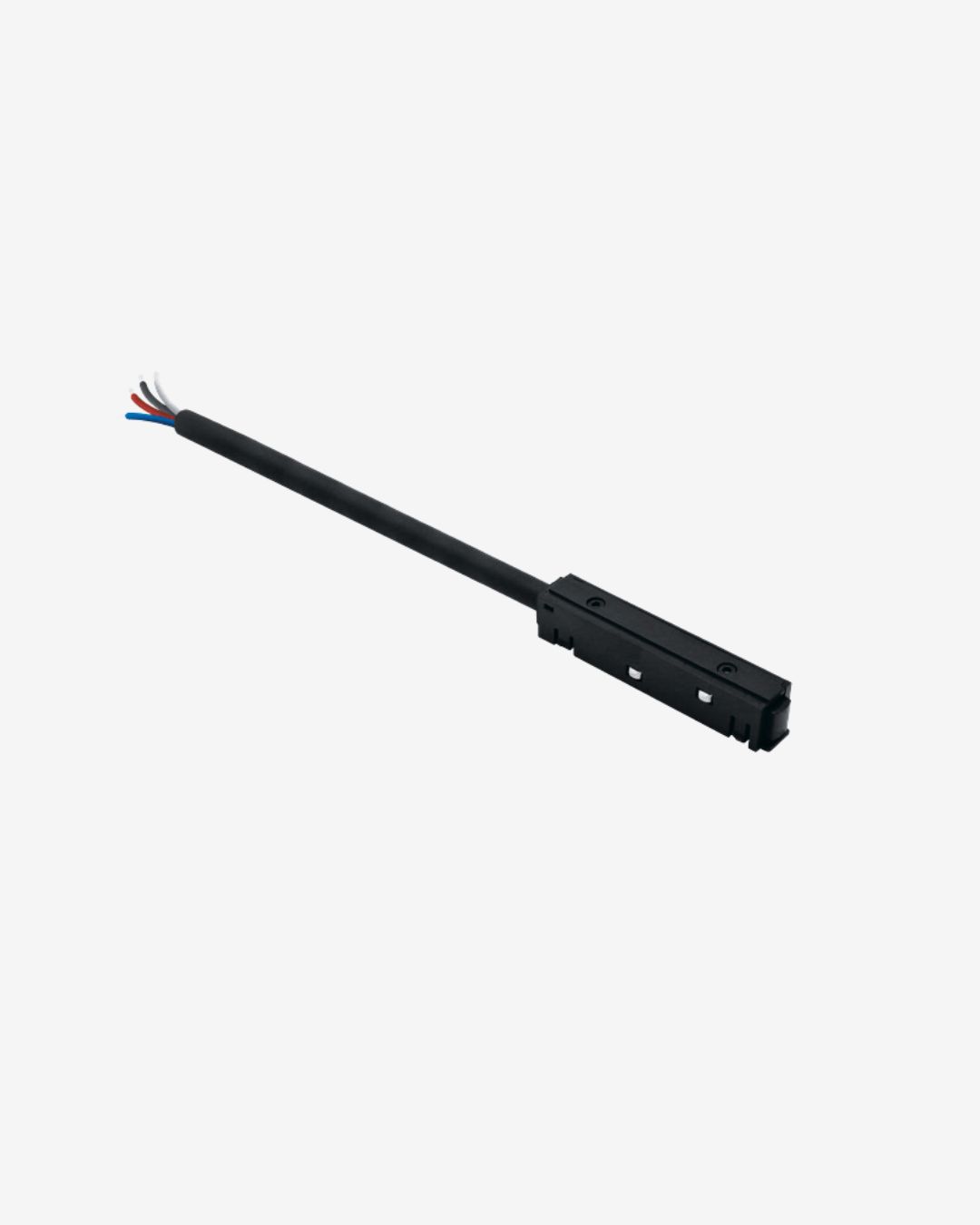

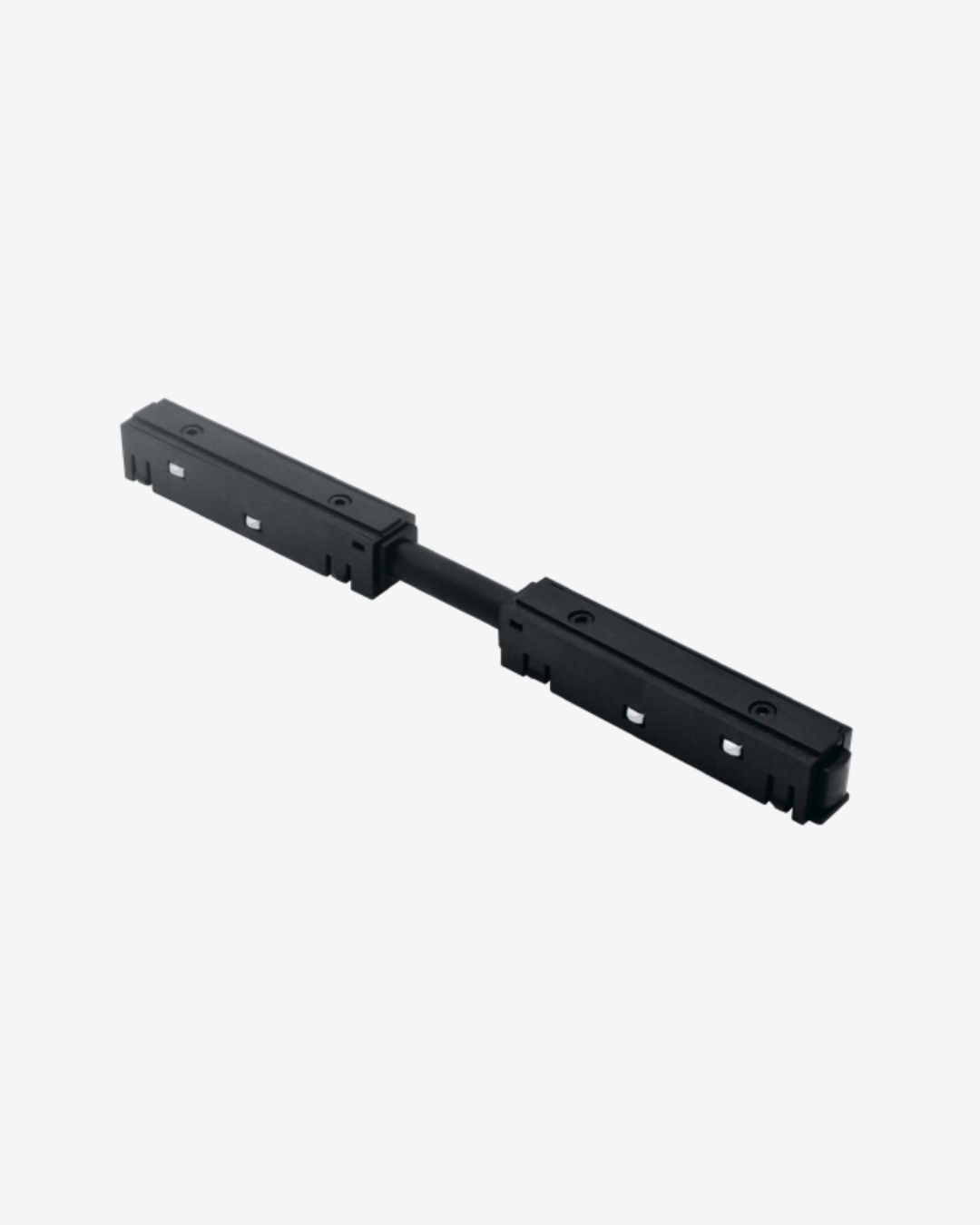

The straight module connects two straight lengths of track electrically, and comes in a wired version too; the corner module does the same across an angle. The jointer joins two straight lengths mechanically. The input module brings the supply in on four wires.

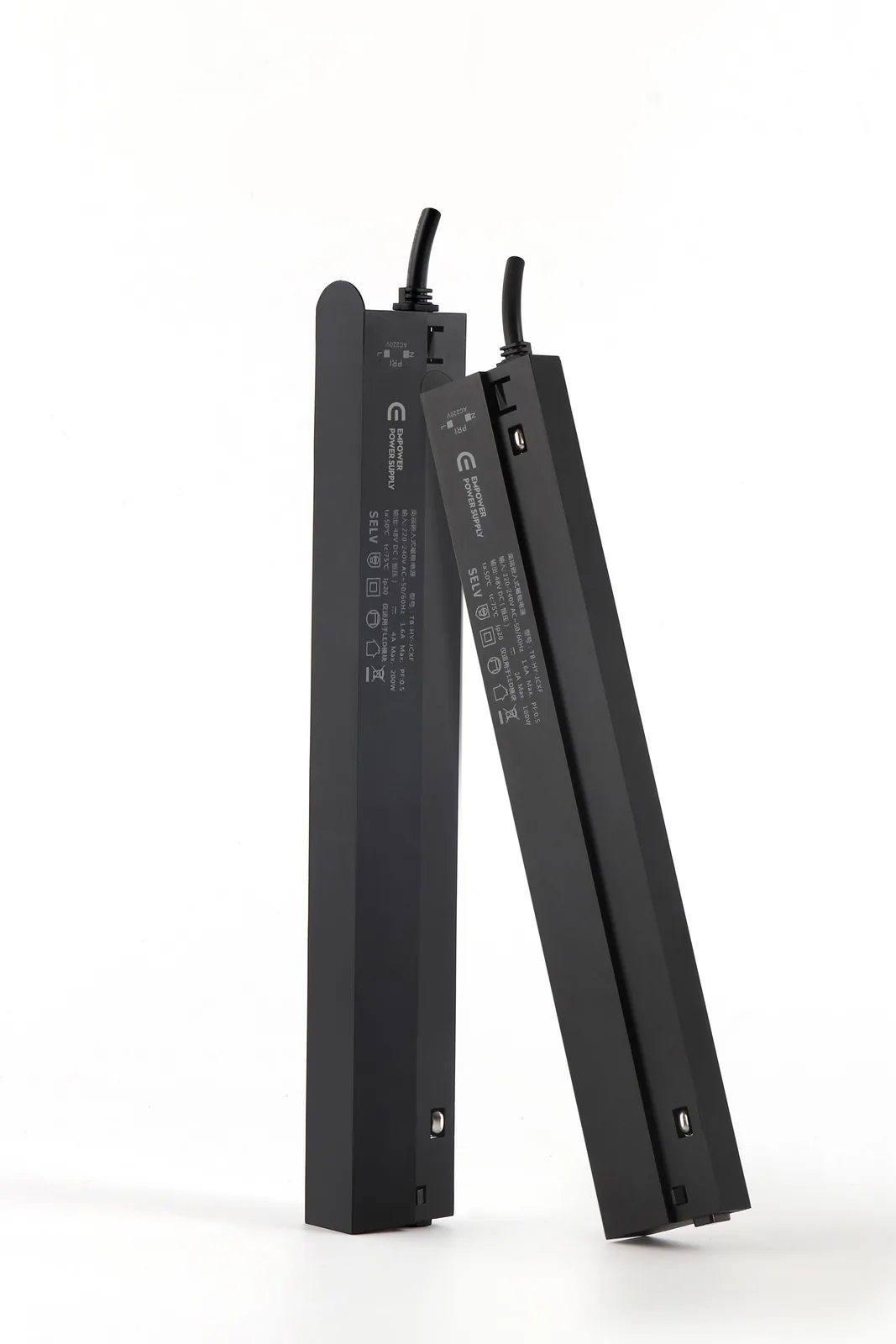

EN-MG48VPS integrated 48V supplies sit on the track itself, in 100W, 200W and 300W. An external supply can be used instead, wired in through the input module.

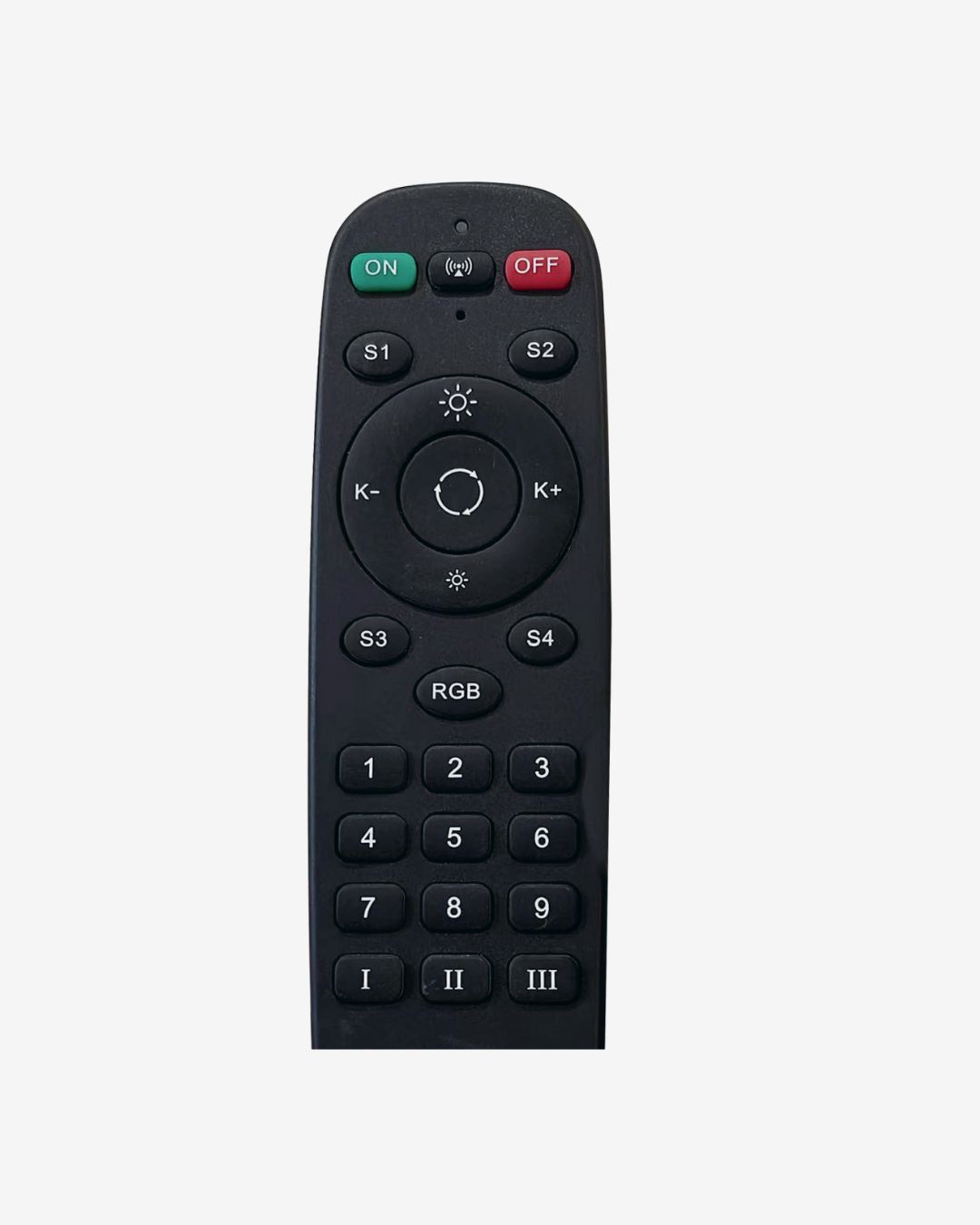

DALI-2 arrives through that four-wire input module; DT6 dimmable and DT8 tunable-plus-dimmable drivers are listed under smart controls, and DALI-2 samples are tested and approved by the automation contractor before an order is placed. The alternative is the CCT tunable and dimmable BTMesh + 2.4G RF driver, listed for CIANA at 6–20W and operated from a YK-25 or YK-16 remote.
Plus 8 further codes and accessories in this range — see the full catalogue.
Spun dome pendants and Acoustic Luminaires can both be built to run on this system — integrated LED only, as a customisation. No separate code or price.
Installing it? Read the installation guide
Still choosing? Planning a 48V magnetic track run
Colour temperature
Colour rendering
System voltage
Mounting
Lumen figures across the range are stated at 4000K, CRI 80.
Fittings move along the track as the layout changes, with no rewiring.
Mix spots, linear and wall washers on one continuous run.
A single ceiling detail that carries several light types at once.
Enlighten Pro controls the manufacturing chain from raw aluminium to finished luminaire — which is why a specification can be held, a finish repeated, and a batch traced.
The tooling behind our castings and extrusions is ours — ADC-12 for pressure die casting, AL6063 for extrusion.
CNC machining centres, VMC, precision lathes and tapping stations. Every cast and extruded component is machined here for final precision.
Our own powder coating line — coated, cured and inspected to exact RAL specifications, so finishes match across a project and across repeat orders.
Send the drawing or the requirement — we will come back with the fitting, the wattage and the finish.
