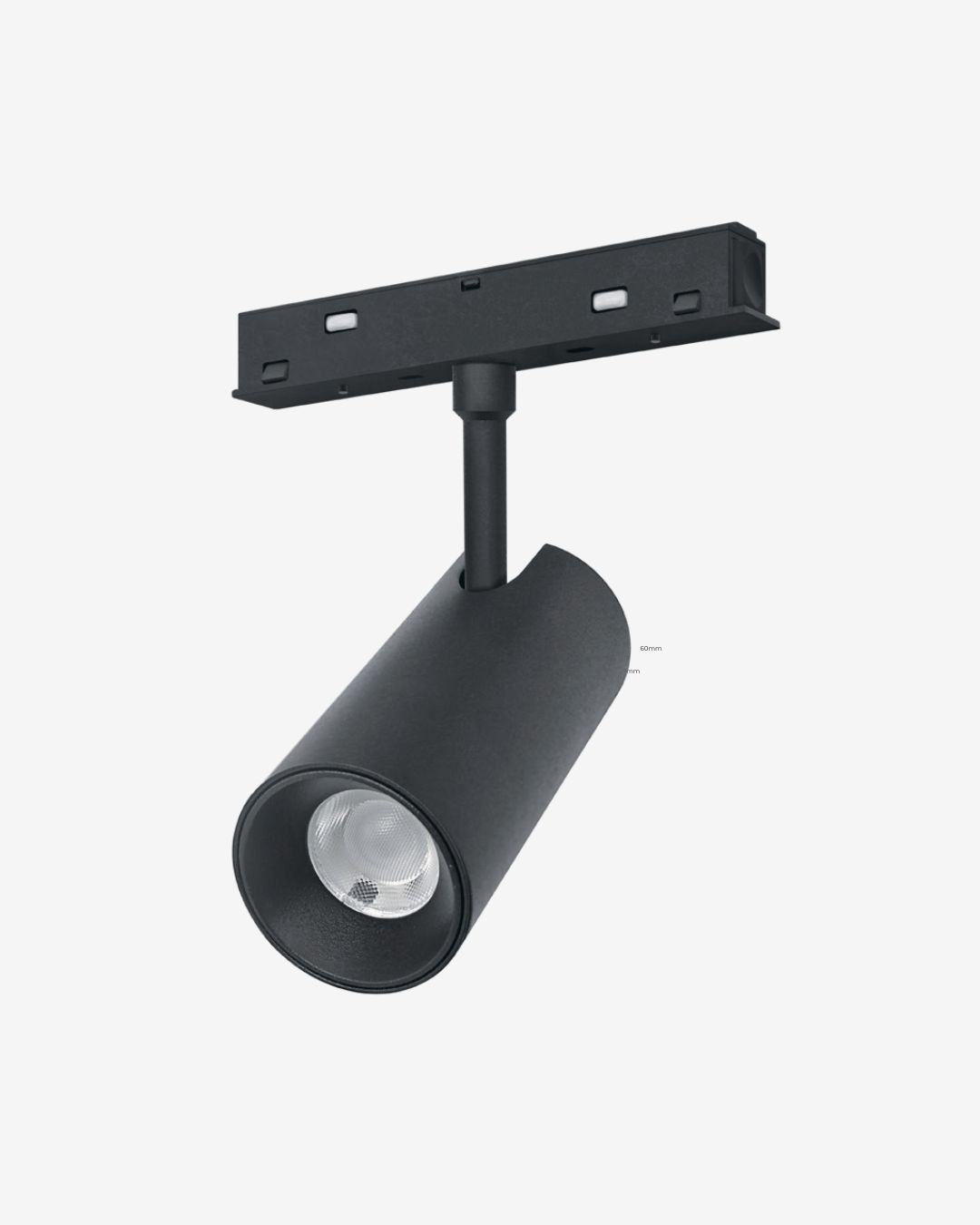

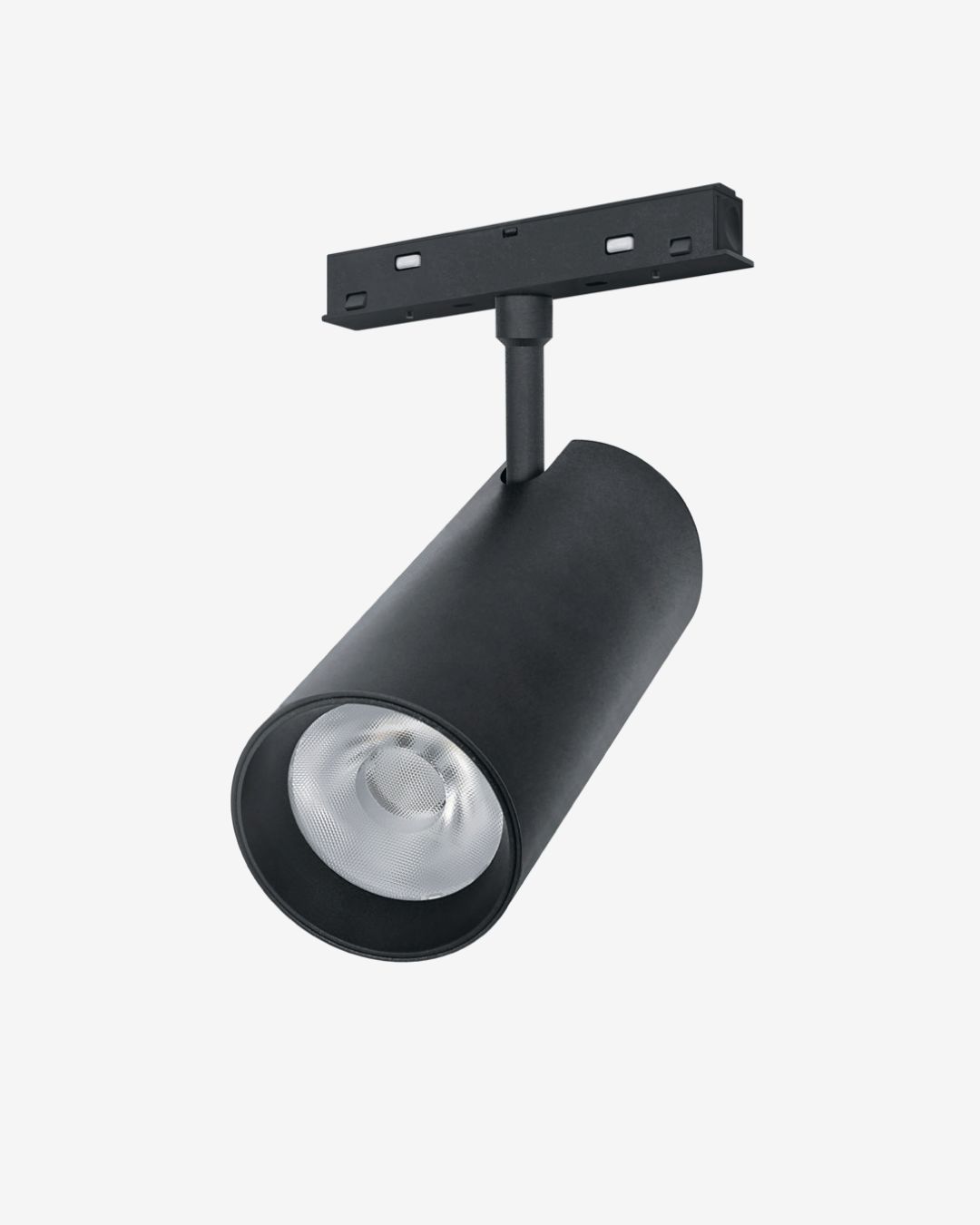

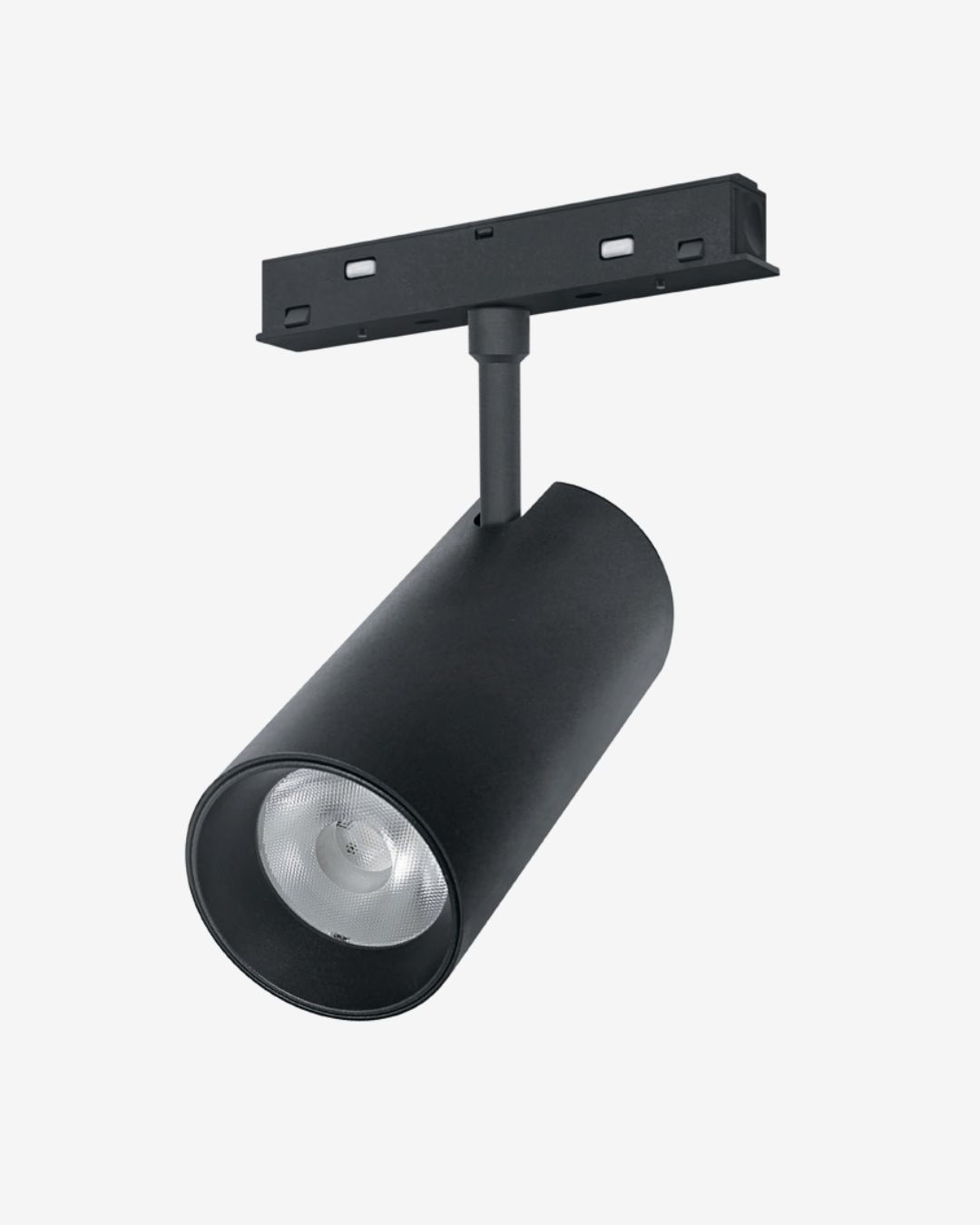

COB Track Light
Model code EN-MGTL
MODEL SIZE INPUT POWER OPTIC CRI BEAM CCT EN-MGTL-07 35 x 80 48V 7W Lens Ra≥90 24° 3000K, 4000K, More EN-MGTL-12 45 x 100 48V 12W Lens Ra≥90 24° 3000K, 4000K, More EN-MGTL-20 55 x 120 48V 20W Lens Ra≥90 24° 3000K, 4000K, More
BODY COLOUR CAN BE CUSTOMISED
Specifications — typical, family defaults
- Type
- 48V magnetic-track luminaire
- Color temperature options
- 3000K · 4000K · 5000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Operating voltage
- 48V DC
- Driver
- Remote 48V · constant current
- Mounting
- Magnetic track
- Finish options
- Black · White
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- IP rating
- IP20
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
