Sonic Beam Bluetooth Speaker
Model code EN-SONIC-BEAM
A 20W Bluetooth speaker that drops onto the track like a spotlight.

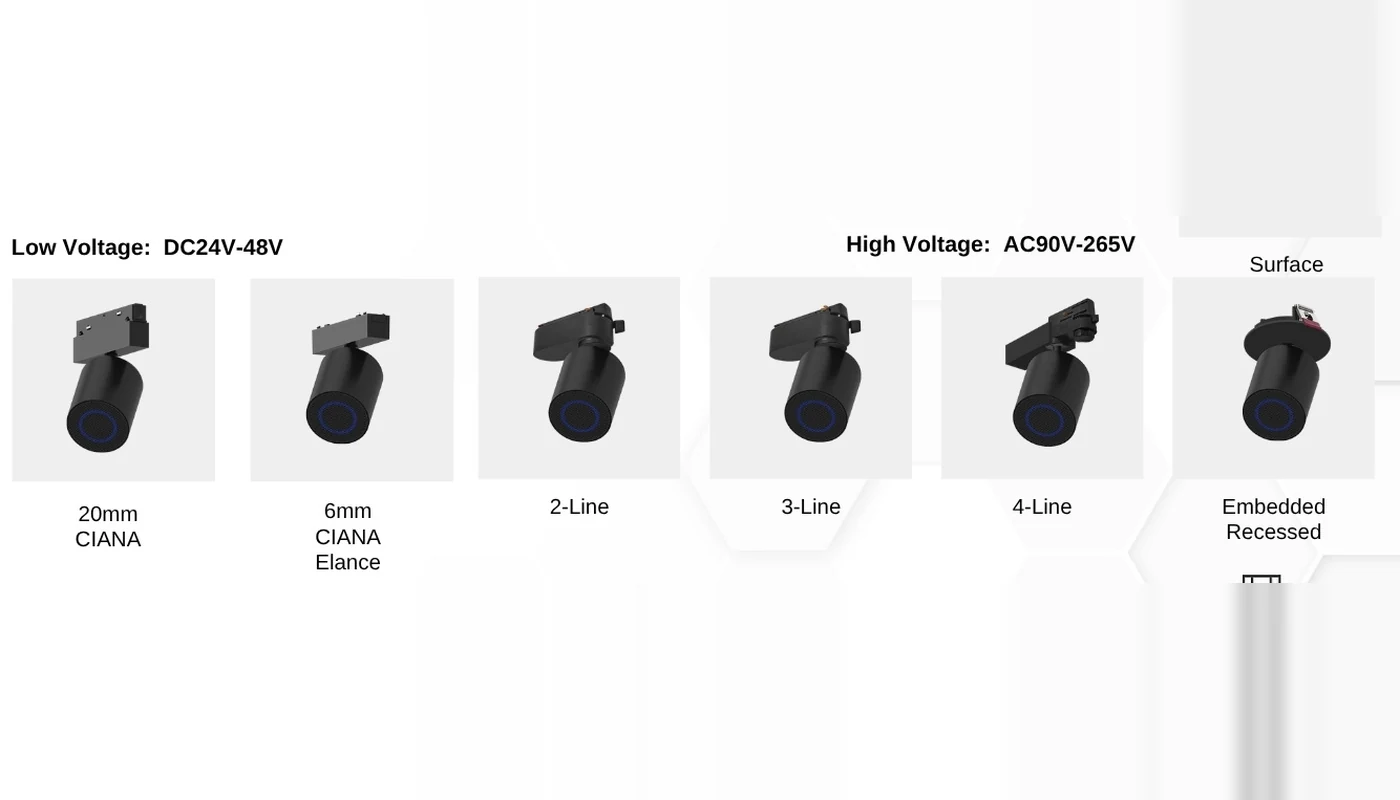

- Mount variants
- 20mm CIANA 48V, 6mm CIANA Elance', TL03 two-line, TL03 three-line, Surface, Recessed
- Body finish
- Matte Black
- Body size
- 65mm dia. · 75mm deep
- Overall length
- 112mm (CIANA 48V), 122mm (Elance' 6mm), 104mm (TL03 track)
- Recessed cut-out
- 75mm dia.
- Output power
- 20W
- Voltage (magnetic mounts)
- DC 24–48V
- Voltage (mains mounts)
- AC 85–265V
- Connectivity
- Bluetooth 5.4
- Frequency response
- 70Hz – 20kHz (±3dB)
- Wireless range
- ≤40m, clear path
- Multi-unit sync

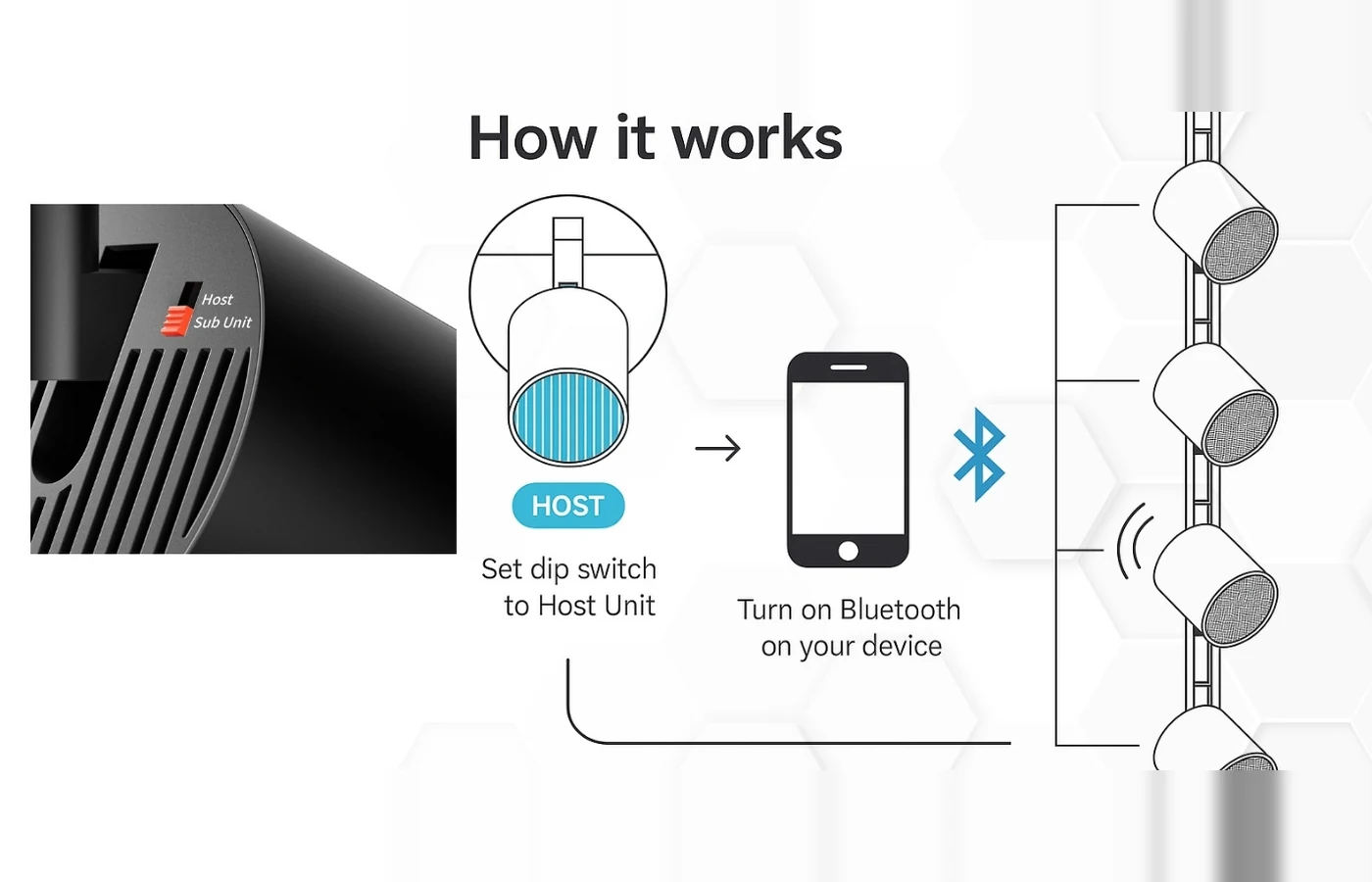

- 3 Host channels + 3 Sub channels, One Host drives any number of Subs
- Speaker
- Full-range driver · vented enclosure
- IP rating
- IP20 (indoor)
- Safety class
- SELV Class III (24–48V mounts)
- Compliance
- RoHS, Bluetooth
- Warranty
- 1 year
- Application
- Hospitality, Retail, Premium residential, Showrooms, Cafés, Studios
Specifications — typical, family defaults
- Type
- Bluetooth speaker for magnetic and mains track
Exact values vary by model and wattage — request the variant datasheet for certified figures.
