Magnetic Track Channels
Model code EN-MGTS
The surface channel and its corner connectors first, then the recessed channel and its own. Each channel is one product in three stock lengths; each code shows its own part beside its own figures.
CIANA track is the 48V channel the system’s luminaires run on, and it comes two ways. The EN-MGTS surface channel mounts onto the ceiling, or hangs from it on the hanging kit. The EN-MGTR recessed channel sets into the ceiling and measures 65 mm over its fins. Both share the same 27 × 55 mm body and the same 23 mm inner opening. Each is listed in 1, 2 and 3 metre lengths, with horizontal-to-horizontal and horizontal-to-vertical corner connectors matched to the mount. The surface channel is extruded from AL6063 virgin ingot at 1.6mm wall thickness, weighs 850 grams per metre, and is wired in 100% red copper.
The range 6 codes
EN-MGTS · Surface channel
1 m · 2 m · 3 m
- Mount
- Surface
- Lengths
- 1 m, 2 m, 3 m — custom lengths to order, billed to the next full metre
- Section
- 27 × 55 mm
- Inner
- 23 mm

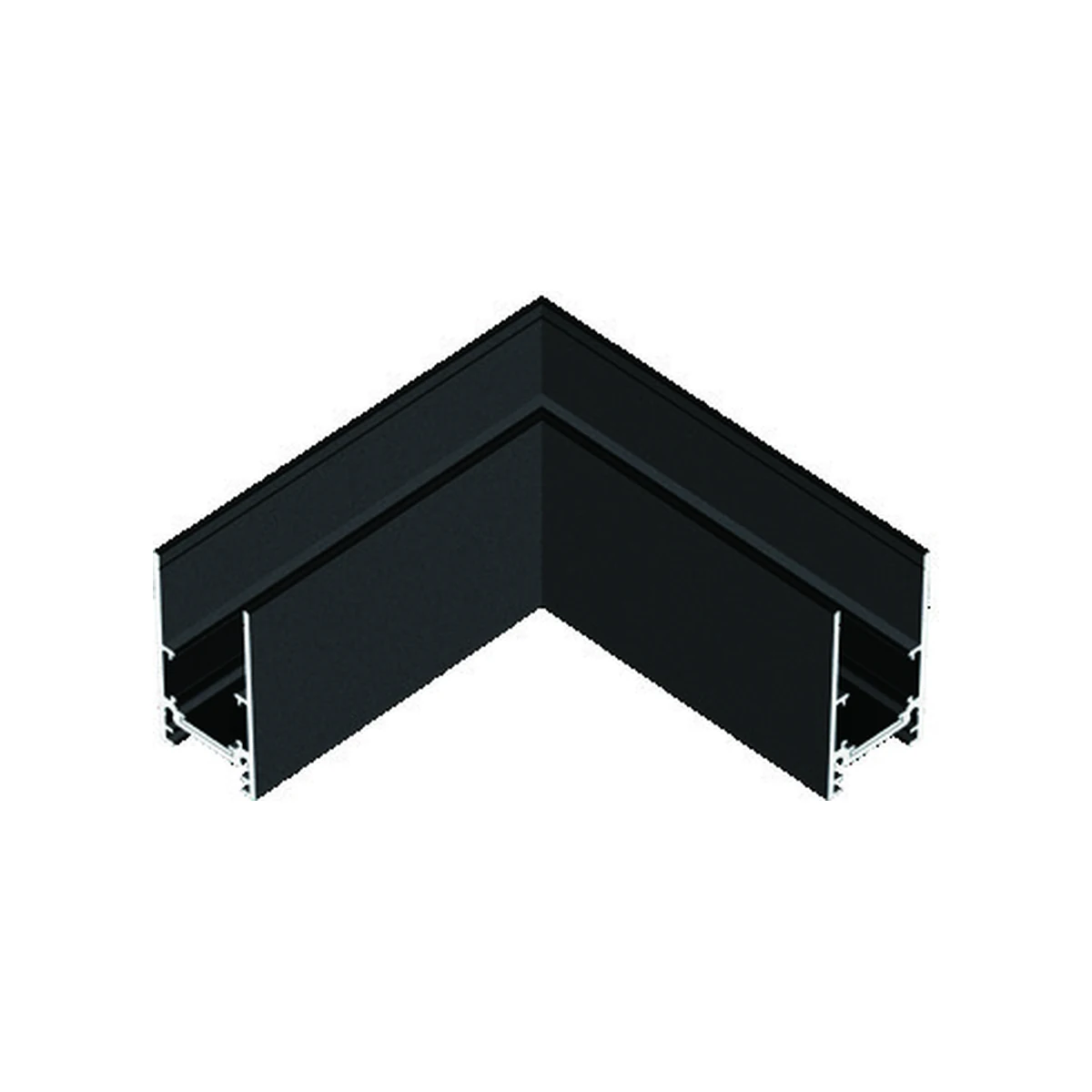

EN-MGCS-HH · Surface corner connector
H → H
- Mount
- Surface
- Turn
- Horizontal to horizontal

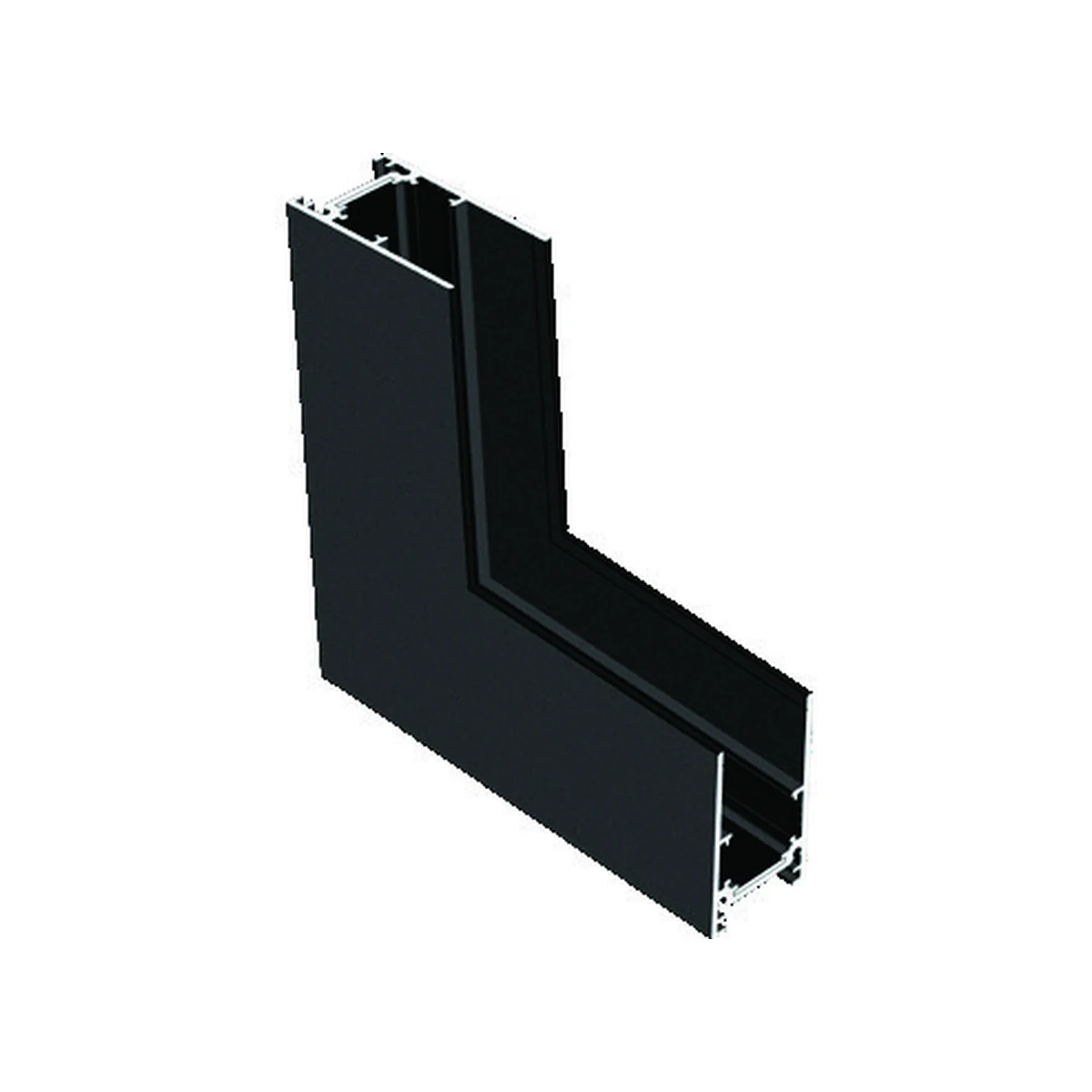

EN-MGCS-HV · Surface corner connector
H → V
- Mount
- Surface
- Turn
- Horizontal to vertical

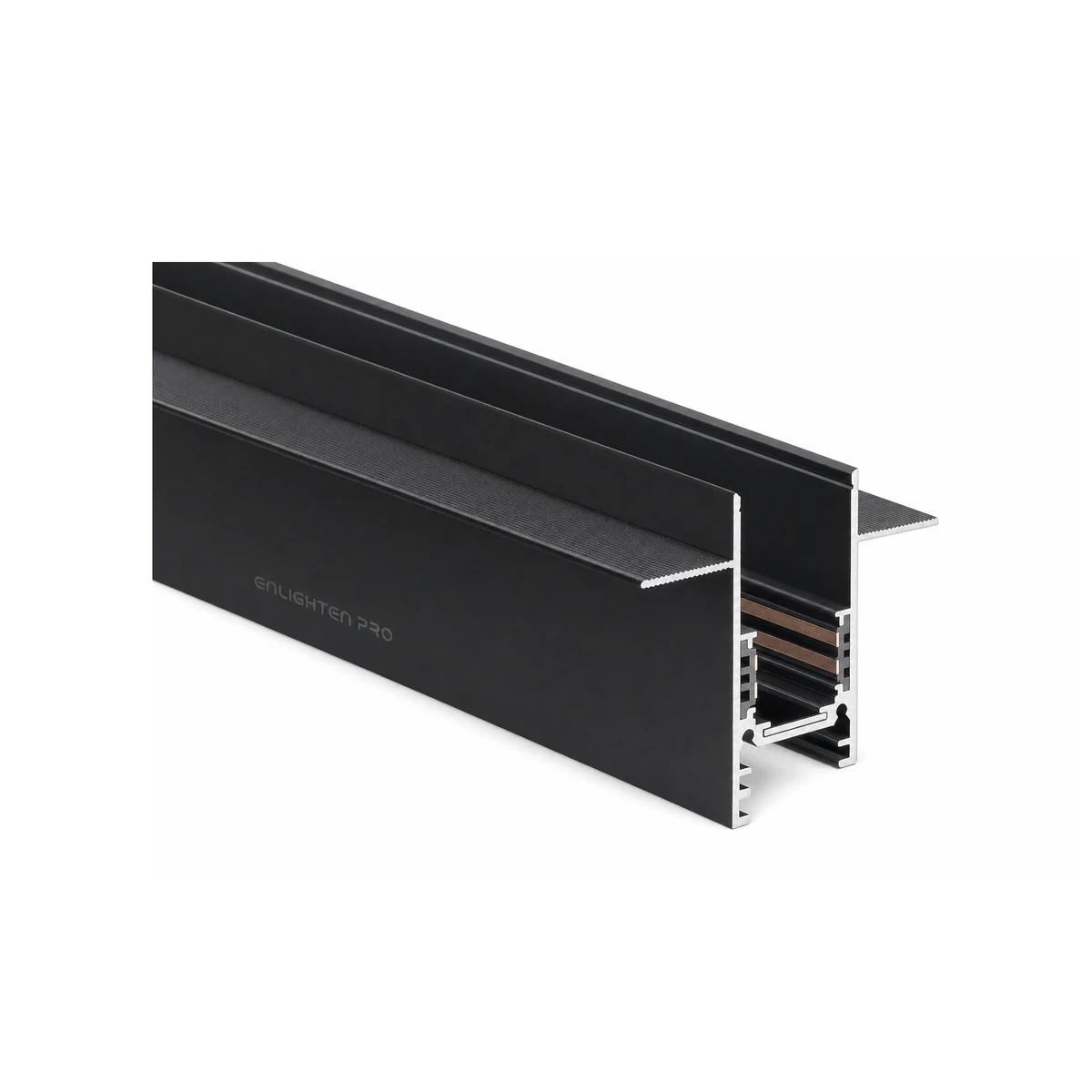

EN-MGTR · Recessed channel
1 m · 2 m · 3 m
- Mount
- Recessed
- Lengths
- 1 m, 2 m, 3 m — custom lengths to order, billed to the next full metre
- Section
- 27 × 55 mm
- Over fins
- 65 mm
- Inner
- 23 mm

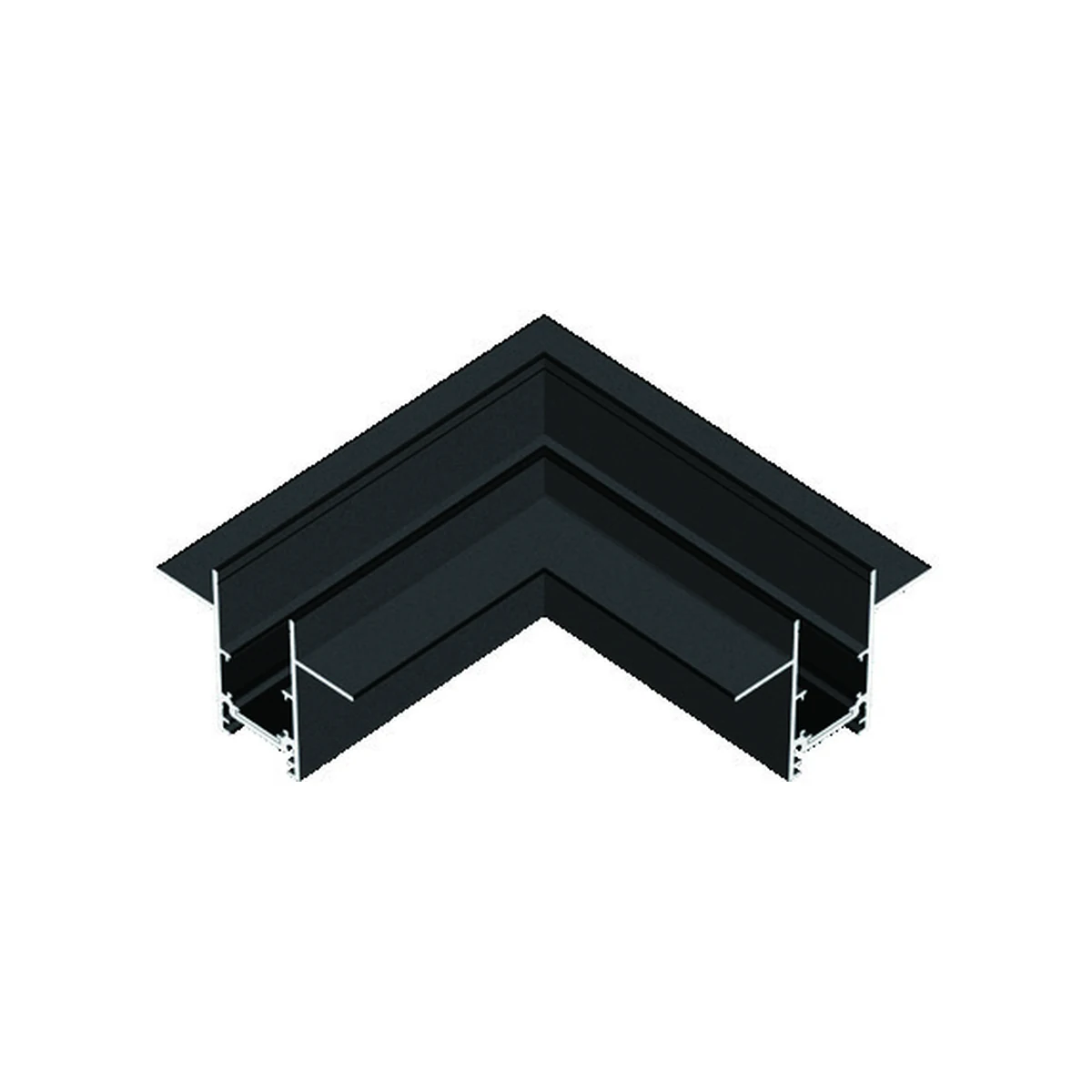

EN-MGCR-HH · Recessed corner connector
H → H
- Mount
- Recessed
- Turn
- Horizontal to horizontal

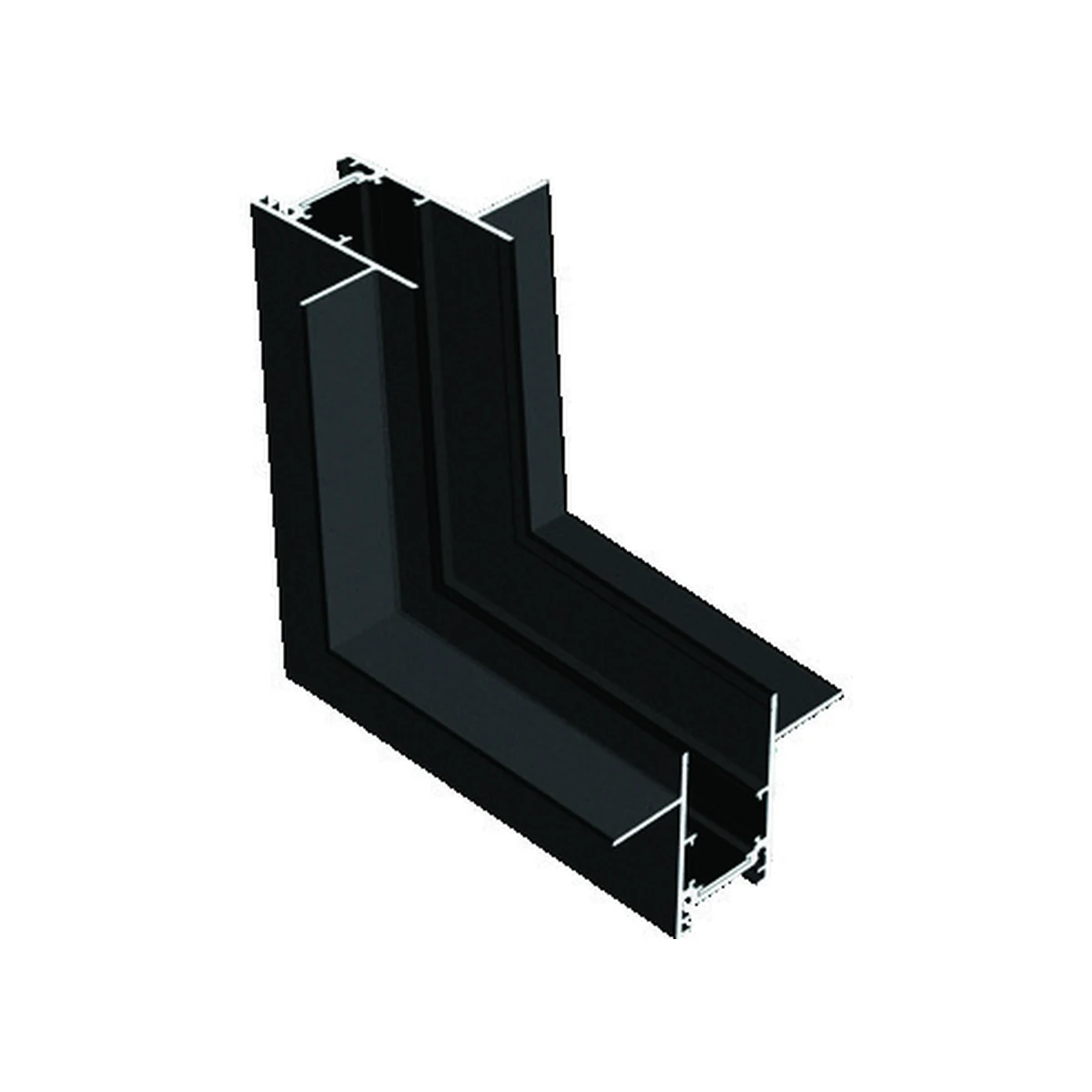

EN-MGCR-HV · Recessed corner connector
H → V
- Mount
- Recessed
- Turn
- Horizontal to vertical
Black as standard; white is a custom finish at additional cost, other colours on request. Track length can be customised to the client’s requirement — billing is rounded up to the nearest full metre.
