IllumiRail Trunking System

Name: IllumiRail Trunking System
Brand: Enlighten Pro
SKU: EN-TR

Model code EN-TR

A pre-wired aluminium spine; luminaires plug in and lock.

The parts 6 parts

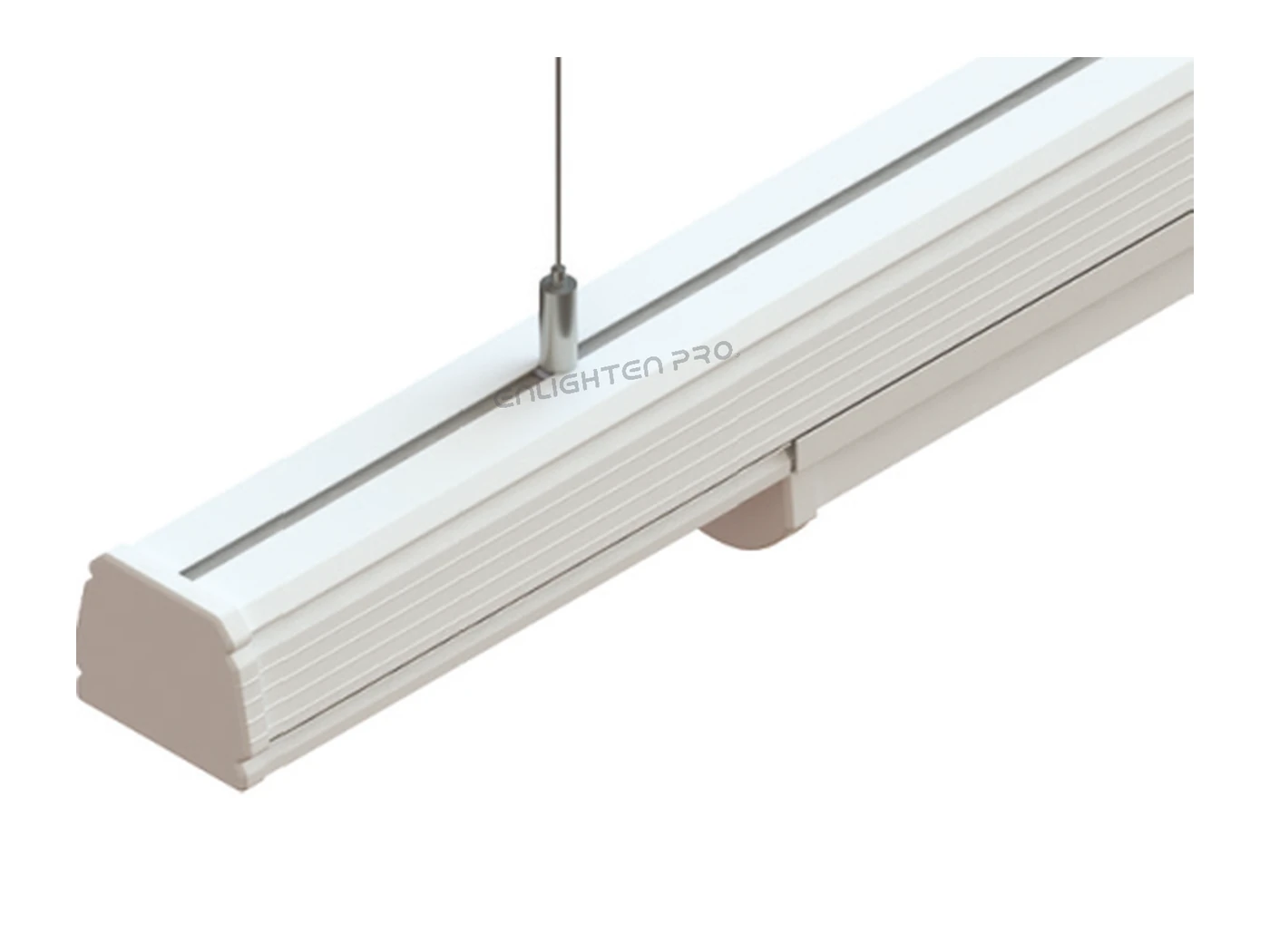

IR-Pre-WiredTrunk · Pre-Wired Trunk

The spine of the run, wired at the factory rather than on site: peak and non-peak circuits in 2 core 1 sq mm, emergency in 2 core 0.75 sq mm. 3-way 10A loop-in / loop-out connectors sit along its length, so a luminaire takes power wherever it lands. Housing in pre-coated CRCA or powder-coated AL6063 extrusion.

1.5 m: 1478 × 62 × 51 mm · 3 connectors
3.0 m: 2955 × 62 × 51 mm · 6 connectors

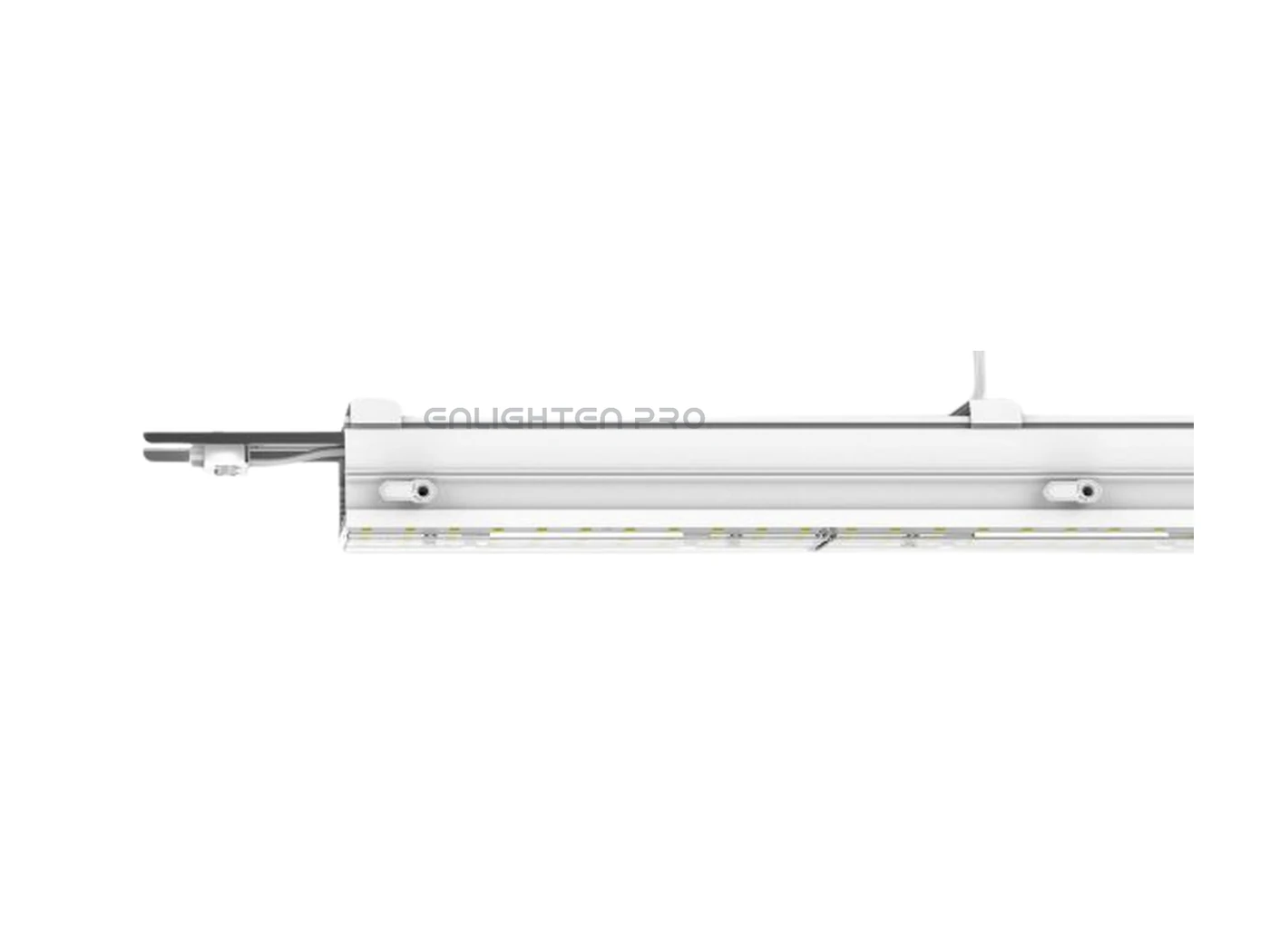

IR-Luminaire · Luminaire

A modular-locking gear tray that drops into the trunk and picks up the nearest connector — no loose wiring at height. Bridgelux 2835 SMD boards on an aluminium extrusion, driven by a Fulham or Osram driver.

Body: 1179 × 60 × 46 mm
Wattage: 32W
CCT: 3000K · 4000K · 5000K · 6000K

Applications

Warehouses and distribution centres
Industrial sheds and production halls
Open-plan offices
Retail floors and supermarkets
