LightStream
Model code EN-SMD2835
A 2835-package flexible strip on UL-listed FPCB, assembled in Mumbai. Nine codes across 12 V and 24 V, 5 to 10 mm board widths.
Every code gets its own drawing and its own figures in one block. All nine are drawn to a single scale, so board width and LED density are directly comparable down the page — a 5 mm board is drawn half the thickness of a 10 mm one, and covers less of the width because the same run of strip is physically shorter on screen.
LightStream is Enlighten Pro's flexible strip range: a 2835-package LED on UL-listed flexible printed circuit board, assembled at our Mumbai factory and supplied on 5 m reels. Choose by supply voltage, LED density and board width — a 5 mm board tucks into a slim cove or profile, while the 10 mm boards carry the higher densities and heavier copper for longer runs. Every code is cuttable at marked segment boundaries, and each one's figures are listed with its own drawing in the range below. Pi film (IP-rated potting) is available to order on any code.
The range 9 codes

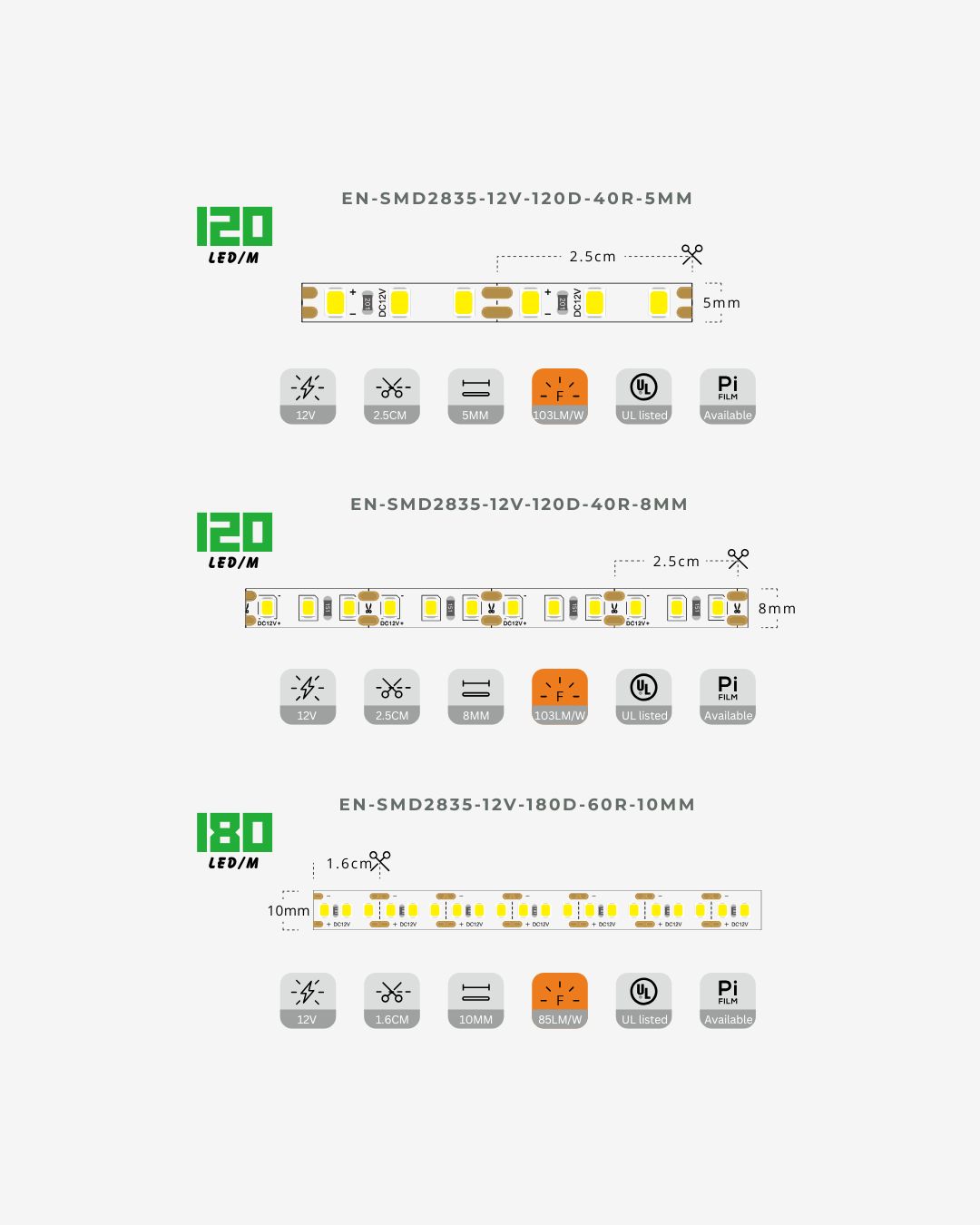

EN-SMD2835-12V-120-5MM · 12 V · 120 LED/m · 5 mm board
- LEDs / metre
- 120
- Supply
- 12 V DC
- Board width
- 5 mm
- Cut length
- 2.5 cm
- LEDs / segment
- 3
- Efficacy
- 103 lm/W
- Copper
- 2.5 oz
- Energy class
- F
EN-SMD2835-12V-120-8MM · 12 V · 120 LED/m · 8 mm board
- LEDs / metre
- 120
- Supply
- 12 V DC
- Board width
- 8 mm
- Cut length
- 2.5 cm
- LEDs / segment
- 3
- Efficacy
- 103 lm/W
- Copper
- 2.25 oz
- Energy class
- F
EN-SMD2835-12V-180 · 12 V · 180 LED/m · 10 mm board
- LEDs / metre
- 180
- Supply
- 12 V DC
- Board width
- 10 mm
- Cut length
- 1.67 cm
- LEDs / segment
- 3
- Efficacy
- 85 lm/W
- Copper
- 2.25 oz
- Energy class
- F

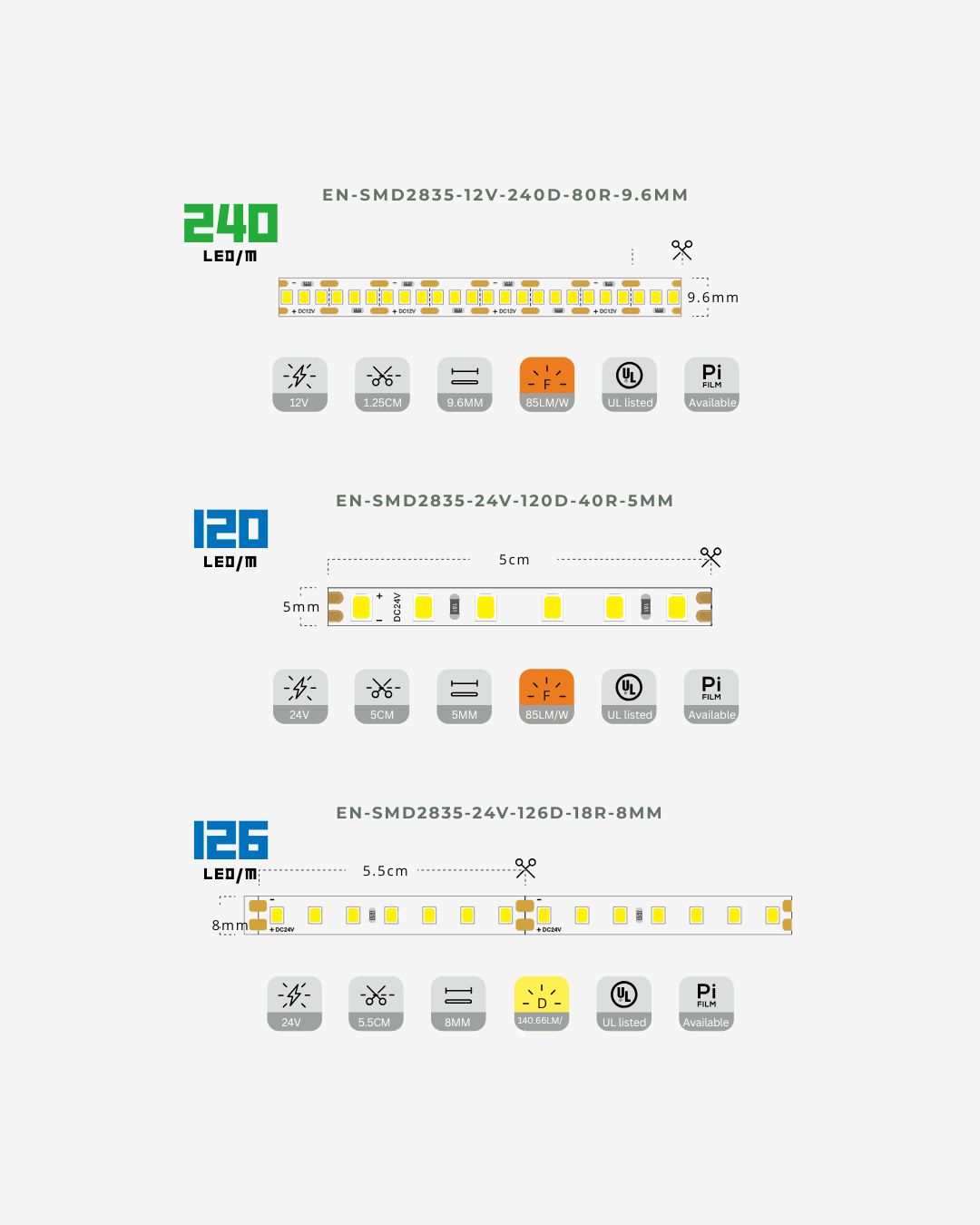

EN-SMD2835-12V-240 · 12 V · 240 LED/m · 9.6 mm board
- LEDs / metre
- 240
- Supply
- 12 V DC
- Board width
- 9.6 mm
- Cut length
- 1.25 cm
- LEDs / segment
- 3
- Efficacy
- 85 lm/W
- Copper
- 2.25 oz
- Energy class
- F
EN-SMD2835-24V-120 · 24 V · 120 LED/m · 5 mm board
- LEDs / metre
- 120
- Supply
- 24 V DC
- Board width
- 5 mm
- Cut length
- 5.0 cm
- LEDs / segment
- 6
- Efficacy
- 85 lm/W
- Copper
- 3.0 oz
- Energy class
- F
EN-SMD2835-24V-126 · 24 V · 126 LED/m · 8 mm board
- LEDs / metre
- 126
- Supply
- 24 V DC
- Board width
- 8 mm
- Cut length
- 5.56 cm
- LEDs / segment
- 7
- Efficacy
- 140.66 lm/W
- Copper
- 3.5 oz
- Energy class
- D

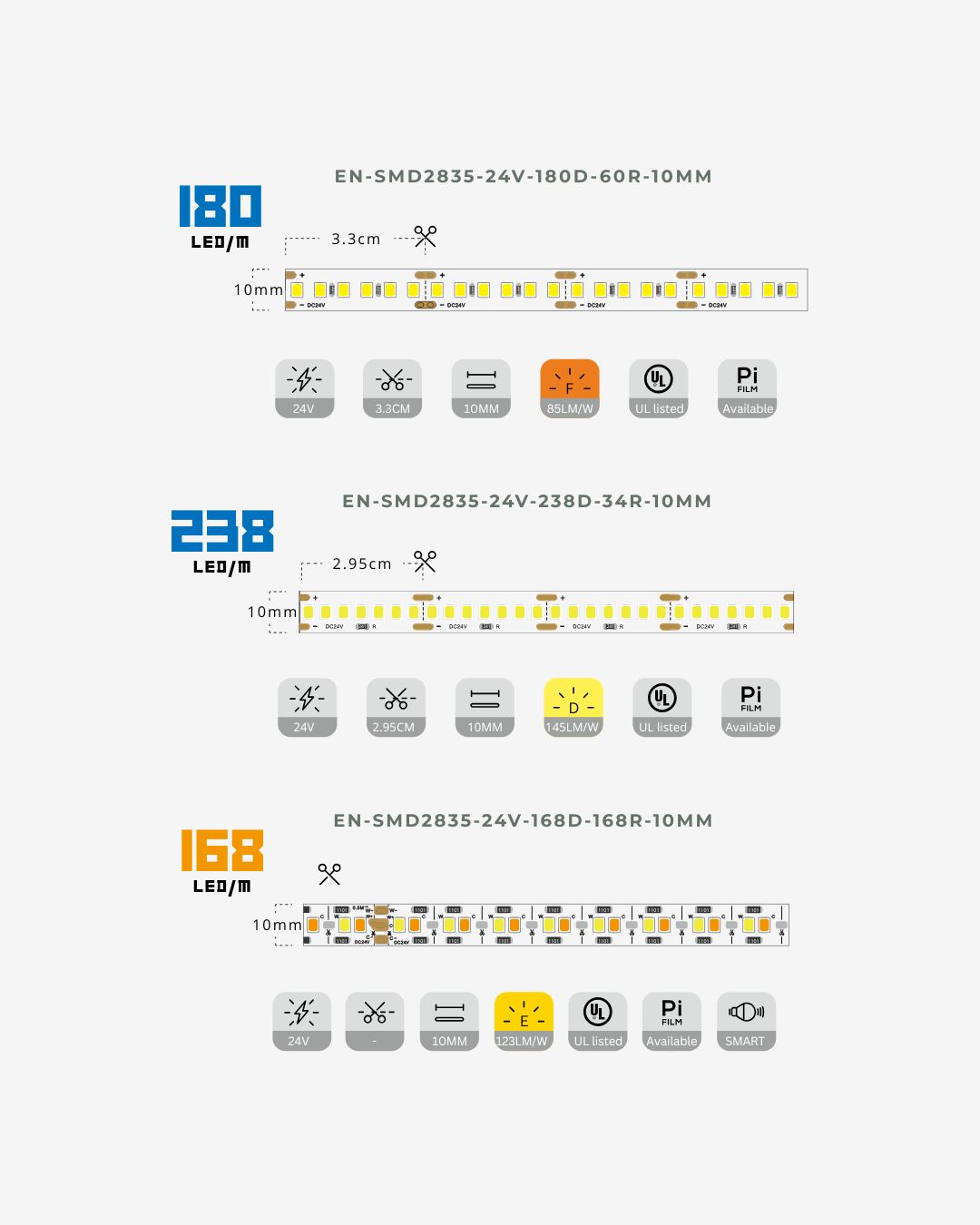

EN-SMD2835-24V-180 · 24 V · 180 LED/m · 10 mm board
- LEDs / metre
- 180
- Supply
- 24 V DC
- Board width
- 10 mm
- Cut length
- 3.33 cm
- LEDs / segment
- 6
- Efficacy
- 85 lm/W
- Copper
- 2.75 oz
- Energy class
- F
EN-SMD2835-24V-238 · 24 V · 238 LED/m · 10 mm board
- LEDs / metre
- 238
- Supply
- 24 V DC
- Board width
- 10 mm
- Cut length
- 2.94 cm
- LEDs / segment
- 7
- Efficacy
- 145 lm/W
- Copper
- 3.9 oz
- Energy class
- D
EN-SMD2835-24V-2IN1 · 24 V · 168 LED/m · 2-in-1 tunable white
2-in-1 tunable
- LEDs / metre
- 168
- Supply
- 24 V DC
- Board width
- 10 mm
- Cut length
- ~1.2 cm
- LEDs / segment
- 2
- Efficacy
- 123 lm/W
- Copper
- 3.9 oz
- Energy class
- E
All codes are built on UL-listed flexible PCB and supplied on 5 m reels. Pi film (IP-rated potting) is available to order on any code. Cut only at the marked segment boundaries — cutting elsewhere disables that segment.
