CIANA Elance' — Fabric Belt System
Model code EN-CEWT-20M
Every part with its size. Drawings are in millimetres.
The parts 9 parts

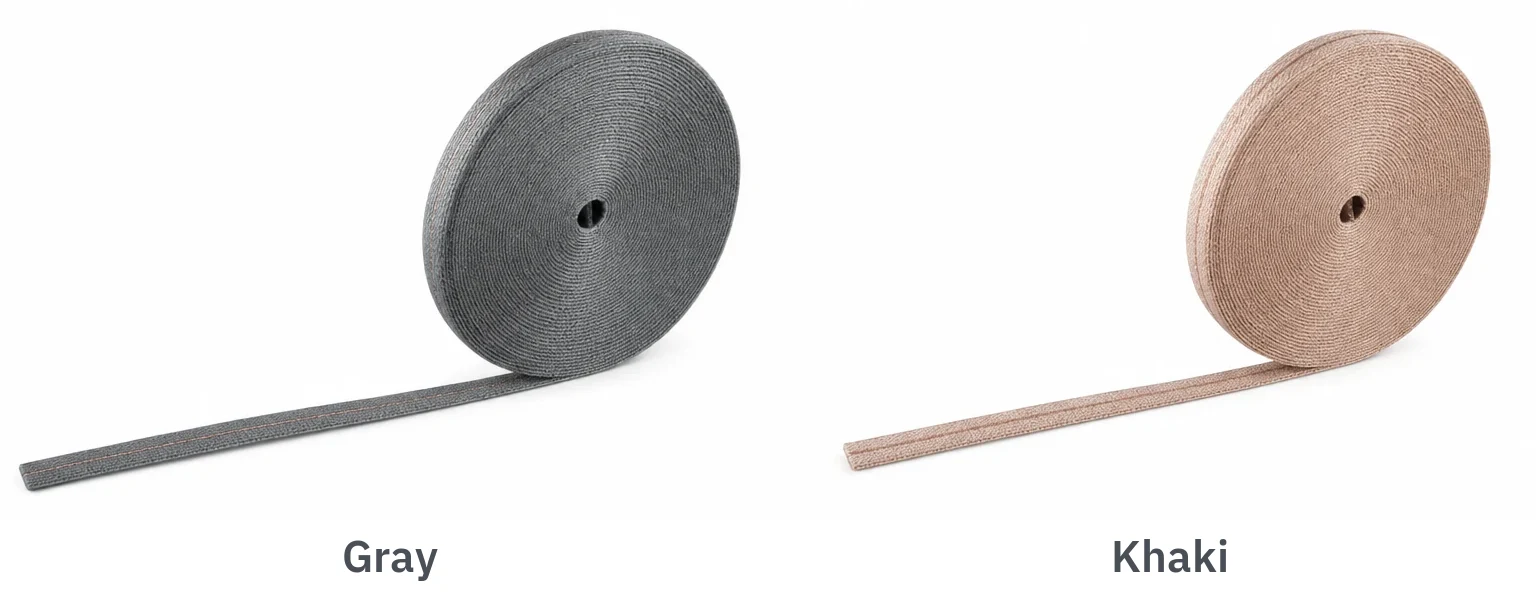

EN-CEWT-20M · Fabric Belt
- Size
- 16.5 × 3 mm
- Colours
- Gray, khaki
- Supply
- 30 m rolls · 10 m minimum
- Load
- 48V · 4.2A / 200W max

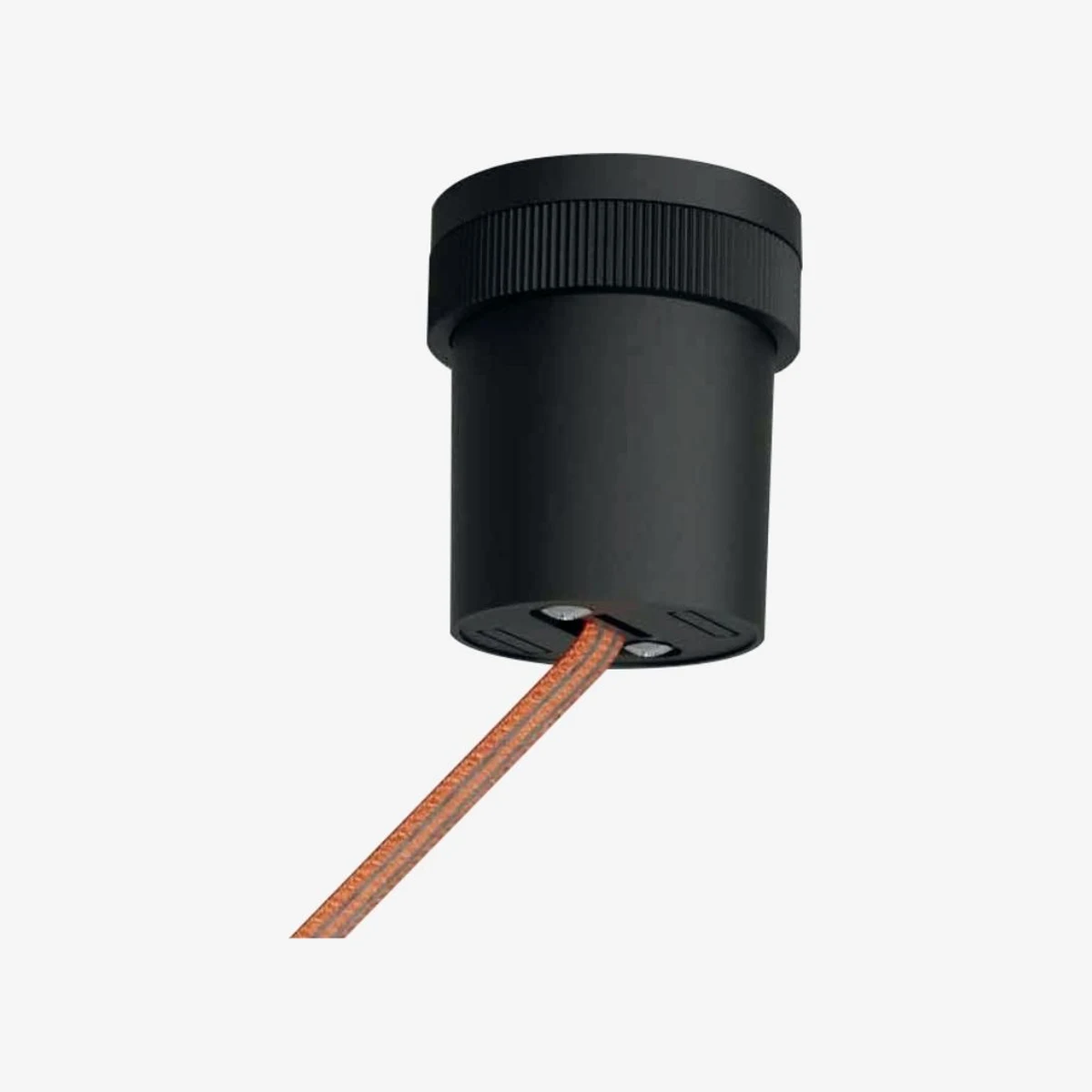

EN-CEPDYT · Large Fixed Node
- Size
- Φ60 × 69 mm
- Does
- Anchors the run; brings power in, turns, splits or joins belts. The only node that carries power
- Mounts
- Ceiling, wall or floor
EN-CEPDGK · Small Fixed Node
- Size
- 40 × 30 × 11 mm
- Does
- Holds and adjusts the belt. No power passes through it

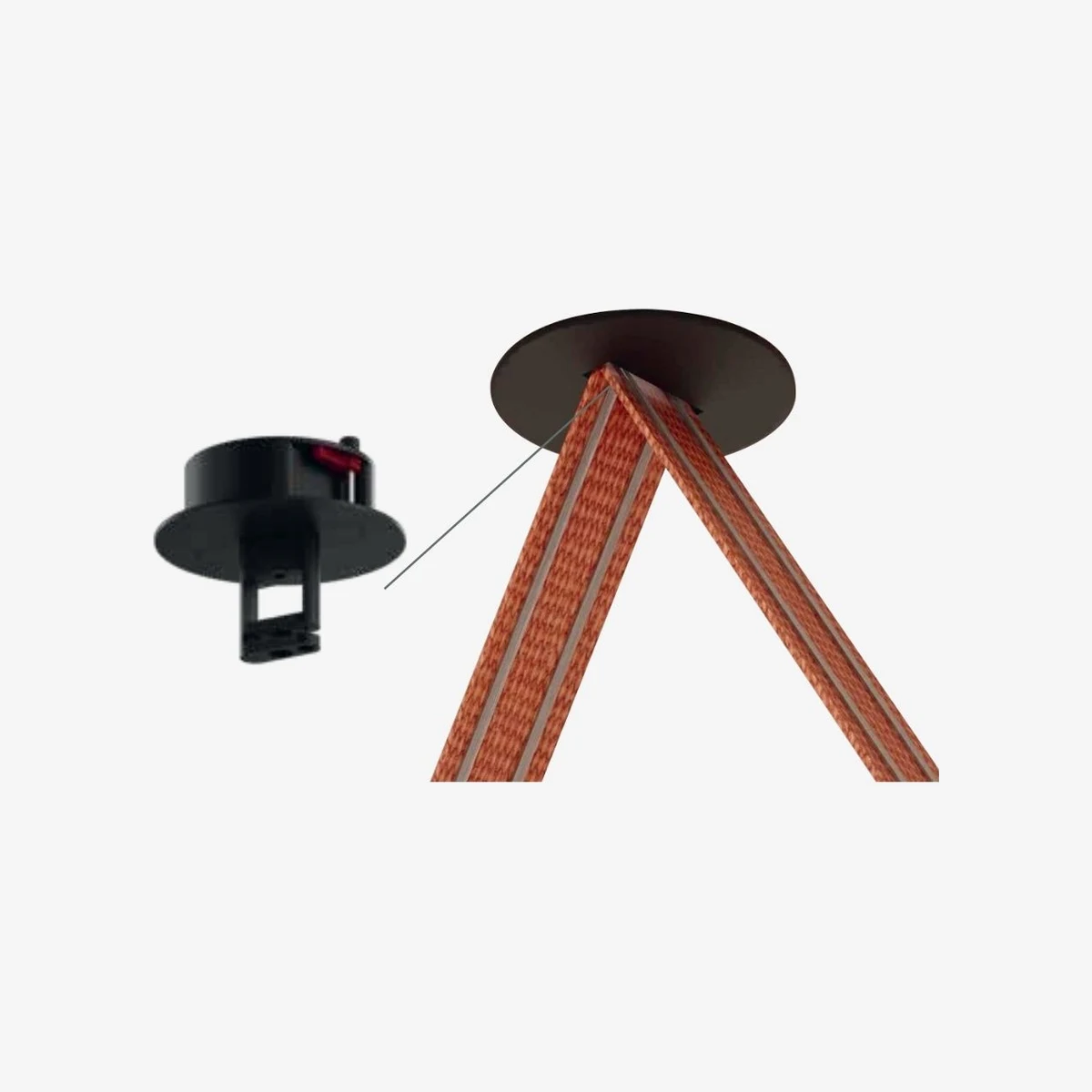

EN-CEPDQR · Recessed Node
- Size
- Φ86 × 27 mm
- Hole
- Φ65–75 mm
- Does
- The anchor, flush with the ceiling
EN-CESJK · Woven Buckle
- Size
- 26 × 10 × 6 mm
- Does
- Clamps the belt to shape it, and closes the end of a run

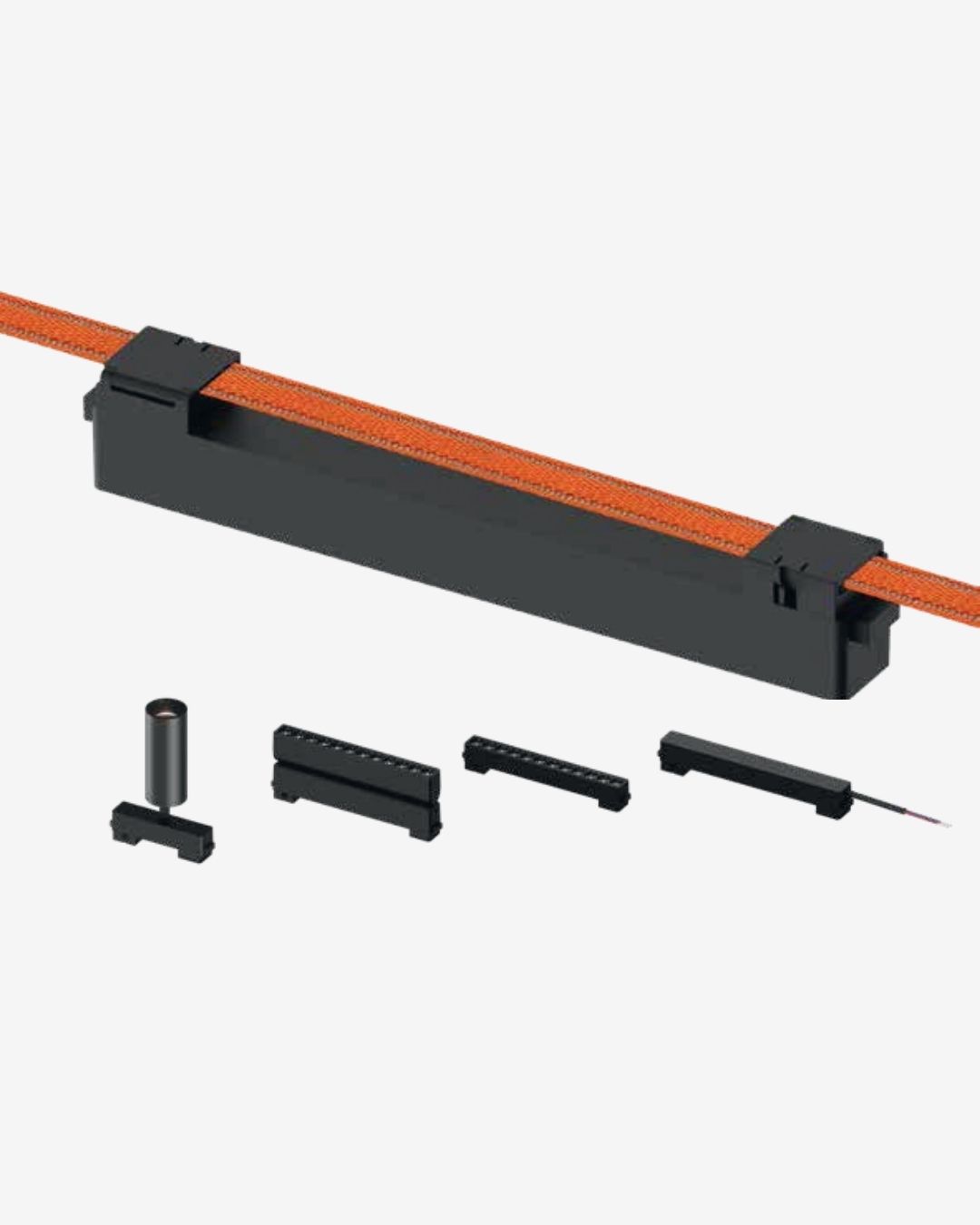

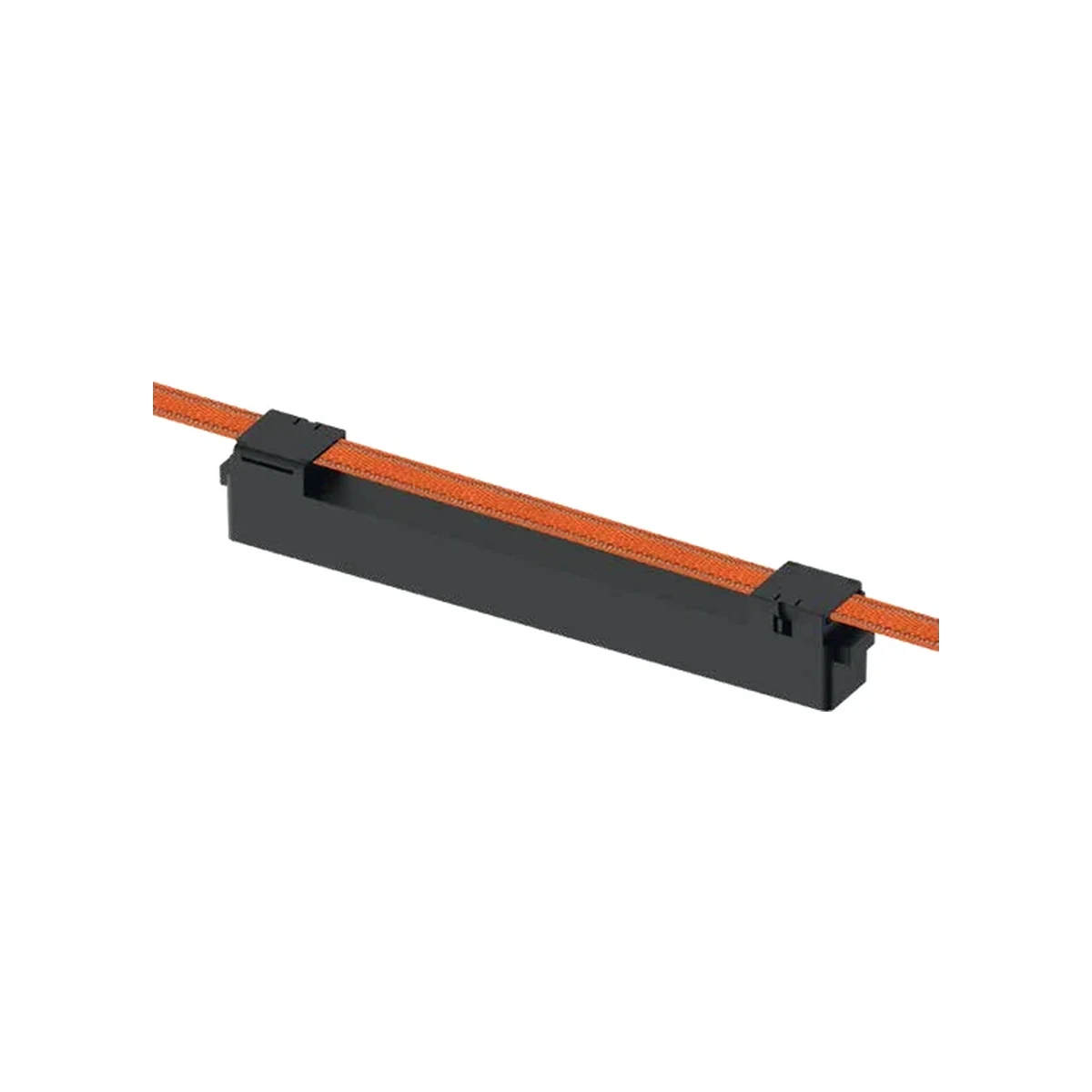

EN-CEPDDK · Linker
- Size
- 27 × 27 × 10 mm
- Does
- Two per luminaire: lets an Elance' 6mm luminaire sit on the belt

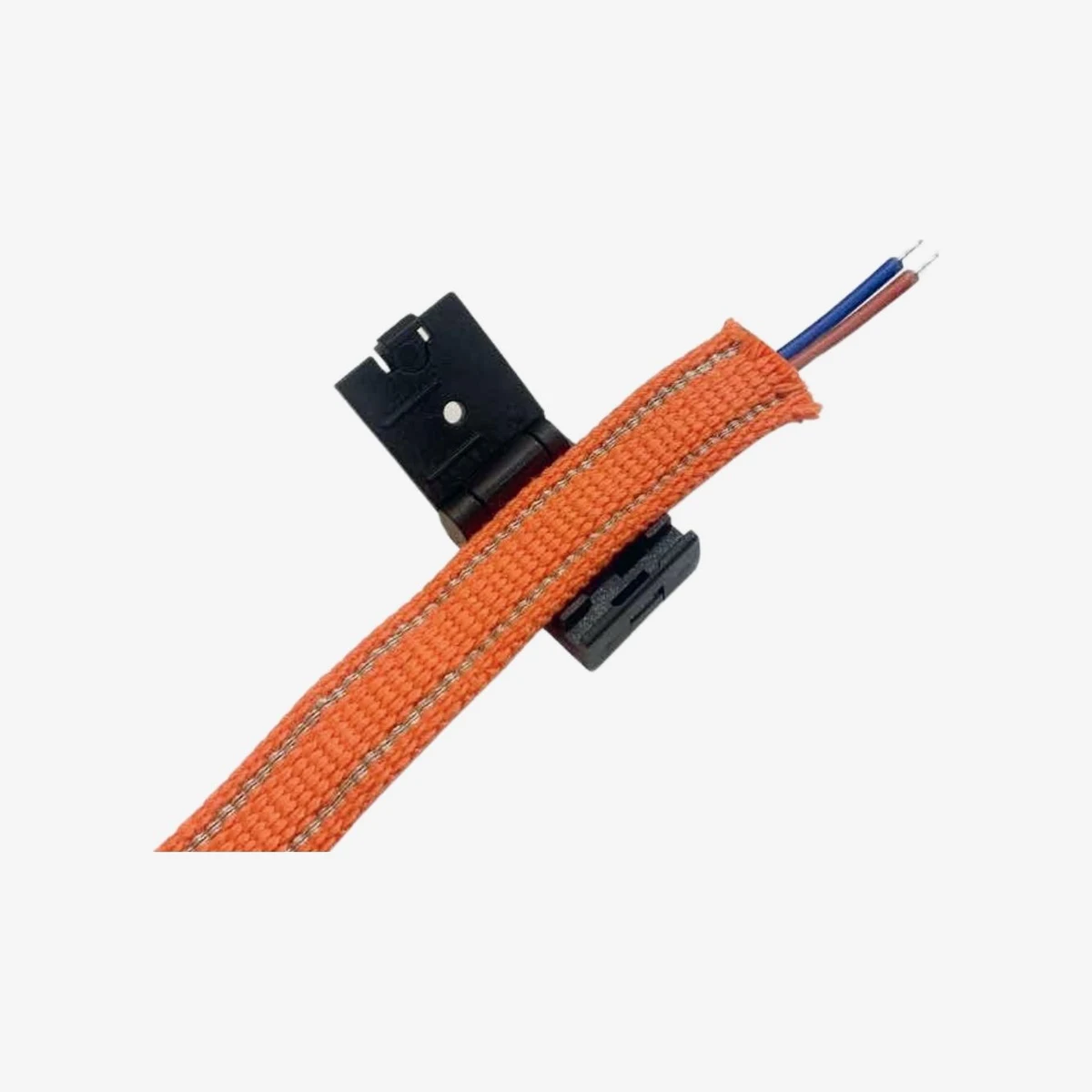

EN-CEPDSR · Braid Track Input
- Size
- 65 × 22 × 31 mm
- Does
- Brings 48V into the belt from a supply above the ceiling

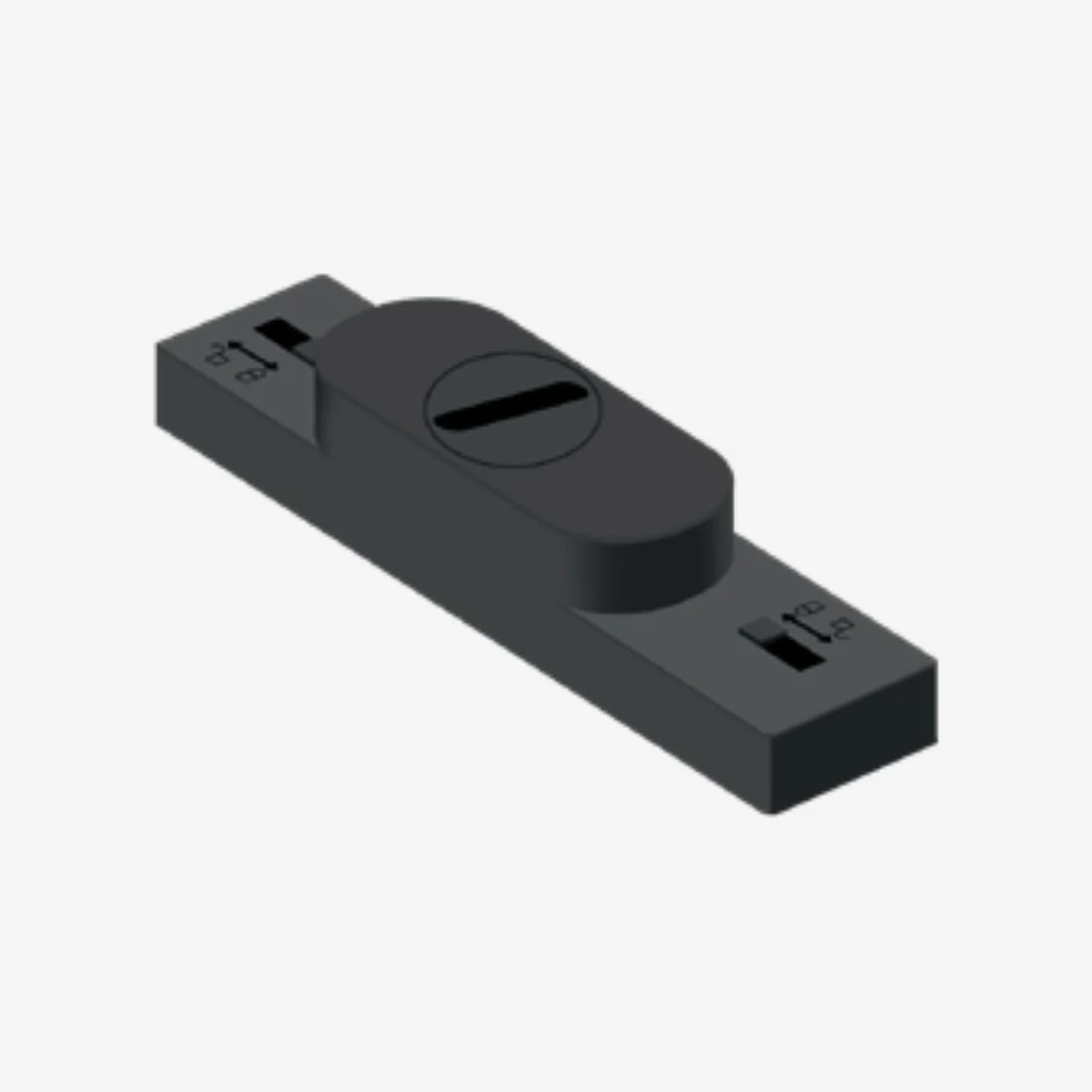

EN-GDH · Track Connection Box
- Size
- 112 × 26 × 25 mm
- Does
- Takes 48V off an aluminium track and passes it into the belt

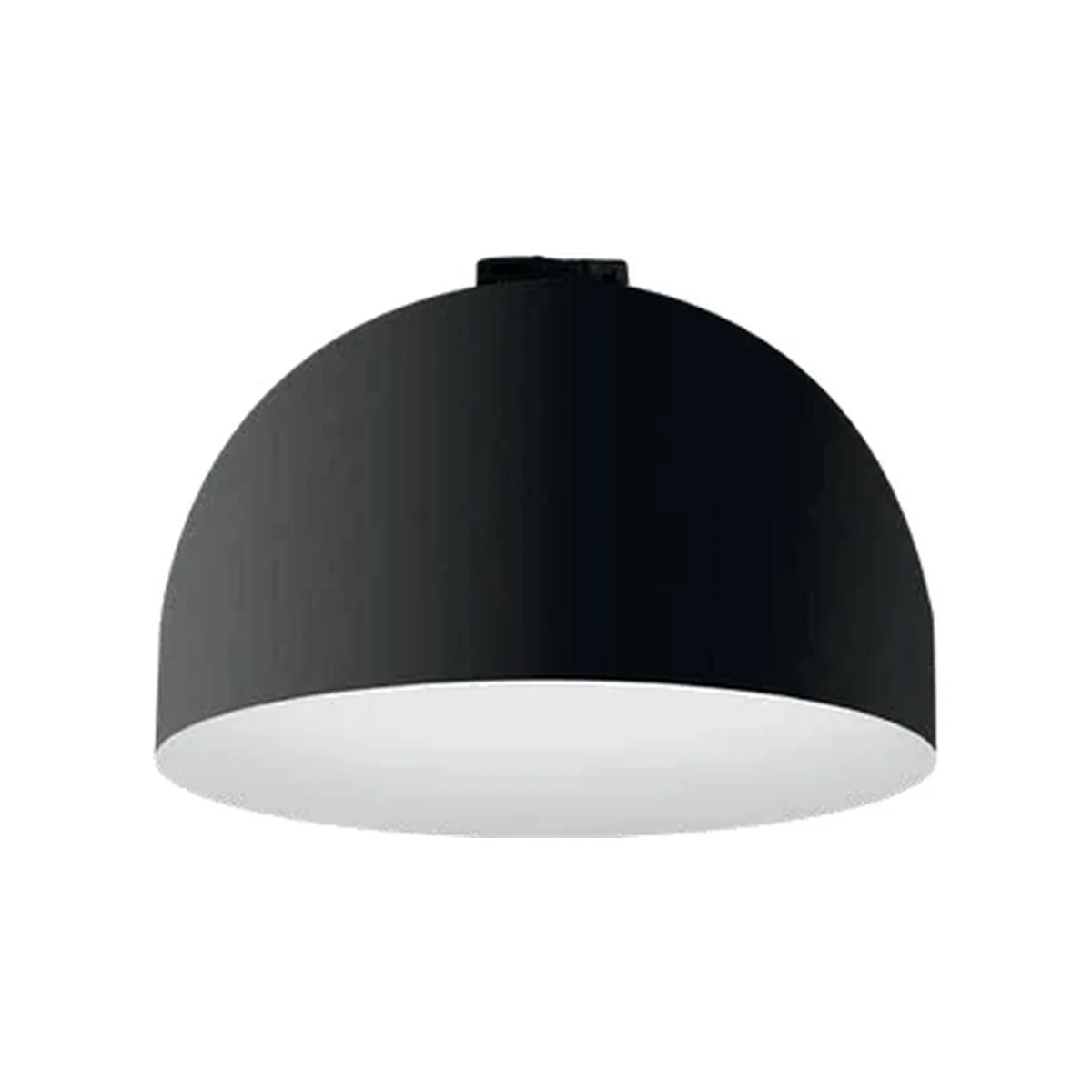

EN-CEPDTK D300 · Dome Luminaire
18W
- Power
- 18W
- Size
- Φ300 × 165 mm
- Use
- The largest of the belt-mounted luminaires; hangs from a fixed node
