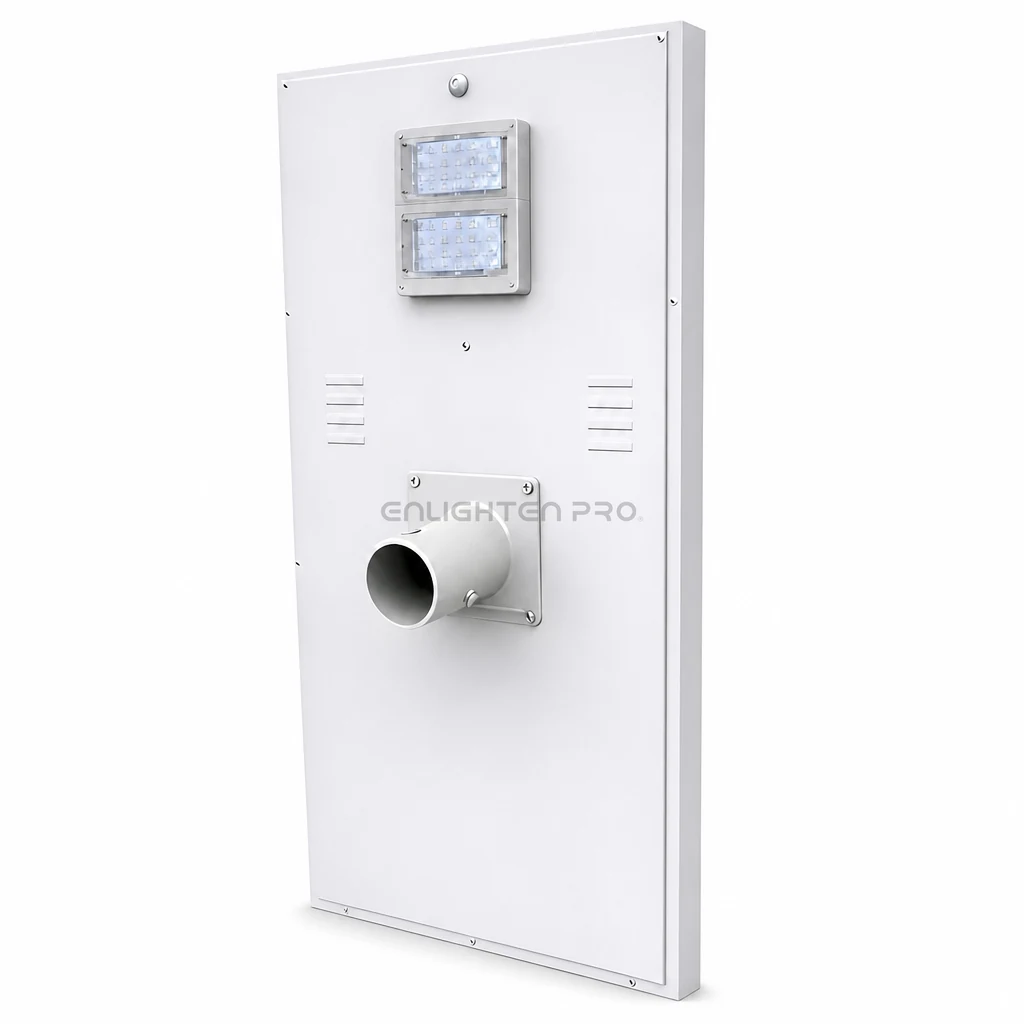

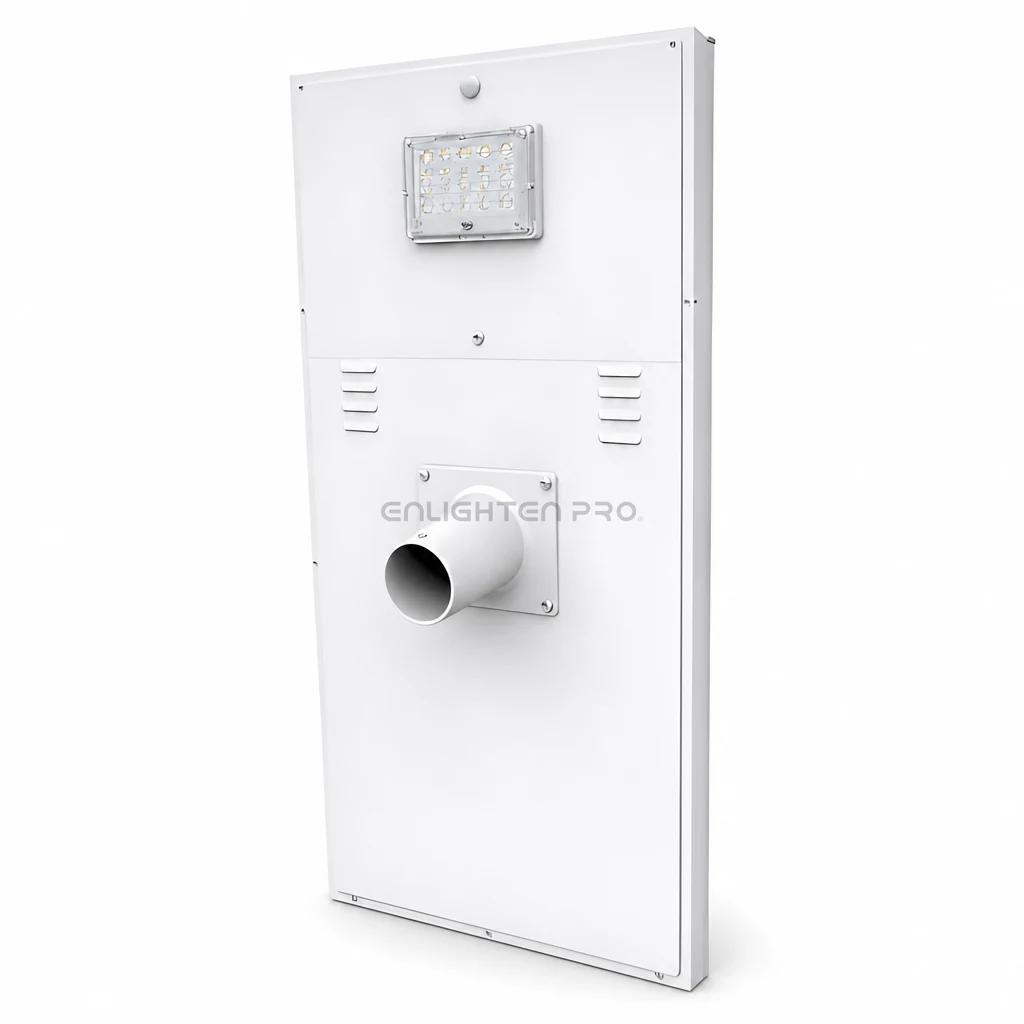

Integrated Solar Street Light (EN-SSL-IN)

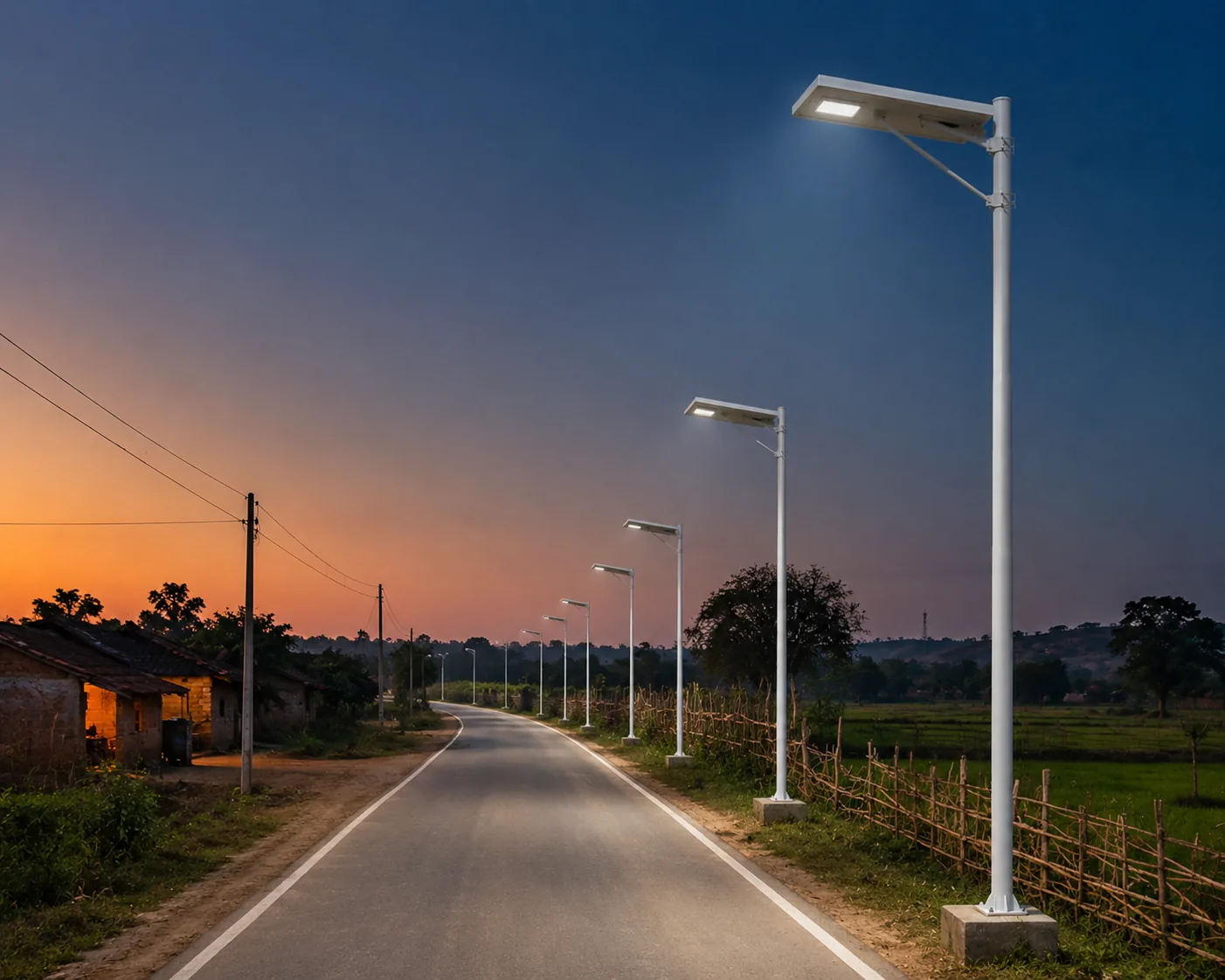

A true all-in-one solar street light — panel, LiFePO4 battery, MPPT controller and LED are sealed into one slim body, so the whole fixture goes up on a single bracket with nothing to wire on site. It is the fastest way to light a road, pathway or compound where running cable simply is not practical.

Nine sizes span 9 W to 100 W. Each is matched to its own lithium battery and mono-crystalline panel for two nights of autonomy, and runs fully automatic from dusk to dawn with zero running cost.

Why specify it

• One-piece install. Panel, battery, controller and luminaire in a single housing — one bracket, one person, a few minutes per pole.
• No exposed wiring. Fewer external joints means fewer failure points and a cleaner line against the sky.
• The same proven core. The BIS-certified LiFePO4 battery, IEC-certified MPPT controller and MNRE/BIS-approved mono-crystalline panel carry straight over from our semi-integrated range.
• Wide, even light. LEDs at 120–150 lm/W with a 120°/145° spread light the full width of a road or path.
• Sealed for the outdoors. An IP65 housing with reverse-polarity, short-circuit, low-voltage and over-temperature protection built in.

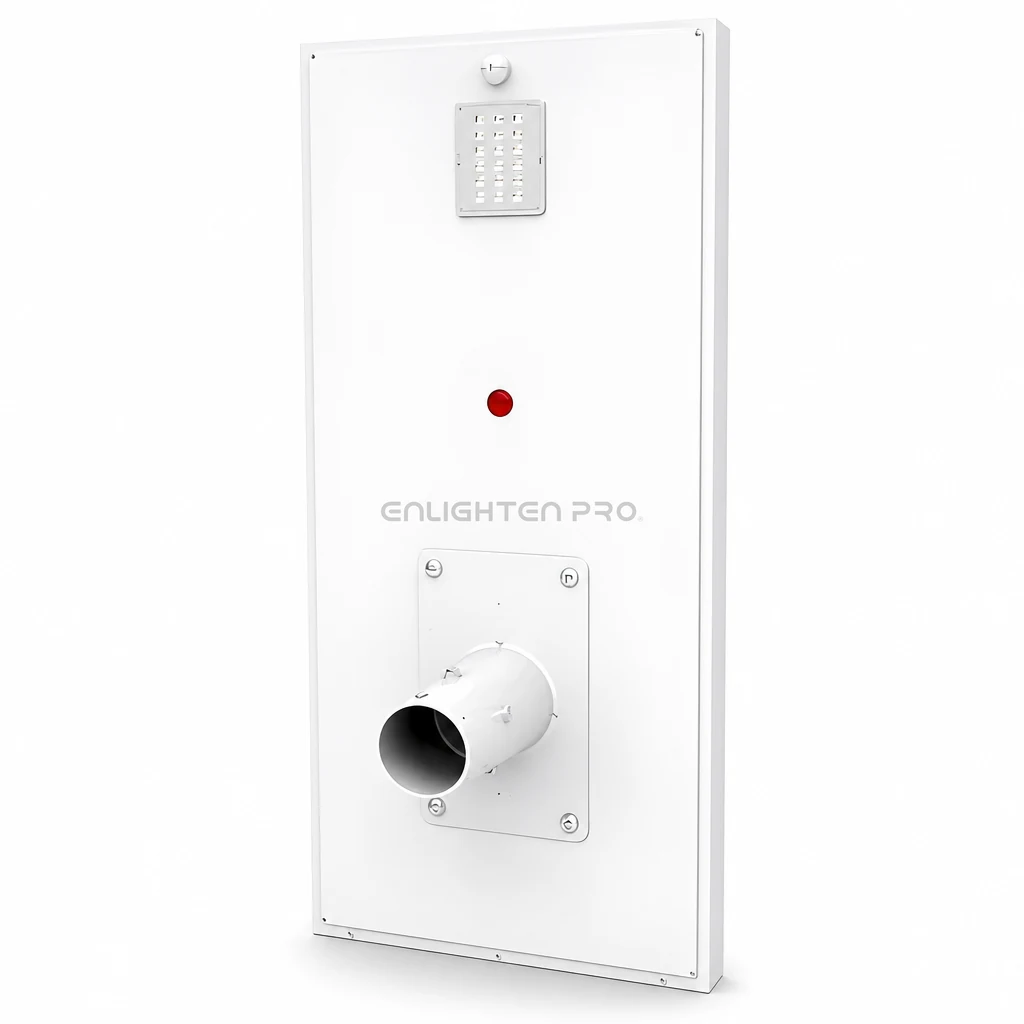

An on-board indicator shows status at a glance — steady red for a depleted battery, blinking green while charging, and steady green once fully charged.

Models & ratings

ModelLED powerBattery · LiFePO4Solar panel EN-SSL-IN-099 W12.8 V · 6 Ah30 W EN-SSL-IN-1212 W12.8 V · 12 Ah40 W EN-SSL-IN-1818–20 W12.8 V · 18 Ah50 W EN-SSL-IN-2424–30 W12.8 V · 18 Ah60 W EN-SSL-IN-4036–40 W12.8 V · 36 Ah80 W EN-SSL-IN-5050 W12.8 V · 42 Ah125 W EN-SSL-IN-6060 W12.8 V · 48 Ah140 W EN-SSL-IN-8080 W12.8 V · 66 Ah150 W EN-SSL-IN-100100 W25.6 V · 42 Ah170 W

Technical specifications

LED package5050 SMD · EMC protectedLED luminous efficacy140–160 lm/W Light dispersion angle120° / 145° BatteryLiFePO4 lithium · BIS certified Solar panelMono-crystalline · MNRE / BIS approved Charge controllerMPPT · IEC certified Charge time5–7 hours in good sunshine Backup autonomy2 nights LED driver efficiencyOver 95% (battery to load) Mounting height4–8 m, by wattage Ingress protectionIP65 Operating temperature0 °C to 60 °C Humidity range0–95%, non-condensing Electronic protectionReverse polarity, load short-circuit, low-voltage disconnect, full-charge cut-off, over-temperature OperationAutomatic dusk-to-dawnControlRemote-set dimming · factory-programmed scheduleWarranty3 years on the complete fixture, extendable to 5 — solar panel, battery and MPPT controller carry their own component warranties
