EN-TL01 R&L Toup
Model code EN-TL01

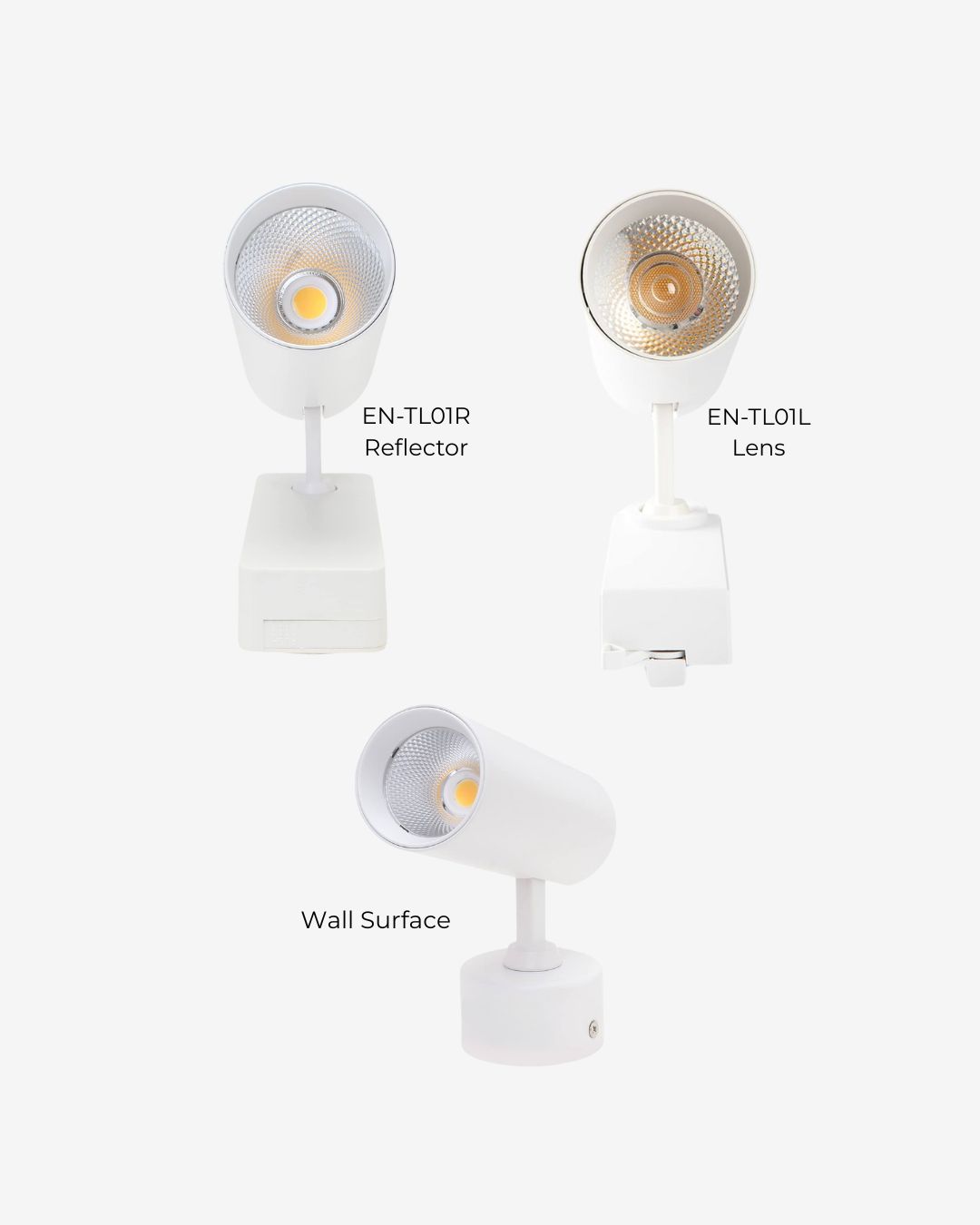

TL01 TOUP Available in Lens & Reflector Models, as well as wall spot mounting
MODEL POWER SIZE EN-TL01-10 10W 50 x 120 EN-TL01-20 20W 65 x 160 EN-TL01-30 30W 75 x 180 LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Bridgelux | Edison Optional Drivers Fulham | Osram | PhilipsSpecifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Body material
- Aluminium · powder-coated
- Mounting
- Track-mounted
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Commercial
- Hospitality
- Retail
