Angular Cast-Head Pole Light · Single & Twin-Head (EN-SMPL-9021 / 9022)
Model code EN-SMPL-9021

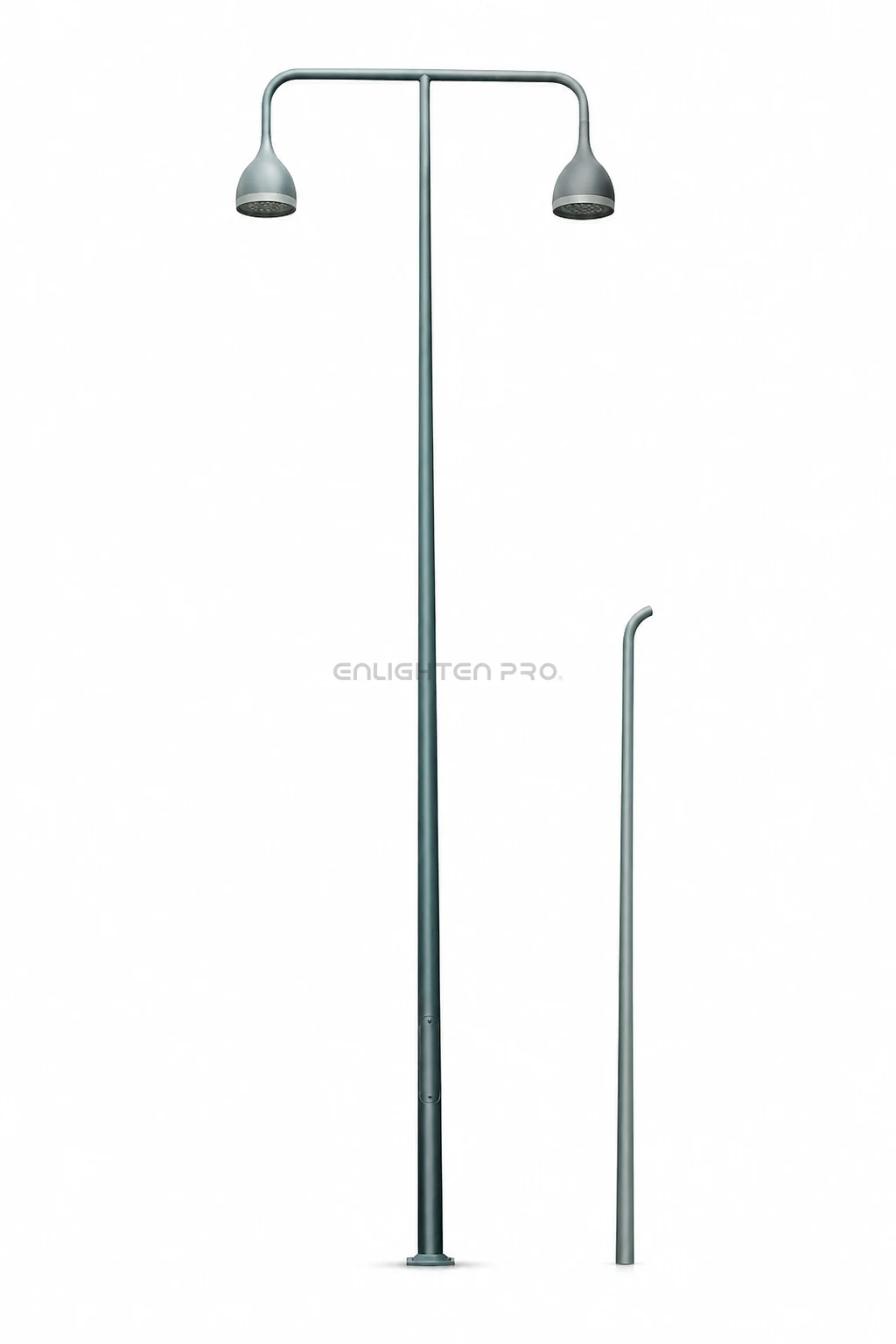

A modern angular pole light with a cast downward-facing head on a right-angled arm, available in two configurations:
- Single-head (EN-SMPL-9021) — 40W LED, for residential estates and pathways.
- Twin-head (EN-SMPL-9022) — 40W × 2 LED on symmetrical arms, for wide pathways and boulevards.
Clear glass diffuser, die-cast aluminium head and arm, marine-grade powder-coated finish. Specify configuration when ordering.
Specifications — typical, family defaults
- IP rating
- IP65
- IK rating
- IK08
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 70+ standard · Ra 80+ on request
- Material
- Die-cast aluminium · powder-coated
- Driver
- Built-in · constant current
- Input voltage
- 220–240 V AC
- Surge protection
- 4 kV
- Operating temperature
- −25 °C → +45 °C
- Warranty
- 3 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Pole-top
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
