Interstellar · Architectural Landscape Projector

High-Power IP67 Multi-Lens LED Projector. Interstellar is a conically-shaped die-cast aluminium projector built for year-round exterior duty — façades, specimen trees, monuments, water features and signage. The multi-lens array sits deep inside the housing, so the light lands on the subject rather than in the eye.

One chassis, two apertures, four mounting accessories — eight order codes in all. A locking pan-and-tilt hinge holds the aim once it is set, and because the accessory is specified separately, the same luminaire lands on a round surface base, clamps onto a pole, drives into soft ground on a spike, or wraps an irregular tree trunk on a flexible aluminium-wire clamp.

Why the Interstellar

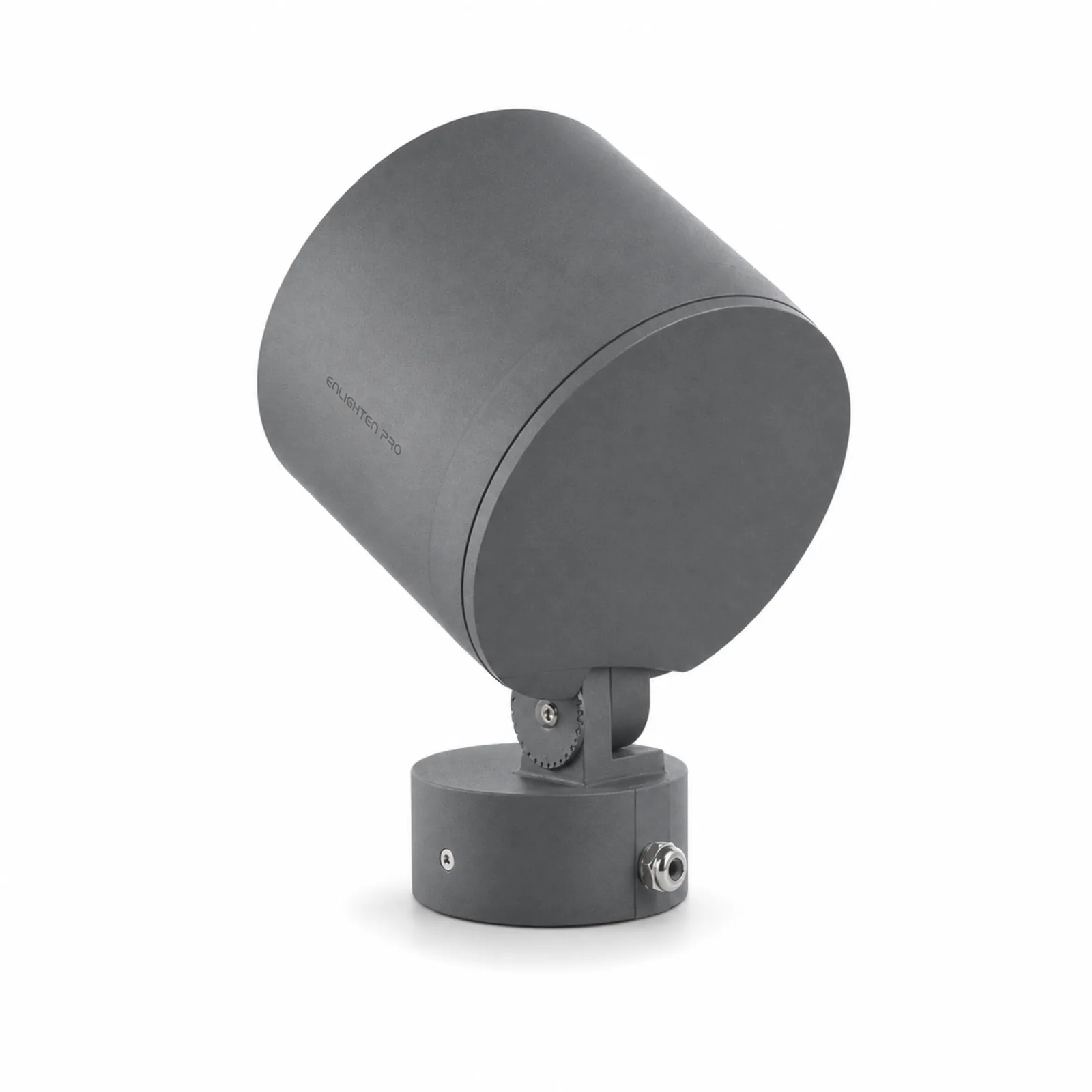

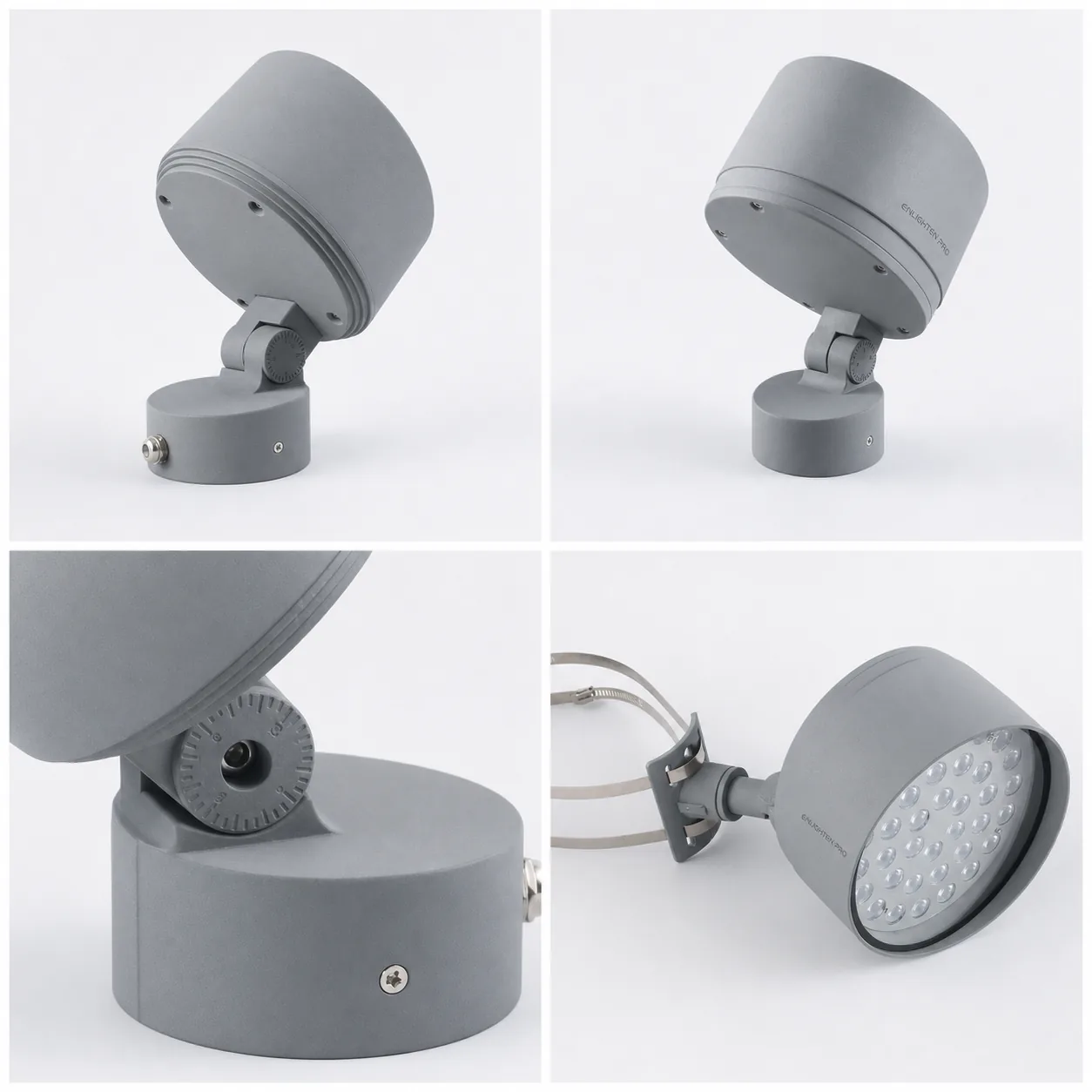

• Aimed once, holds forever. A toothed pan-and-tilt hinge with a locking fastener — the beam stays exactly where it was set, through monsoon and through service visits.
• Deep-set optics, low glare. The conical housing shields the lens array, giving real visual comfort on approach paths, terraces and seating areas.
• Sealed, not splash-proof. IP67 across the family, in a gasketed die-cast body with a fully potted gear chamber.
• Underdriven on purpose. Wattage is capped to what the heatsink can hold for the long run, so output stays where it started years later.

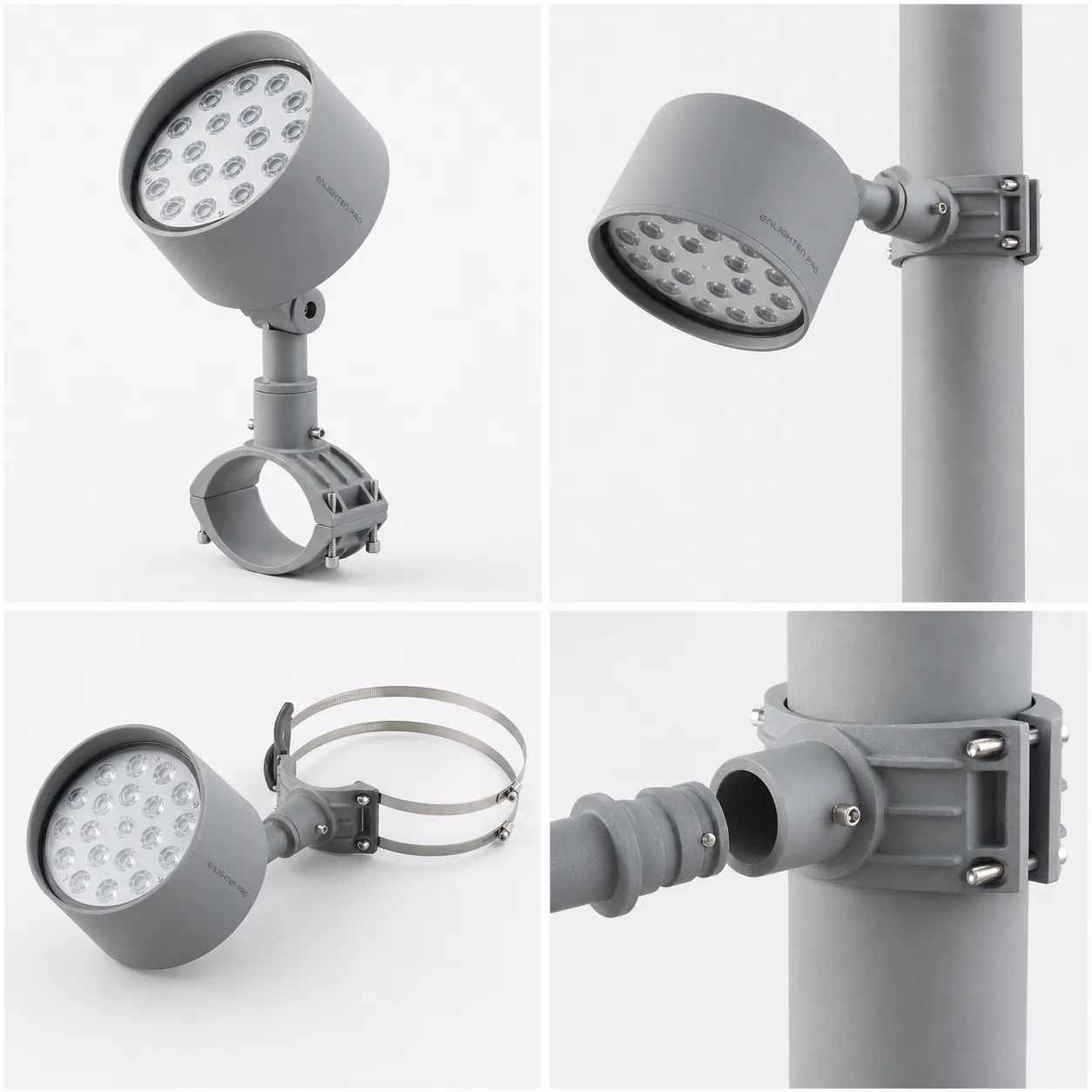

• Four ways to mount it. Surface base, pole clamp, ground spike or tree clamp. The tree clamp is a flexible aluminium-wire band that adjusts to any irregular trunk, so mature trees can be lit without drilling or cutting into the bark.

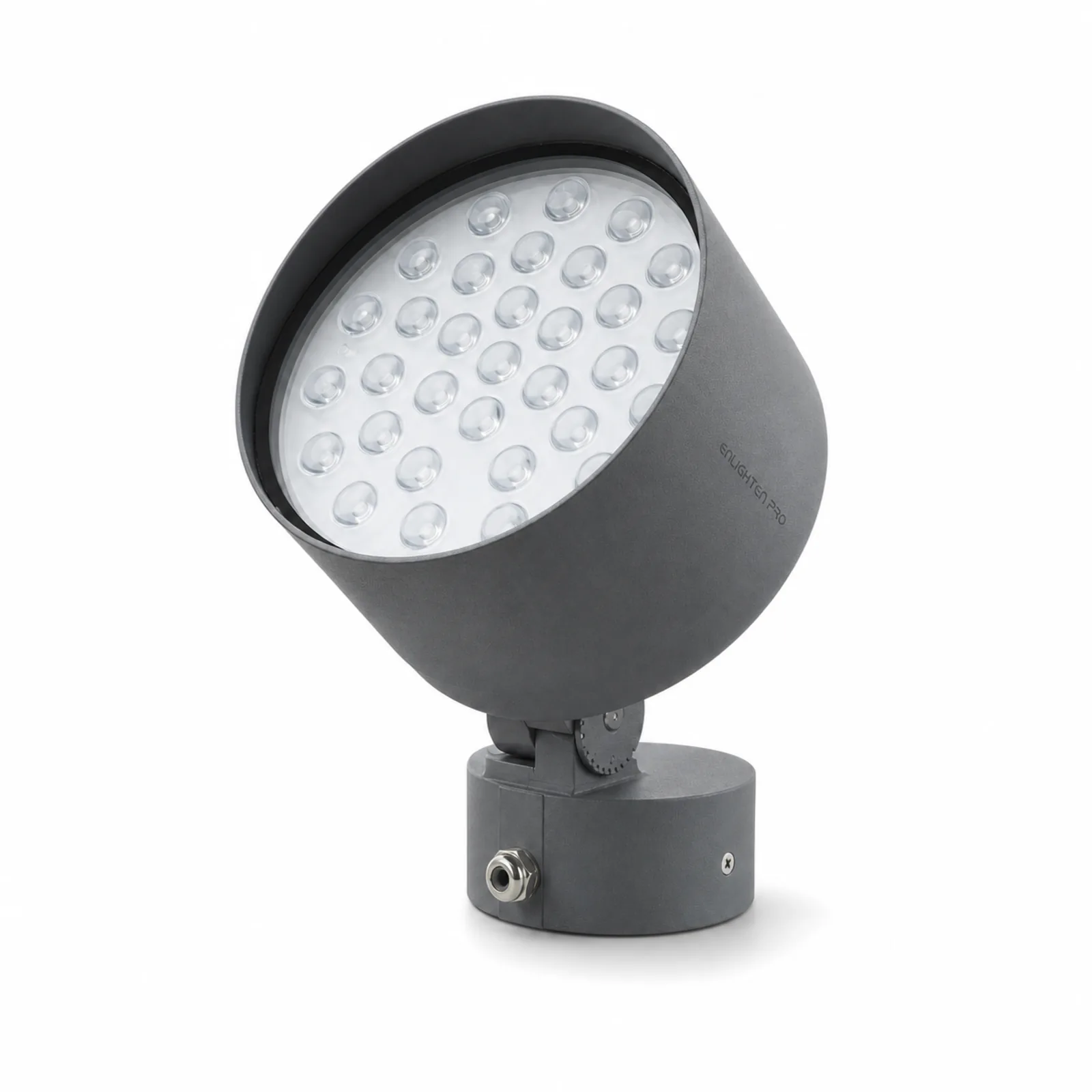

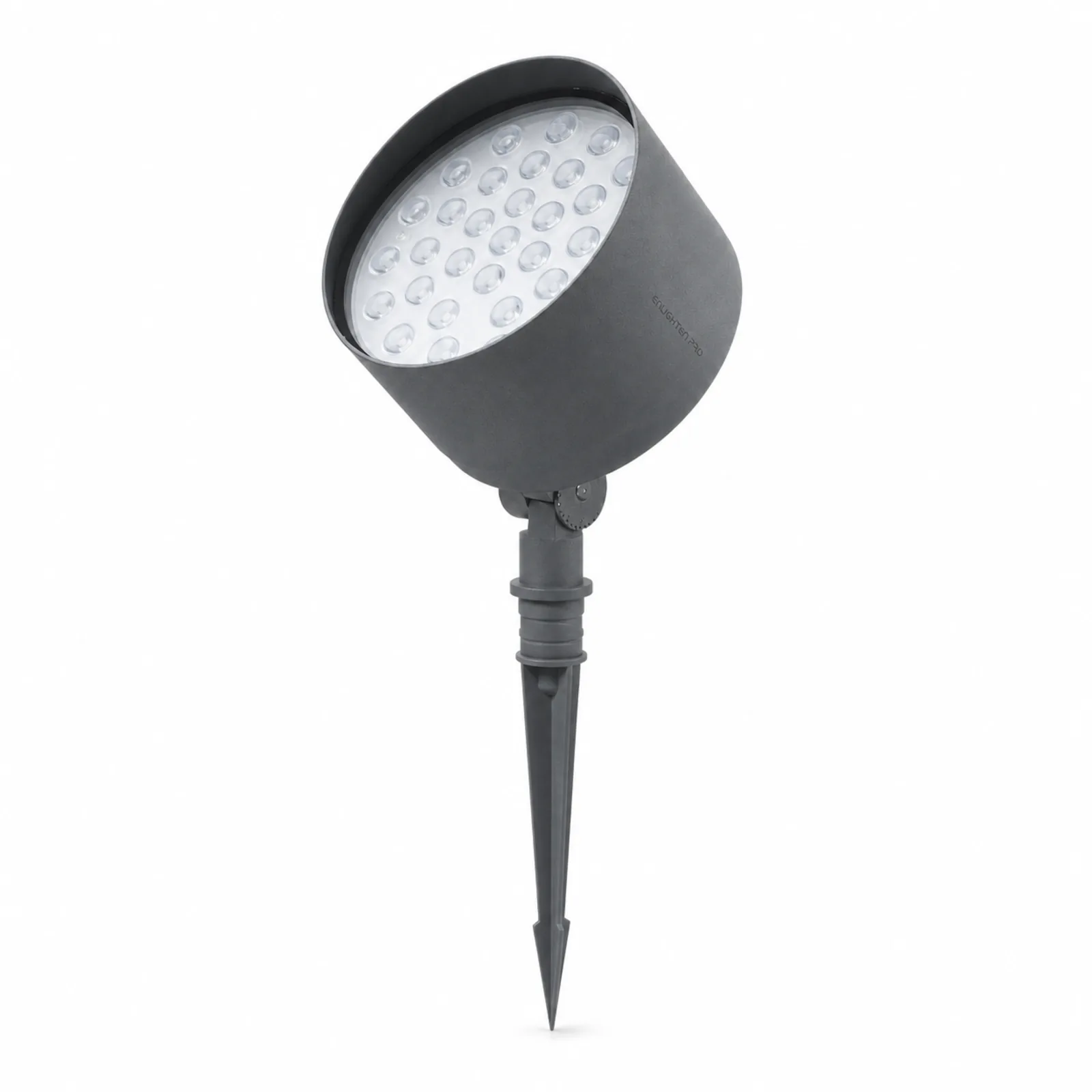

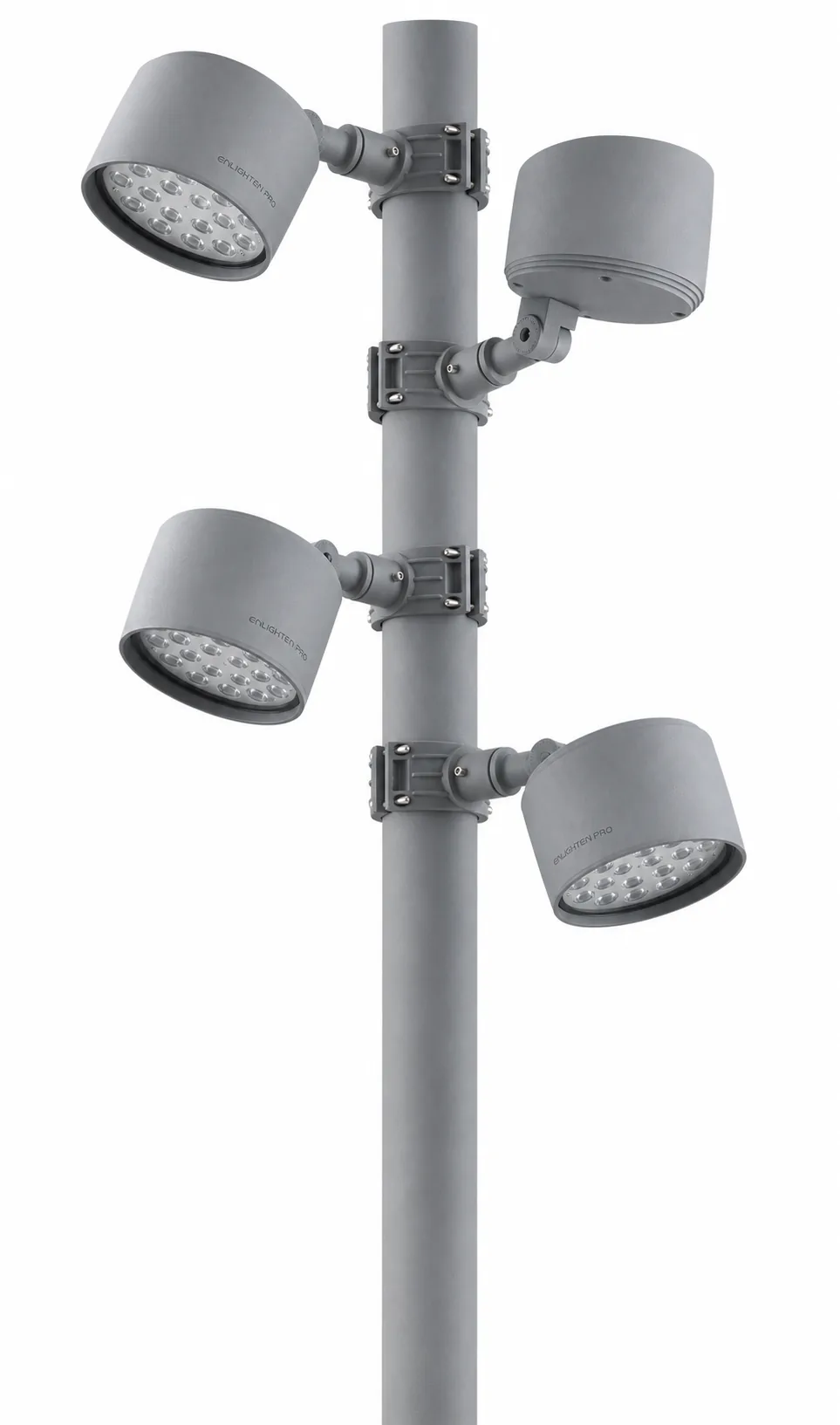

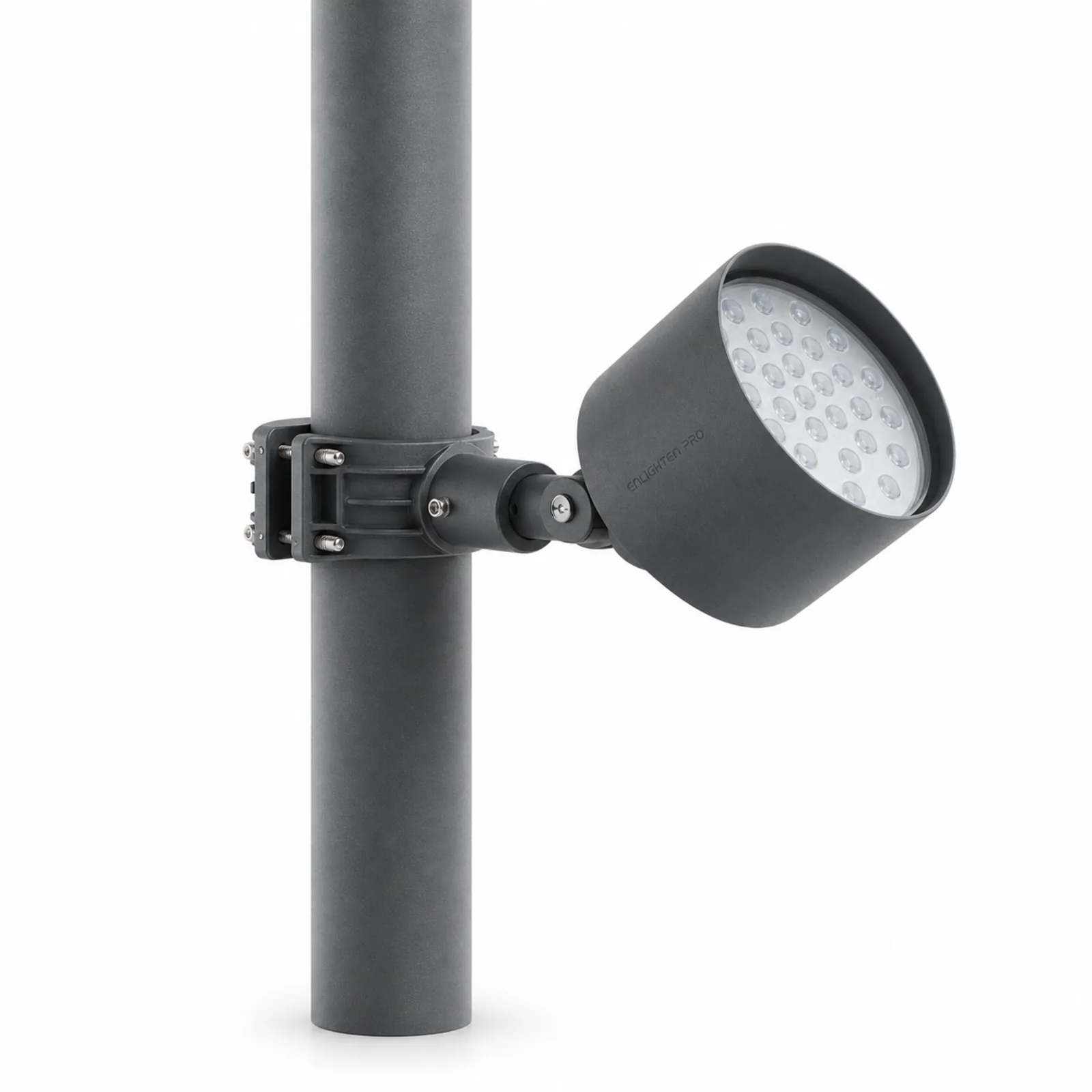

Mounting accessoryØ 140 · 54 WØ 190 · 72 WRound surface baseEN-PR-INT140-SBEN-PR-INT190-SBPole clamp · poles Ø 75–103 mmEN-PR-INT140-PCEN-PR-INT190-PCGround spike · 310 or 725 mmEN-PR-INT140-GSEN-PR-INT190-GSTree clamp · adjustable wire bandEN-PR-INT140-TCEN-PR-INT190-TC

Eight order codes: four mounting accessories in each of two sizes. Lower wattages and specific lumen packages available on request.

Ordering

• Colour temperature. 2700 K, 3000 K, 3500 K, 4000 K and 5700 K, plus RGB and RGBW.
• Lead time. Typically 5–6 weeks from order confirmation.
• Samples. Paid samples available on request.
