Modern Street & Pathway LED Pole · Three Head Geometries (EN-PLT114 / EN-PLT115 / EN-PLT116)
Model code EN-PLT114
Contemporary mild-steel pole light with an integrated flat-bar LED head, available in three head geometries to suit different applications. All variants share the same minimalist anthracite finish, square cross-section pole and bolt-down anchor plate.
- EN-PLT114 — Low single head on a 45° bent arm. For pathways, garden borders and low-level wayfinding.

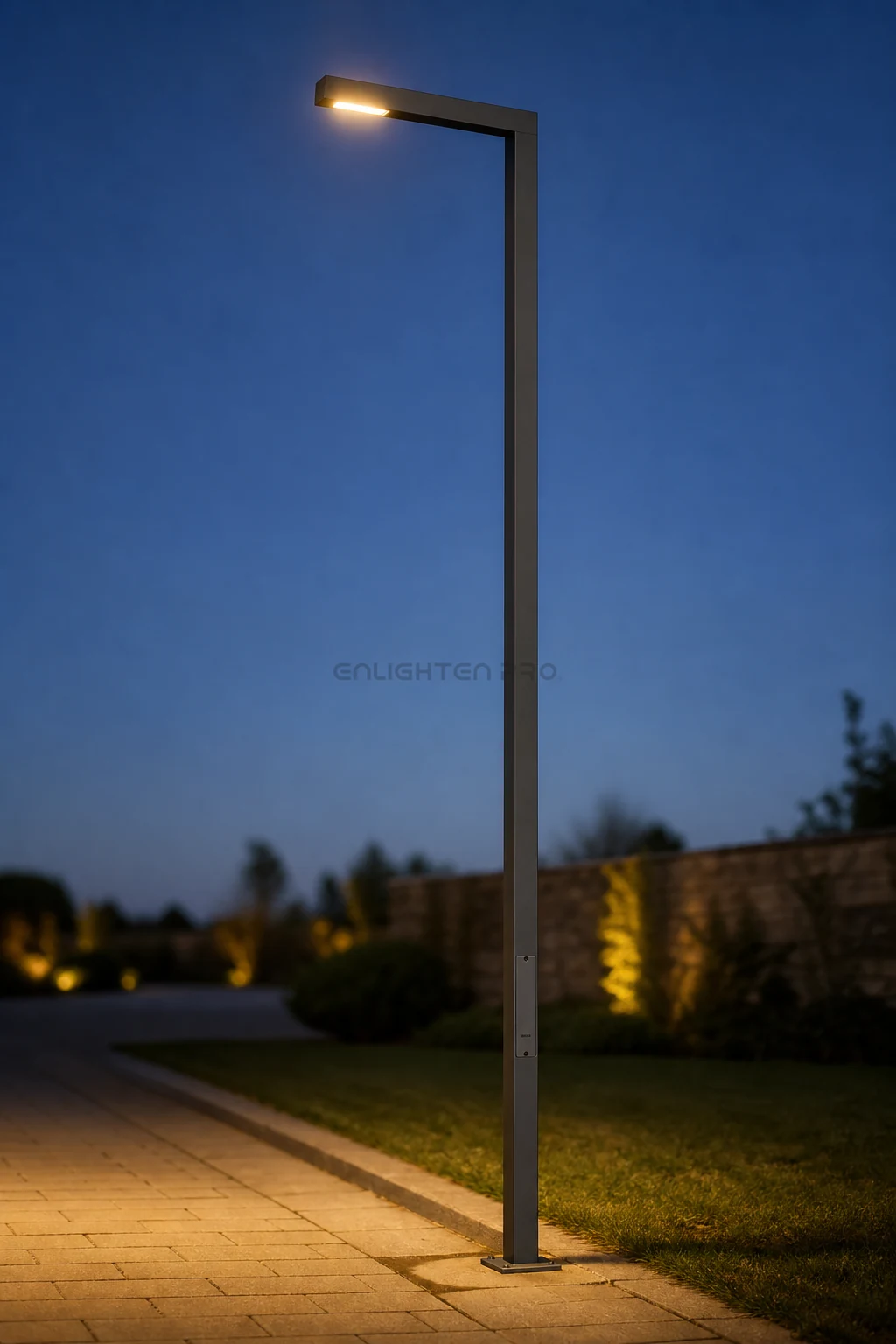

- EN-PLT115 — Tall single head on an L-arm. Standard street and driveway pole.

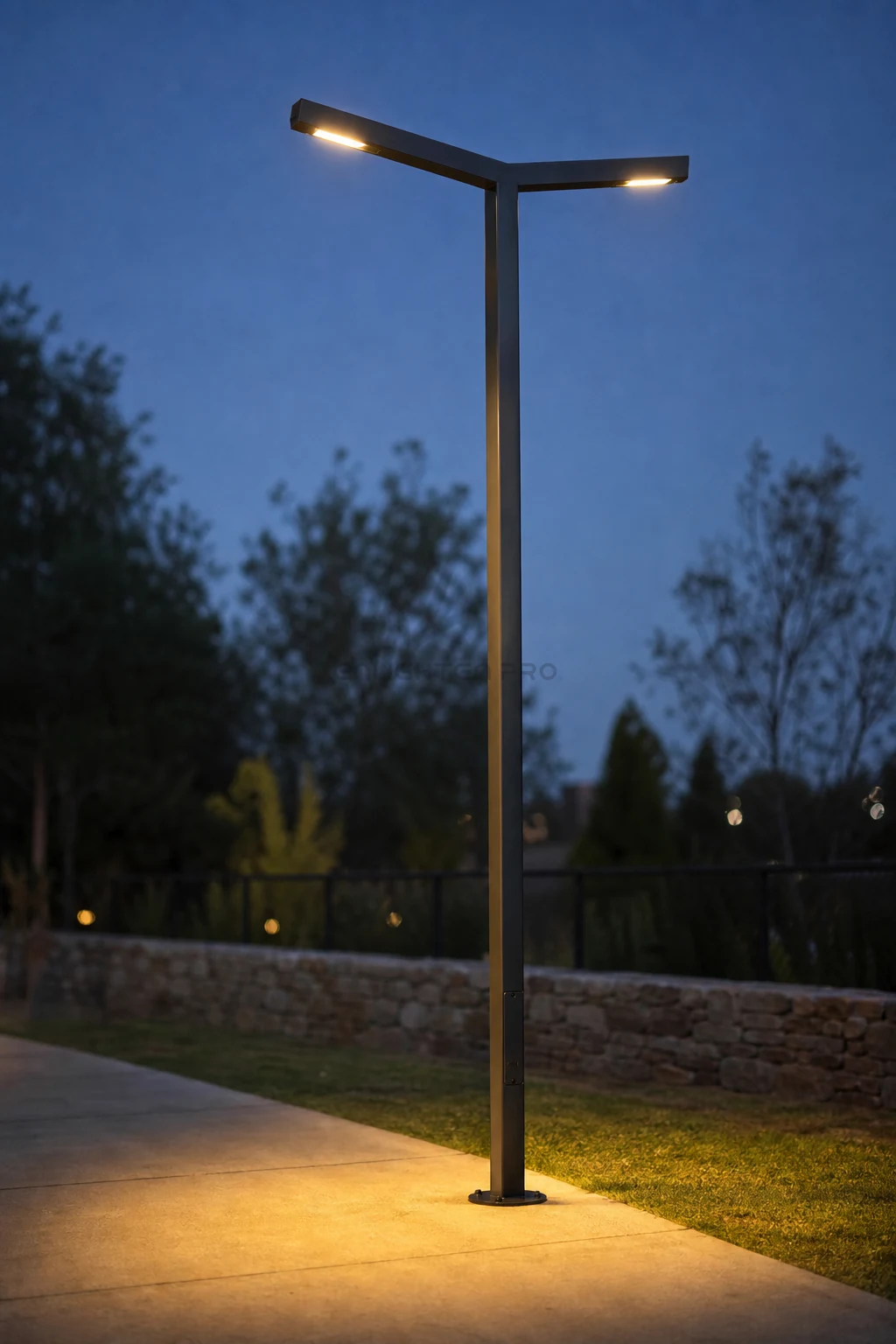

- EN-PLT116 — Tall twin heads on a Y-yoke for wider beam coverage; boulevards and parking aisles.
IP65 sealed, mild-steel construction, marine-grade powder-coat finish. Specify head configuration when ordering.
Specifications — typical, family defaults
- IP rating
- IP65
- IK rating
- IK08
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 70+ standard · Ra 80+ on request
- Material
- Die-cast aluminium · powder-coated
- Driver
- Built-in · constant current
- Input voltage
- 220–240 V AC
- Surge protection
- 4 kV
- Operating temperature
- −25 °C → +45 °C
- Warranty
- 3 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Pole-top
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
