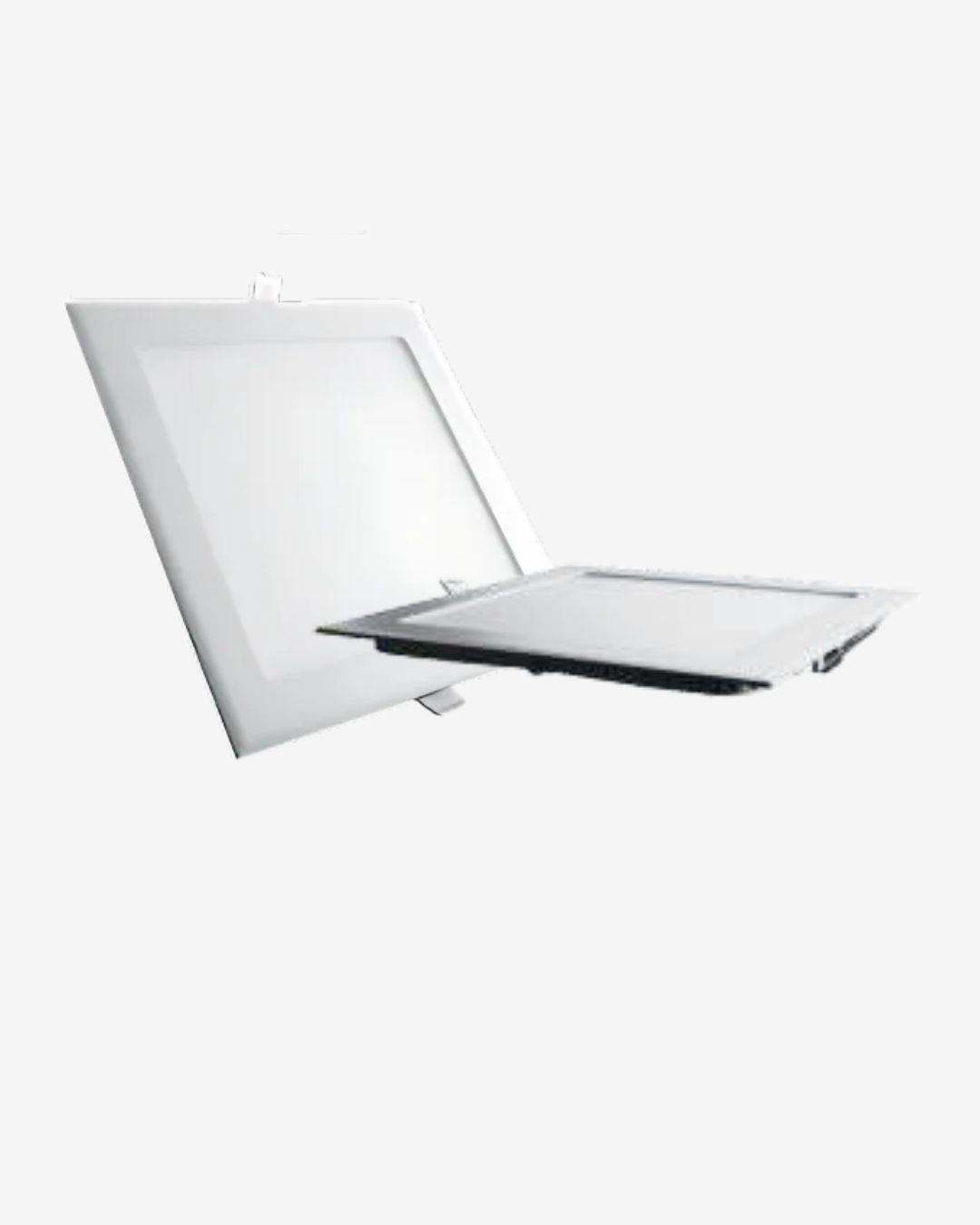

EN-PL01-SQ Panels
Model code EN-PL01-SQ
MODEL SHAPE POWER OUTER CUTOUT EN-PL01-08SQ Square 08W 120 X 120 105 X 105 EN-PL01-15SQ Square 15W 170 X 170 155 X 155 EN-PL01-22SQ Square 22W 225 X 225 210 X 210
Specifications — typical, family defaults
- Luminaire type
- Edge-lit LED panel
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+
- Mounting
- Recessed, Surface-mounted
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
