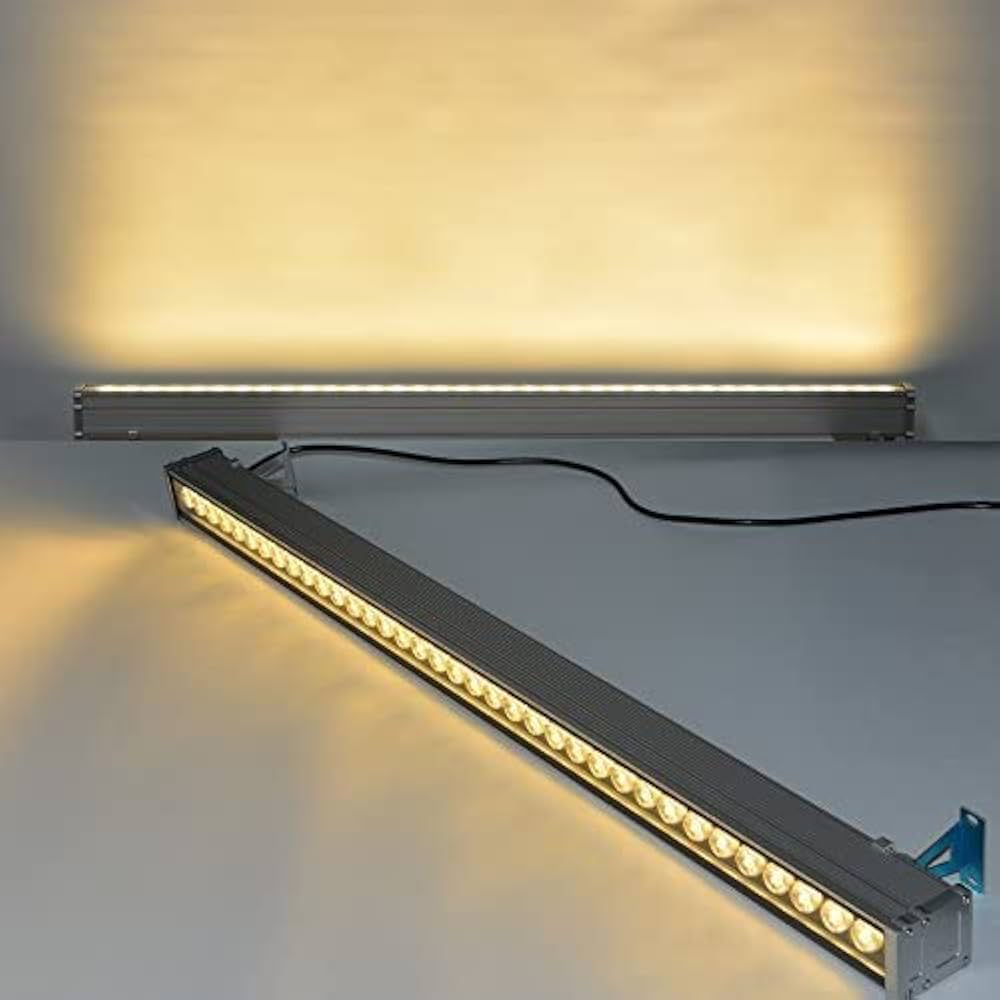

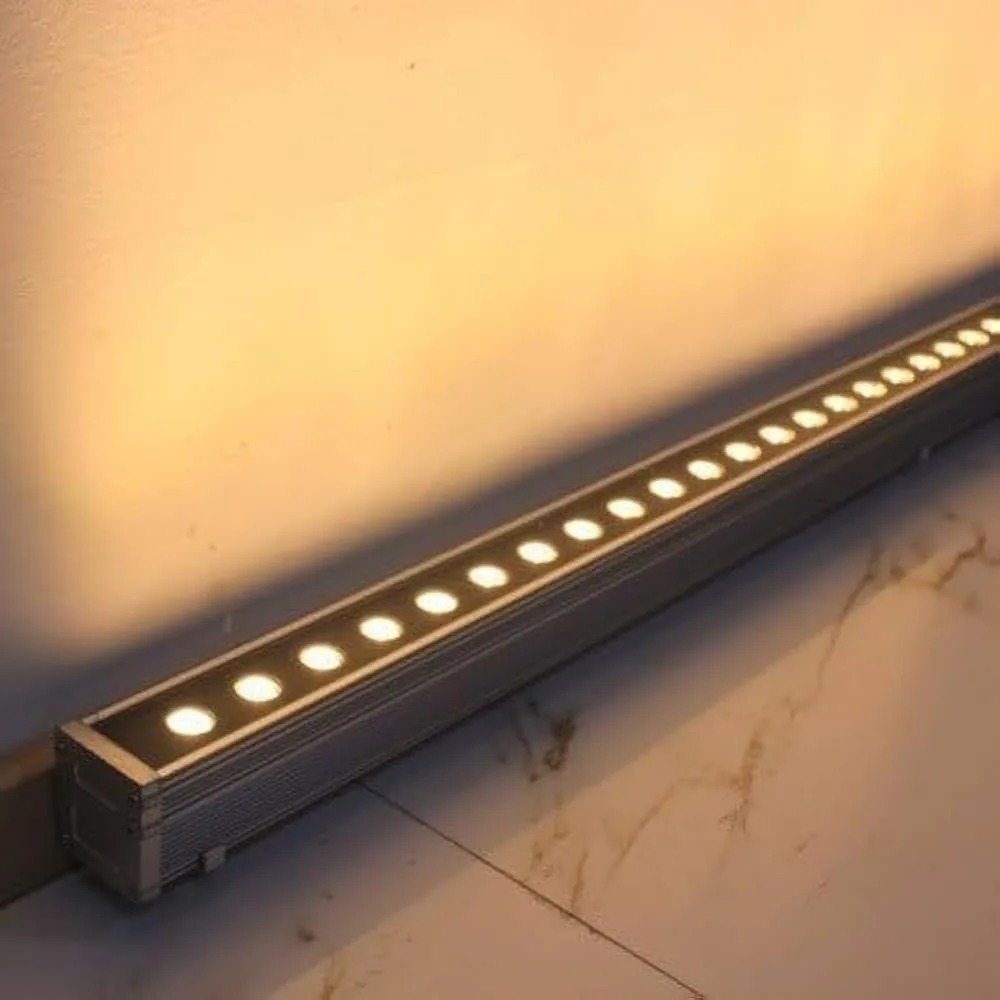

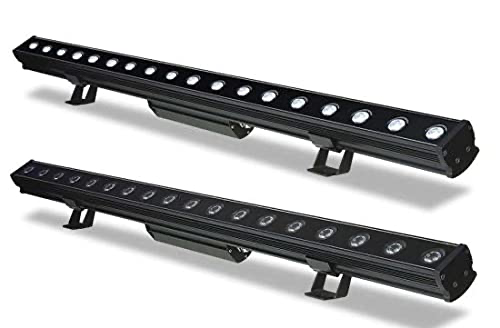

EN-ODX-WW Surface · Linear LED Wall Washer
Model code EN-ODX-WW-SF
IP65, 230 V AC, indigenous linear LED wall washer.
ModelPowerLength (mm)EN-ODX-WW Surface 11W11W300EN-ODX-WW Surface 22W22W600EN-ODX-WW Surface 33W33W900EN-ODX-WW Surface 44W44W1200RGB / RGBW / RGBWW (12V/24V input) also available — contact us.
Specifications — typical, family defaults
- IP rating
- IP54 · IP66 · IP67 by model (IP44 where stated)
- Body material
- Die-cast aluminium · powder-coated
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 70+ standard · Ra 80+ on request
- Driver
- Built-in · constant current
- Input voltage
- 220–240 V AC
- Operating temperature
- −20 °C → +45 °C
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Surface / ground / wall, per model
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Landscape
- Architectural
Mounting
- Surface-mounted
