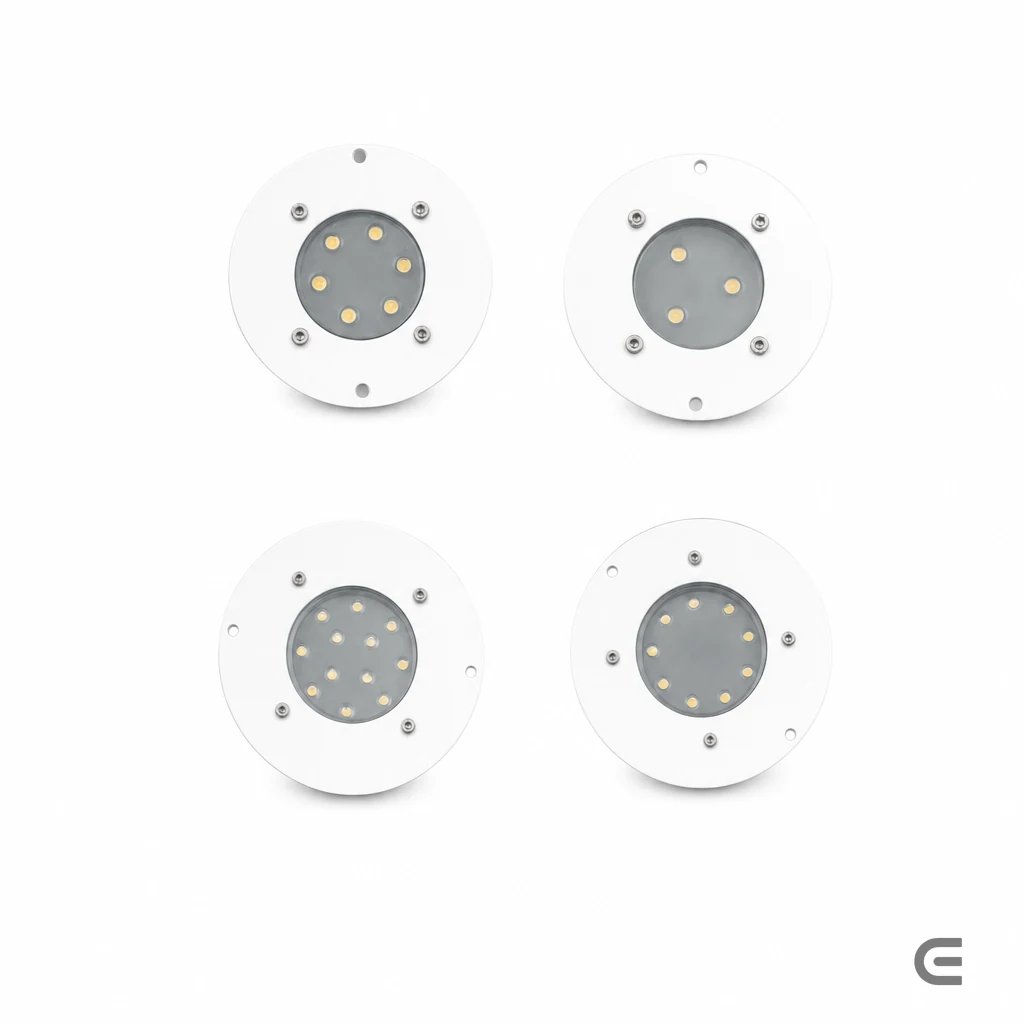

EN-ODX-CL
Model code EN-ODX-CL

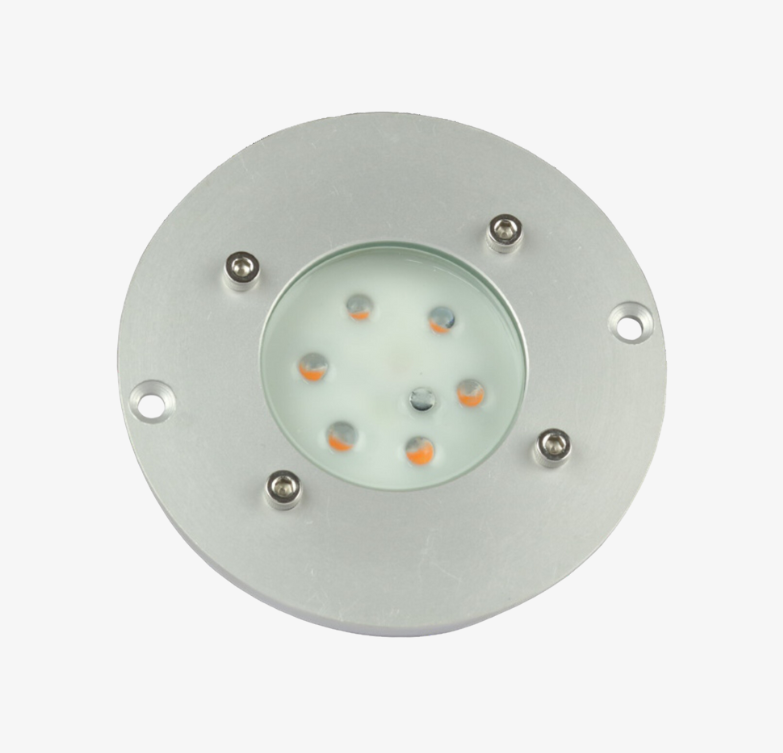

The concealed model in the IP68 underwater range, available in 3, 6, 9 and 12 W. It runs on 12 V DC — the power supply is ordered separately.
MODEL POWER SIZE
EN-ODX-CL3
3W Ø 100 x 75 x 23EN-ODX-CL6
6W Ø 100 x 75 x 23EN-ODX-CL9
9W Ø 140 x 110 x 23EN-ODX-CL12
12W Ø 140 x 110 x 23Specifications — typical, family defaults
- IP rating
- IP68 · submersible
- Material
- Stainless steel · 316 grade
- Color temperature options
- 3000K · 4000K · 5000K · 6000K · RGB — any CCT 2700K–6500K to order
- Operating voltage
- 12 V / 24 V DC (SELV)
- Driver
- Remote · constant voltage
- Application
- Pools · fountains · water features
- Warranty
- 2 years
- Color rendering index
- Ra 80+ · Ra 90+
- Beam angle options
- 90°–120° (diffused)
- Mounting
- Recessed / submerged
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
