Outdoor Wall Light
Model code EN-OD32
One housing across the range. The 3 W codes light one way, down the wall; the 6 W code lights two ways, up and down. Beyond that only the front glass changes — and with it what lands on the wall.
The range One housing · the glass changes

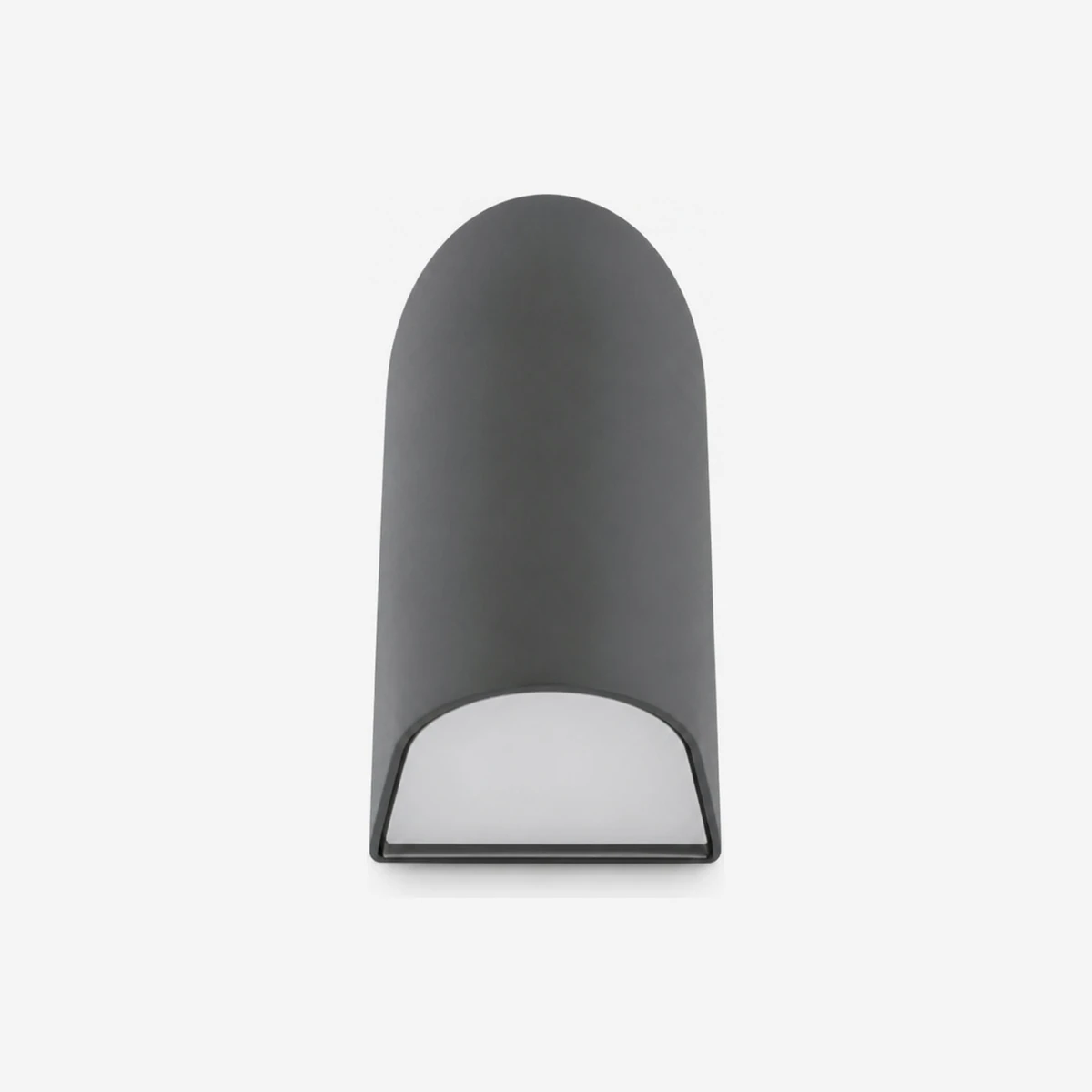

EN-OD32-3A · Open wash
3 W · one way
No slot and no bars — the glass runs the full width of the scooped face, so the 3 W leaves as one broad, even wash rather than a pattern. The quietest of the range, and the one to specify when the wall itself is meant to be lit rather than marked.
- Size
- 109 × 50 × 74 mm
- Power
- 3 W

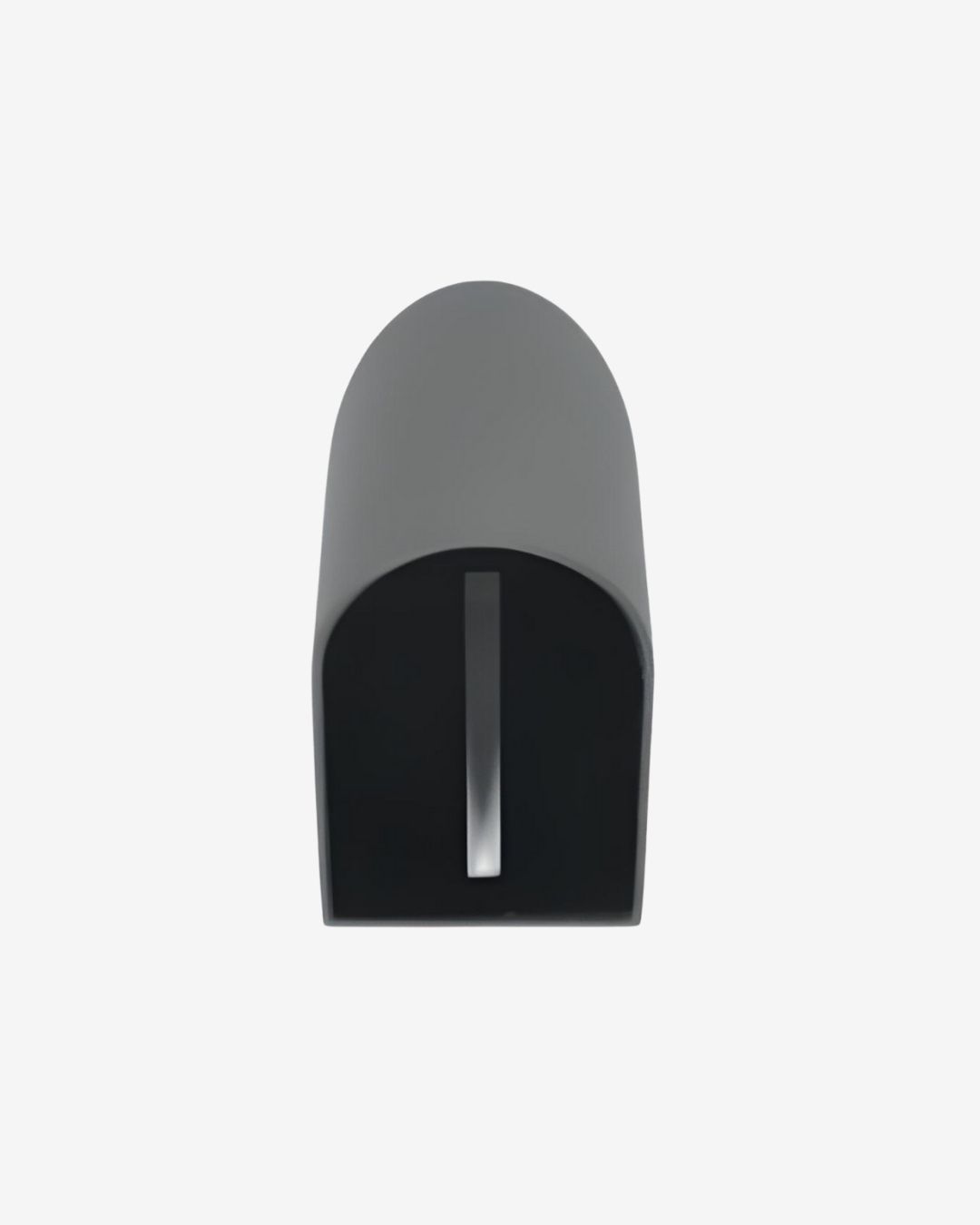

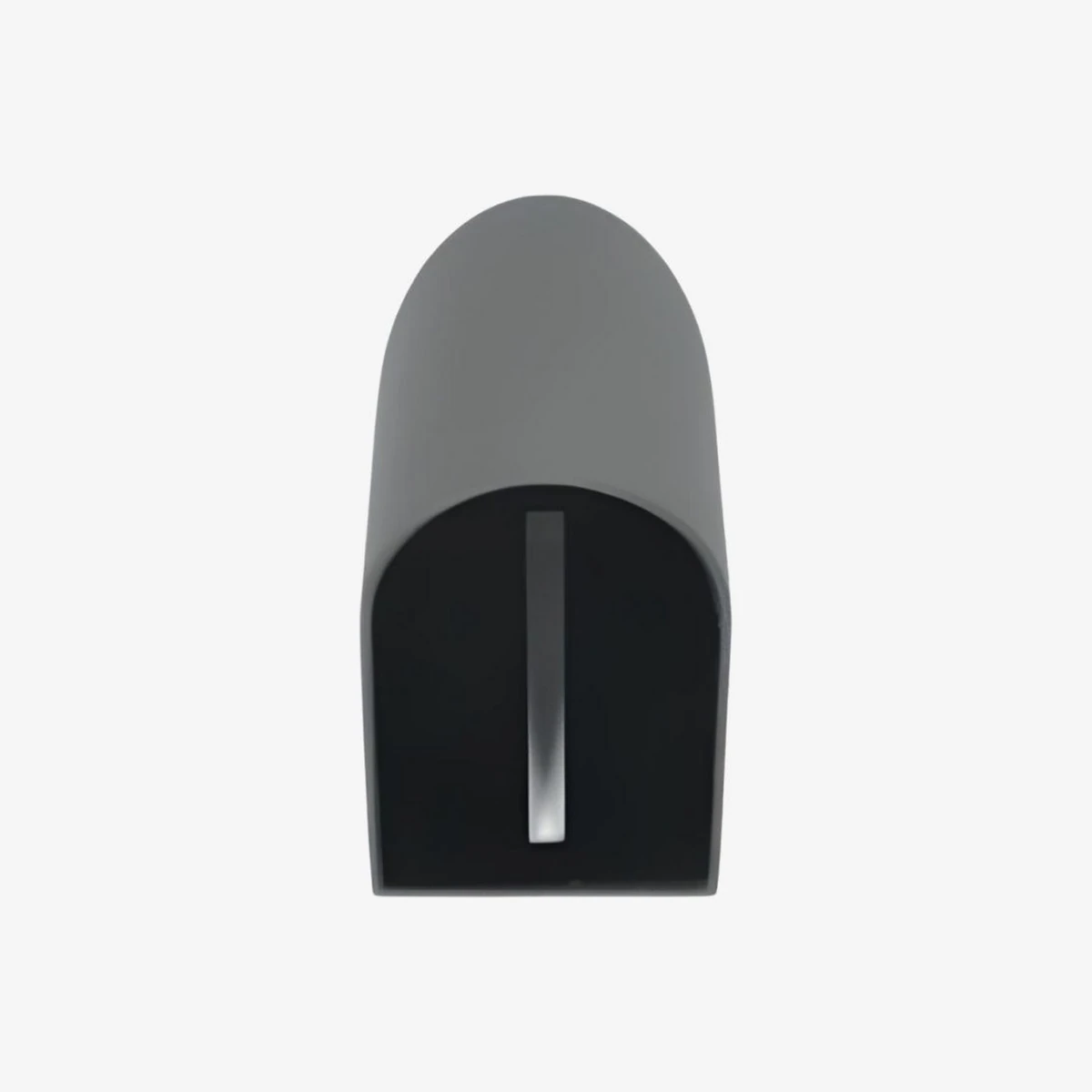

EN-OD32-3B · Single slot
3 W · one way
A single slot in the glass. The 3 W source leaves as one clean, hard-edged blade of light down the wall rather than a spread — a mark on the surface, not a pool. Specify it where the wall is meant to read as lit without the fitting announcing itself.
- Size
- 109 × 50 × 74 mm
- Power
- 3 W

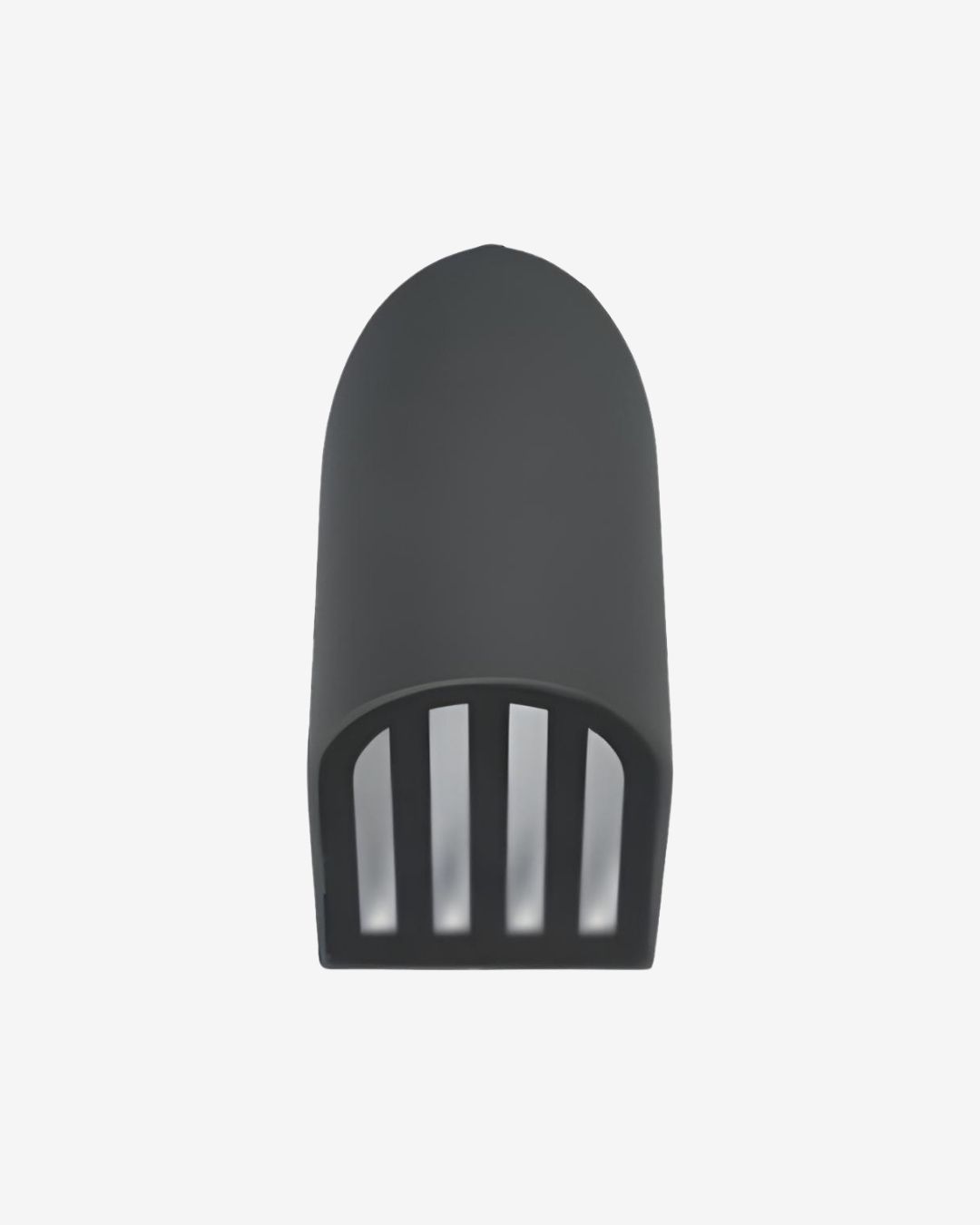

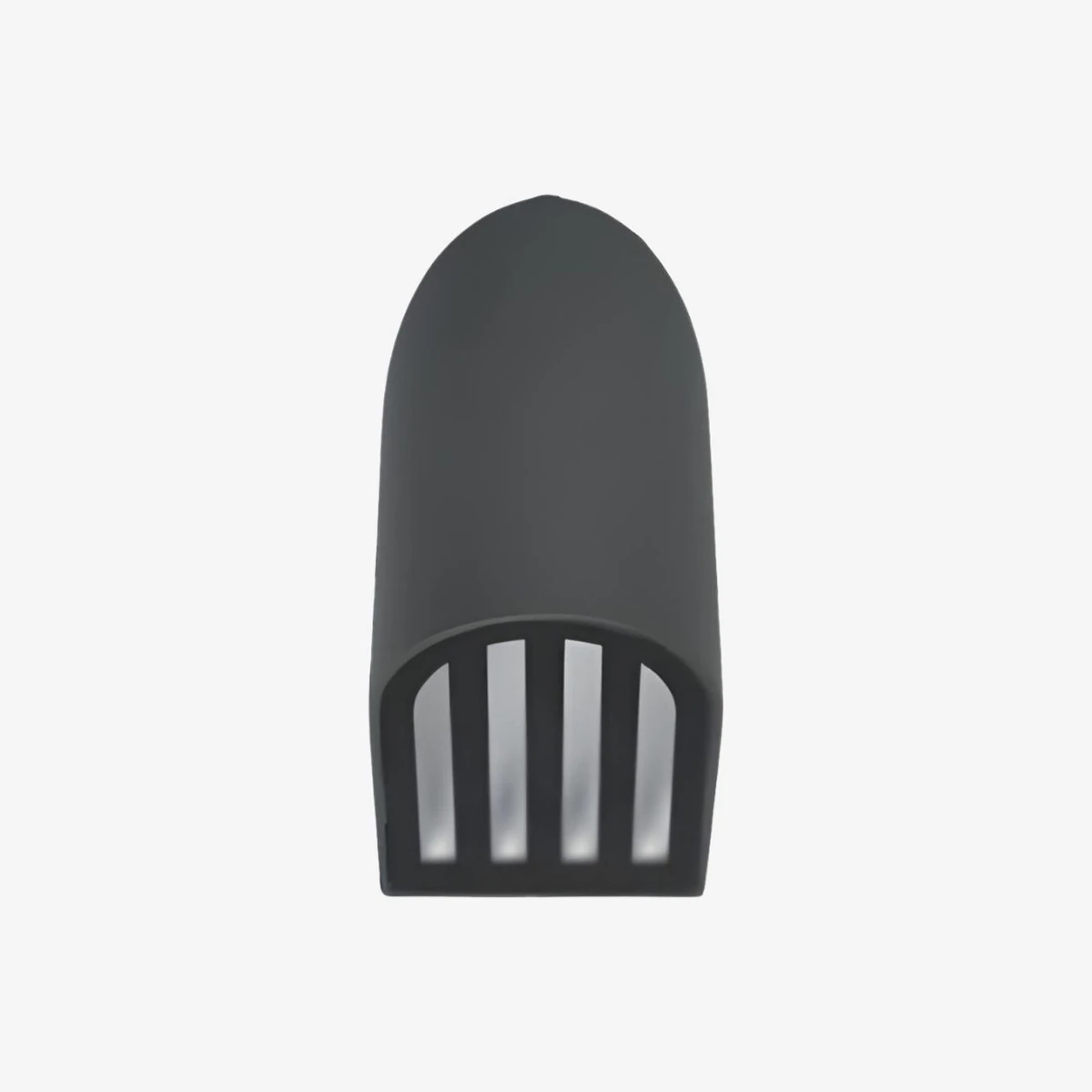

EN-OD32-3C · Four-bar grille
3 W · one way
Four bars across the glass break the same 3 W into separate rays that open out as they fall. Close to the fitting they are four distinct blades; by the floor they have spread into a fan. The most graphic of the three one-way glasses.
- Size
- 109 × 50 × 74 mm
- Power
- 3 W

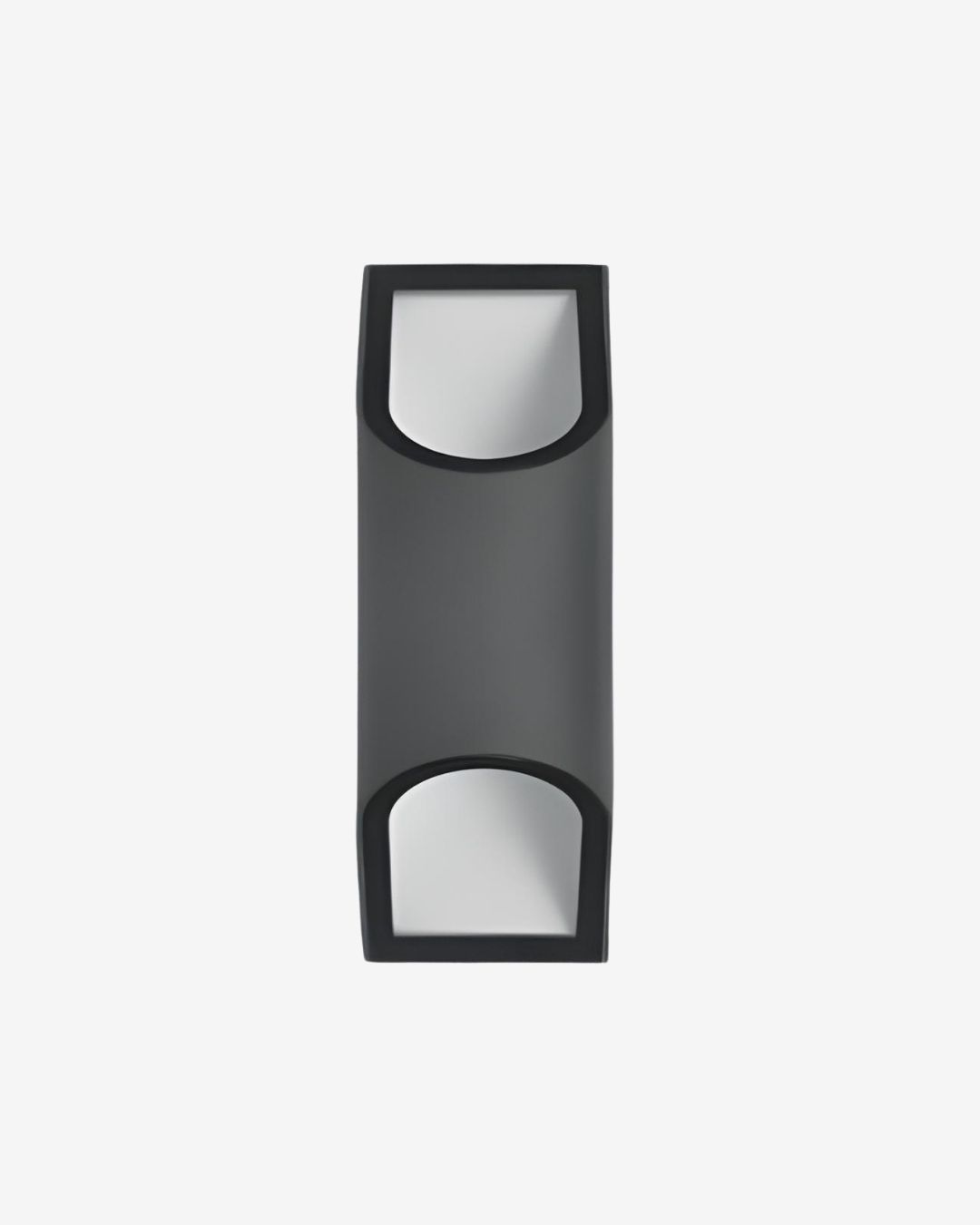

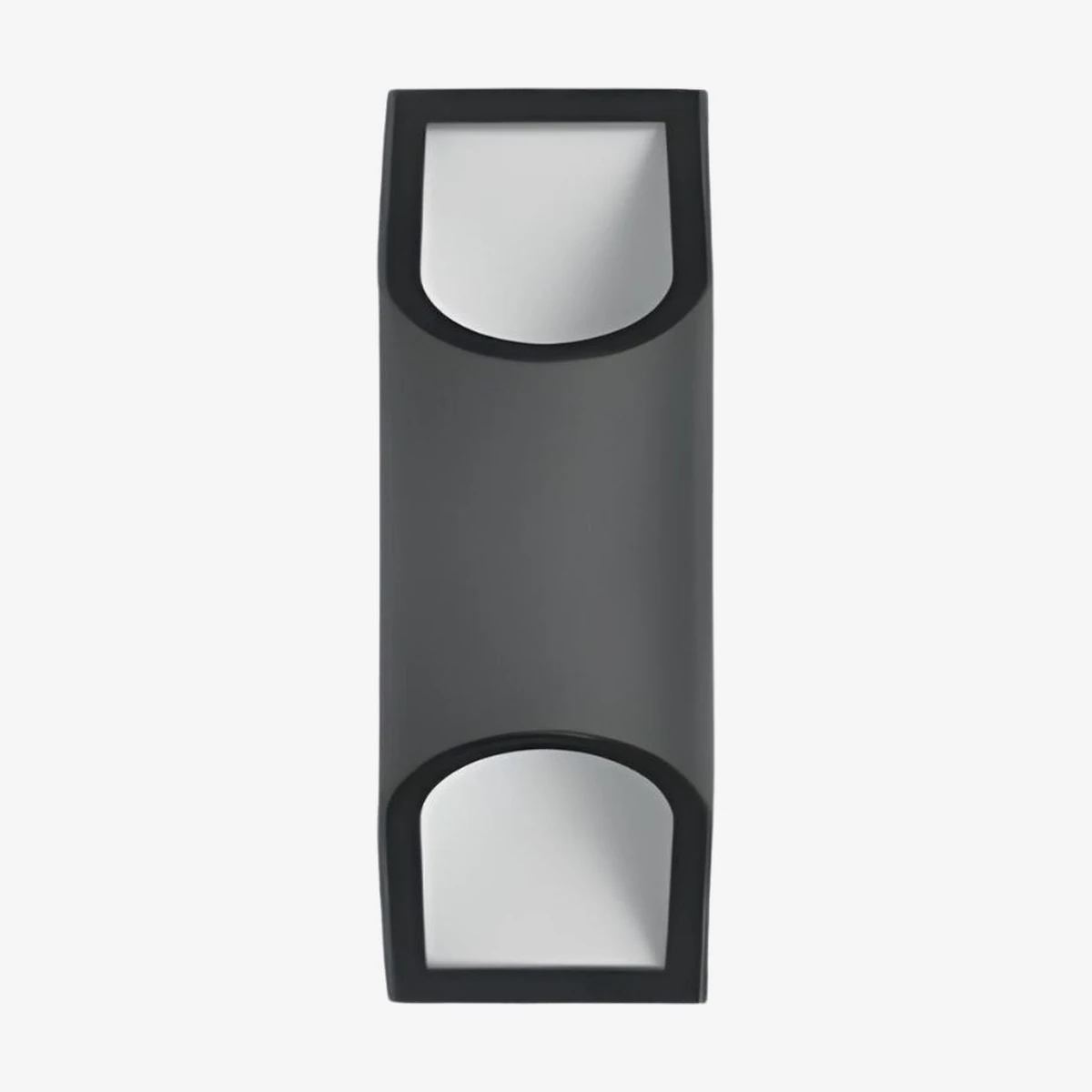

EN-OD32-6A · Up / down
6 W · two way
The 6 W body carries glass at both ends, so light leaves upward as well as down and the wall gets a scallop above the fitting and below it. Same housing and same driver family as the 3 W codes — the second aperture is what the extra 3 W buys.
- Size
- 142 × 50 × 74 mm
- Power
- 2 × 3 W
