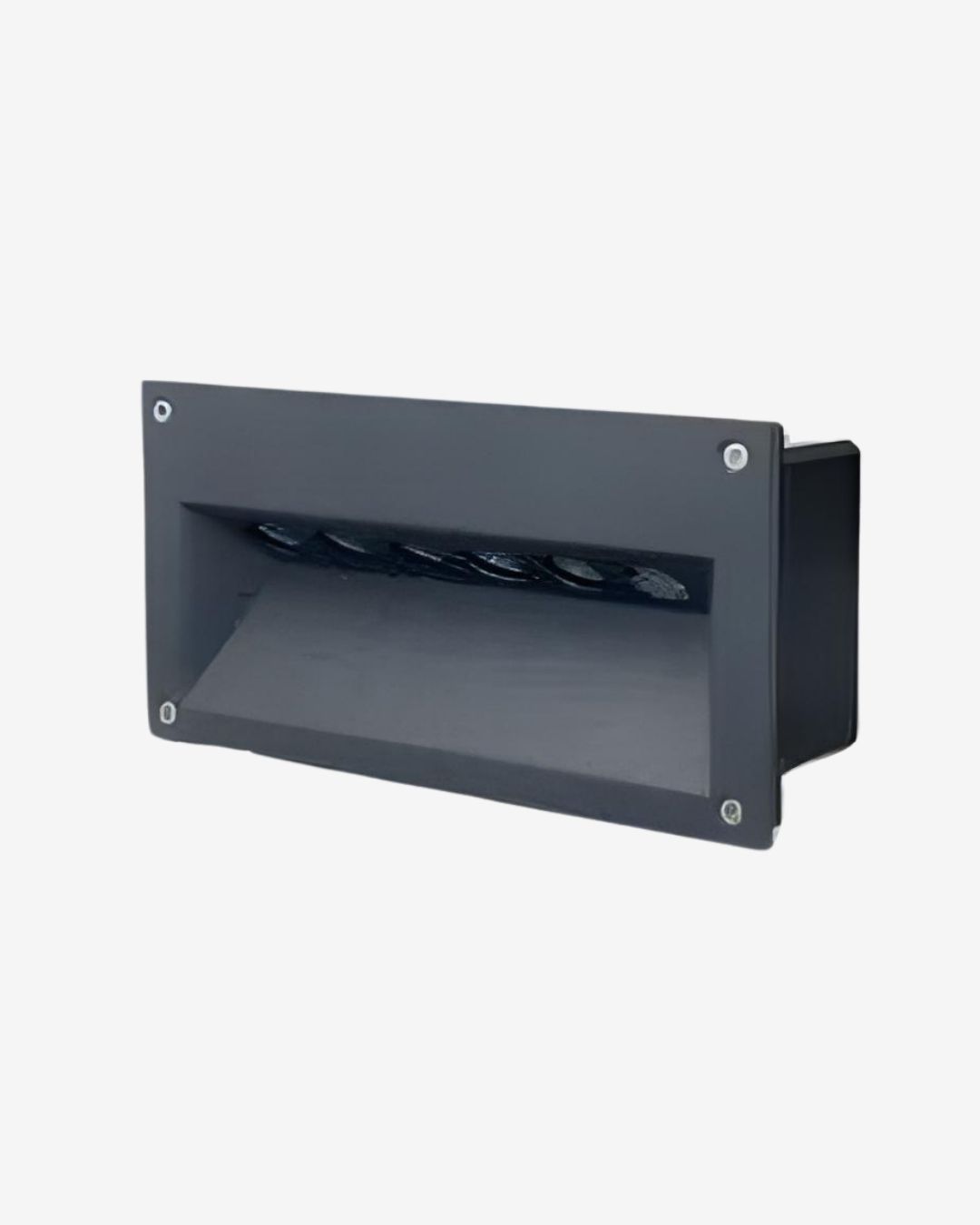

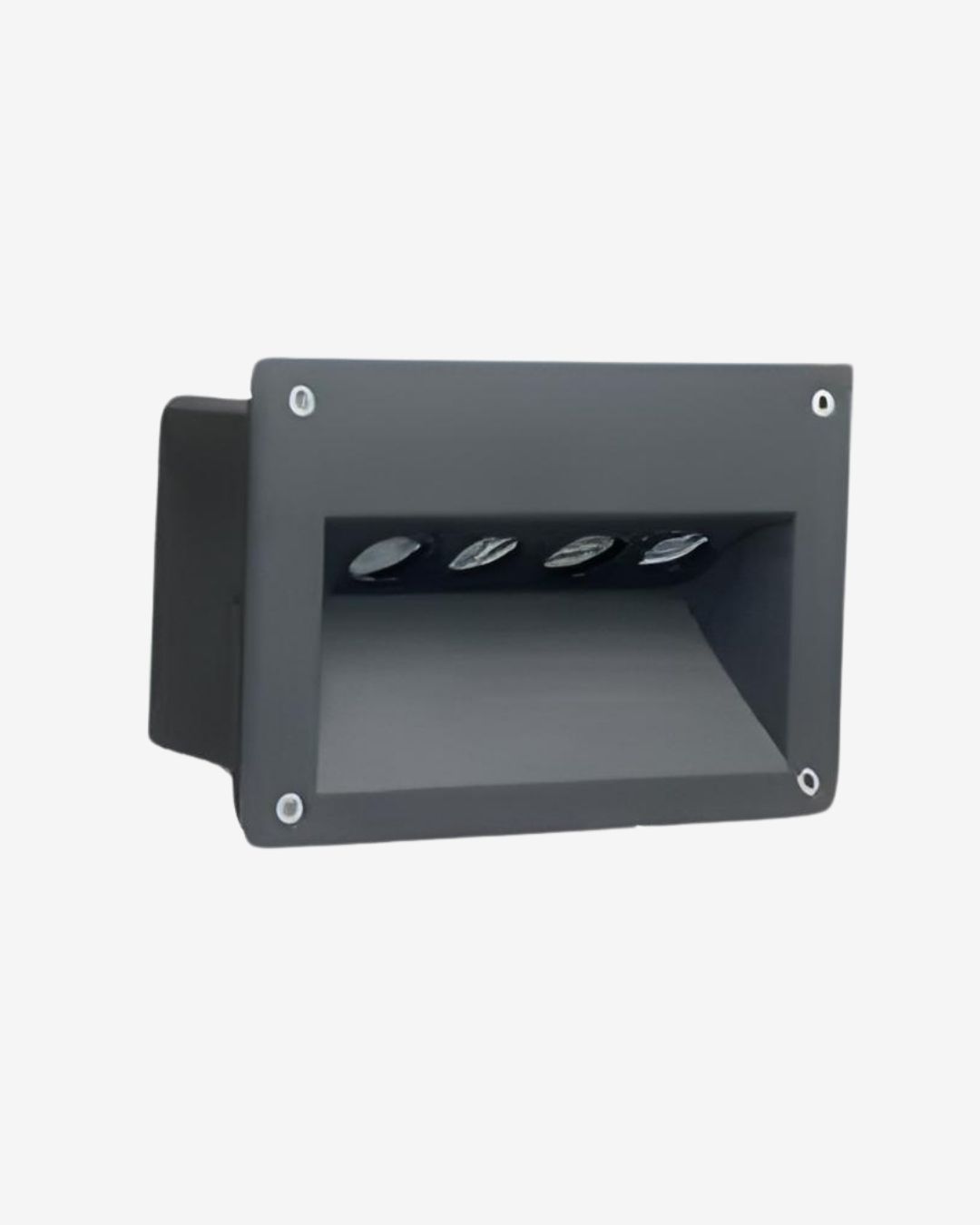

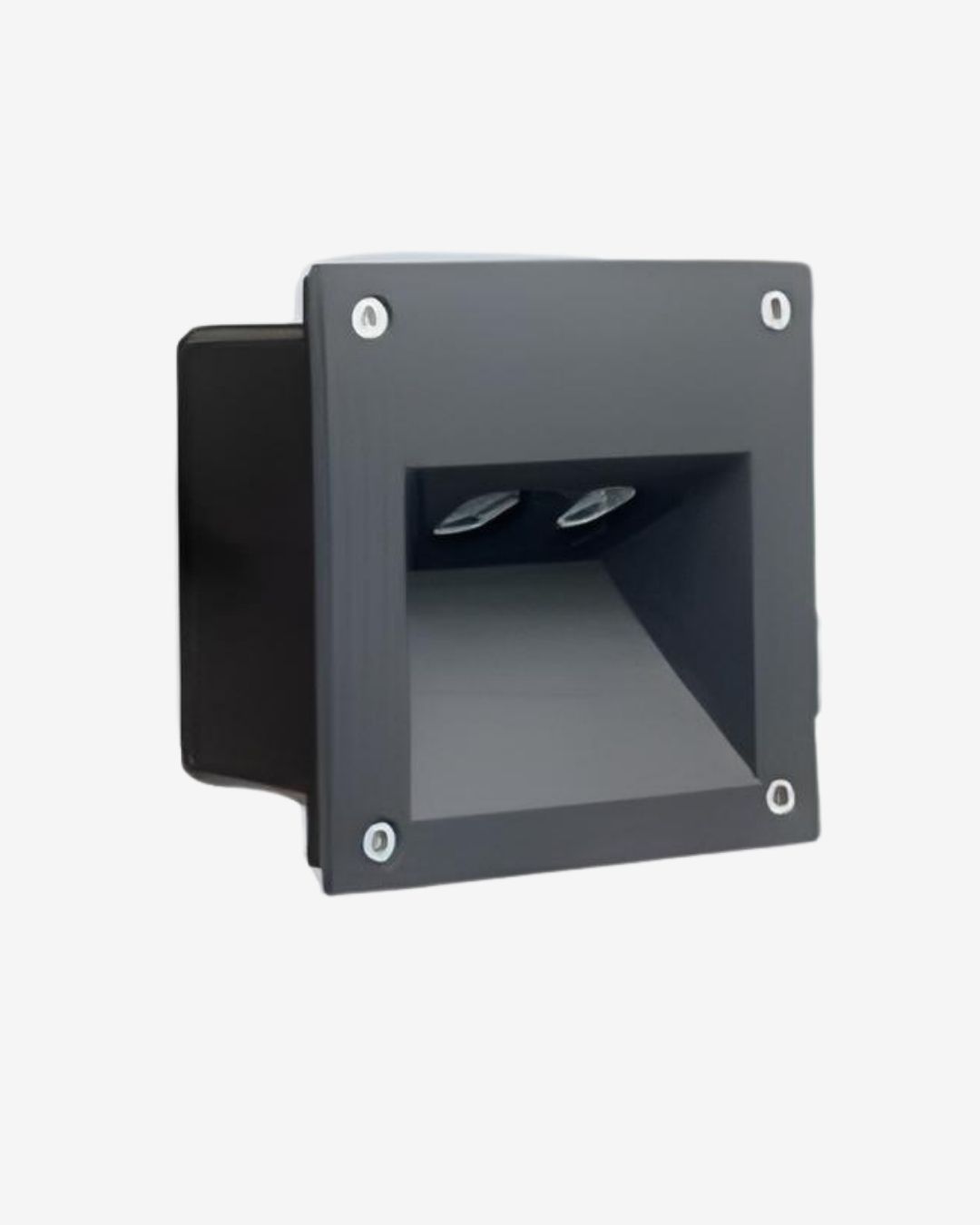

EN-OD19
Model code EN-OD19
MODEL POWER SIZE
EN-OD19 – 2
2 W 114 x 114 x 65EN-OD19 – 4
4W 170 x 114 x 65EN-OD19 – 6
6W 226 x 114 x 65 LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 Driver BIS Certified, Isolated, IP66 fully potted driver Optional LEDs BridgeluxSpecifications — typical, family defaults
- IP rating
- IP54 · IP66 · IP67 by model (IP44 where stated)
- Body material
- Die-cast aluminium · powder-coated
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 70+ standard · Ra 80+ on request
- Driver
- Built-in · constant current
- Input voltage
- 220–240 V AC
- Operating temperature
- −20 °C → +45 °C
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Surface / ground / wall, per model
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
