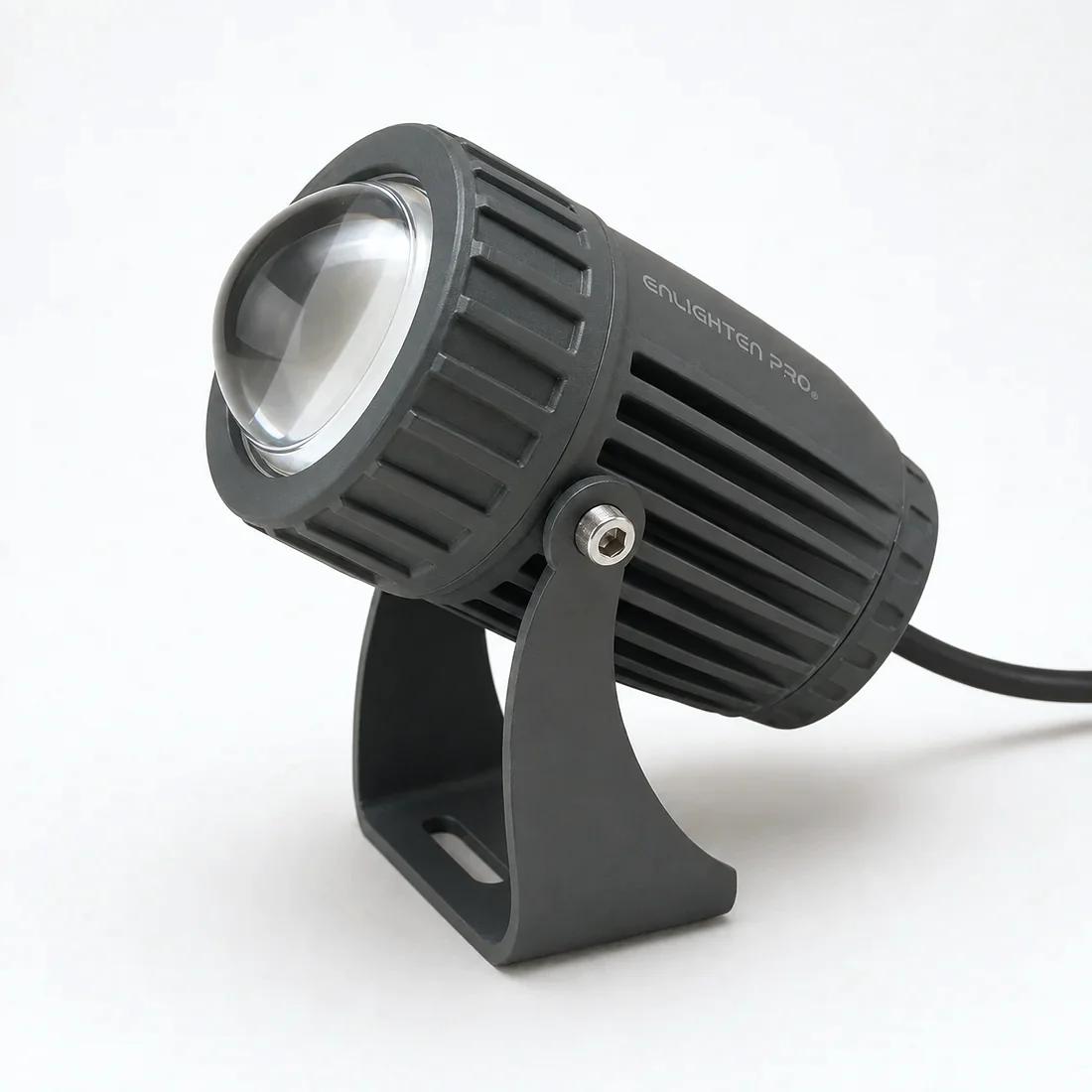

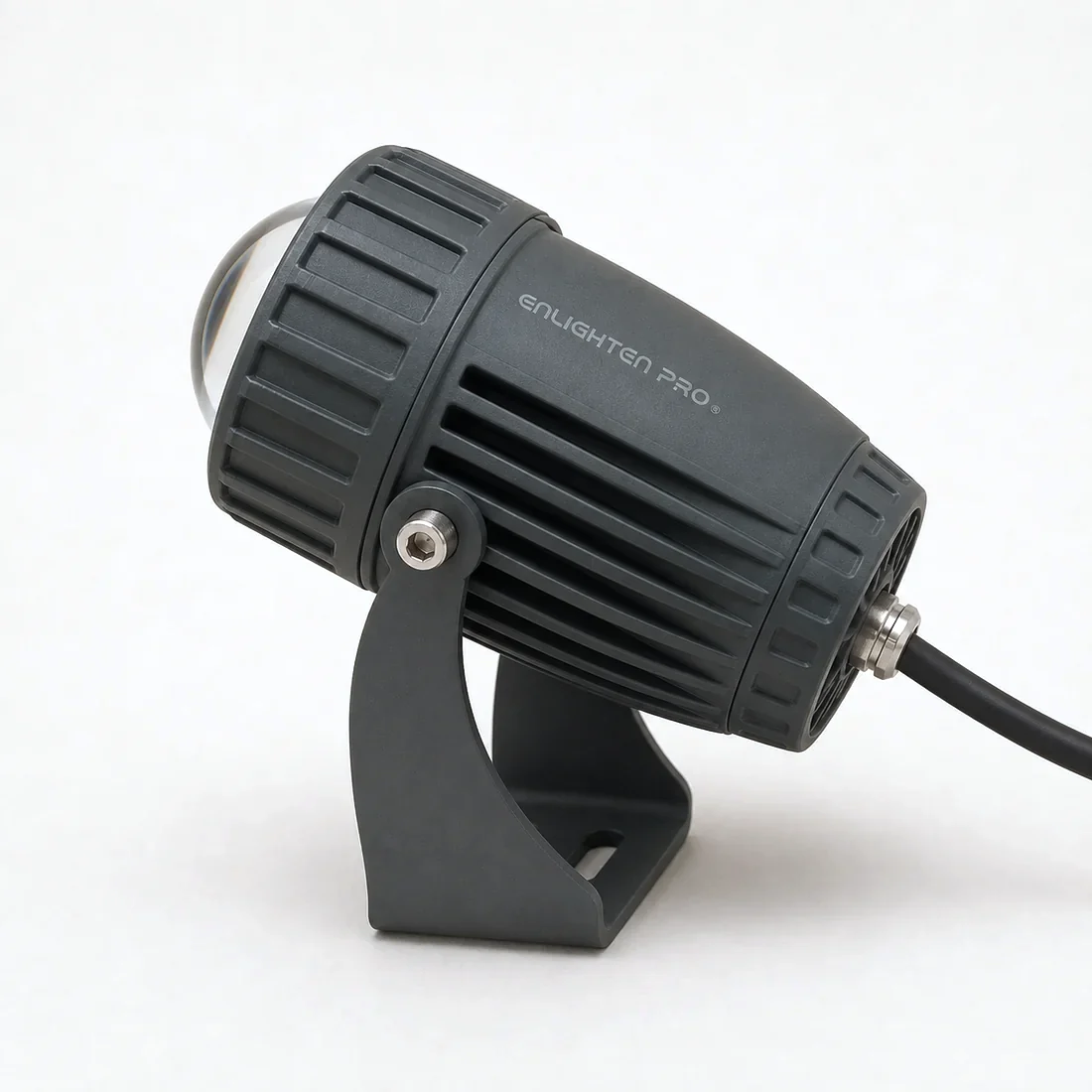

EN-OD02-PHL
Model code EN-OD02-PHL
The 8° projector: one subject, lit top to bottom from its base.
- Body Colour
- Sand Grey
- IP Rating
- IP65
- LED
- Bridgelux, LM80 certified
- Body material
- Die-cast aluminium ADC12
- Color temperature options
- 3000K
- Luminous efficacy
- 85 lm/W
- SDCM
- ≤ 3
- Lens
- PMMA
- Beam angle
- 8°
- Mounting
- Adjustable bracket · 160 mm ground spike
- Driver
- Isolated, fully potted
Specifications — typical, family defaults
- Color rendering index
- Ra 70+ standard · Ra 80+ on request
- Input voltage
- 220–240 V AC
- Operating temperature
- −20 °C → +45 °C
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
