Meridian Tensioned Line
Model code EN-MRD
One line of light, drawn tight across the room — wall to wall, or wall to ceiling, over spans up to 20m.
The system 4 parts

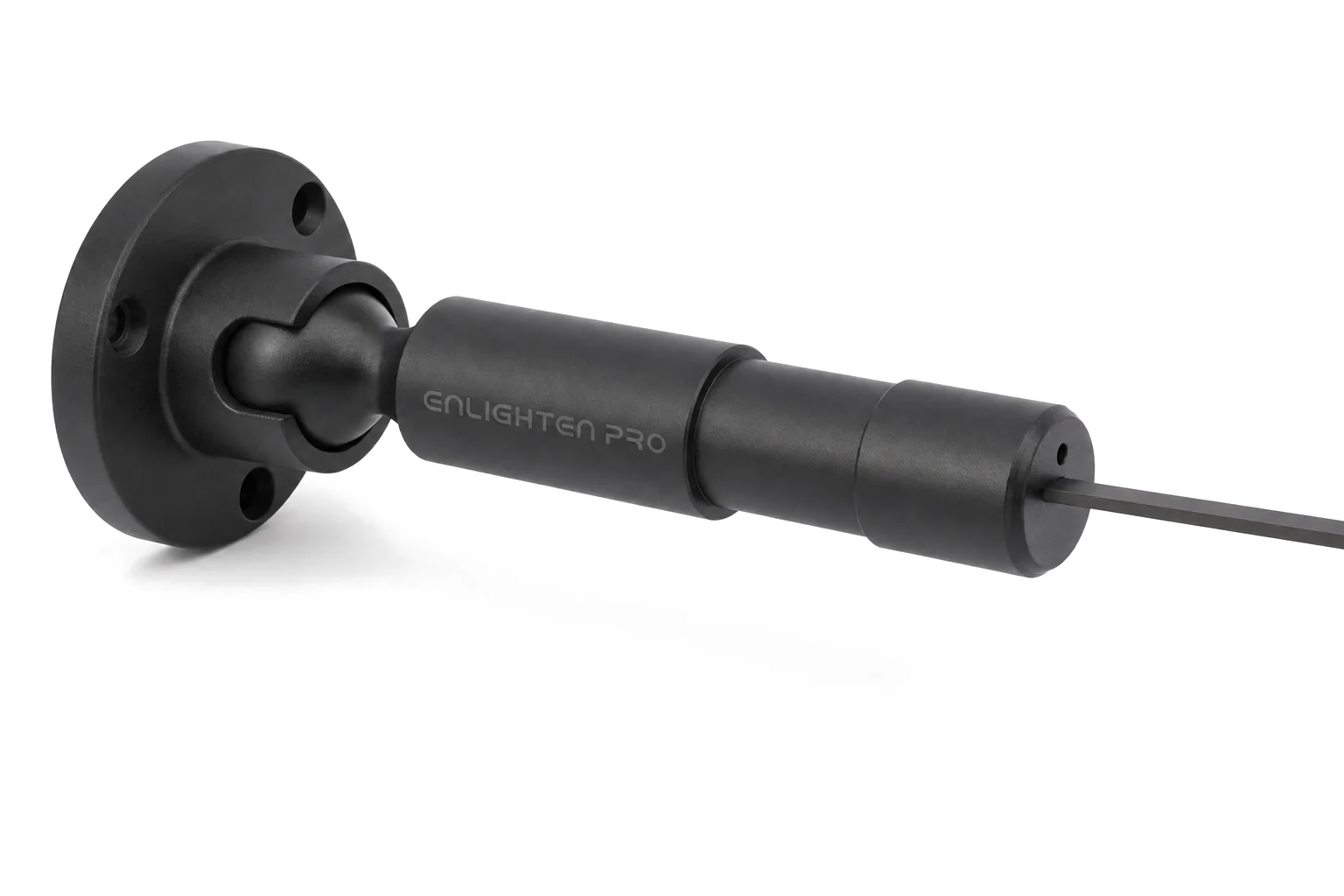

EN-MRD-ACC · Bracket set
Pair
Two aluminium brackets, one for each end of the line. Each has a round wall base, a ball joint that spins through 360° and tilts through 62°, and a connecting rod that locks the belt with a hex socket screw. The power feed comes in through the bracket, so nothing hangs in the span.
- Material
- Aluminium
- Finish
- Black
- Rotation
- 360° spin · 62° tilt
- Fixing
- 4 screws, 49 × 49mm
- Minimum angle
- 31° to the surface
- Sold as
- Pair

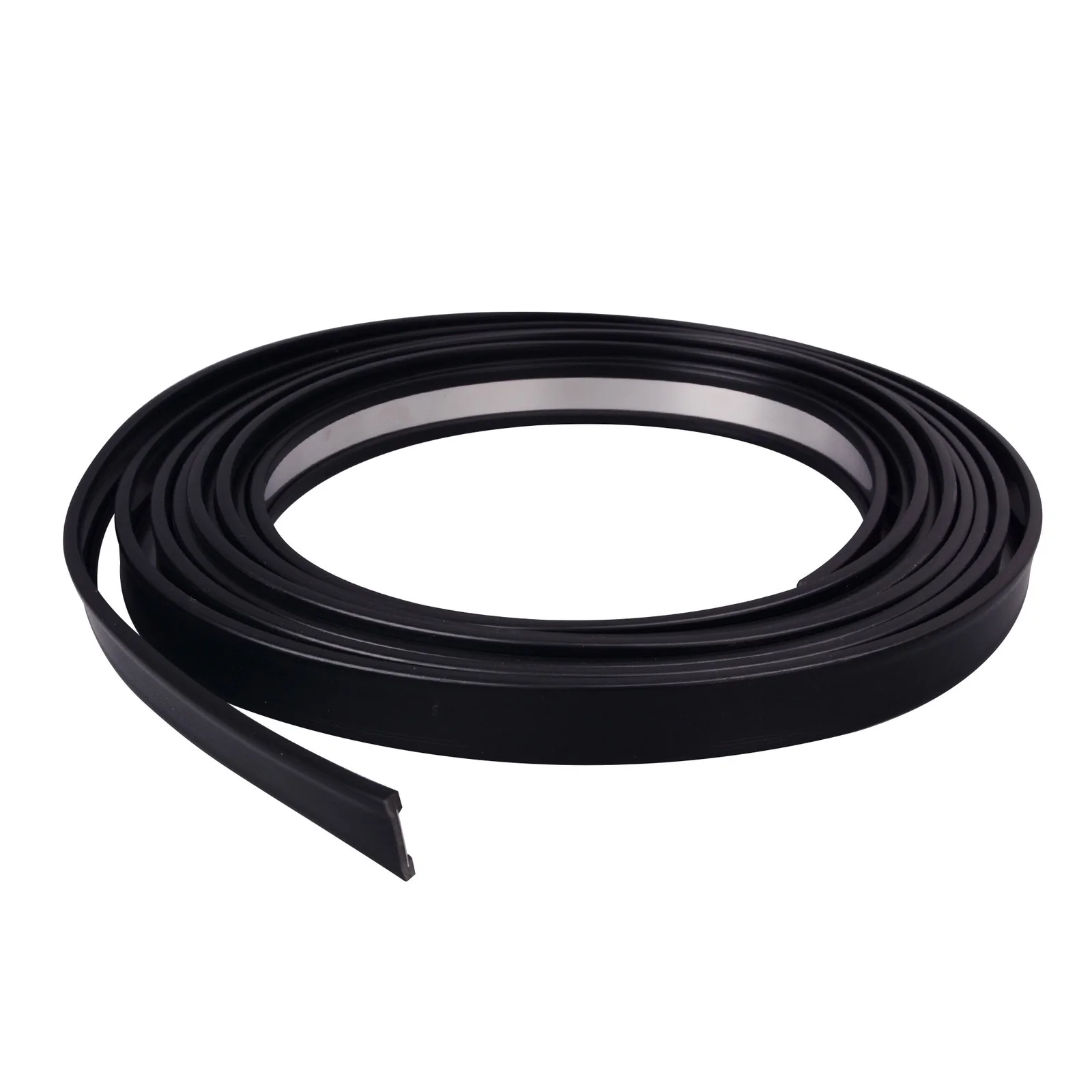

EN-MRD-BELT · Steel belt
Per metre
The 13mm steel belt that carries the strip. It is cut to the span on site, locked into the two connecting rods and drawn taut, so the line runs straight from end to end.
- Width
- 13mm
- Span
- 1–20m
- Finish
- Black
- Sold
- Per metre

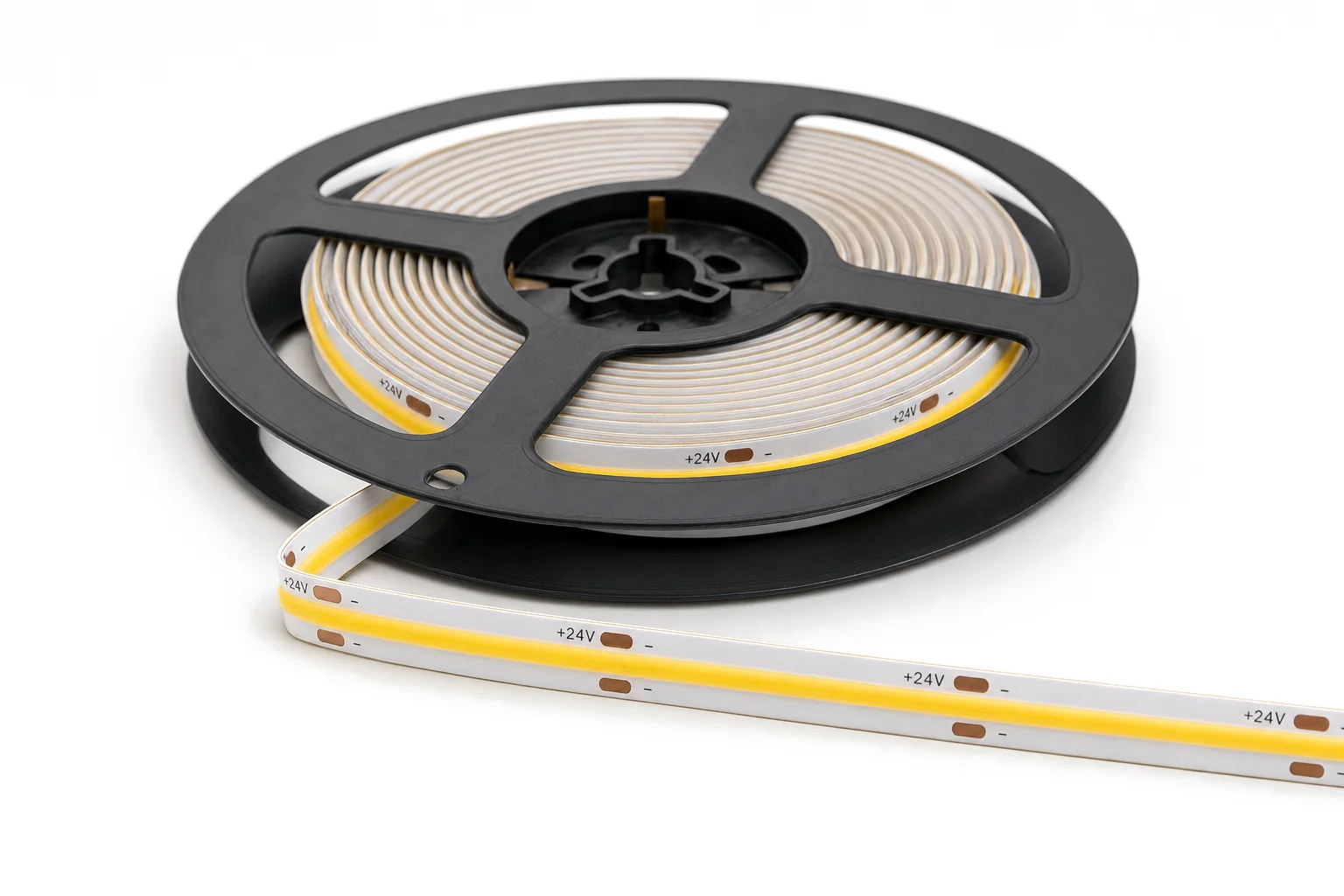

EN-MRD-COB24 · COB strip, 24V
Per metre
A chip-on-board strip stuck along the face of the belt. COB gives one continuous line with no visible dots — which matters on a fitting people see end to end.
- Voltage
- 24V DC
- Type
- COB
- Power
- 10W/m
- Colour temperature
- 3000K or 4000K
- CRI
- 80+
- Width
- Up to 10mm
- Sold
- Per metre
EN-SMPS01–04 · 24V power supply
Sold separately
Not included with Meridian. The strip runs on 24V DC at 10W per metre, so it needs a 24V constant-voltage power supply sized to the run — a 10m line draws 100W. The supply sits in the ceiling void or a wall box at the feed end, never in the span. Choose one from the Treiber range under Power Supplies.
Applications
- Galleries & museums
- Vaulted & double-height ceilings
- Lobbies & corridors
- Stairwells
- Retail & hospitality
- Residences
