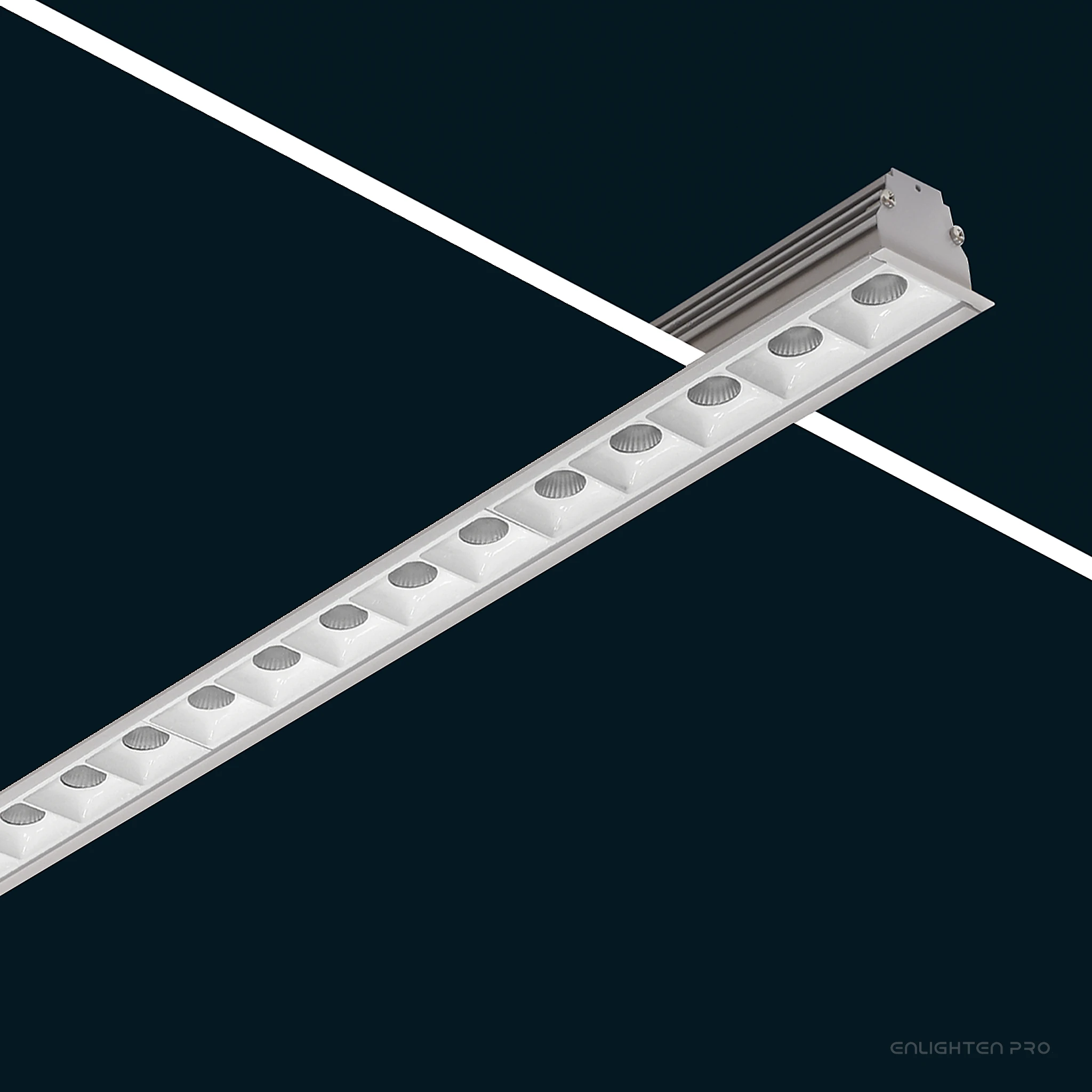

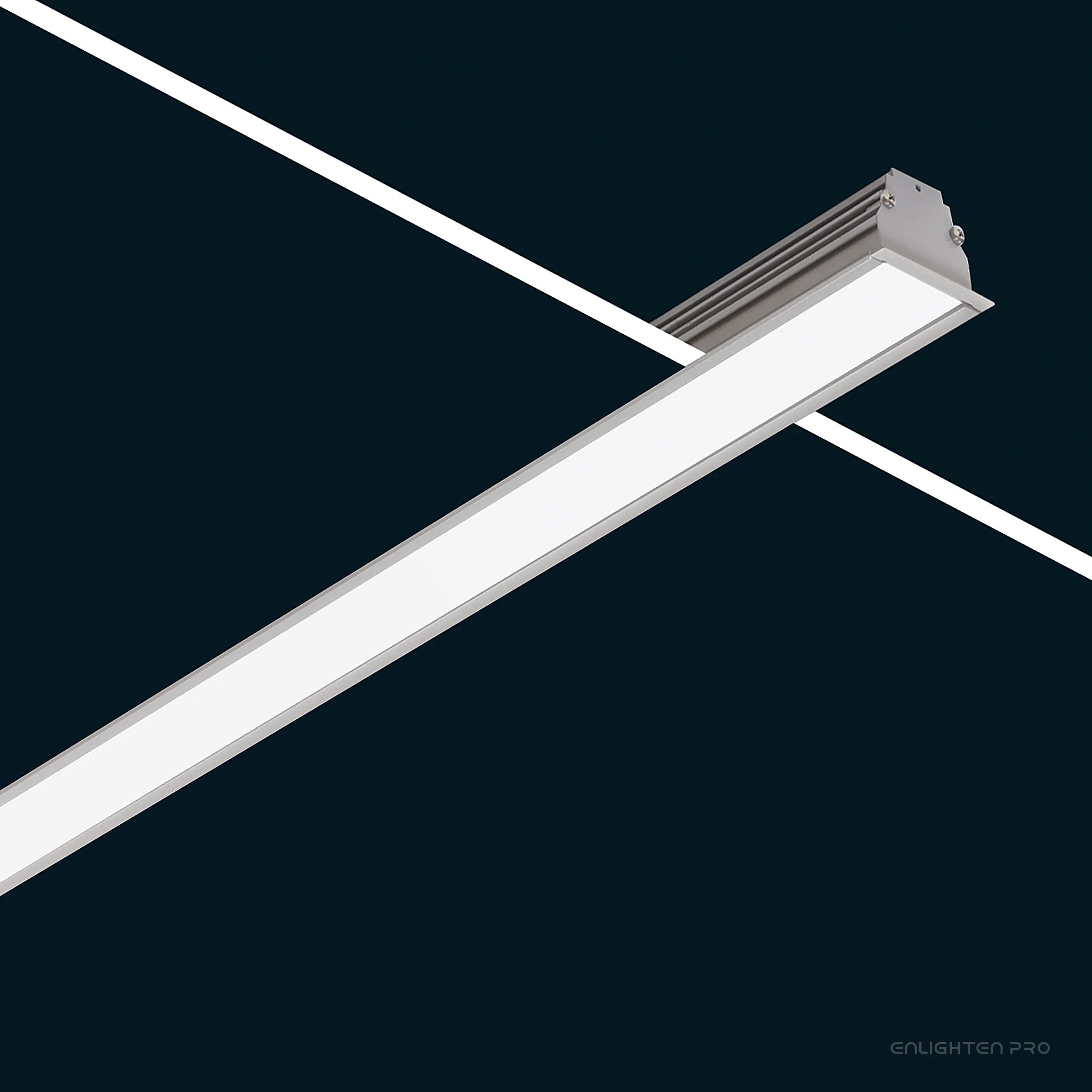

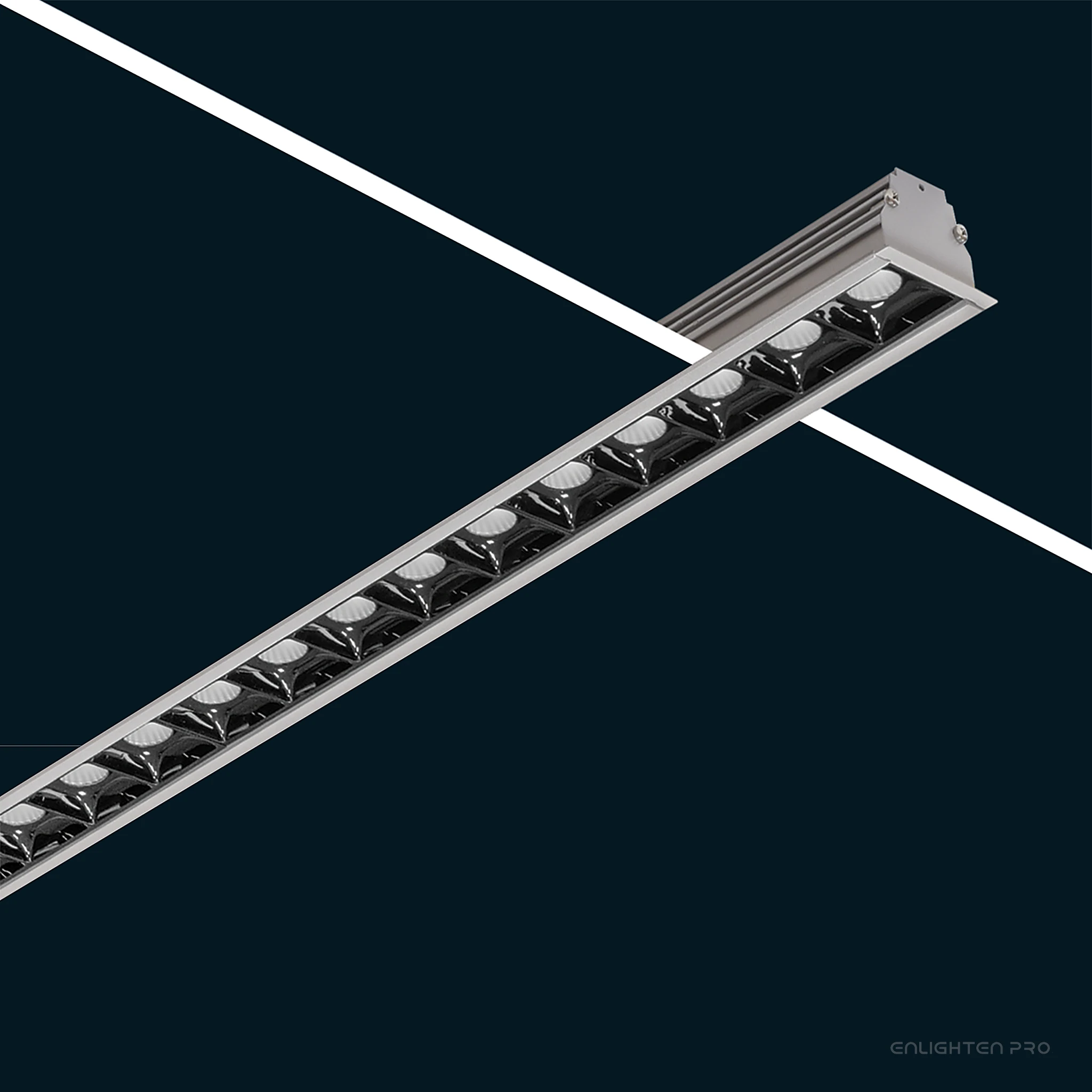

Magic 3835R
Model code EN-LL3835R

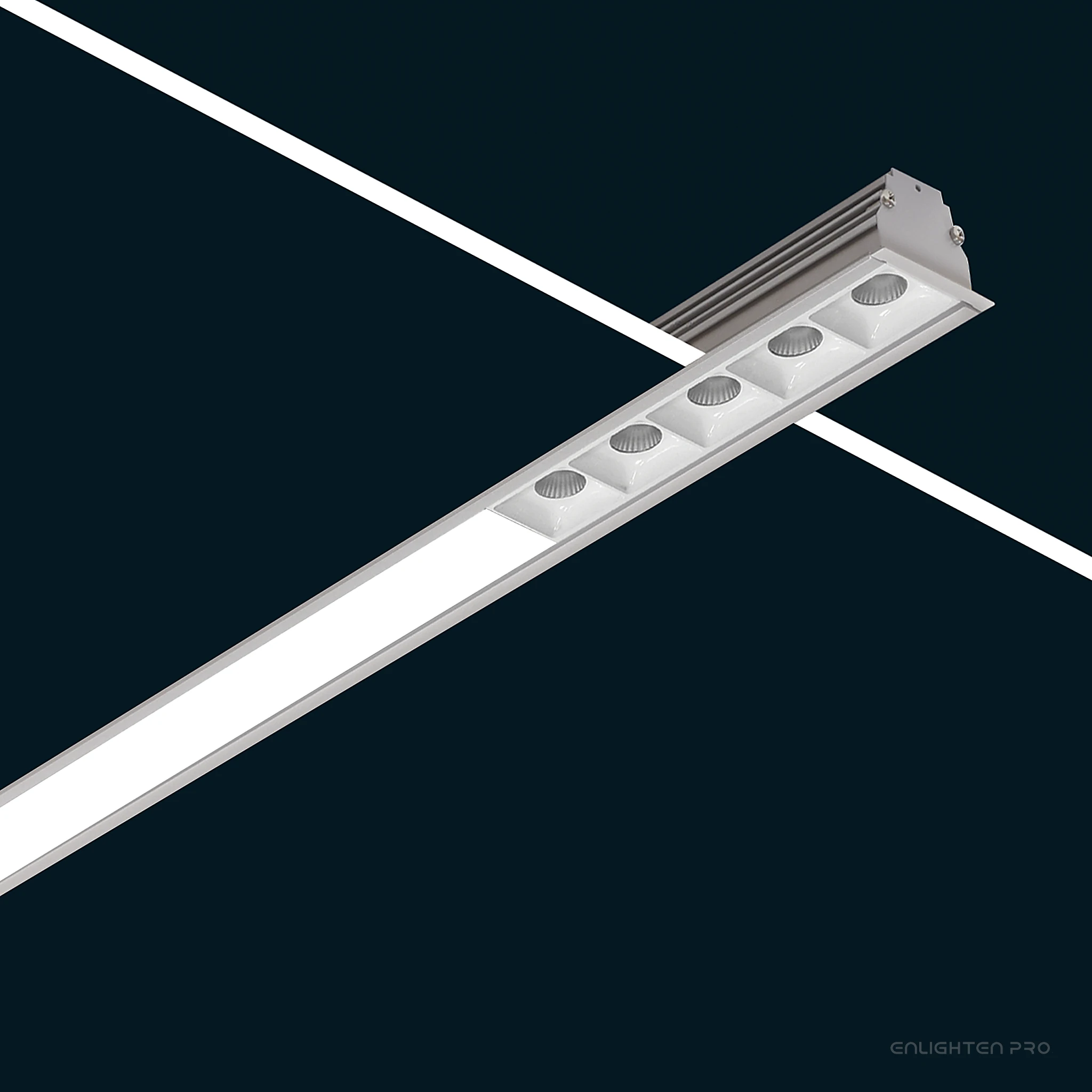

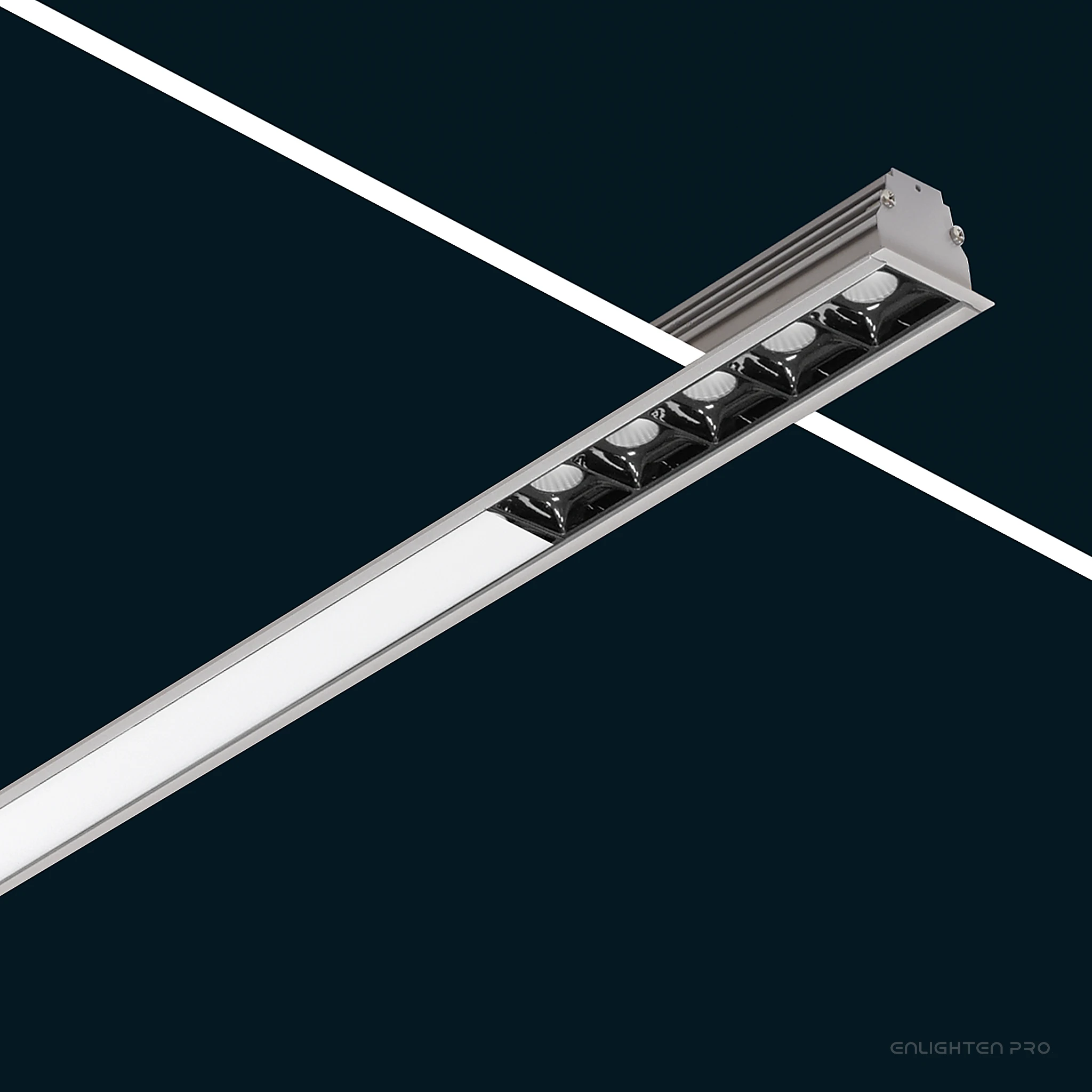

Recessed anti-glare linear on a 38 x 35mm profile, trimless into plasterboard. Opal and anti-glare grille lens segments combine in one run, so a single continuous line can switch between general diffuse light and low-glare downlight where it is needed.
LED: gold-wire LM80 certified, CRI 80 (CRI 90 upon request)
CCT: 3000K / 4000K / 5700K / 6500K
Optic: PMMA opal diffuser with anti-glare grille lens segments
Body: Aluminium profile, 38 x 35mm, recessed / trimless
Driver: BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV surge protection, OVP 440V
Controls: Bluetooth, TRIAC, 0/1-10V, DALI-2
Lengths: 300mm to 3600mm customised
IP rating: IP20
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS
Applications: offices, hotels, reception areas, classrooms, gyms and restaurants.
Contact for customized quotation
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+
- Body material
- Aluminium · powder-coated
- Diffuser
- PMMA opal
- Mounting
- Surface-mounted, Suspended, Recessed
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Commercial
- Workspace
- Hospitality
- Retail
Mounting
- Recessed
