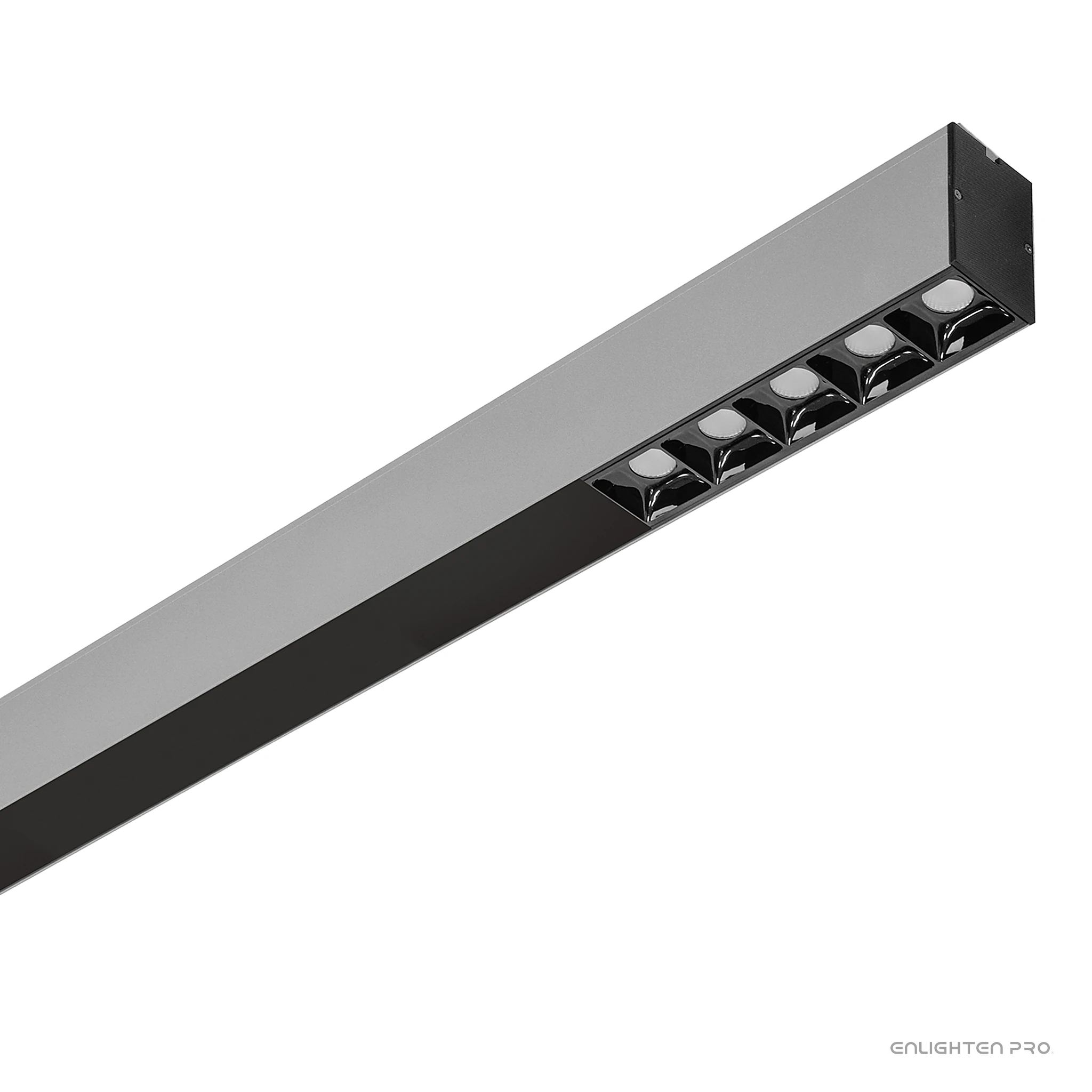

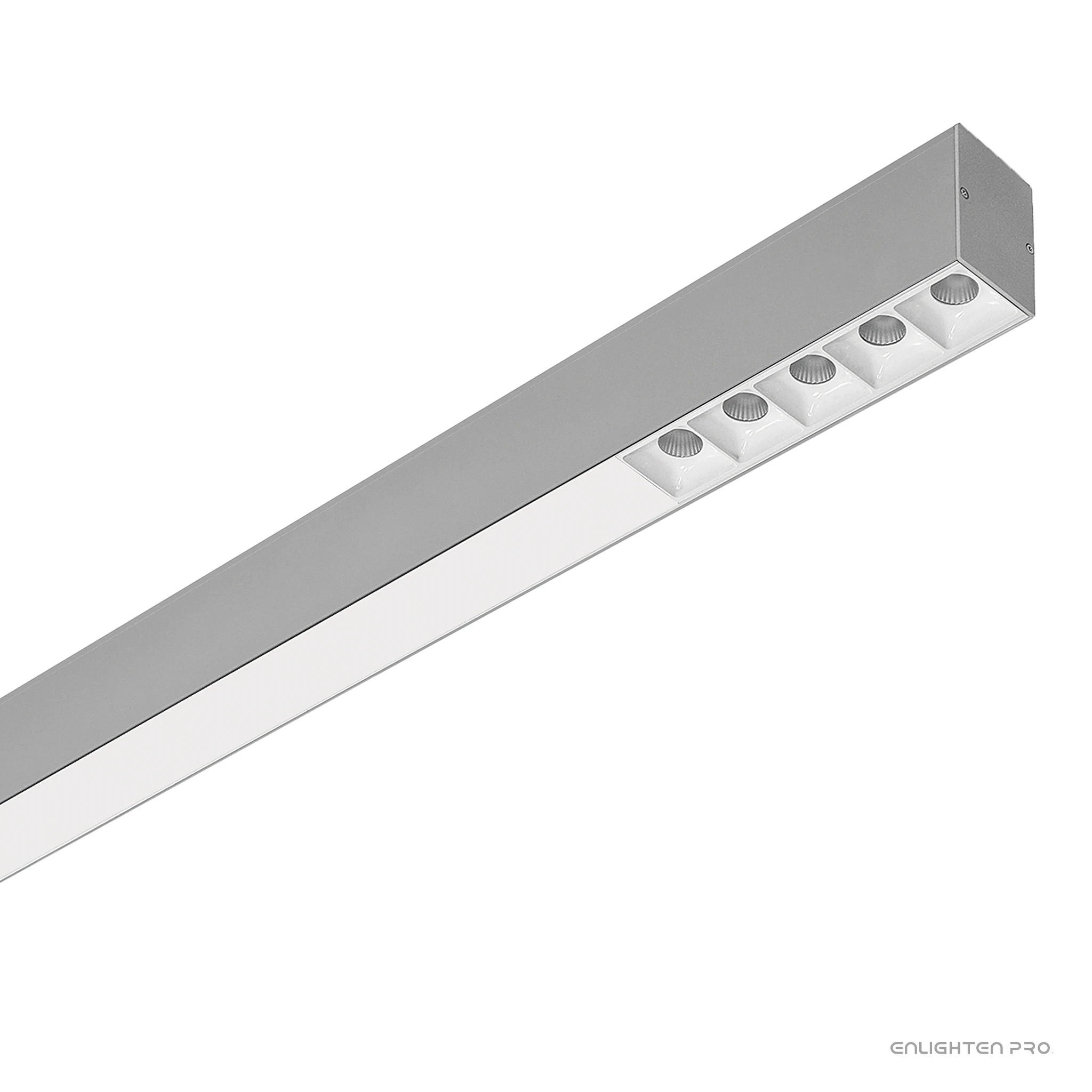

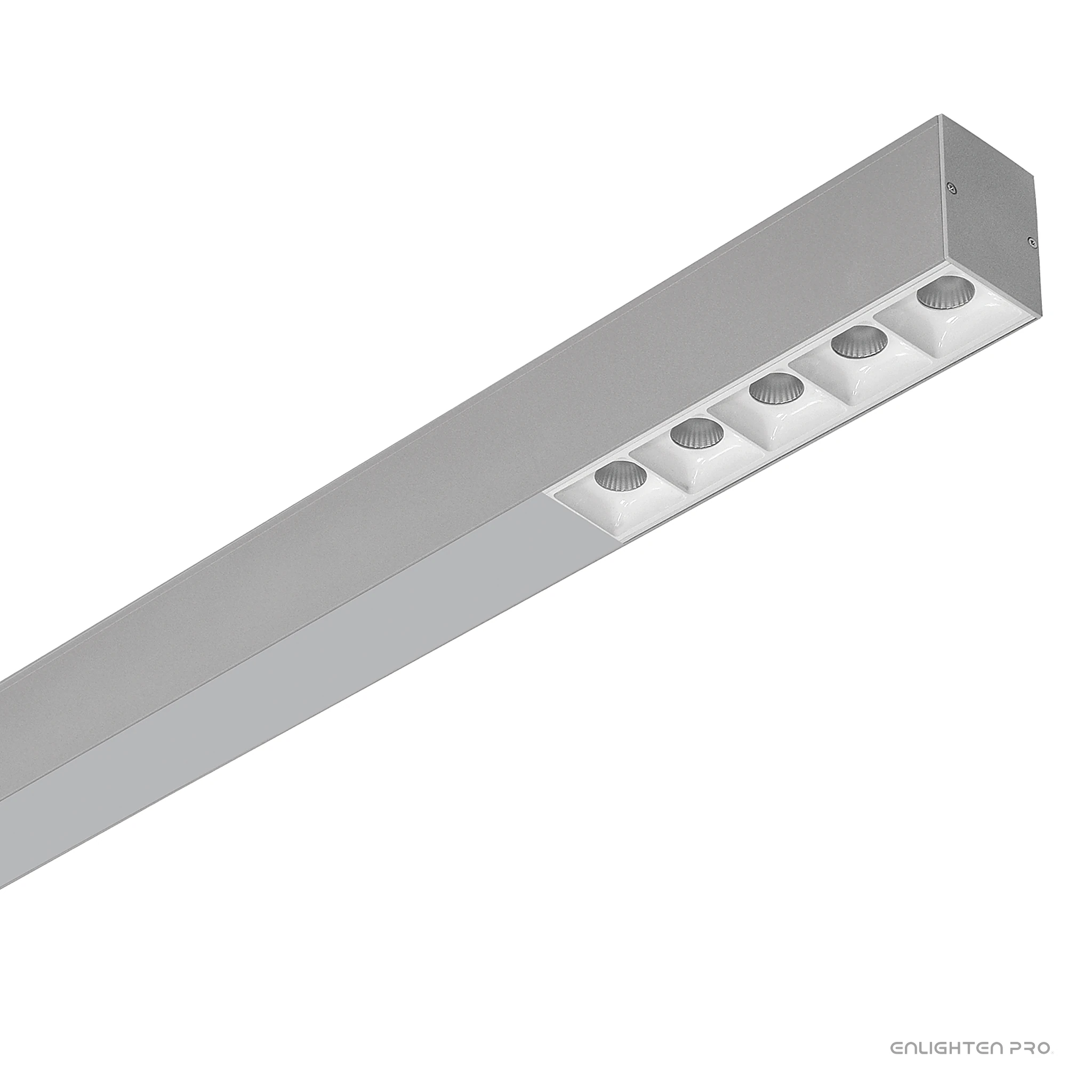

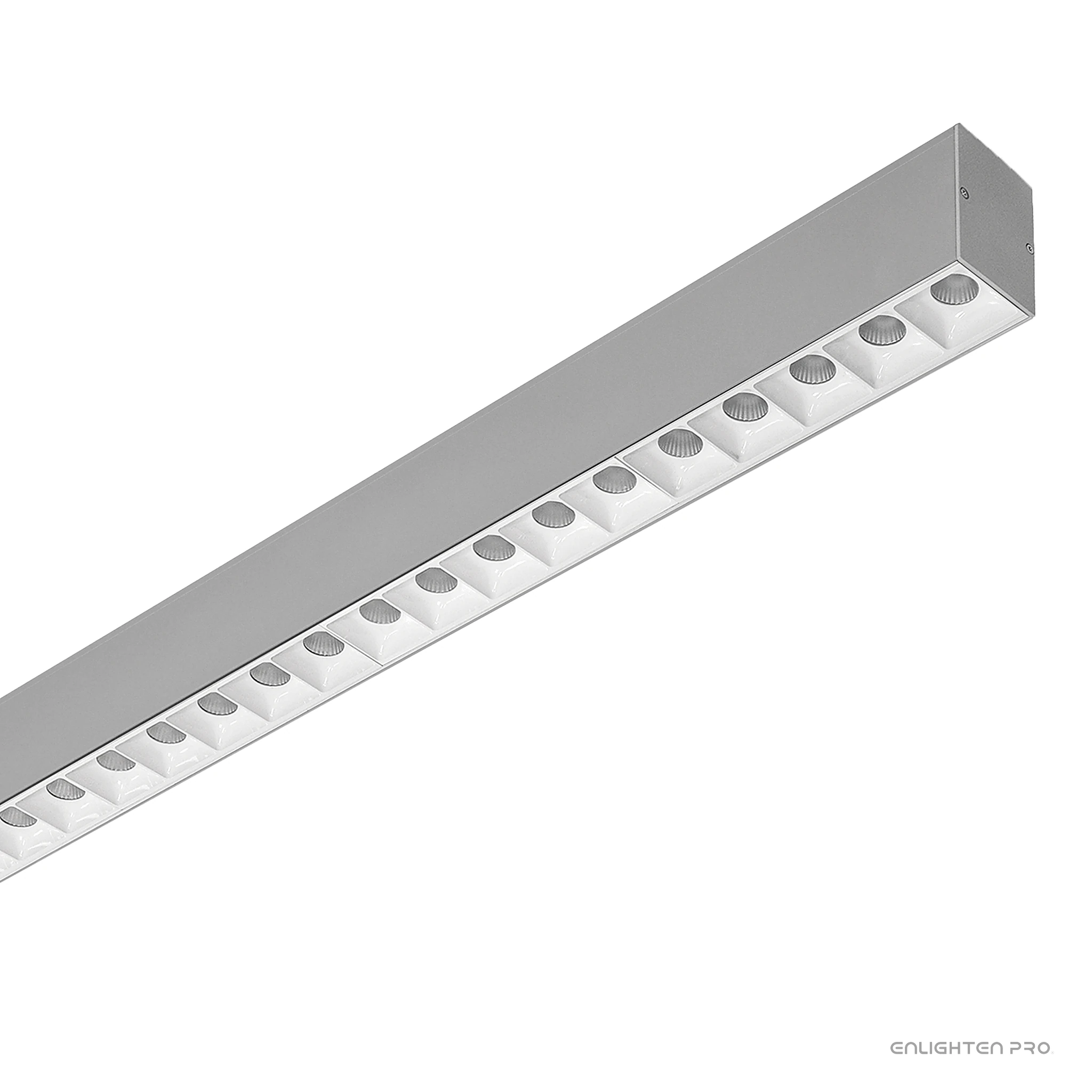

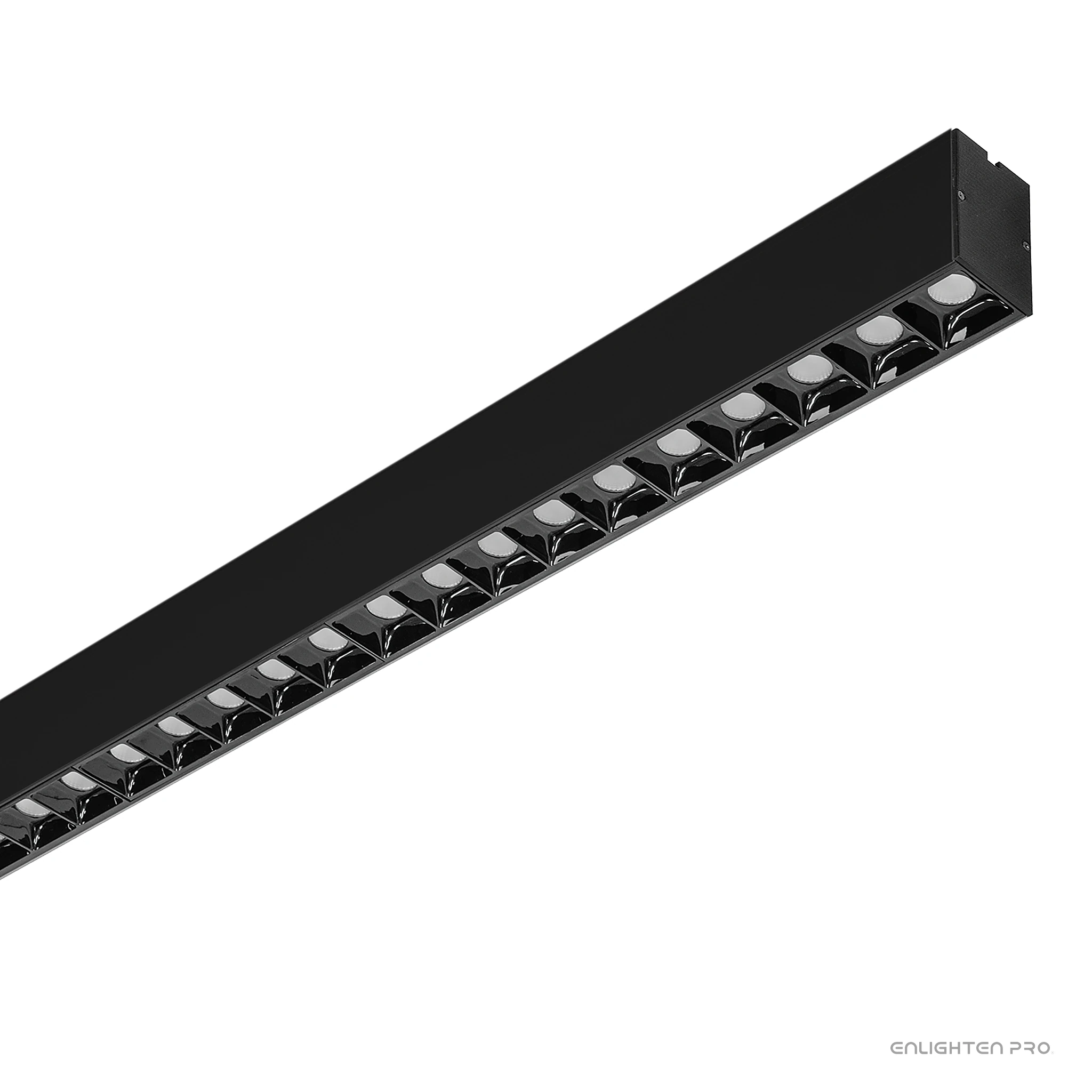

Magic 3475S
Model code EN-LL3475S
Customised
300mm to 3600mm
BWF Opal & MicroPrismatic
Anti-glare optics 11 different options
18W to 50W per 1200mm
Contact for customized quotation
LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Bridgelux Optional Drivers Fulham | Osram | PhilipsControls: Bluetooth, TRIAC, 0/1-10V, DALI-2
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+
- Body material
- Aluminium · powder-coated
- Diffuser
- PMMA opal
- Mounting
- Surface-mounted, Suspended, Recessed
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
