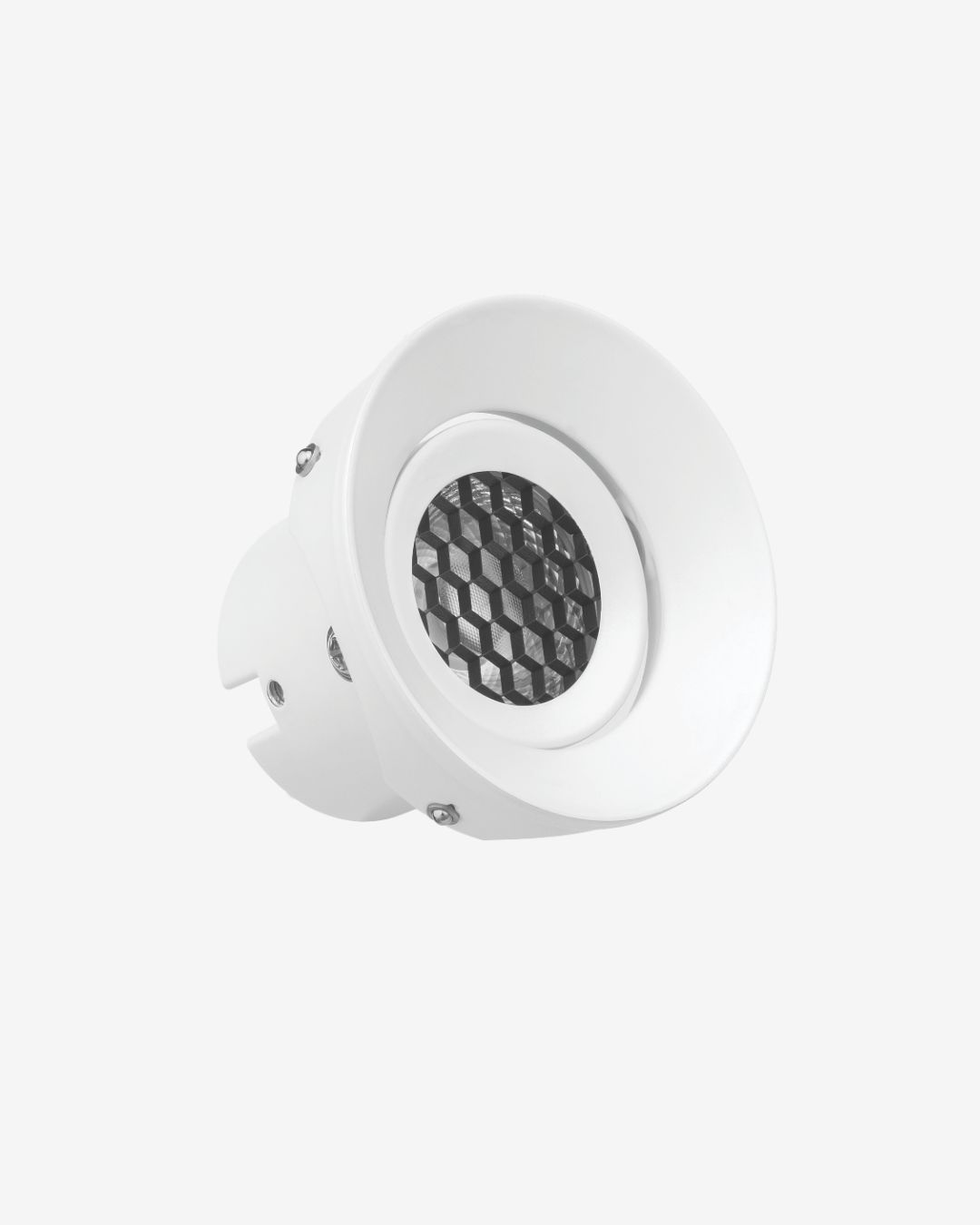

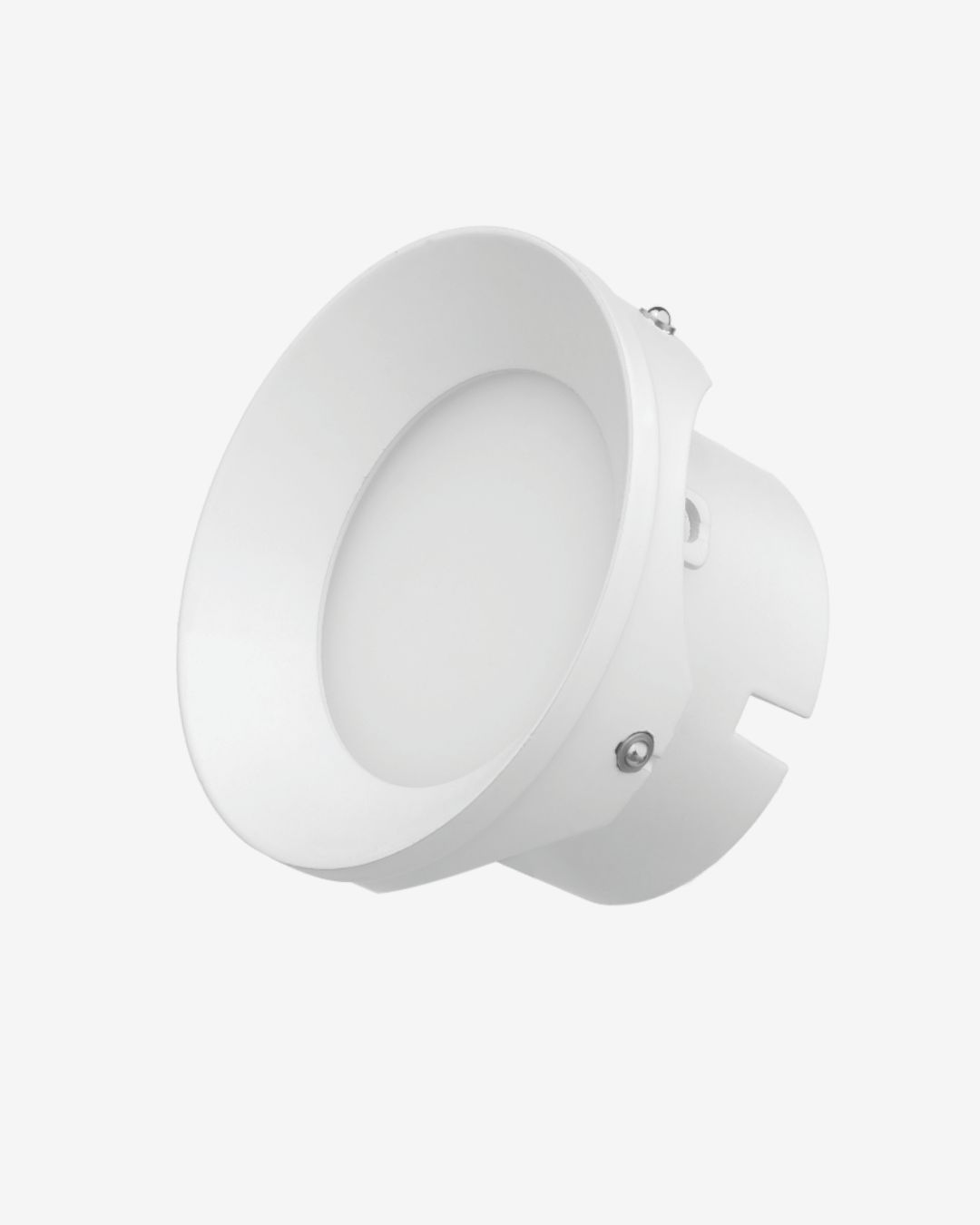

EN-LL04 Oculus

Name: EN-LL04 Oculus
Brand: Enlighten Pro
SKU: EN-LL04

Model code EN-LL04

MODEL POWER LUMINOUS FLUX OUTER CUTOUT EN-LL04-6 8W 640 ⌀ 80 × 35 ⌀ 75 EN-LL04-12 15W 1200 ⌀ 128 × 35 ⌀ 120 EN-LL04-18 20W 1800 ⌀ 173 × 35 ⌀ 165 EN-LL04-24 30W 2400 ⌀ 218 × 35 ⌀ 205 LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Cree | Bridgelux | Edison Optional Drivers Fulham | Osram | Philips

Specifications — typical, family defaults

Color temperature options: 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
Color rendering index: Ra 80+ · Ra 90+
Body material: Aluminium · powder-coated
Diffuser: PMMA opal
Mounting: Surface-mounted, Suspended, Recessed
Driver: Constant current
Input voltage: 220–240 V AC
IP rating: IP20
Warranty: 2 years
Beam angle options: 90°–120° (diffused)
Lumen figures stated at: 4000K · CRI 80

Exact values vary by model and wattage — request the variant datasheet for certified figures.
