Square Solid

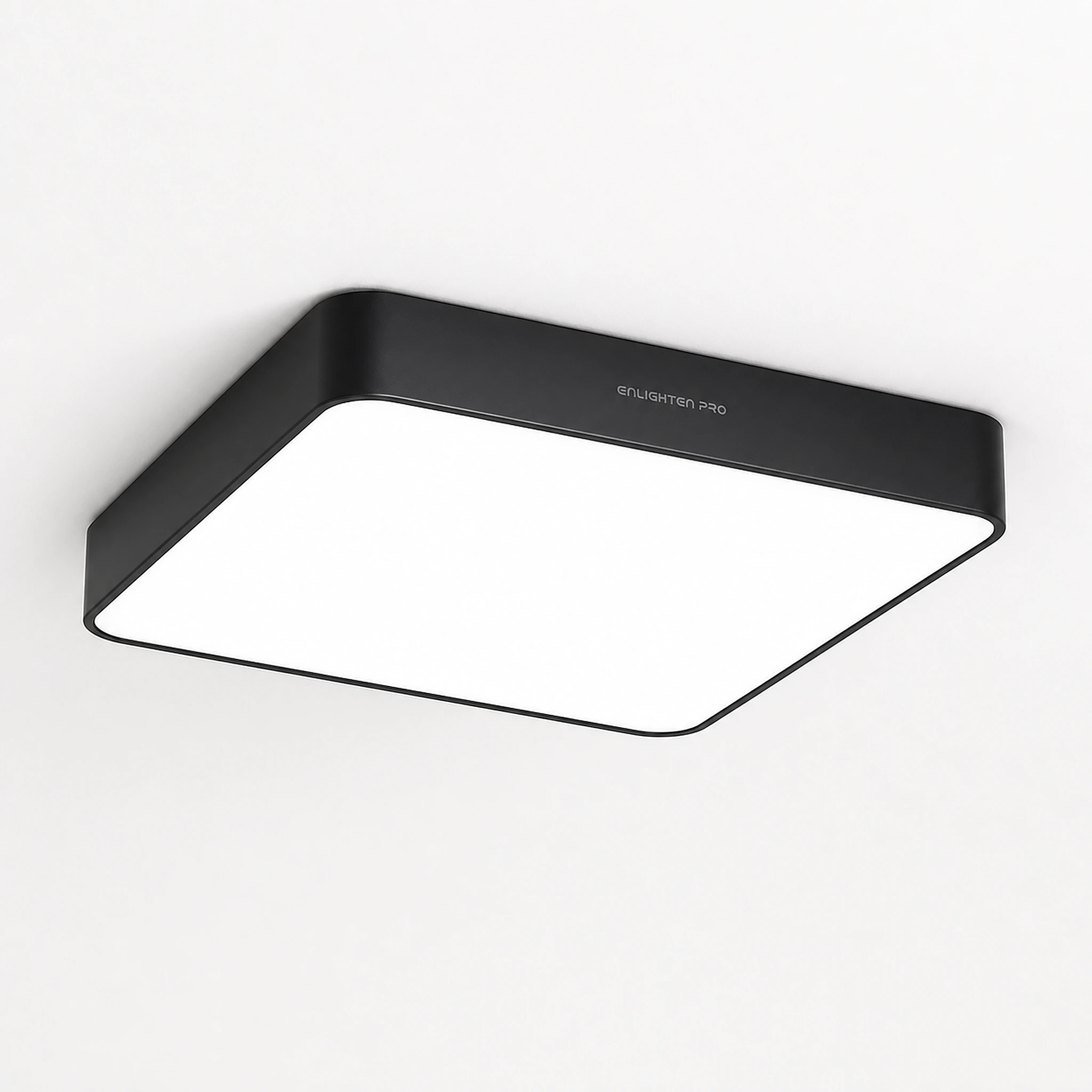

A 600 x 600 flat panel with curved corners — the radius is the point, and it is what separates this from every square panel on a false ceiling. Mounts on the surface or drops on suspension wires, so it goes where a recessed panel cannot: exposed slabs, concrete soffits, plasterboard already closed up.

MODELPOWERSIZEMOUNTING EN-LL01-SQS40W600 x 600 x H50Surface or suspended

LED: gold-wire LM80 certified, CRI 80 (CRI 90 upon request)
CCT: 3000K / 4000K / 5700K / 6500K
Diffuser: Opal, edge-to-edge
Body: Aluminium, curved corners, black or white
Driver: BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV surge protection, OVP 440V
Controls: Bluetooth, TRIAC, 0/1-10V, DALI-2
Mounting: Surface mounted, or suspended on wires (suspension kit included)
IP rating: IP20
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS

Same footprint, recessed: if the ceiling takes a cut-out, the EN-DL03 2x2 panel is the same 600 x 600 face in a recessed 29mm body.

Applications: offices, meeting rooms, reception areas, retail and residential.

Contact for customized quotation
