Omni 360
Model code EN-LL-Omni360
Round tube profile linear with full 360° wraparound emission — the tube reads as a continuous line of light from every angle, which makes it a feature run rather than a task fitting. Ø60mm PMMA opal tube, RGBW available.
MODELPOWERLENGTHOUTPUT EN-LL-Omni360-30010W300mm1,100 lm EN-LL-Omni360-60020W600mm2,200 lm EN-LL-Omni360-120040W1200mm4,400 lmLED: 110 lm/W, CRI 80 (CRI 90 upon request)
CCT: 3000K / 4000K / 5700K / 6500K / RGBW
Diffuser: PMMA opal, 360° light emission
Body: AL6063 aluminium round tube, Ø60mm
Driver: BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV surge protection, OVP 440V
Controls: Bluetooth, TRIAC, 0/1-10V, DALI-2

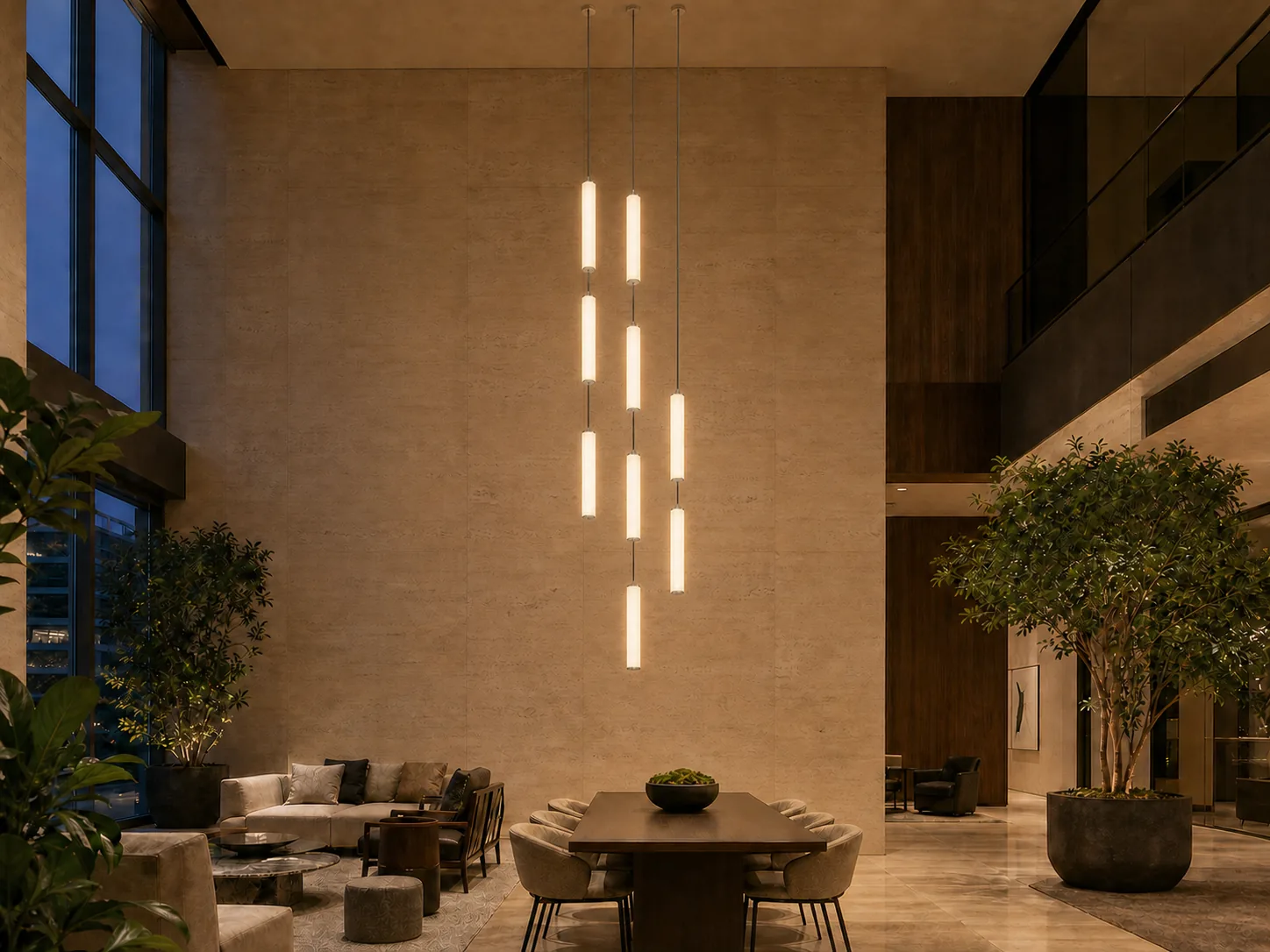

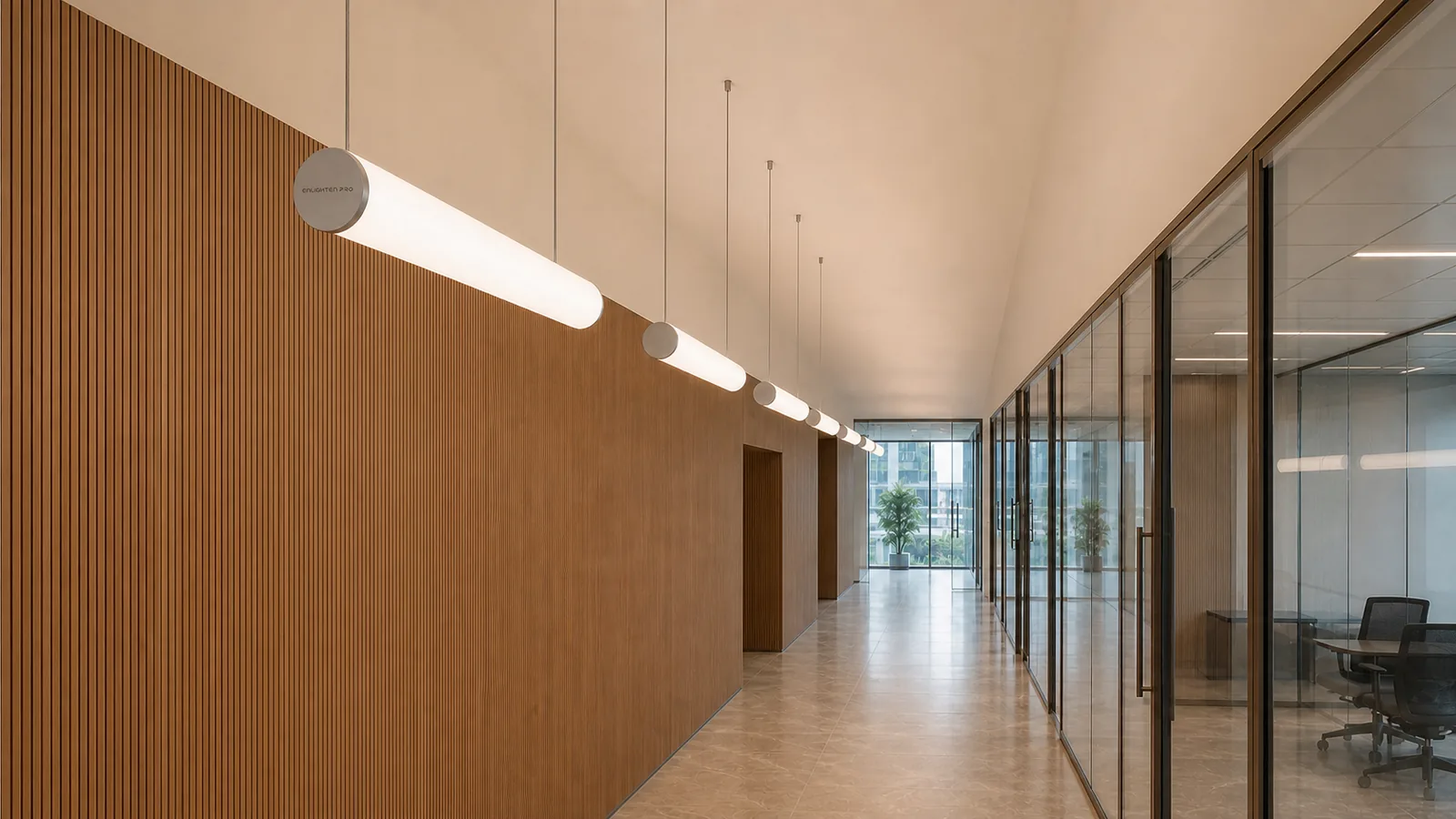

Mounting: Suspended vertically, suspended horizontally, or wall mounted
Lengths: 300 / 600 / 1200mm (other lengths customised)
IP rating: IP20
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS
Applications: offices, hotels, reception areas, classrooms, gyms and restaurants.
Contact for customized quotation
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+
- Body material
- Aluminium · powder-coated
- Diffuser
- PMMA opal
- Mounting
- Surface-mounted, Suspended, Recessed
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Commercial
- Workspace
