EN-DL05 Vistara
Model code EN-DL05
Vistara is crafted to provide wide, even lighting, ideal for spaces where a soft, diffuse glow is preferred over the concentrated spot effect typical of many COB spotlights. Featuring cutting-edge SMD or MR PCB technology and convex Fresnel optics, Vistara delivers superior light dispersion for a comfortable, well-lit environment.
Built with our trademark hexagon and hexagram design pattern, Vistara is efficient, durable, and unmistakably architectural.
PowerOuter sizeCutout07 WØ 69 × H 49 mmØ 59 mm12 WØ 82 × H 57 mmØ 72 mm18 WØ 96 × H 67 mmØ 86 mm- Application
- Hospitality, Retail, Premium residential, Office
- Beam angle
- 24°, 38°, 60°
- Body finish
- White, Black, Champagne Gold
- Body pattern
- Hexagon & hexagram trademark
- CCT options
- 3000K, 4000K, 5000K, Tunable
- CRI
- Ra ≥ 90
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- IK rating
- IK06
- IP rating
- IP20 (indoor)
- Lifetime
- L80B10 ≥ 50,000 hours
- Mounting

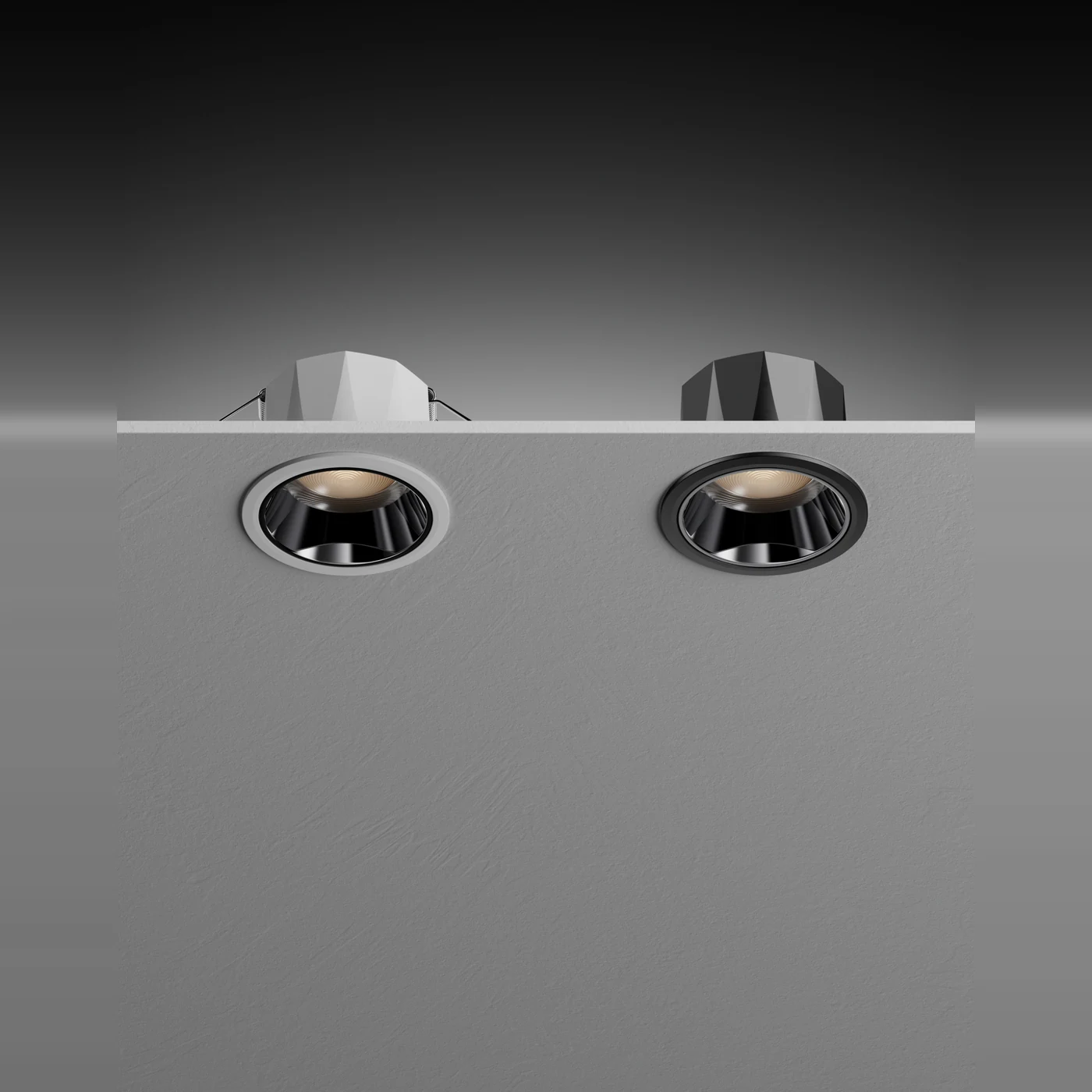

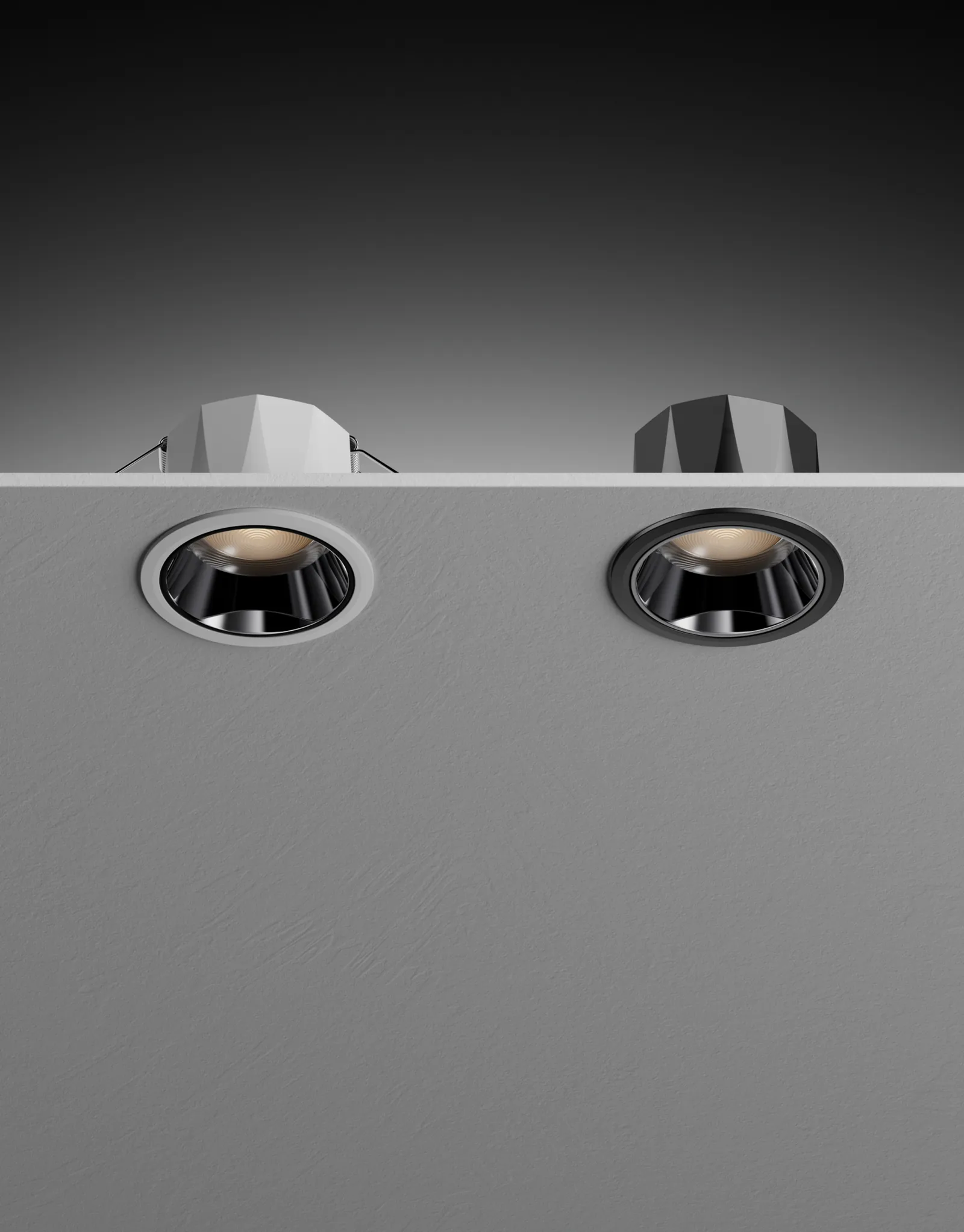

- Recessed with trim ring (cut-out per size)
- Operating voltage
- 220–240 V AC
- Optic
- Convex Fresnel + reflector cup
- Power options
- 7 W, 12 W, 18 W

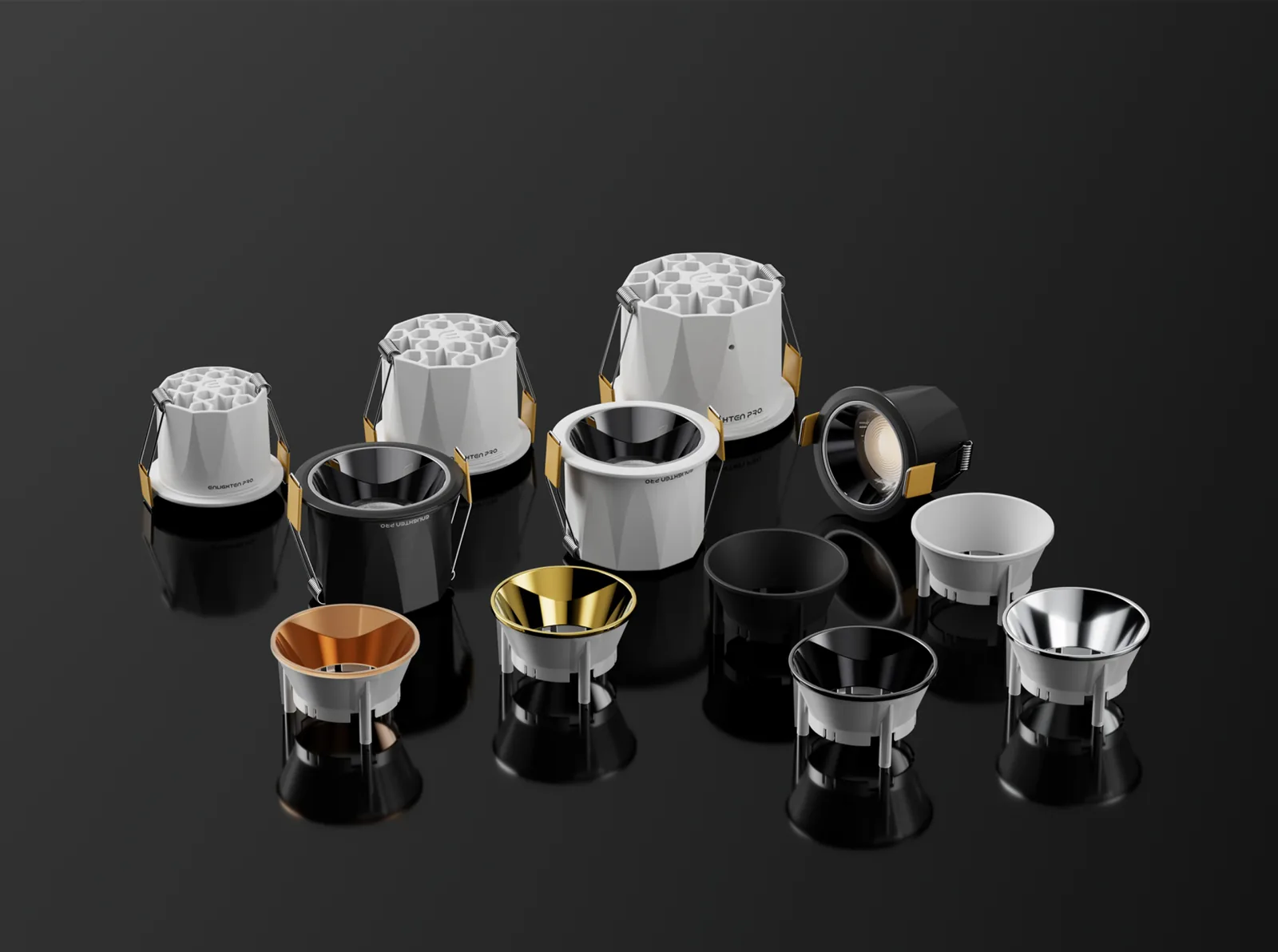

- Reflector finish
- Silver, Black, Gold, Rose gold, Chrome, White
- Source
- High-CRI SMD / MR PCB COB
