EN-DL04-TR Lux Trimless
Model code EN-DL04-TR

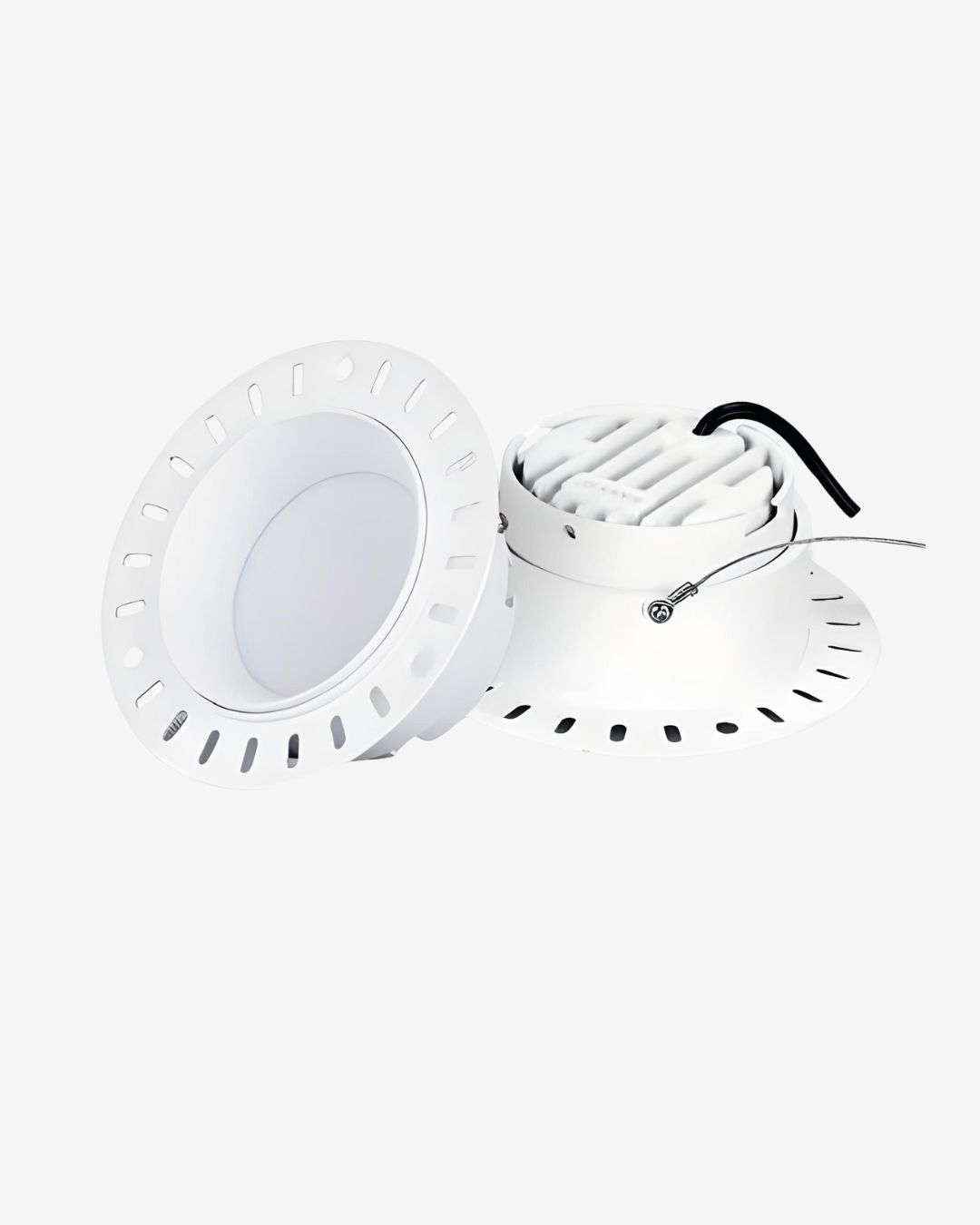

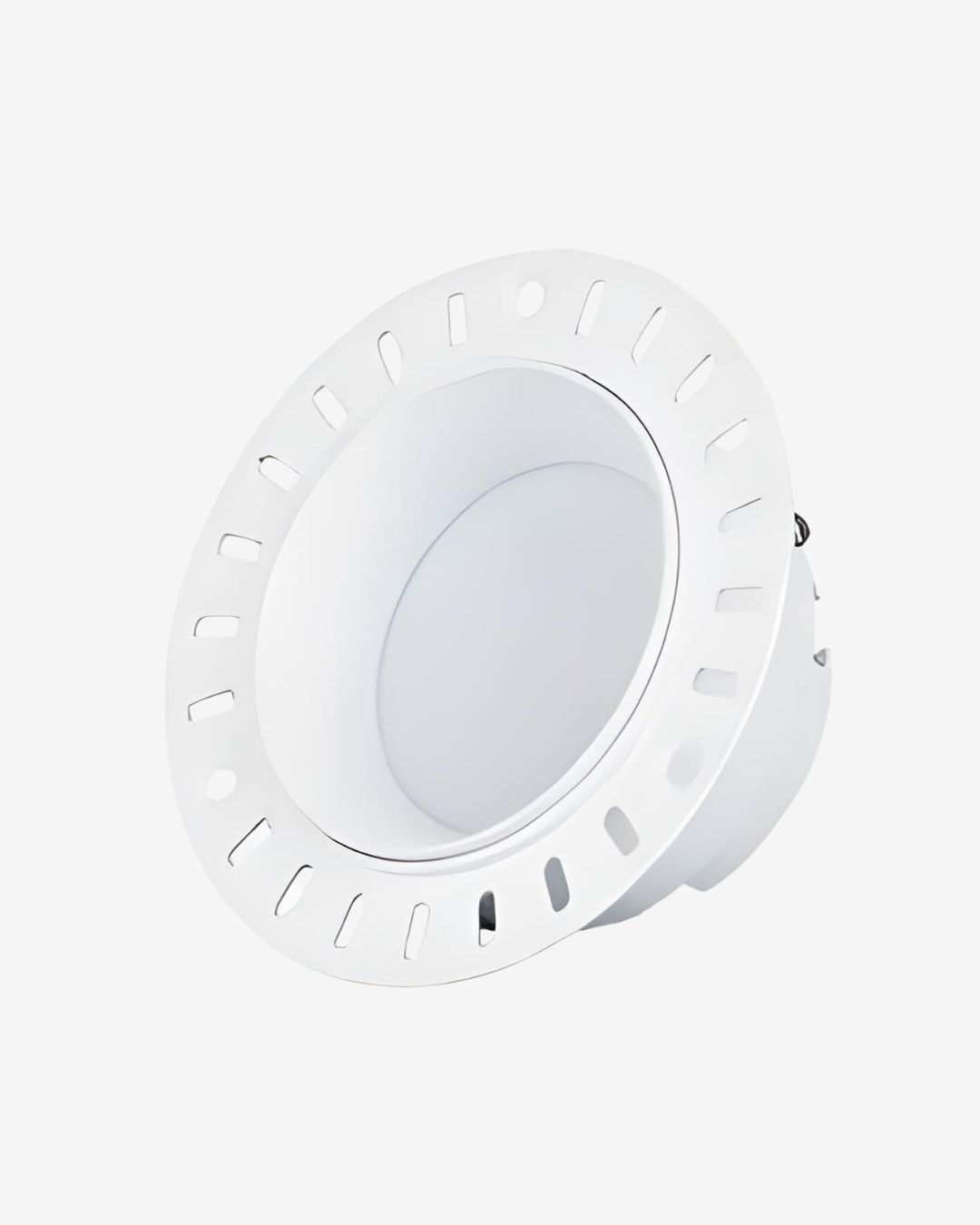

The trimless Lux disappears into the ceiling: a plaster-in POP ring sets the fixture perfectly flush, and the whole unit can be removed from below for service — no access hatch needed. Same monolithic ADC-12 construction as the standard Lux.
ModelPowerCutoutEN-DL04-10TR10 WΦ105EN-DL04-18TR18 WΦ130LED140-150 lumens/watt gold-wire LM80 certified LED, CRI > 80 (90/96 upon request)DriverBIS-certified, HPF, THD < 10%, minimal ripple, 2.5–4 kV surge protection, OVP 440V- Application
- Hospitality, Retail, Premium residential, Office
- Power options
- 10 W, 18 W
- Cutouts
- Φ105 mm, Φ130 mm
- Mounting
- Trimless recessed — plaster-in POP ring, removable from below
- Body
- ADC-12 monolithic die-cast
- Body finish
- White
- Source
- High-CRI SMD on PCB
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- Standard version
- EN-DL04
- CCT options
- 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
Specifications — typical, family defaults
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
