EN-DL04 Lux
Model code EN-DL04
Lux is made from a single ADC-12 monolith — body and heatsink are one die-cast piece, so heat leaves the LED with nothing in the way.
- Application
- Hospitality, Retail, Premium residential, Office
- Power options
- 6–10 W, 12–17 W, 18–22 W

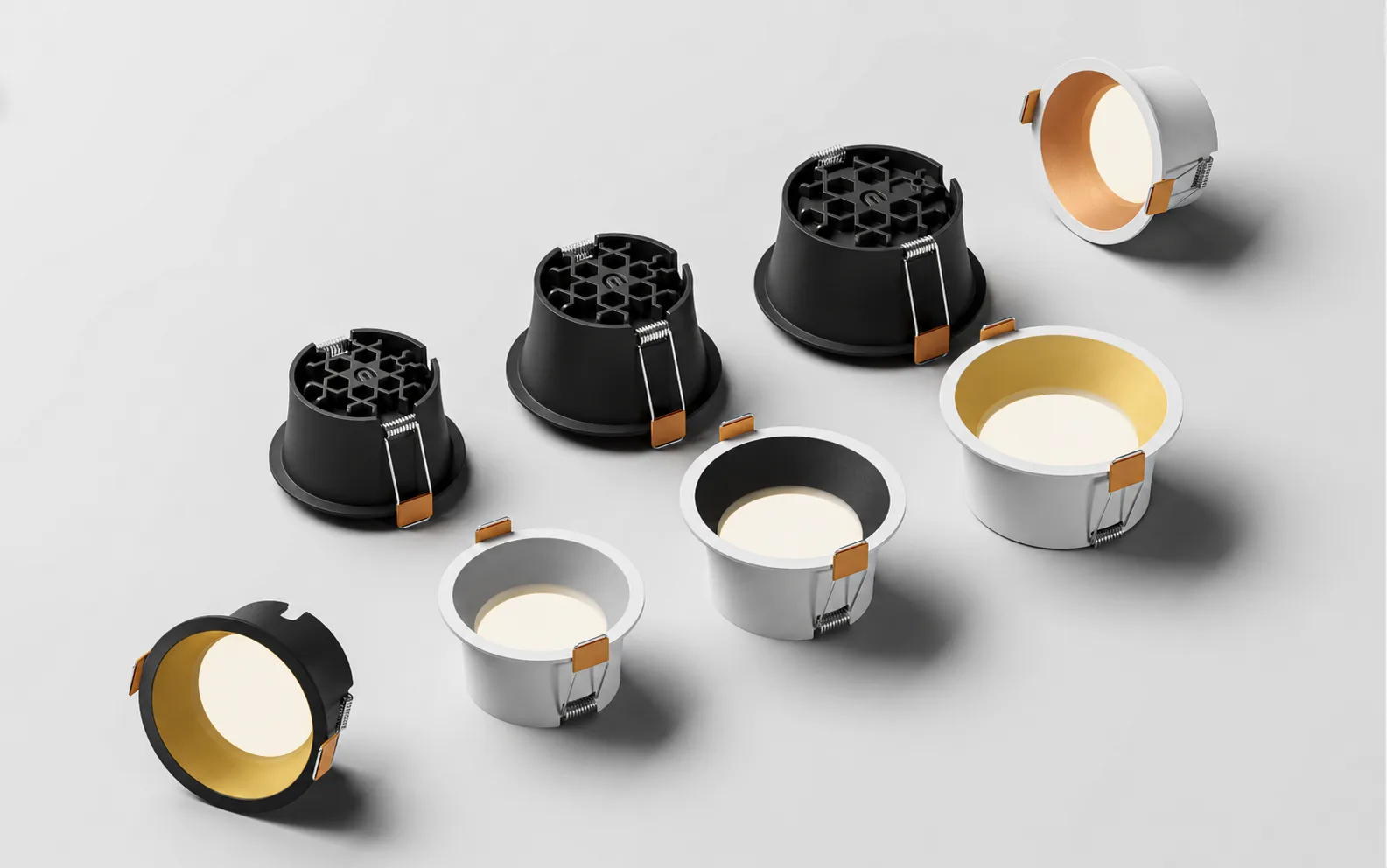

- Sizes
- Ø86 × H45 mm, Ø96 × H50 mm, Ø105 × H50 mm
- Cutouts
- Φ75 mm, Φ85 mm, Φ95 mm
- Body
- ADC-12 monolithic die-cast (body + heatsink in one piece), hexagon & hexagram pattern

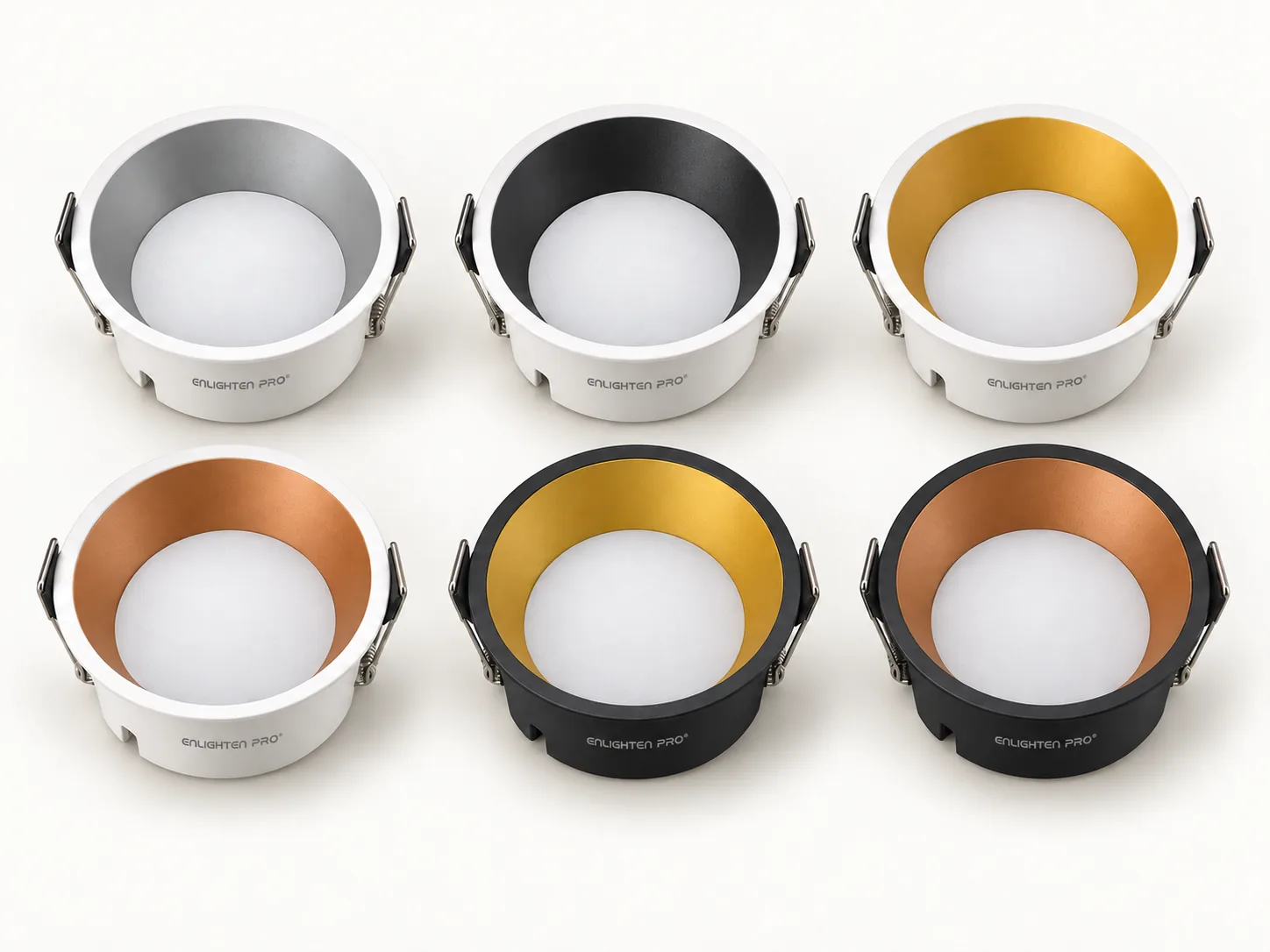

- Body finish
- White, Black
- Beam angle
- 60°
- Source
- High-CRI SMD on PCB
- Driver
- Constant-current, DALI-2, 0–10V, Triac

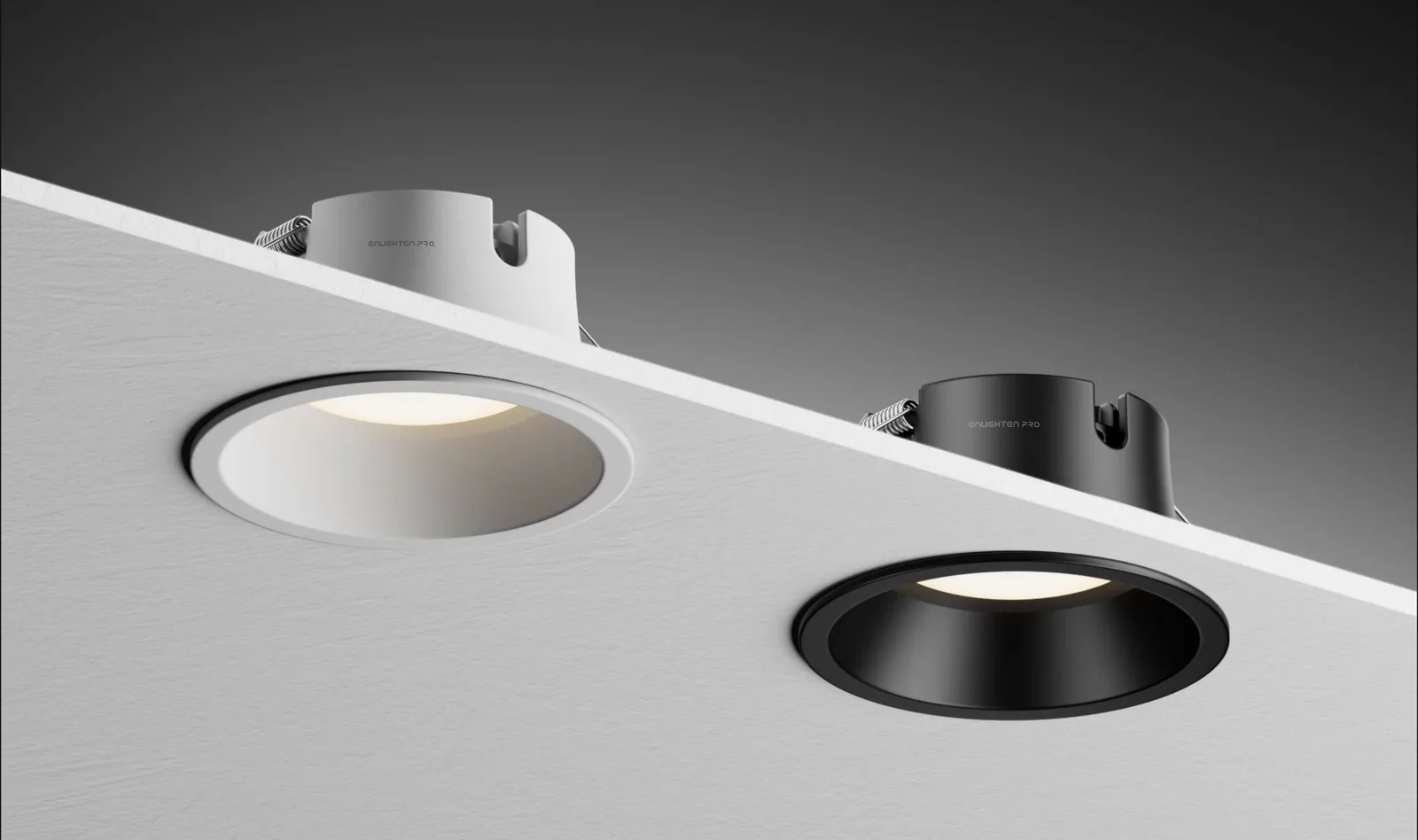

- Mounting
- Recessed, spring clips
- Trimless version
- EN-DL04-TR
- CCT options
- 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
Specifications — typical, family defaults
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
