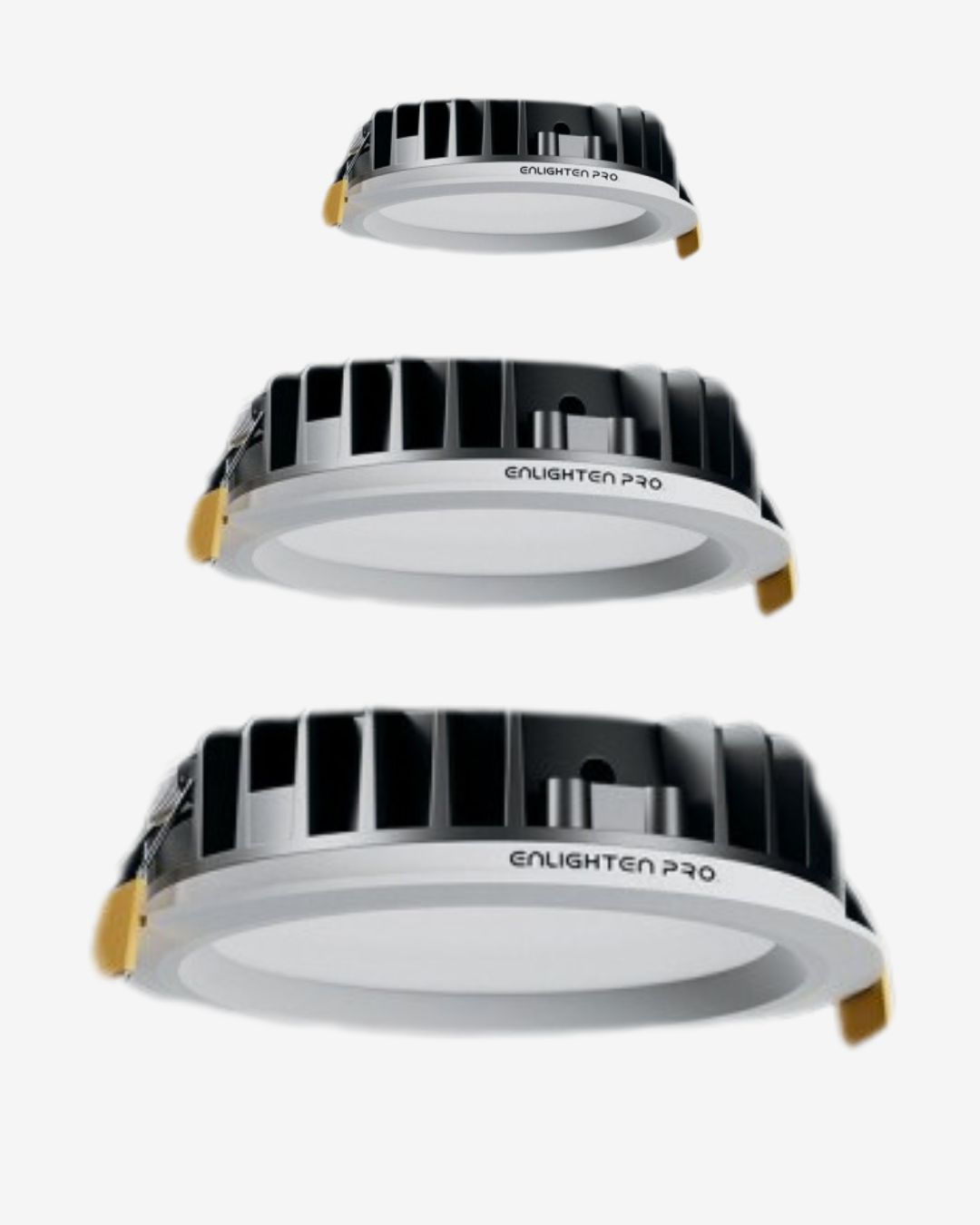

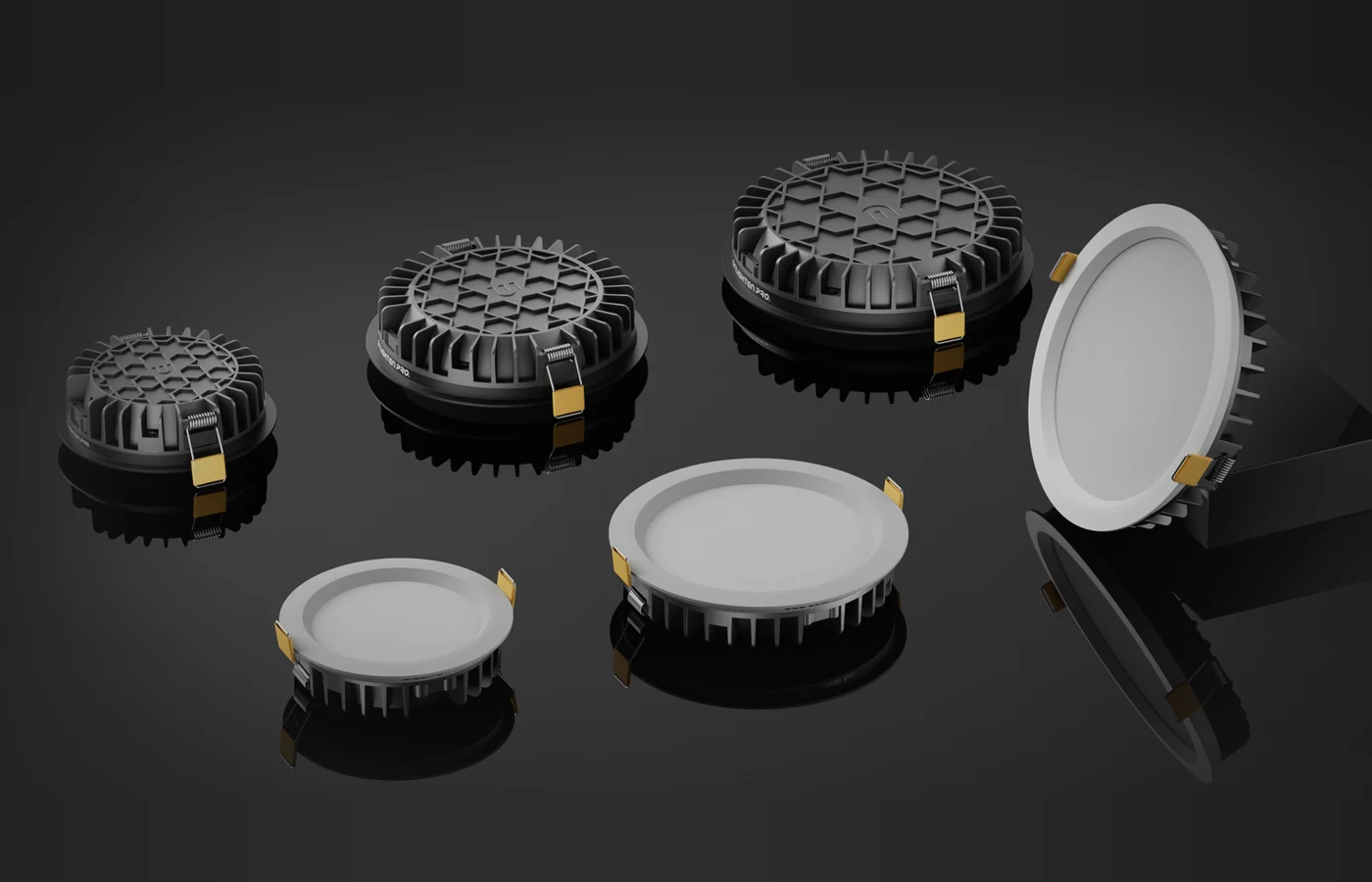

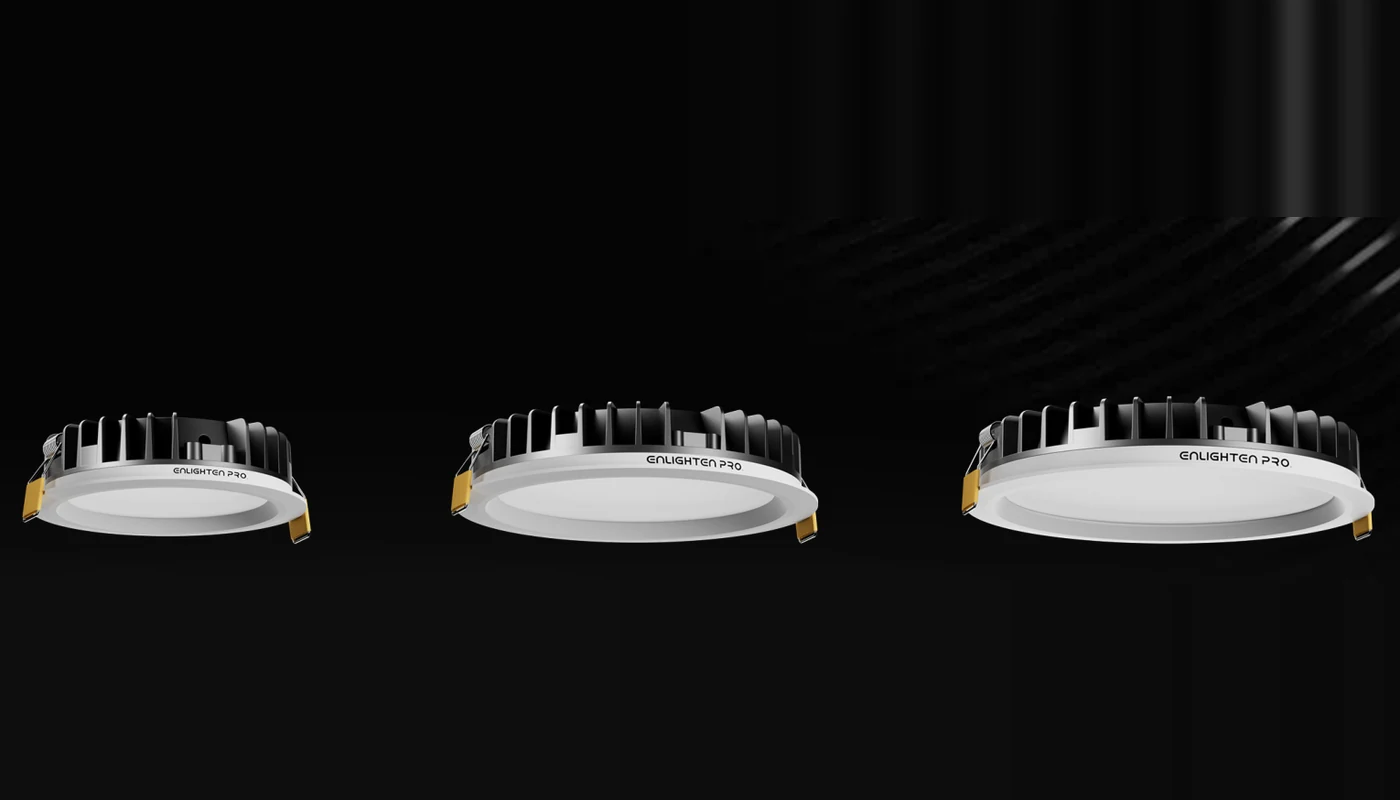

EN-DL02-F Flat · Altum
Model code EN-DL02-F
The Flat Series features a sleek, flat design that integrates with modern interiors. With a minimal depth of just 27 mm, this model is perfect for ceilings with limited cavity space.
The flat front ring provides a clean, unobtrusive look. The slightly recessed form and gently tapering diffuser create a soft, even glow around the light-emitting surface — enhancing the ambiance of any room.
ModelPowerOuter sizeCutoutEN-DL02-F-12R12 WØ 109 × H 27 mmØ 97 mmEN-DL02-F-18R18 WØ 143 × H 27 mmØ 132 mmEN-DL02-F-24R24 WØ 161 × H 27 mmØ 151 mm- Power options
- 12 W, 18 W, 24 W
- Form factor
- Flat profile · 27 mm depth
- Mounting
- Recessed · round
- Cutout sizes
- Ø 97 mm, Ø 132 mm, Ø 151 mm
- Outer sizes
- Ø 109 × H 27 mm, Ø 143 × H 27 mm, Ø 161 × H 27 mm
- Optic
- PMMA diffuser
- Body pattern
- Hexagon & hexagram heatsink
- Source
- High-CRI LED, BIS-certified driver
- Beam angle
- 90° (wide)
- CCT options
- 3000K, 4000K, 5000K, Tunable
- CRI
- Ra ≥ 80
- Driver
- Constant-current, BIS-certified
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
- Lifetime
- L80B10 ≥ 50,000 hours
- Application
- Hospitality, Office, Premium residential, Retail
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
