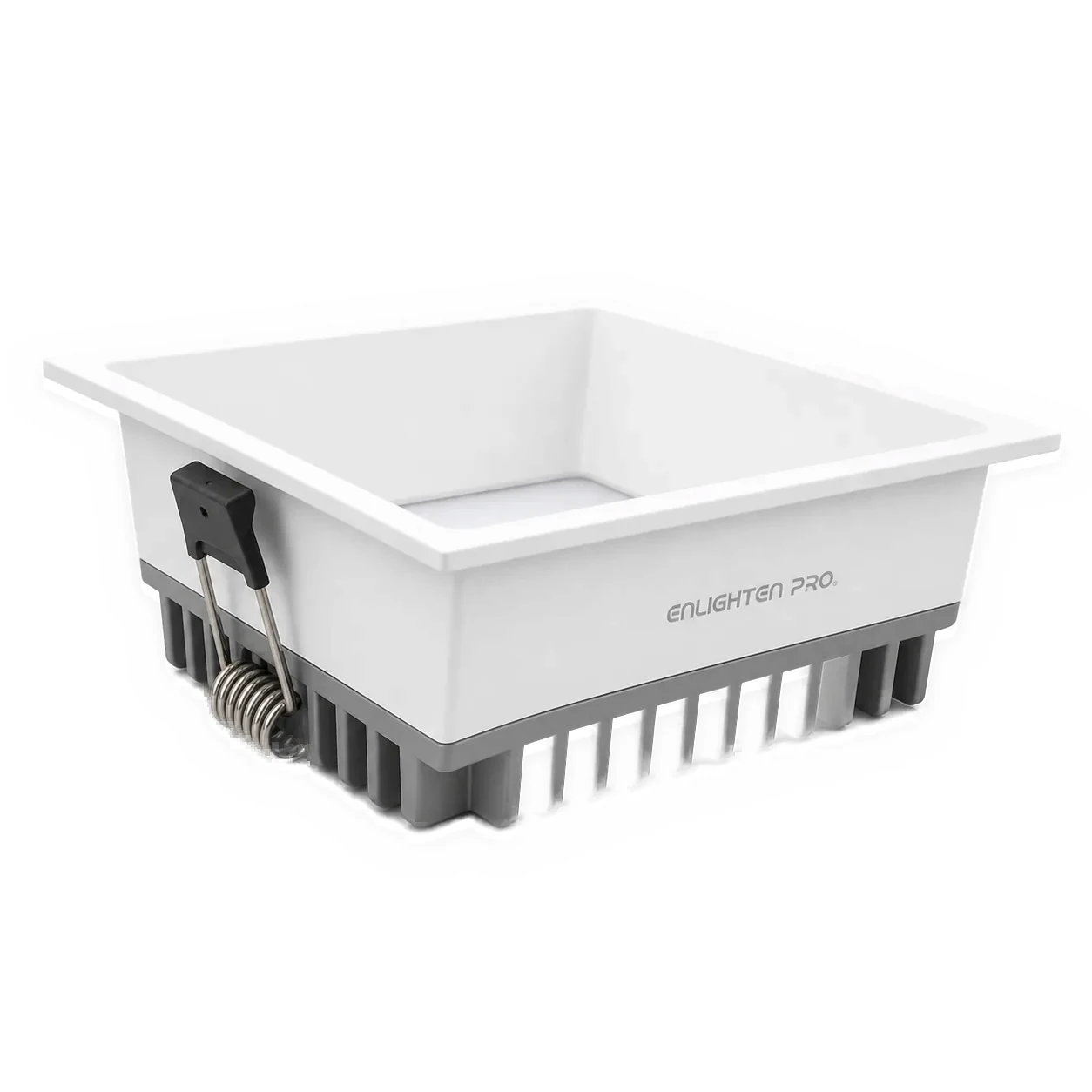

EN-DL02-DS Deep Square · Altum
Model code EN-DL02-DS
The EN-DL02-DS ALTUM is the square-aperture member of the Deep family. It shares the deep recessed cup, low-UGR optics and hexagon/hexagram detailing of the round EN-DL02-D, in a square trim that lines up with grid ceilings and rectilinear architectural detailing.
- Power options
- 12 W,18 W,24 W
- Form factor
- Deep recessed · square trim
- Mounting
- Recessed · square
- Cutout sizes
- 105 × 105 mm,135 × 135 mm,155 × 155 mm
- Outer sizes
- 110 × 110 × H 50 mm,145 × 145 × H 50 mm,170 × 170 × H 50 mm
- Optic
- PMMA diffuser
- Body pattern
- Hexagon & hexagram heatsink
- Source
- High-CRI LED, BIS-certified driver
- Beam angle
- 90° (wide)
- CCT options
- 3000K,4000K,5000K,Tunable
- CRI
- Ra ≥ 80
- Driver
- Constant-current,BIS-certified
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
- Lifetime
- L80B10 ≥ 50,000 hours
- Application
- Hospitality,Office,Premium residential,Retail
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
