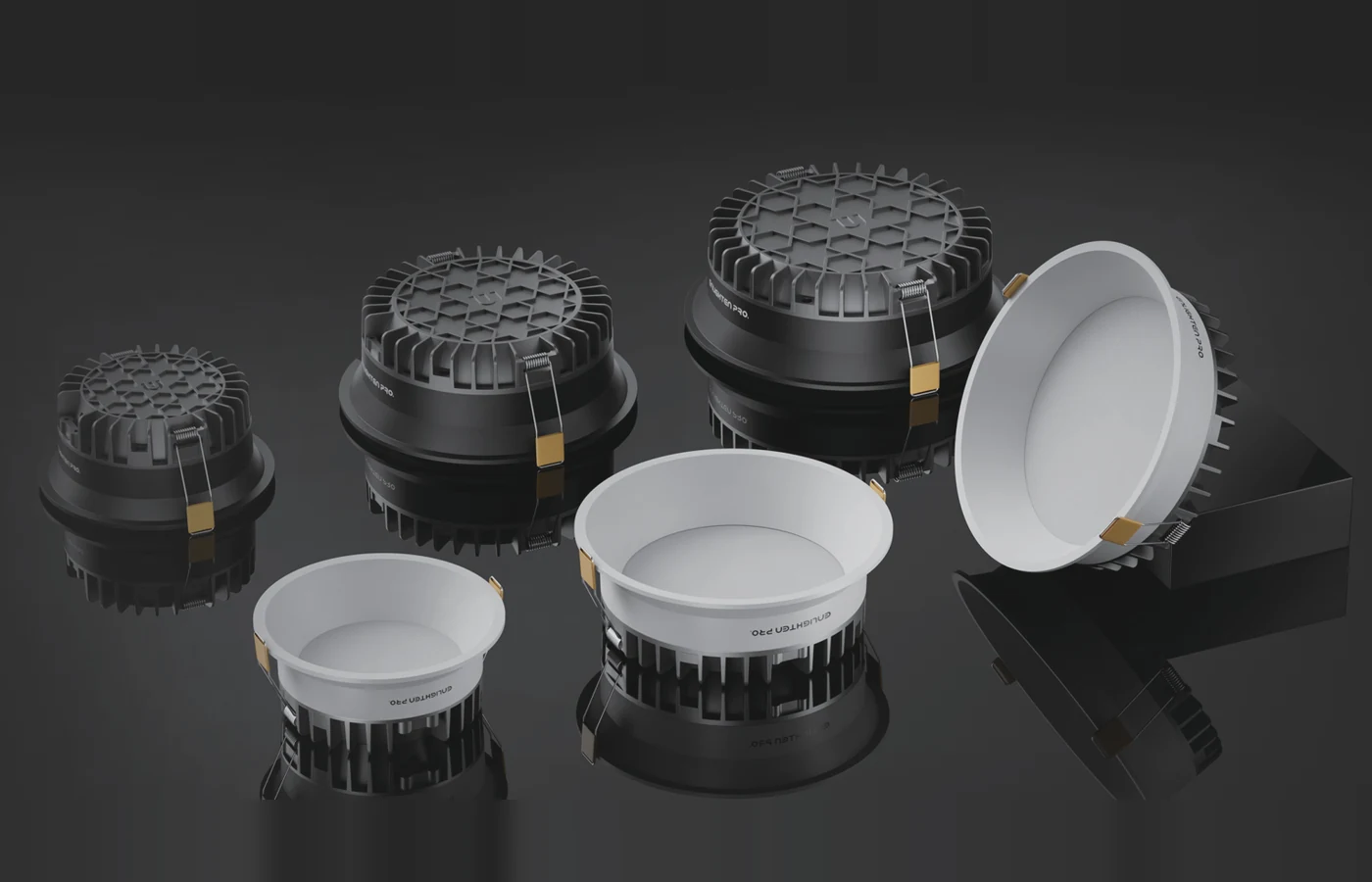

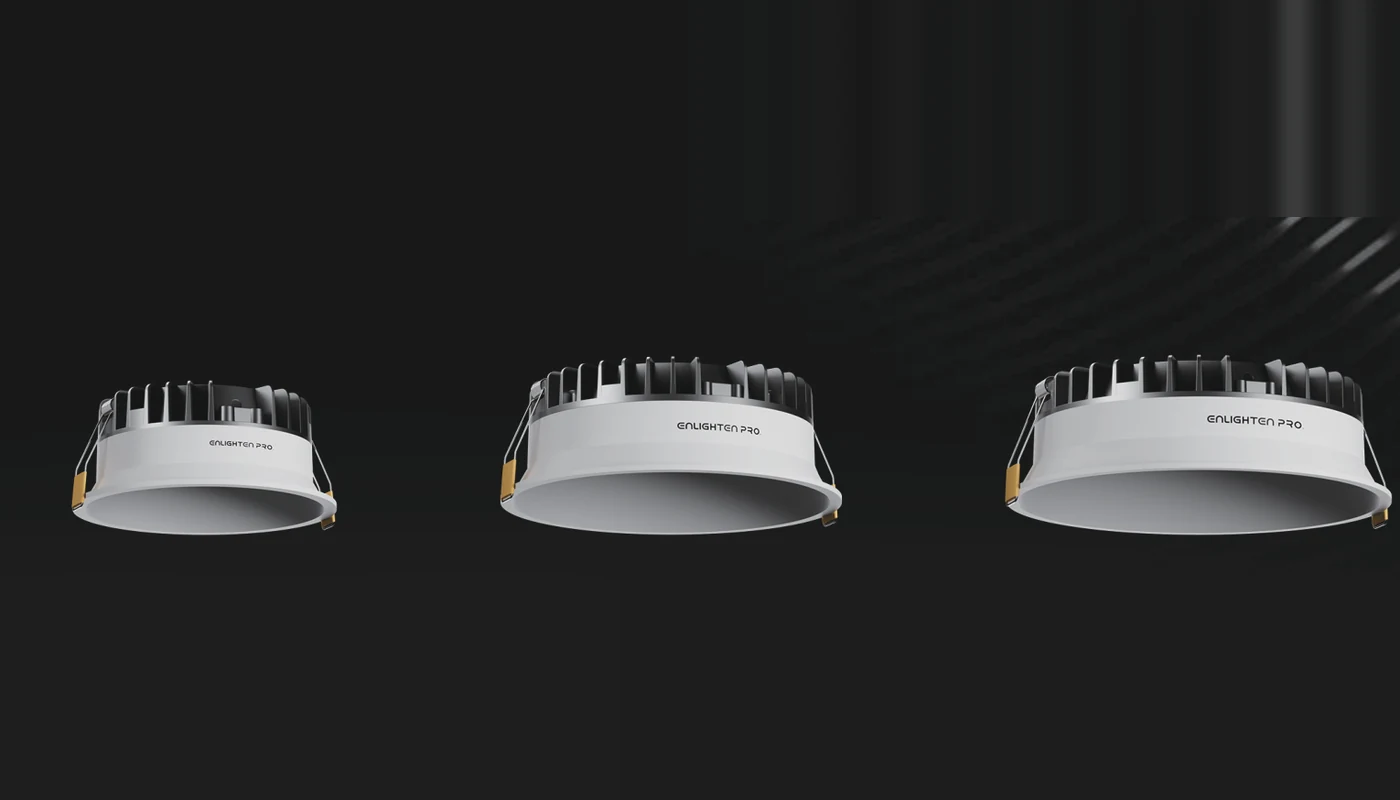

EN-DL02-D Deep · Altum
Model code EN-DL02-D
The EN-DL02-D ALTUM combines power and precision in a deep recessed design. Featuring our signature hexagon and hexagram pattern with the registered E logo, this robust model offers excellent heat dissipation and longevity.
The deep design ensures very low UGR and superior glare control, while softly illuminating the inner walls of the fixture for an elegant aesthetic.
ModelPowerOuter sizeCutoutEN-DL02-D-12R12 WØ 120 × H 48 mmØ 110 mmEN-DL02-D-18R18 WØ 155 × H 52 mmØ 145 mmEN-DL02-D-24R24 WØ 175 × H 51 mmØ 166 mm- Power options
- 12 W, 18 W, 24 W
- Form factor
- Deep recessed · low-UGR cup
- Mounting
- Recessed · round
- Cutout sizes
- Ø 110 mm, Ø 145 mm, Ø 166 mm
- Outer sizes
- Ø 120 × H 48 mm, Ø 155 × H 52 mm, Ø 175 × H 51 mm
- Optic
- PMMA diffuser
- Body pattern
- Hexagon & hexagram heatsink
- Source
- High-CRI LED, BIS-certified driver
- Beam angle
- 90° (wide)
- CCT options
- 3000K, 4000K, 5000K, Tunable
- CRI
- Ra ≥ 80
- Driver
- Constant-current, BIS-certified
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
- Lifetime
- L80B10 ≥ 50,000 hours
- Application
- Hospitality, Office, Premium residential, Retail
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
