EN-DL02-C Curve · Altum
Model code EN-DL02-C
The Curve Series is the flagship model in the ALTUM lineup, featuring a distinctive curved front ring that creates a unique play of light. The curvature concentrates the brightest reflection near the light-emitting surface and gradually softens as it curves away — a moon-crater effect when professionally installed, transforming the ceiling into a visual masterpiece.
The model carries our signature heatsink pattern and the registered E logo. Equipped with a high-output LED, an efficient PMMA diffuser, and BIS-certified driver — the performance, reliability, and elegance you expect from Enlighten Pro.
ModelPowerOuter sizeCutoutEN-DL02-C-12R12 WØ 136 × H 48 mmØ 126 mmEN-DL02-C-18R18 WØ 164 × H 50 mmØ 154 mmEN-DL02-C-24R24 WØ 198 × H 53 mmØ 191 mm- Power options
- 12 W, 18 W, 24 W
- Form factor
- Standard depth · curved bezel
- Mounting
- Recessed · round
- Cutout sizes
- Ø 126 mm, Ø 154 mm, Ø 191 mm
- Outer sizes
- Ø 136 × H 48 mm, Ø 164 × H 50 mm, Ø 198 × H 53 mm
- Optic
- PMMA diffuser

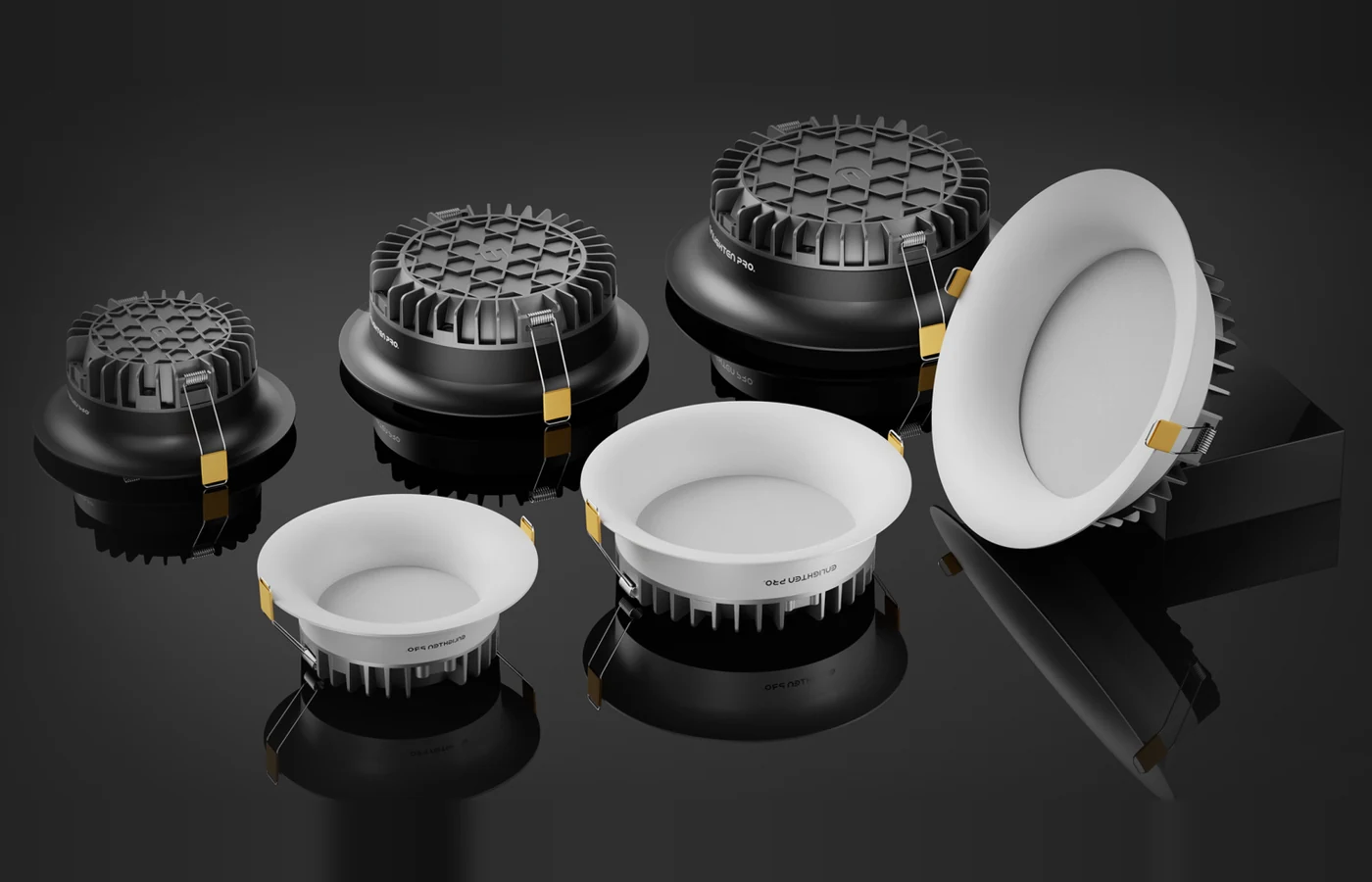

- Body pattern
- Hexagon & hexagram heatsink
- Source
- High-CRI LED, BIS-certified driver
- Beam angle
- 90° (wide)
- CCT options
- 3000K, 4000K, 5000K, Tunable
- CRI
- Ra ≥ 80
- Driver
- Constant-current, BIS-certified
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
- Lifetime
- L80B10 ≥ 50,000 hours
- Application
- Hospitality, Office, Premium residential, Retail
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
