Moon 600
Model code EN-DL-Moon600

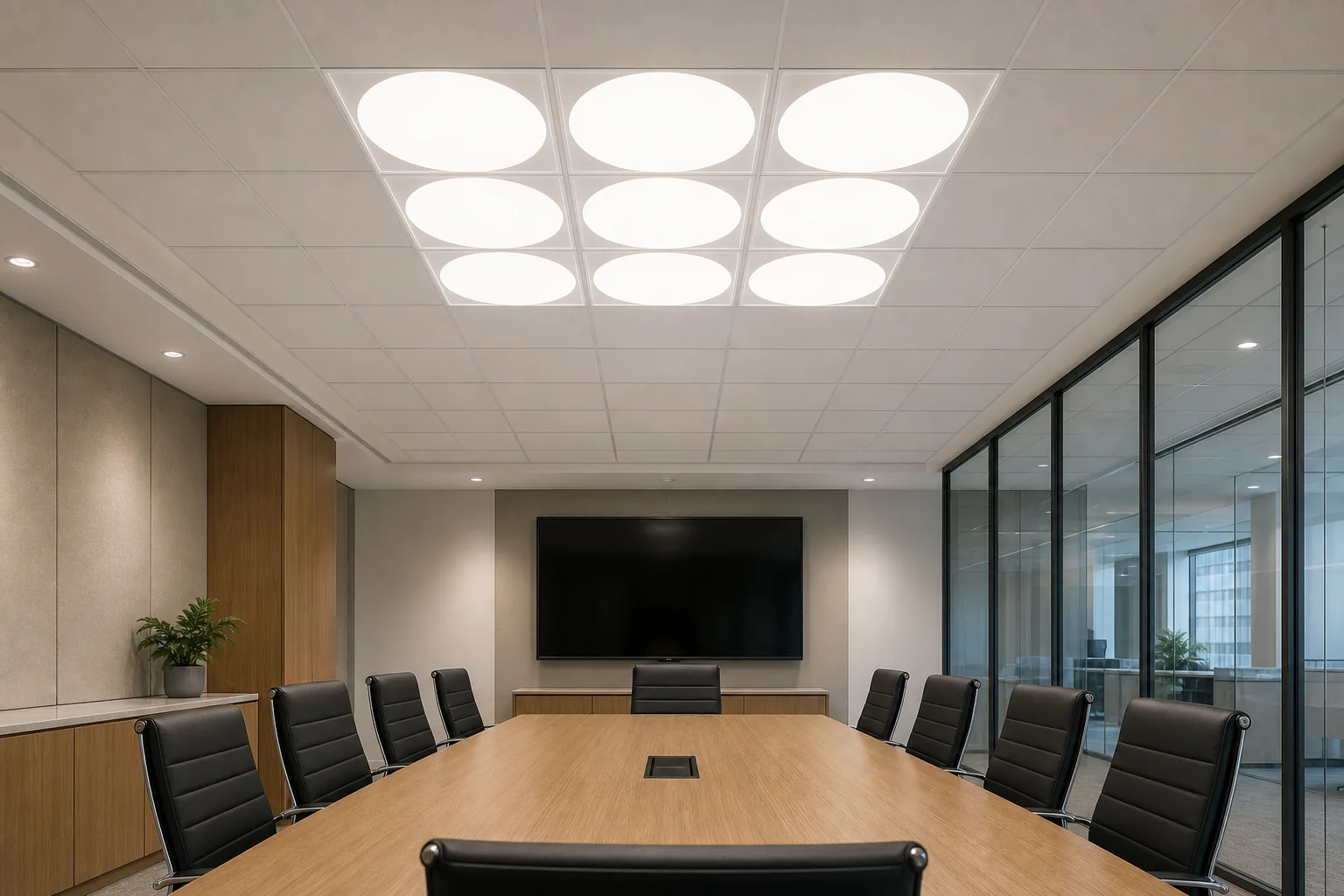

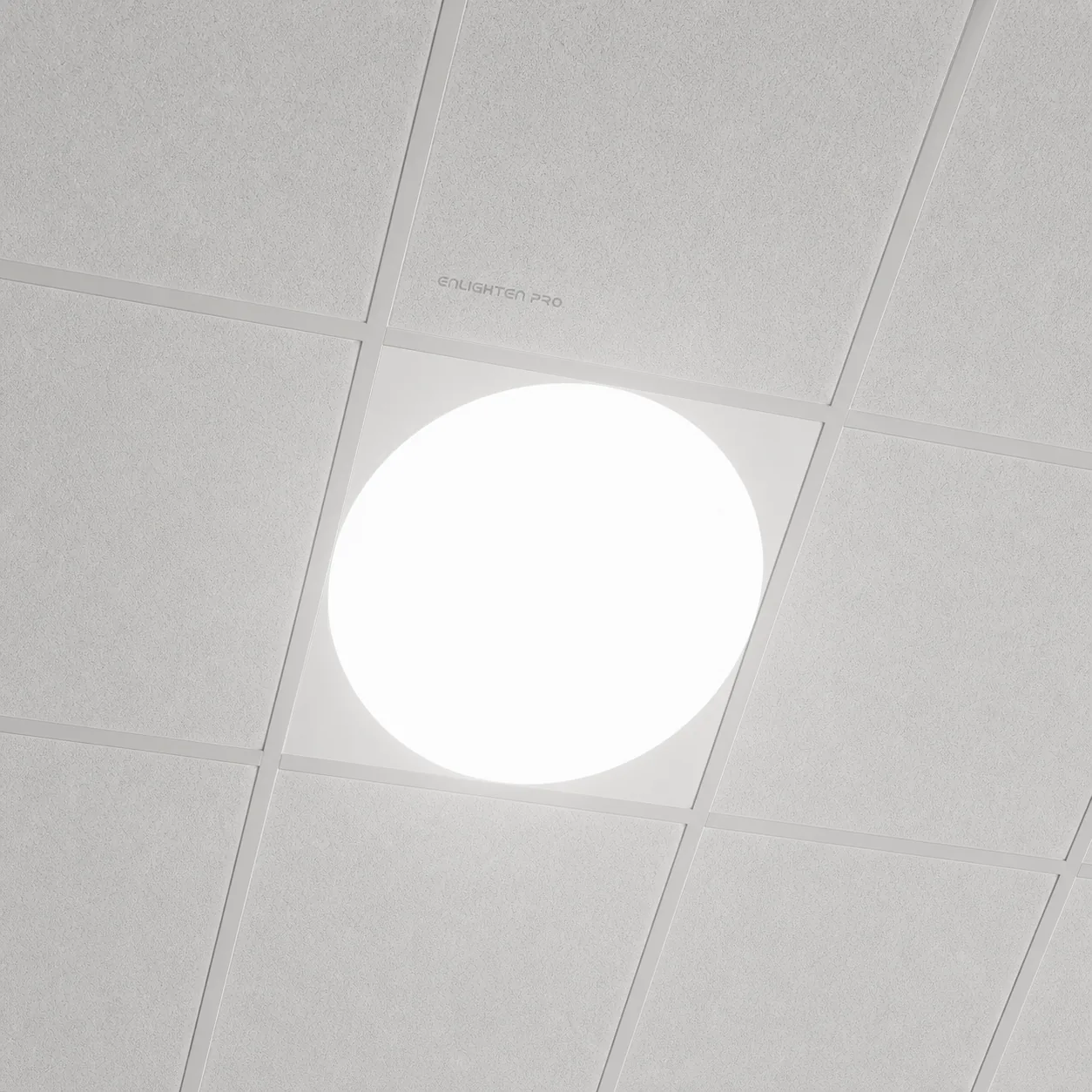

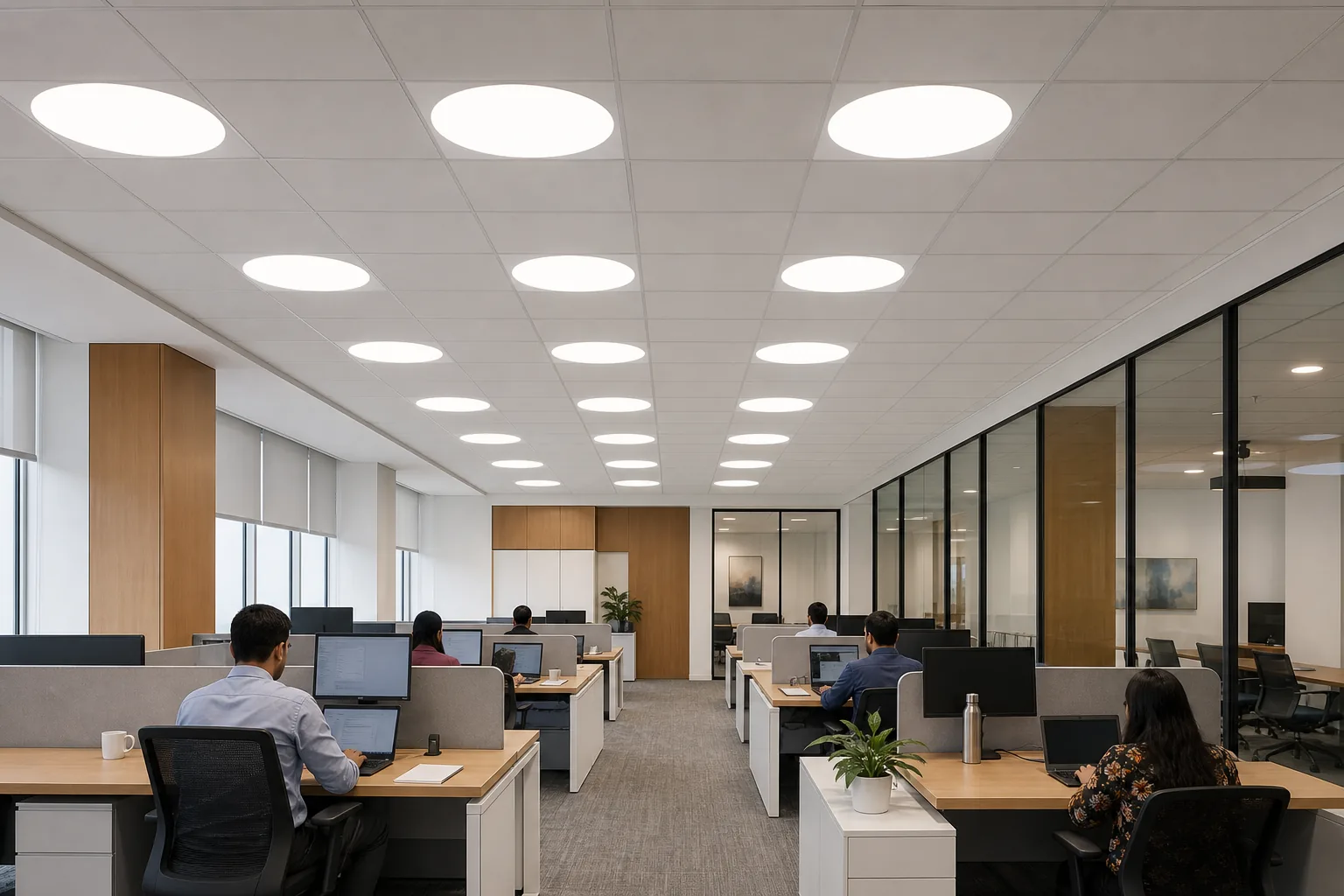

A round opal aperture set in a square 595 x 595 face, so a 600 x 600 modular grid reads as a run of soft circular light rather than a field of rectangles. Sits 29mm deep, which keeps it viable in shallow plenums where a conventional recessed panel will not fit.
MODELPOWEROUTPUTSIZECUTOUT EN-DL-Moon600-3030W3,300 lm595 x 595 x H29580 x 580 EN-DL-Moon600-4040W4,100 lm595 x 595 x H29580 x 580 EN-DL-Moon600-4848W4,600 lm595 x 595 x H29580 x 580LED: gold-wire LM80 certified, CRI 80 (CRI 90 upon request)
CCT: 3000K / 4000K / 5700K / 6500K
Diffuser: High-transmittance opal, circular aperture
Body: Sheet metal, powder-coated white
Depth: 29mm
Ceiling: Gypsum (cutout 580 x 580) or 600 x 600 modular grid
Driver: BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV surge protection, OVP 440V
Controls: Bluetooth, TRIAC, 0/1-10V, DALI-2
IP rating: IP20
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS
Applications: offices, hotels, reception areas, classrooms and retail.
Contact for customized quotation
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+
- Body material
- Aluminium · powder-coated
- Mounting
- Recessed
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 90°–120° (diffused)
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
