EN-CY12E Dysk
Model code EN-CY12E
A versatile architectural surface cylinder for general and accent lighting — available from 16 W to 48 W across four round diameters plus a 300 mm square option, all in a slim 40 mm profile.

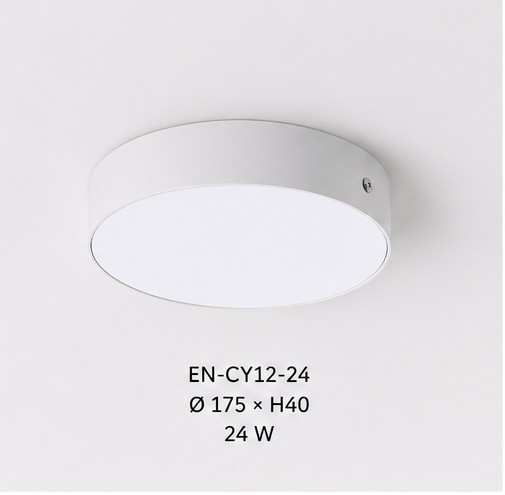

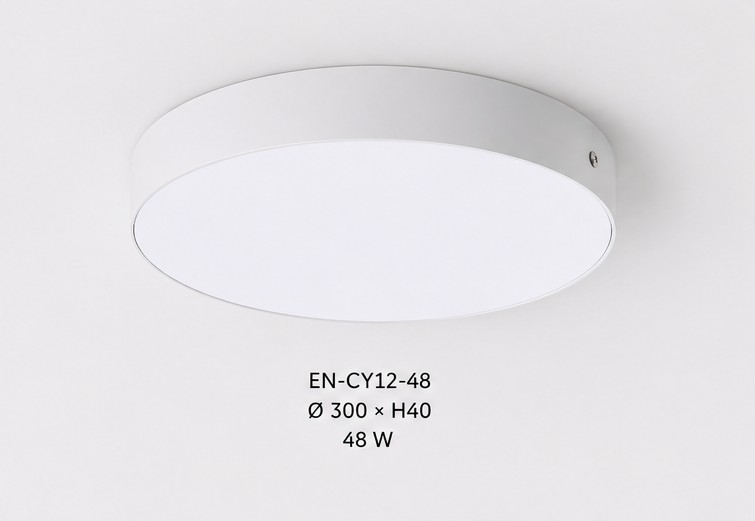

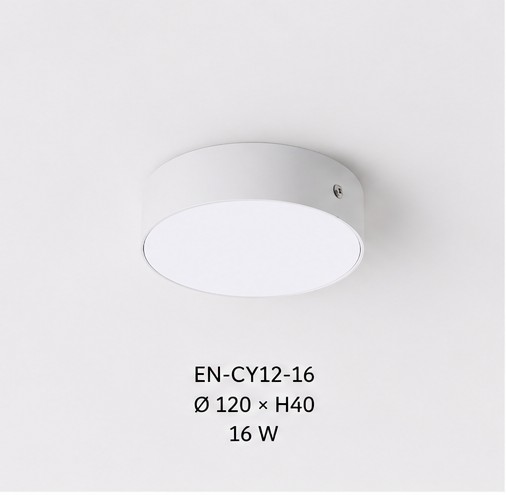

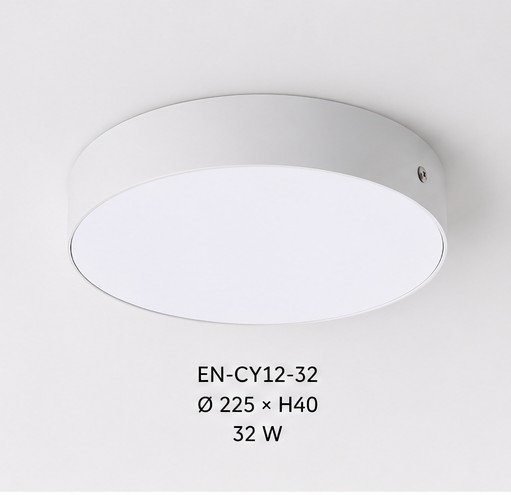

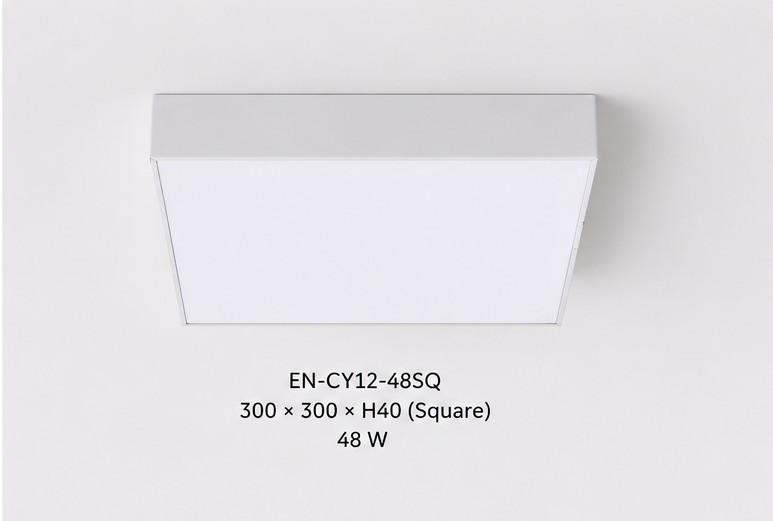

ModelPowerSizeBeam EN-CY12-E-1616 WØ 120 × H40120° EN-CY12-E-2424 WØ 175 × H40120° EN-CY12-E-3232 WØ 225 × H40120° EN-CY12-E-4848 WØ 300 × H40120° EN-CY12-E-48SQ48 W300 × 300 × H40 (Square)120°- Diameter
- Ø 120 mm, Ø 175 mm, Ø 225 mm, Ø 300 mm
- Wattage
- 16 W, 24 W, 32 W, 48 W
- Height
- 40 mm
- Beam Angle
- 120°
- Shape
- Round, Square
- Tunable white
- Not available on this model
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Body material
- Aluminium · powder-coated
- Mounting
- Surface-mounted, Pendant
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
Exact values vary by model and wattage — request the variant datasheet for certified figures.
