EN-CY12 Pro Dysk
Model code EN-CY12 Pro

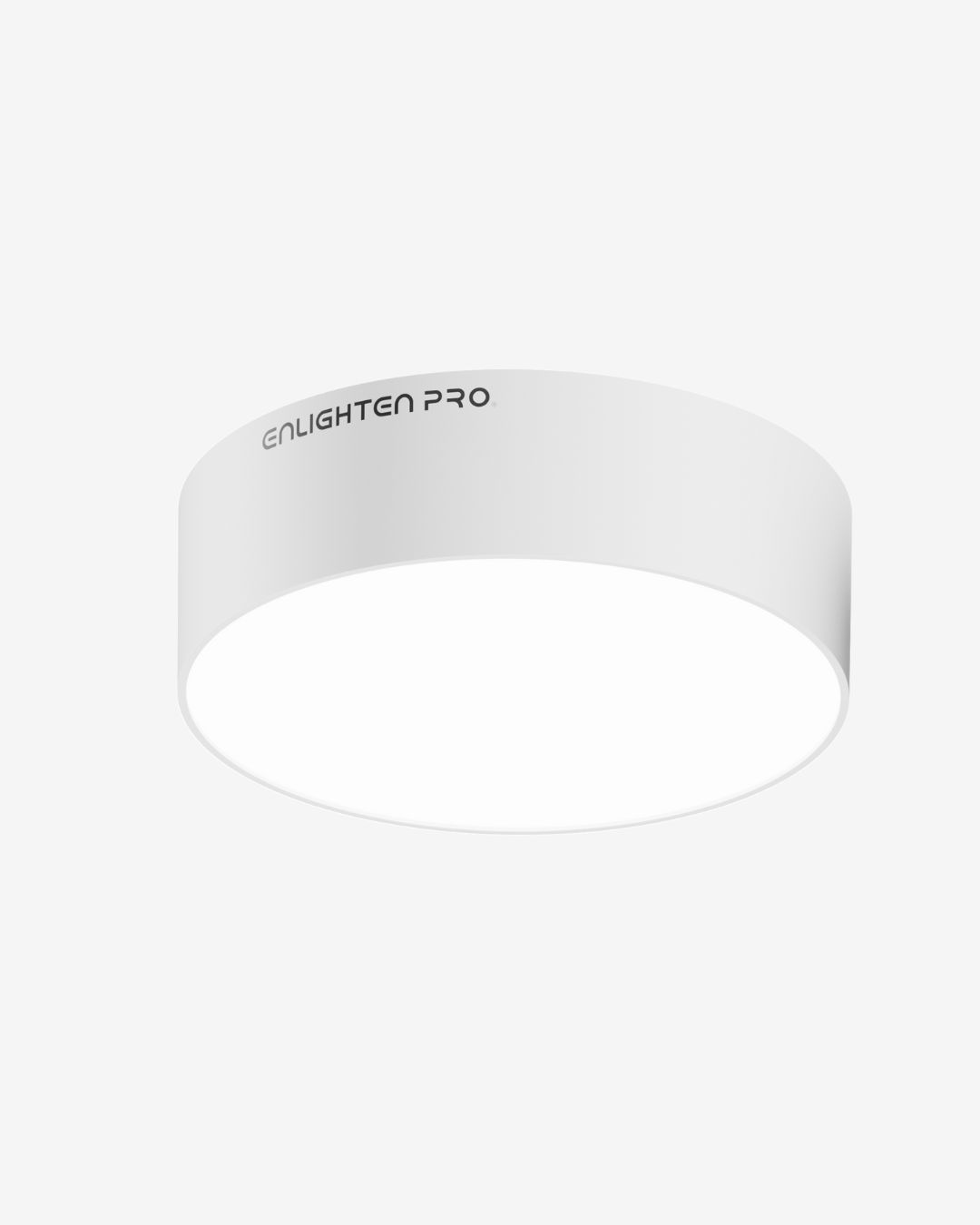

Enlighten Pro's flagship die-cast surface cylinder — machined from ADC12 aluminium, finished screw-less, and slimmed to a 40 mm profile that sits almost flush to the ceiling. Designed, tooled and built in-house in Mumbai.
Why the Pro
- ADC12 die-cast body — one high-pressure aluminium casting for a rigid, heat-shedding, long-life housing.

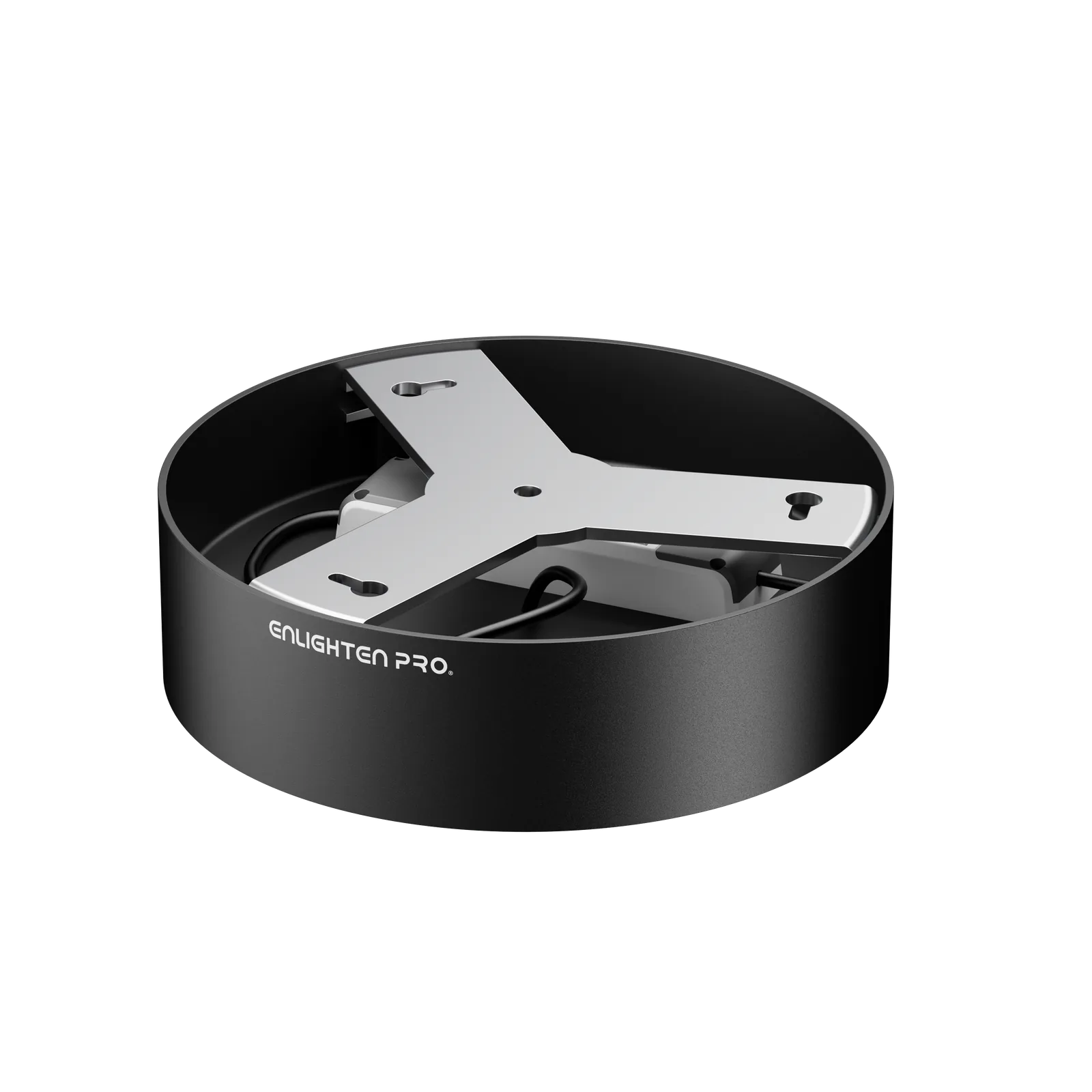

- Screw-less design — a concealed sprung bracket leaves a clean, fastener-free face.
- Ultra-slim 40 mm — minimal projection for a discreet, architectural surface mount.
- Indigenous & proprietary — our own design and tooling, backed by a 2–5 year warranty.
One fixture, every dimming ecosystem
Order the Pro to match whatever control layer is on site — from a plain wall switch to a full DALI-2 or wireless-mesh network:
- Standard On/Off
- 3-Colour (on/off switch)
- CCT Tunable & Dimmable
- RF + BLE mesh
- 0/1–10V Analogue
- TRIAC / Phase-cut
- DALI-2 DT6
- DALI-2 DT8
Models & sizes
DiameterWattageHeightBeam Ø 137 mm6–18 W40 mm120° Ø 158 mm18–24 W40 mm120°SMD LED · Tunable White · IP20 · CE · RoHS · low-glare UGR<19 · −15 °C to 40 °C operating · White & Black finishes. We reserve the right to make technical & design changes without prior approval; all specifications are subject to industrial tolerances.
- Diameter
- Ø 137 mm, Ø 158 mm
- Wattage
- 6–18 W, 18–24 W
- Finish
- White, Black
- Body
- ADC12 Die-Cast
- Mounting
- Screw-less
- Control
- CCT Tunable, DALI-2, 0/1–10V, TRIAC, RF / BLE, 3-Colour
- Warranty
- 2–5 Years
Specifications — typical, family defaults
- Profile height
- 40 mm (ultra-slim)
- Beam angle
- 120°
- Light source
- SMD LED
- Colour temperature
- Tunable White (CCT adjustable)
- Colour rendering index
- Ra ≥ 80
- Glare
- UGR < 19
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20 (indoor / dry location)
- Operating temperature
- −15 °C to 40 °C
- Certifications
- CE · RoHS
Exact values vary by model and wattage — request the variant datasheet for certified figures.
