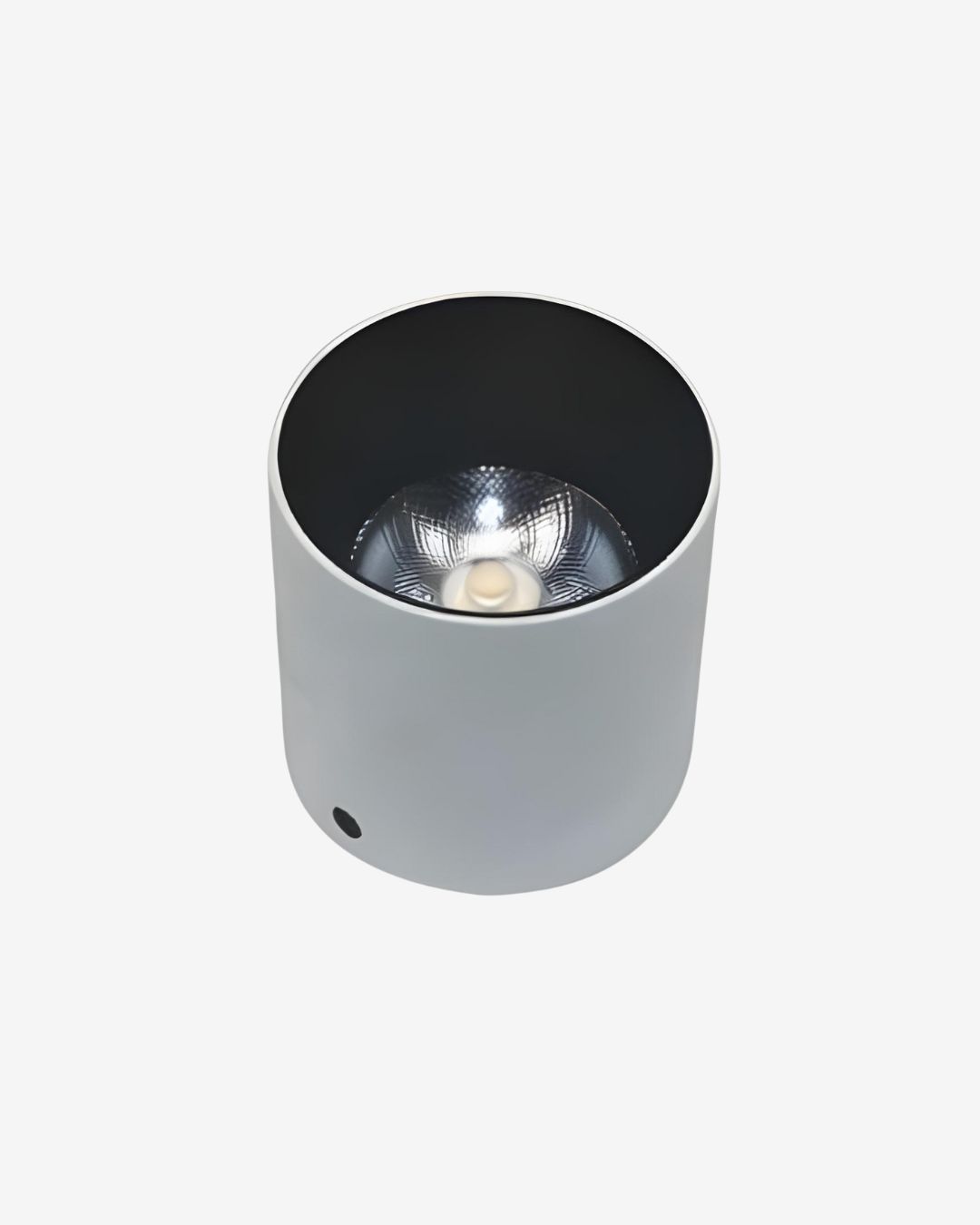

EN-CY09R Sifr
Model code EN-CY09R
MODEL POWER SIZE A × B EN-CY09-3 3W 46 × 57 EN-CY09-7 7W 55 × 60 EN-CY09-12 12W 68 × 68 EN-CY09-18 18W 90 × 90 EN-CY09-30 30W 110 × 100
LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Optional LEDs Cree | Bridgelux | Edison
Specifications — typical, family defaults
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Body material
- Aluminium · powder-coated
- Mounting
- Surface-mounted, Pendant
- Driver
- Constant current
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
