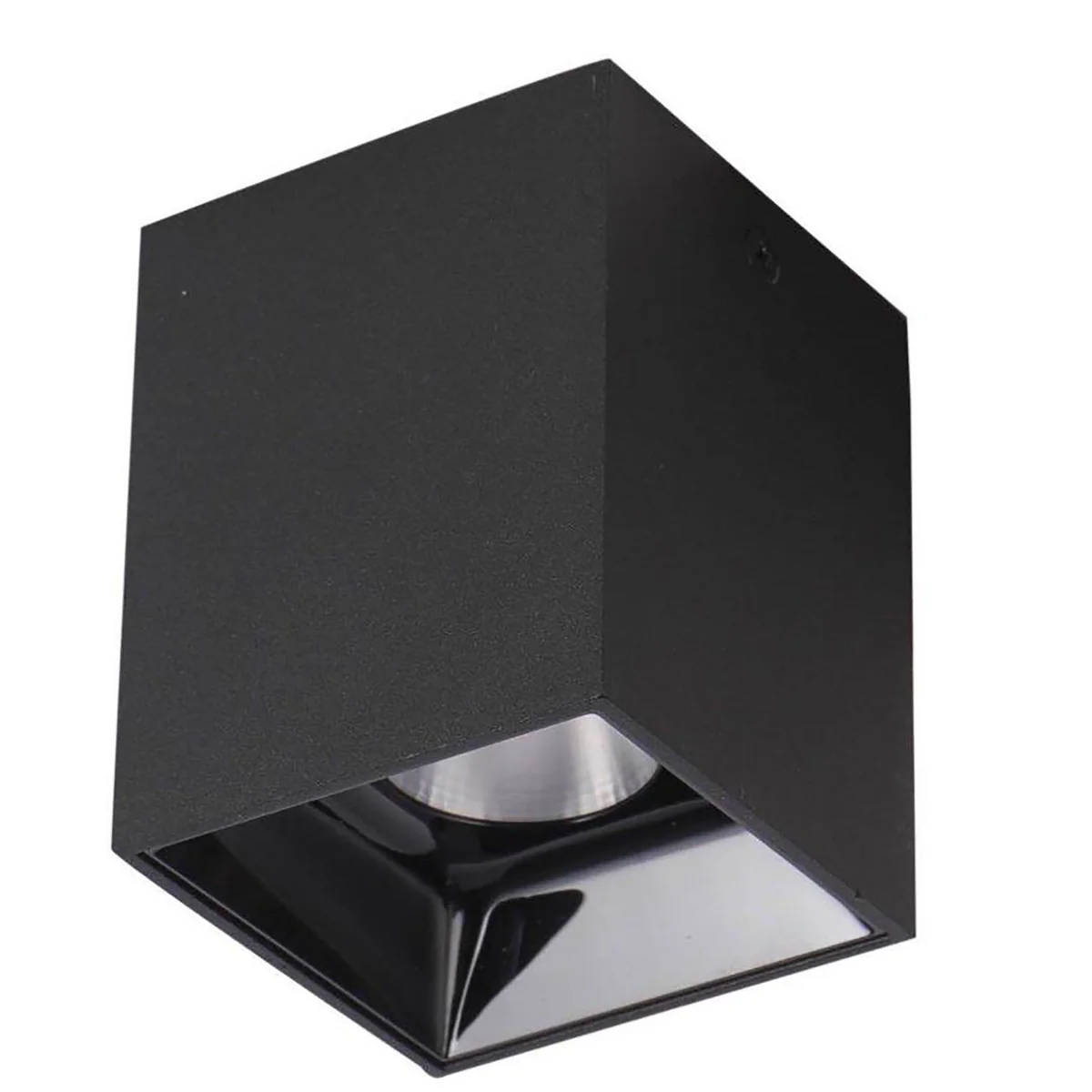

EN-CY03 Square
Model code EN-CY03
Square-bodied member of the OptiCyl cylinder family. A compact 80 mm square profile with the same surface-mount construction, offered in black with a black or rose-gold inner cup.
ModelPowerBody colourSize (mm)EN-CY0312 WBlack + Black / Black + Rose Gold80 × 110- Application

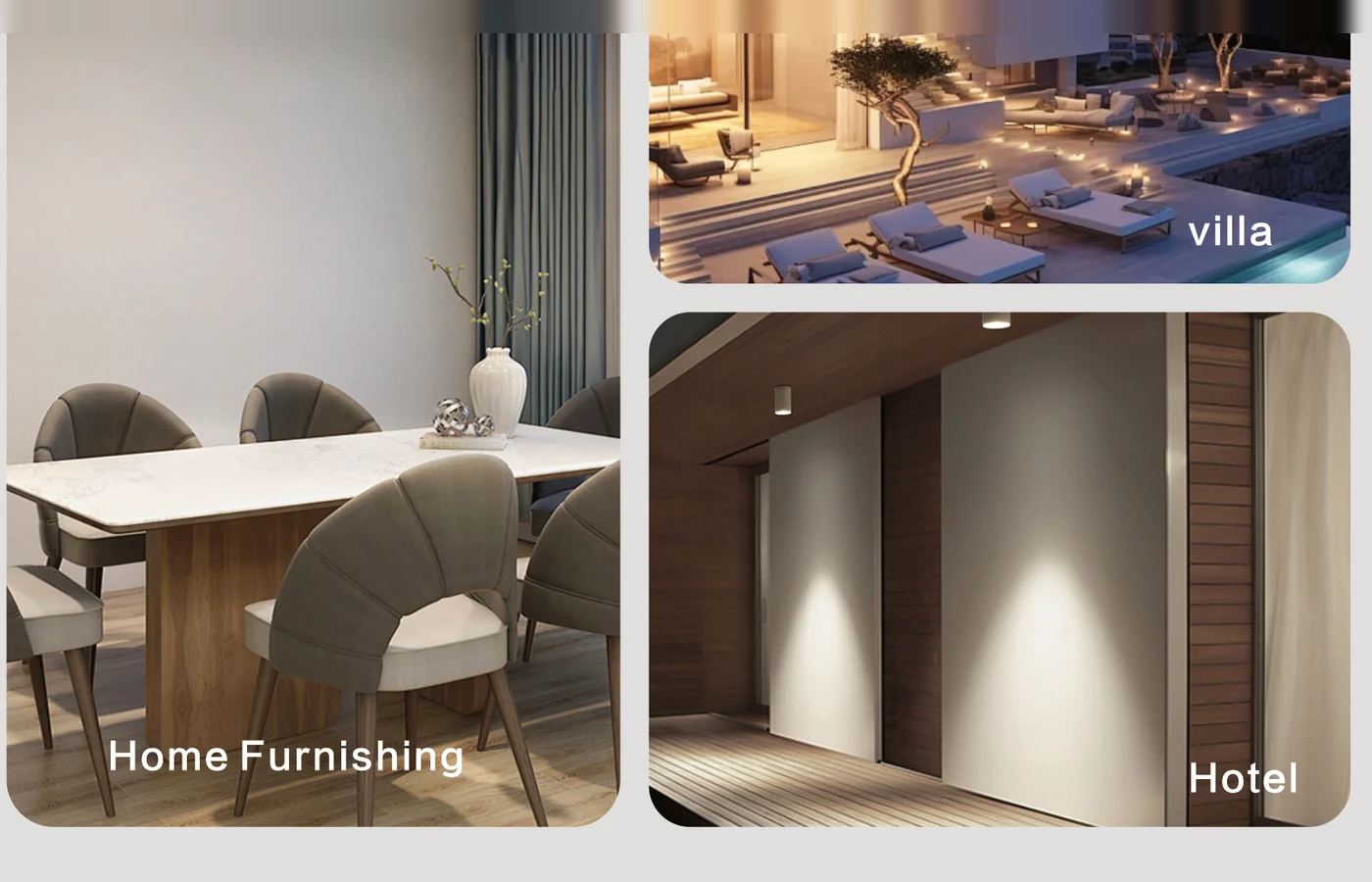

- Hospitality, Retail, Premium residential, Office
- Power options
- 12 W
- Size
- 80 × 110 mm (square body)
- Body finish
- Black
- Inner cup
- Black, Rose Gold
- Mounting
- Surface-mounted
- Round versions
- EN-CY02 (surface), EN-CY02-H (hanging)
- CCT options
- 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
