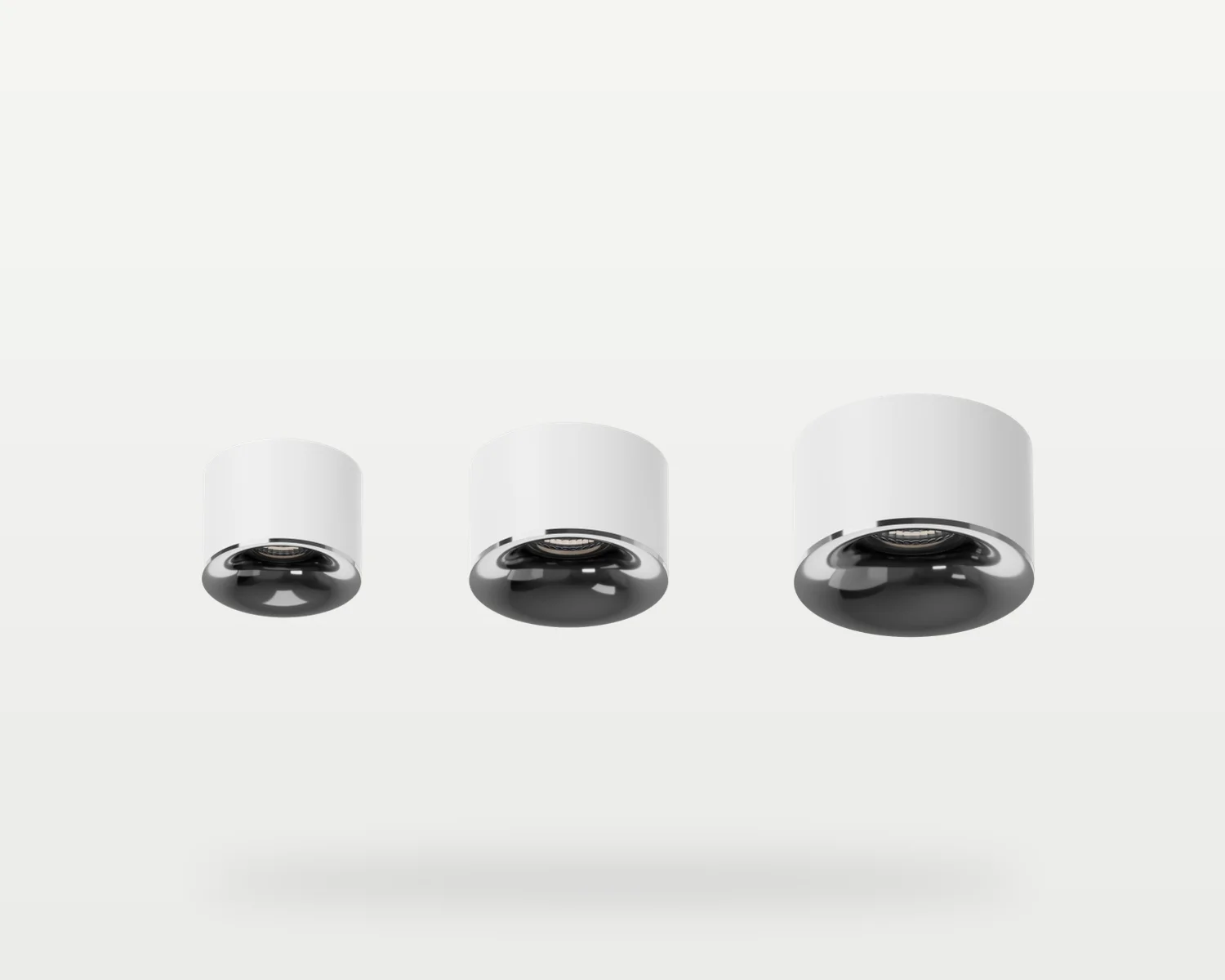

OptiCyl EN-CY02
Model code EN-CY02

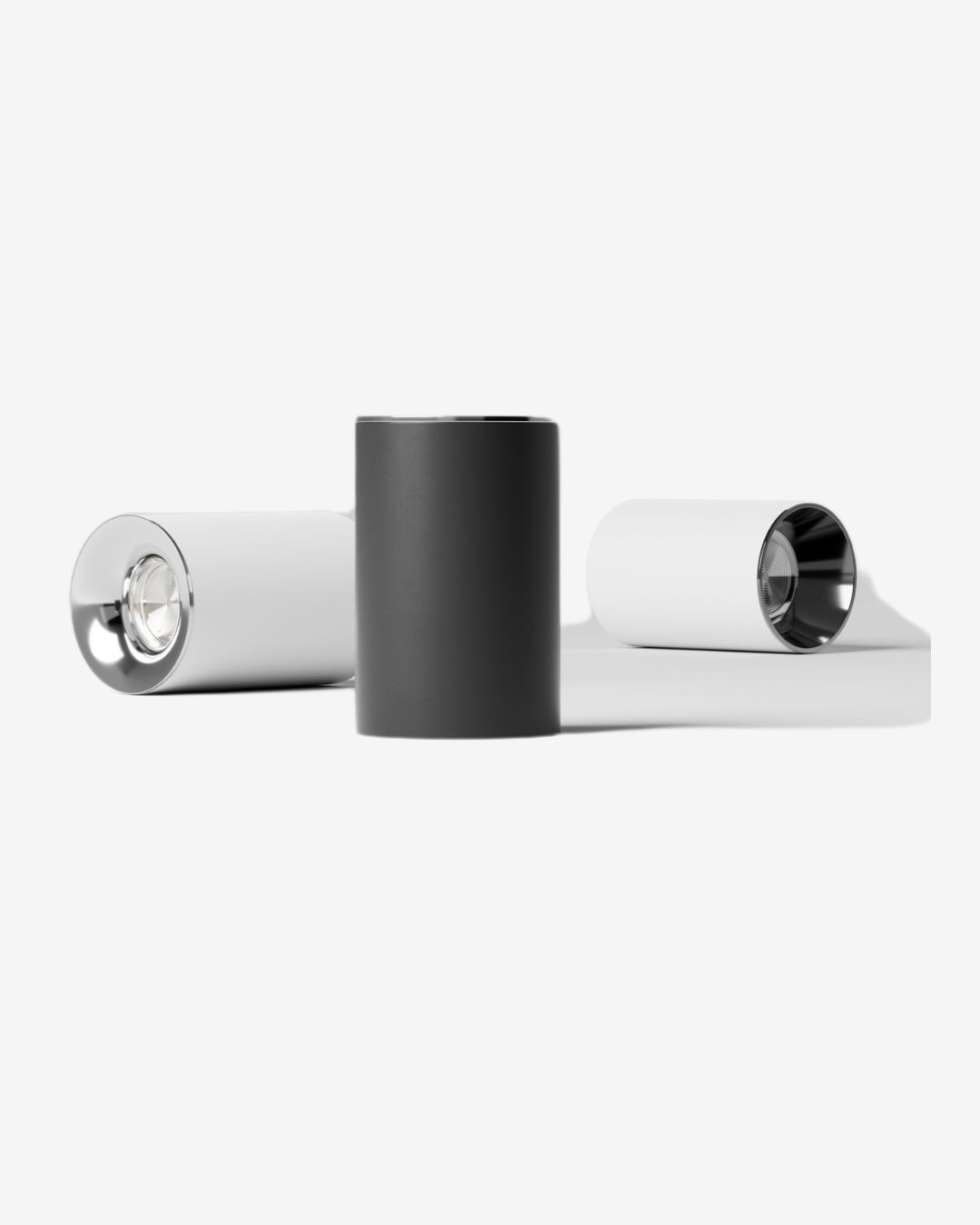

Surface-mounted cylinder downlight for hospitality, retail, premium residential and office spaces. Four diameters cover focused accent through general illumination; honeycomb louvre is optional. Choose the COB reflector optic (36°, EN-CY02) or the convex Fresnel optic (60–75°, EN-CY02-F) — the same two optic families used in our recessed Dazzle and Vistara downlights. A hanging version supplied with a 1.5 m canopy is available as EN-CY02-H.

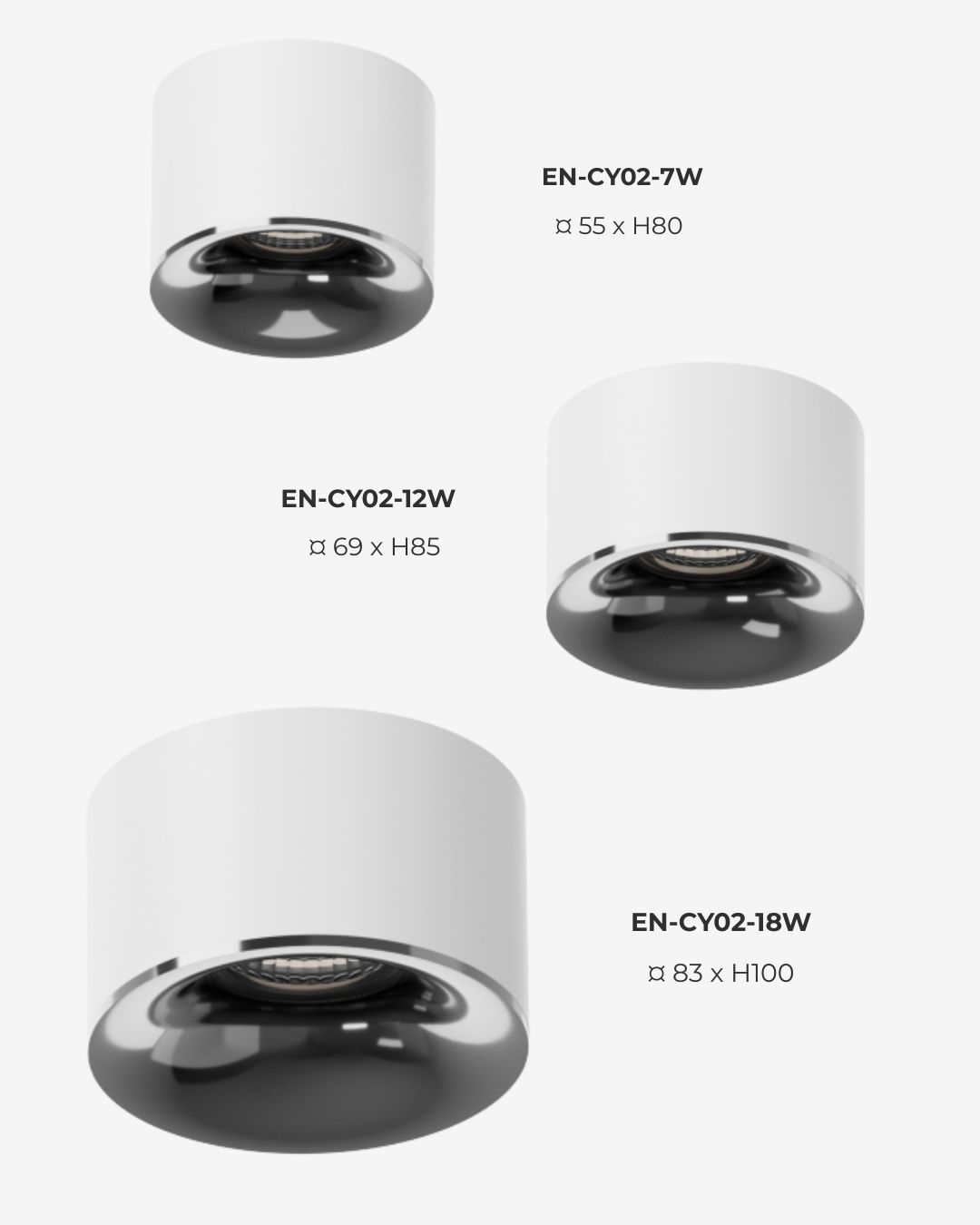

ModelPowerSize (mm)EN-CY02-55x807 WΦ55 × H80EN-CY02-69x8512 WΦ69 × H85EN-CY02-83x10018 WΦ83 × H100EN-CY02-106x10024 W / 30 WΦ106 × H100LED140-150 lumens/watt gold-wire LM80 certified LED, CRI > 80 (90/96 upon request)DriverBIS-certified, HPF, THD < 10%, minimal ripple, 2.5–4 kV surge protection, OVP 440VOptional LEDsCree | Bridgelux | EdisonOptional DriversFulham | Osram | Philips- Application
- Hospitality, Retail, Premium residential, Office
- Power options
- 7 W, 12 W, 18 W, 24 W, 30 W
- Body diameter

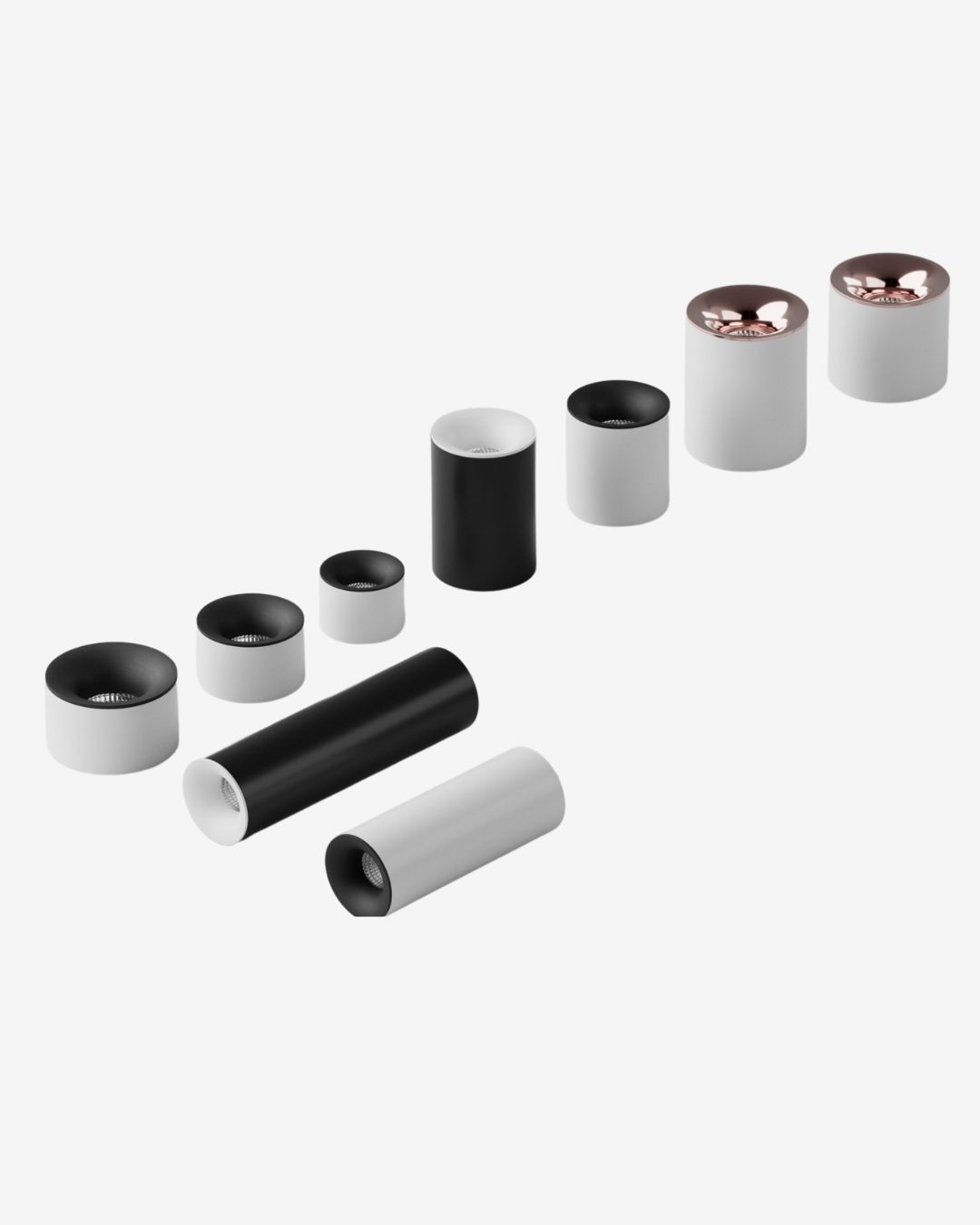

- Φ55 mm, Φ69 mm, Φ83 mm, Φ106 mm
- Body finish
- Matte White, Matte Black
- Inner cup finishes

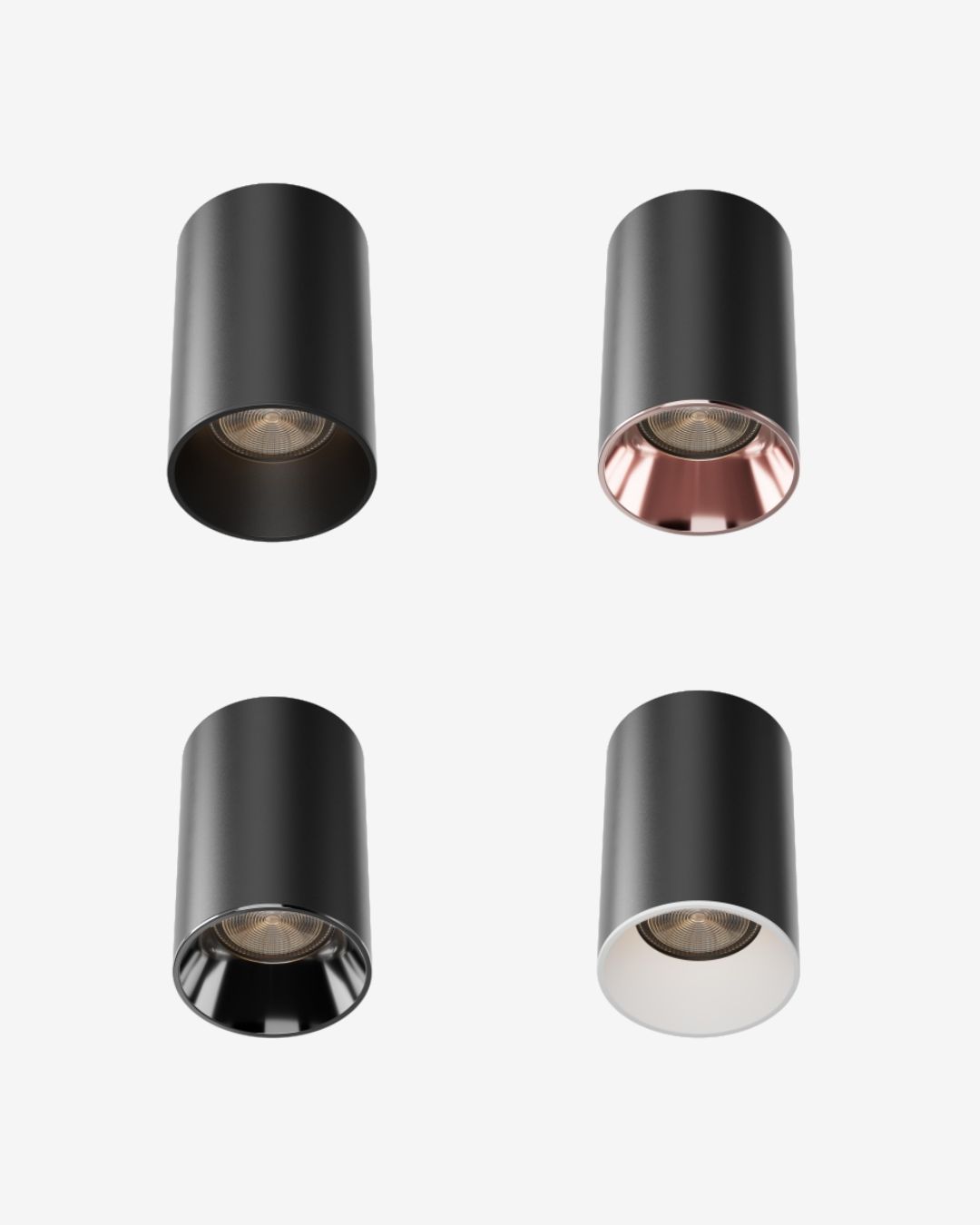

- Gunmetal Black, Light Gold, Rose Gold, Matte White, Matte Black
- Optic
- COB reflector cup (EN-CY02), Convex Fresnel (EN-CY02-F), optional honeycomb louvre
- Beam angle
- 36° (COB), 60–75° (Fresnel)
- Source
- High-CRI COB (SMD with Fresnel optic)
- Mounting
- Surface-mounted
- Hanging version
- EN-CY02-H — supplied with 1.5 m canopy
- CCT options
- 2700K, 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- IP rating
- IP20 (indoor)
- Lifetime
- L80B10 ≥ 50,000 hours
- Operating voltage
- 220–240 V AC
- Surge protection
- 2.5–4 kV
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
