OptiCyl EN-CY02-F Fresnel
Model code EN-CY02-F

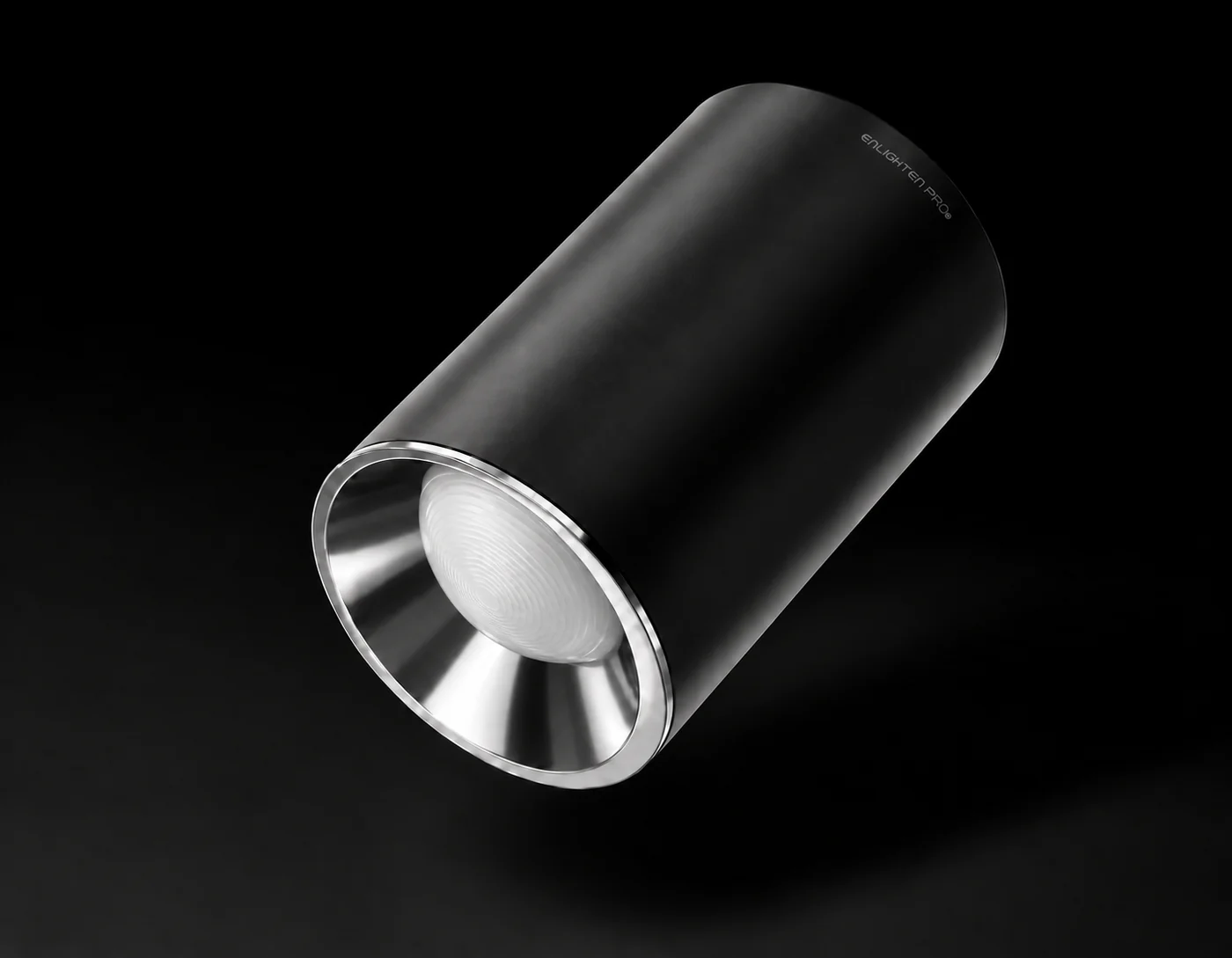

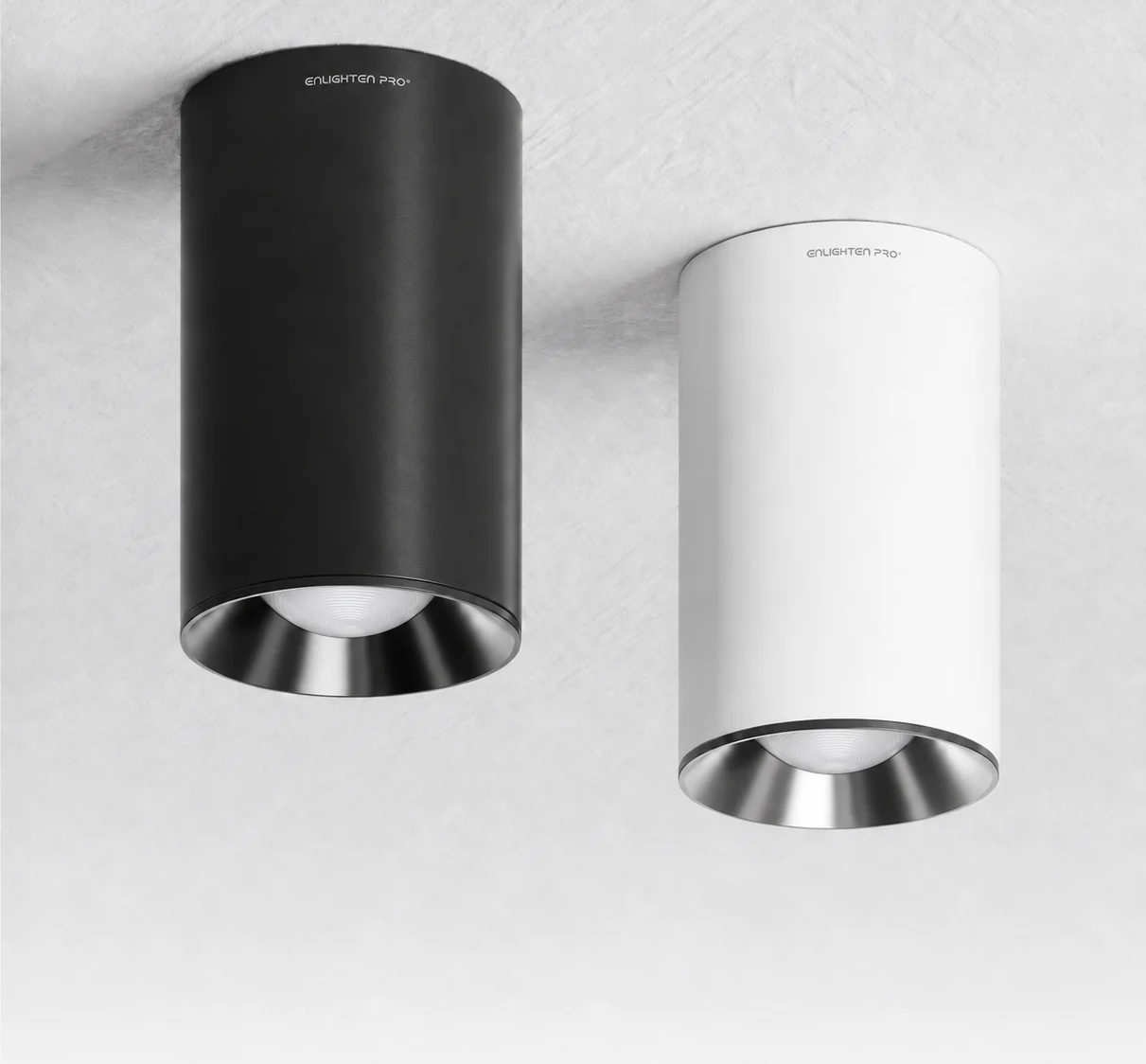

Surface-mounted cylinder downlight with a milky-white convex Fresnel lens over SMD, for a wider, softer 60–75° beam from the same body as OptiCyl EN-CY02. Equipped with Fresnel optics and SMD technology, it offers a different lighting option with superior beam control and efficiency. A hanging version is available as EN-CY02-HF.
ModelPowerSize (mm)EN-CY02-F-55x807 WΦ55 × H80EN-CY02-F-69x8512 WΦ69 × H85EN-CY02-F-83x10018 WΦ83 × H100LED140-150 lumens/watt gold-wire LM80 certified LED, CRI > 80 (90/96 upon request)DriverBIS-certified, HPF, THD < 10%, minimal ripple, 2.5–4 kV surge protection, OVP 440VOptional LEDsCree | Bridgelux | EdisonOptional DriversFulham | Osram | Philips- Application
- Hospitality, Retail, Premium residential, Office
- Power options
- 7 W, 12 W, 18 W
- Body diameter
- Φ55 mm, Φ69 mm, Φ83 mm

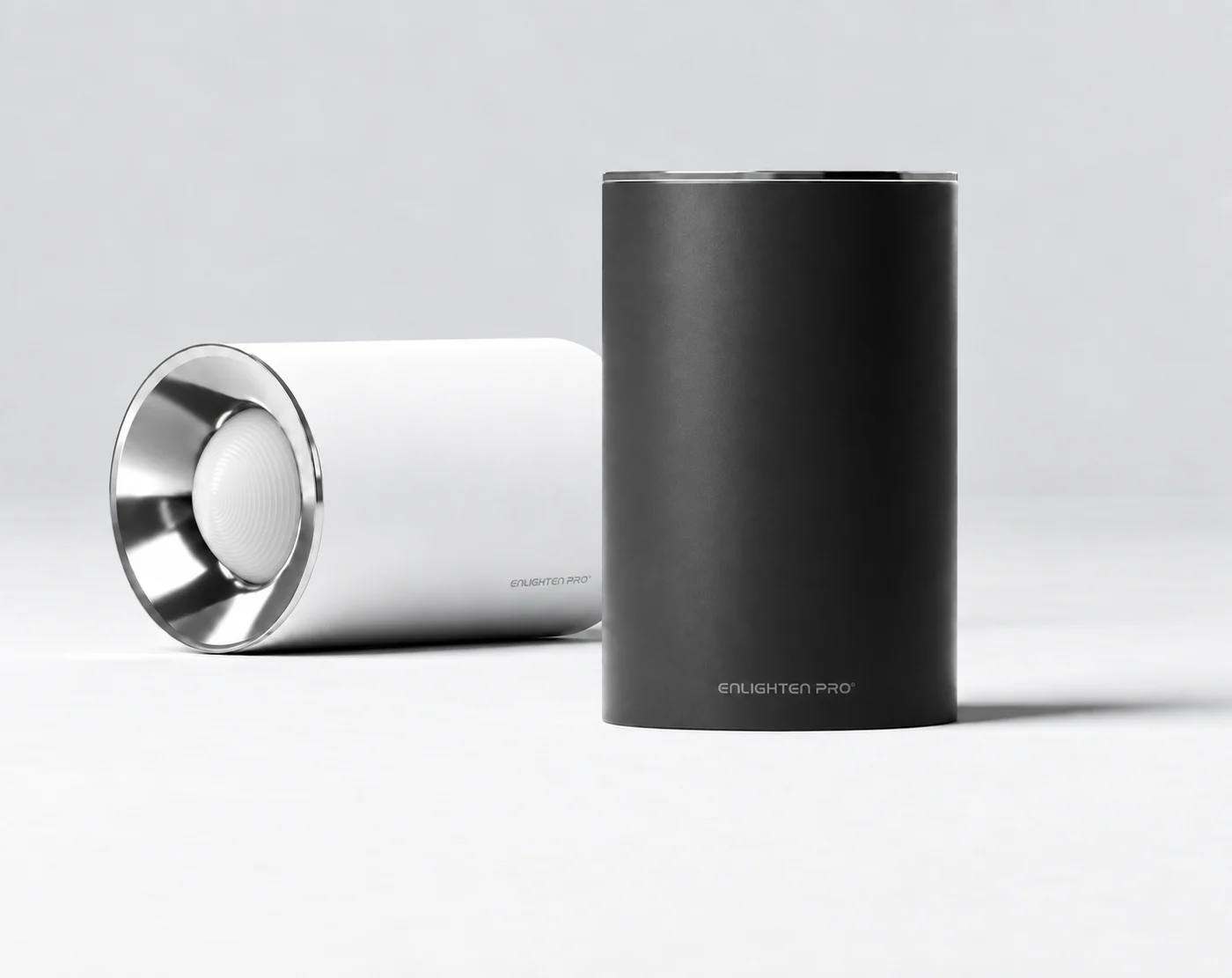

- Body finish
- Matte White, Matte Black

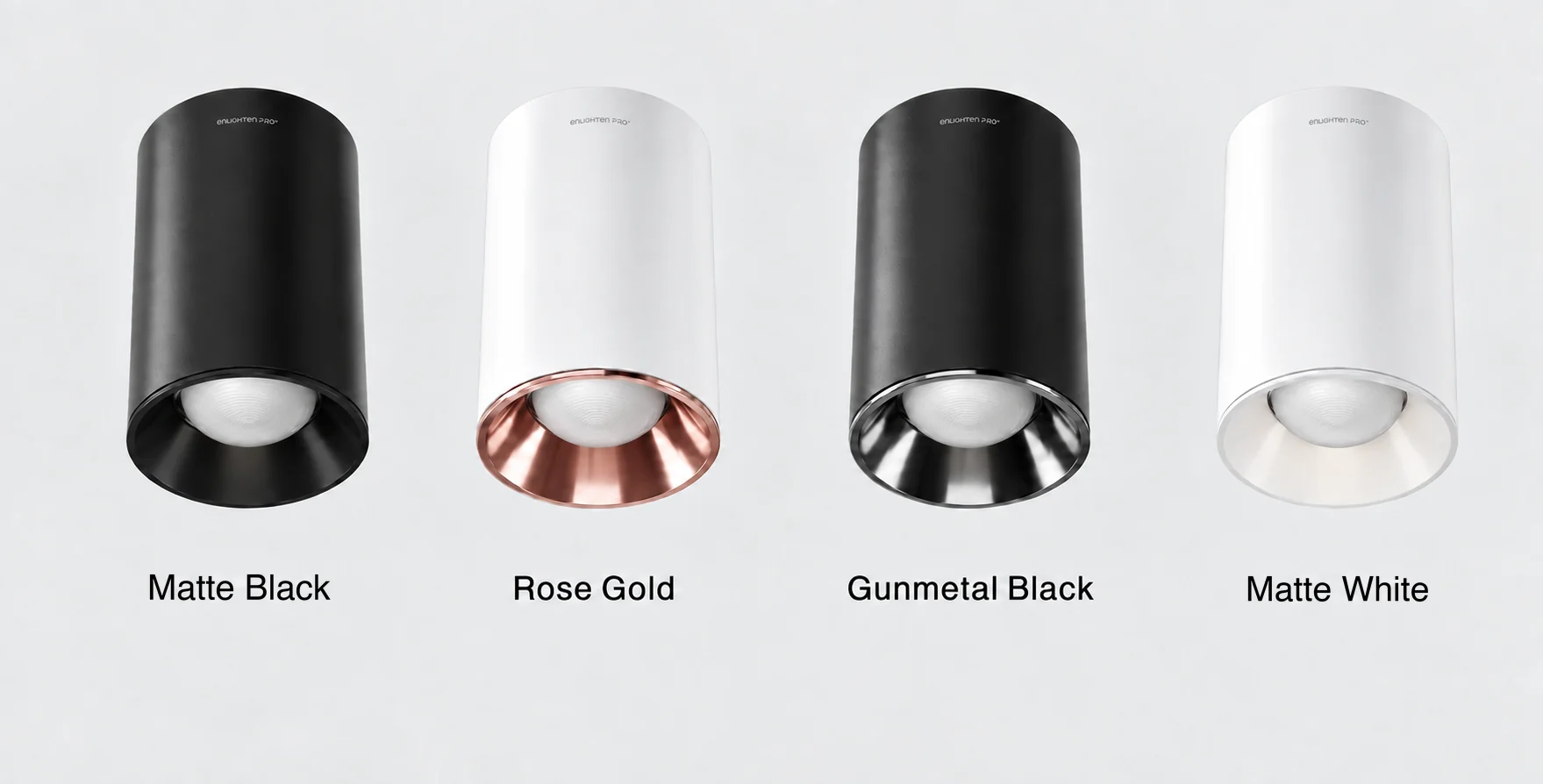

- Inner cup finishes
- Matte Black, Matte White, Rose Gold, Gunmetal Black
- Optic
- Milky-white convex Fresnel lens in a reflector cup

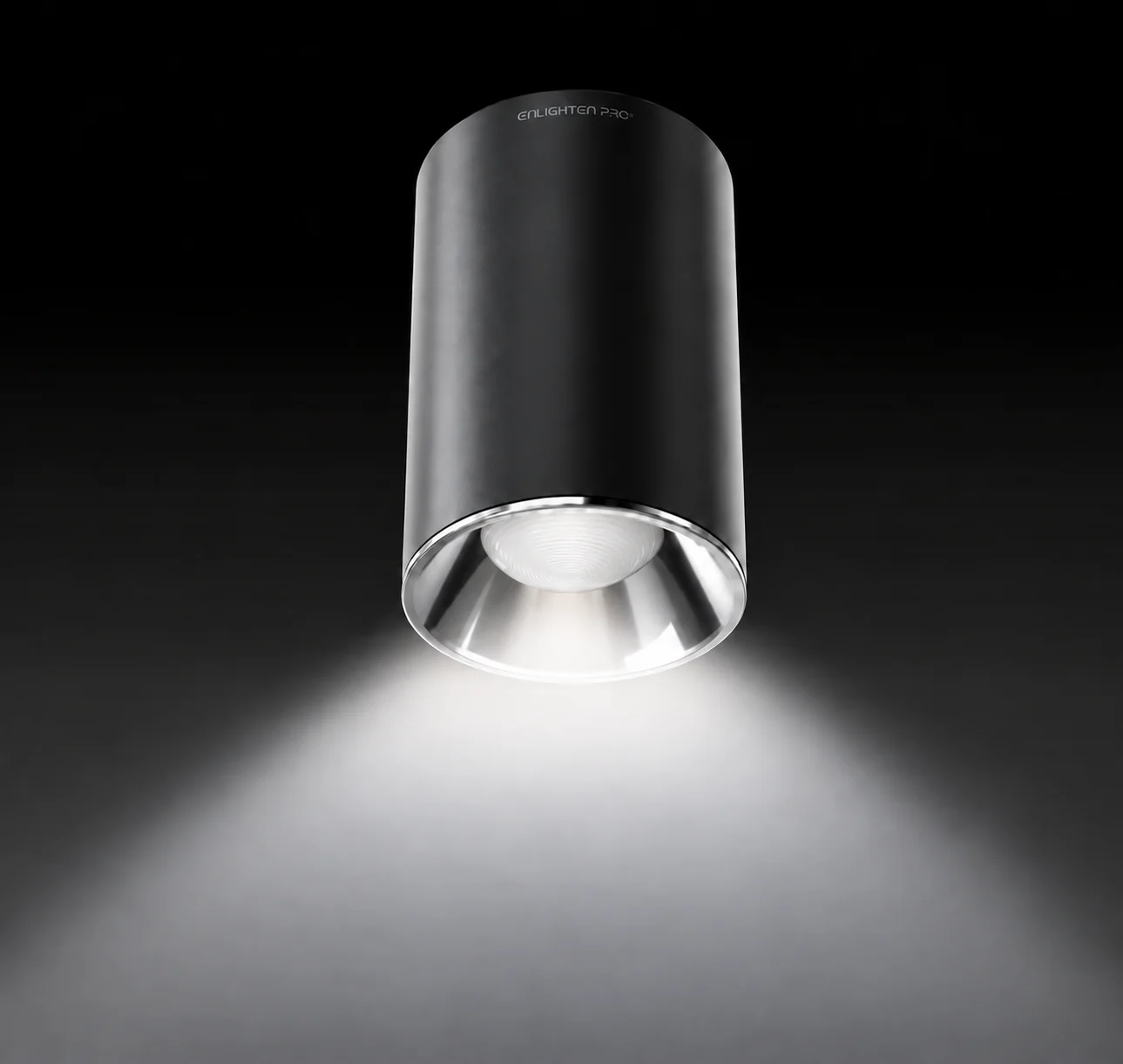

- Beam angle
- 60–75°
- Source
- SMD
- Mounting
- Surface-mounted
- COB version
- EN-CY02 (36° COB reflector)
- Hanging version
- EN-CY02-HF
- CCT options
- 2700K, 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- IP rating
- IP20 (indoor)
- Lifetime
- L80B10 ≥ 50,000 hours
- Operating voltage
- 220–240 V AC
- Surge protection
- 2.5–4 kV
Specifications — typical, family defaults
- Body material
- Aluminium · powder-coated
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
