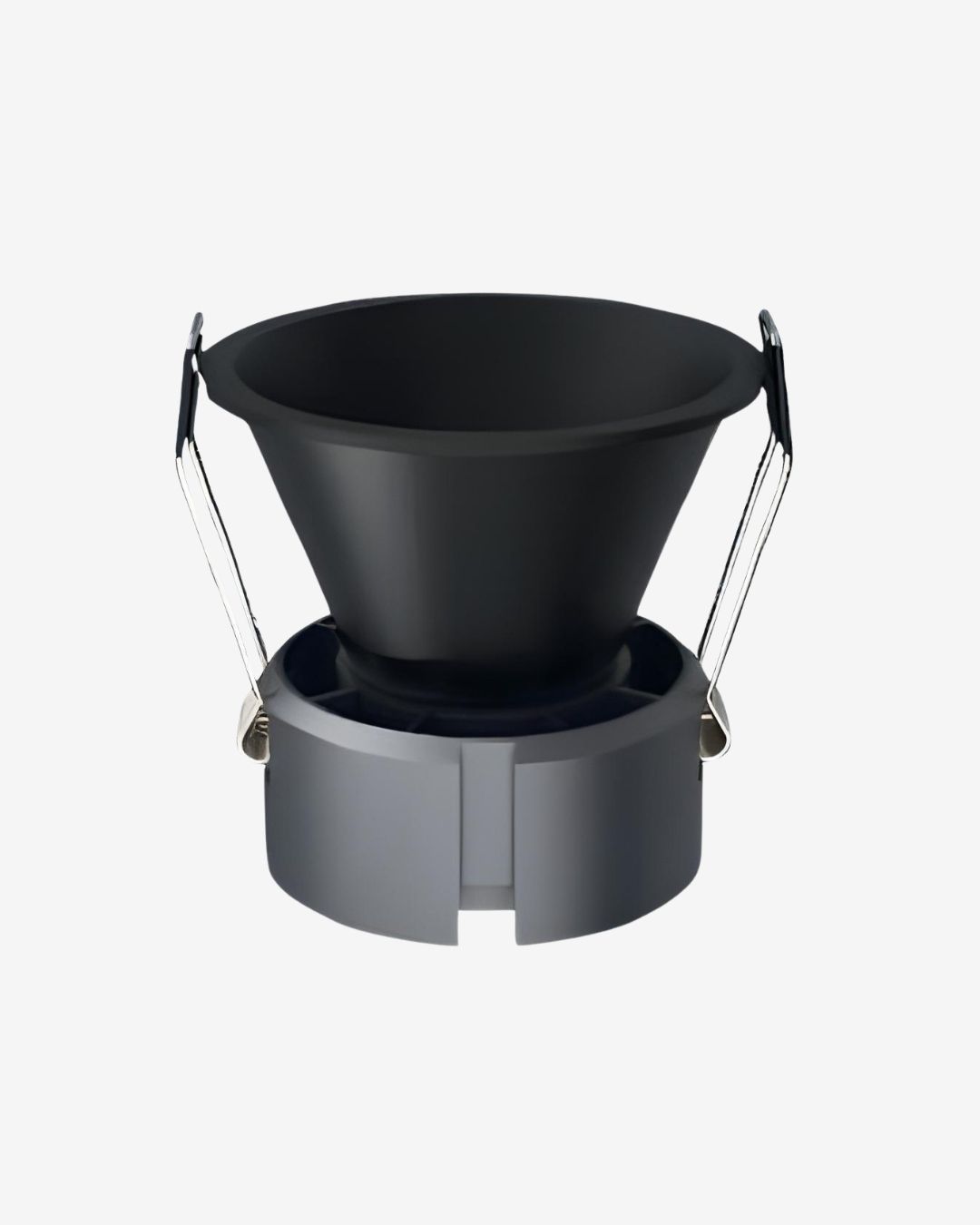

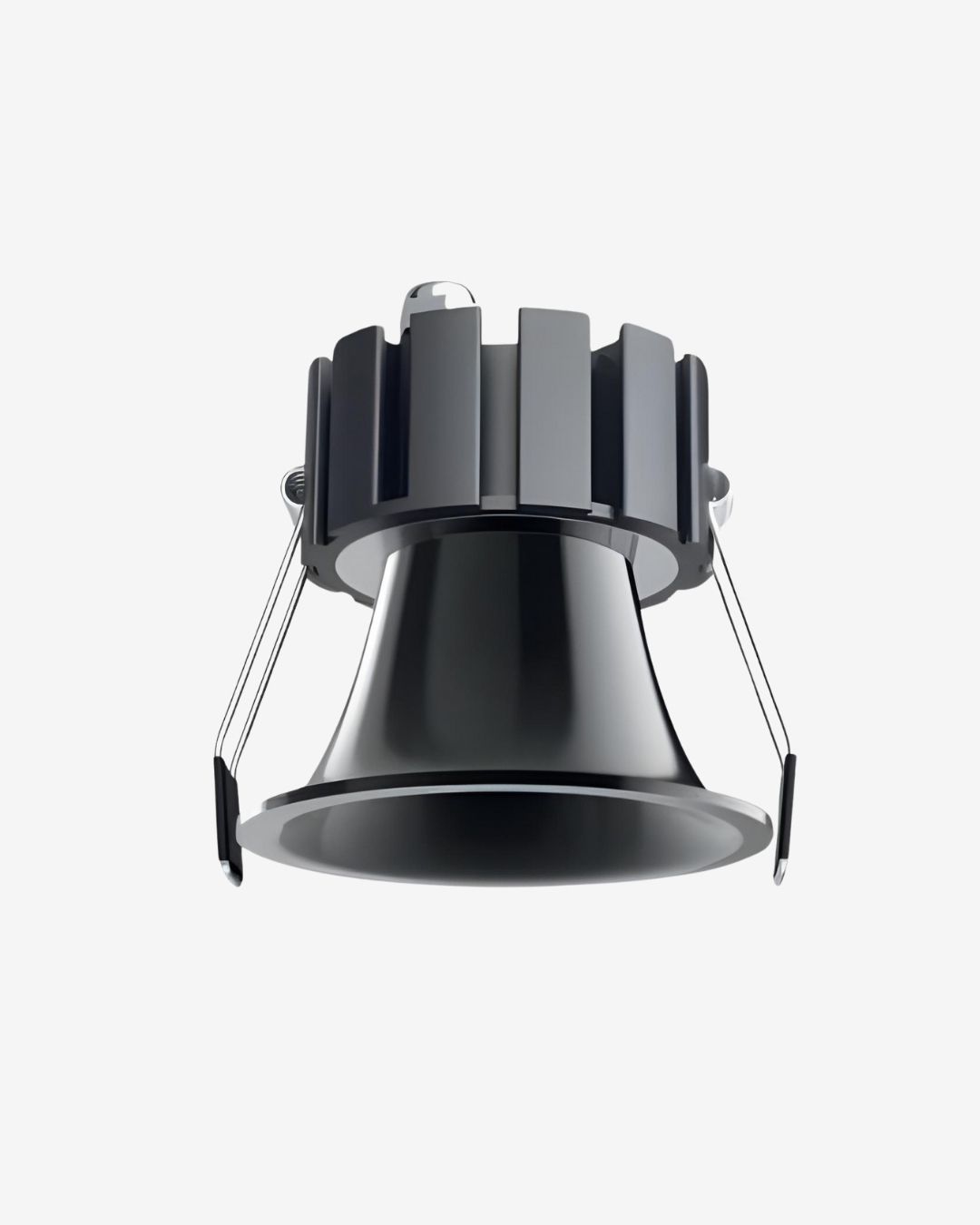

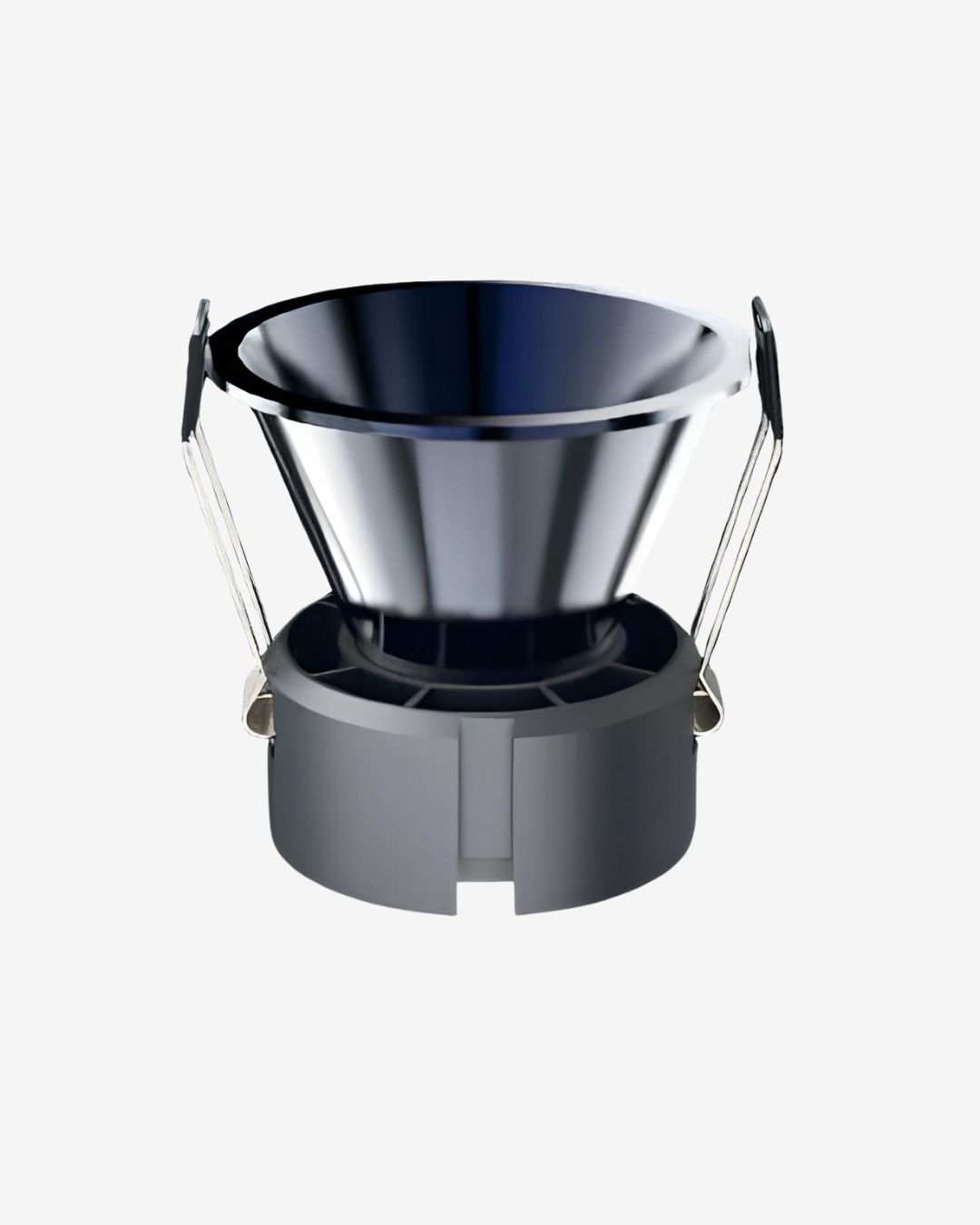

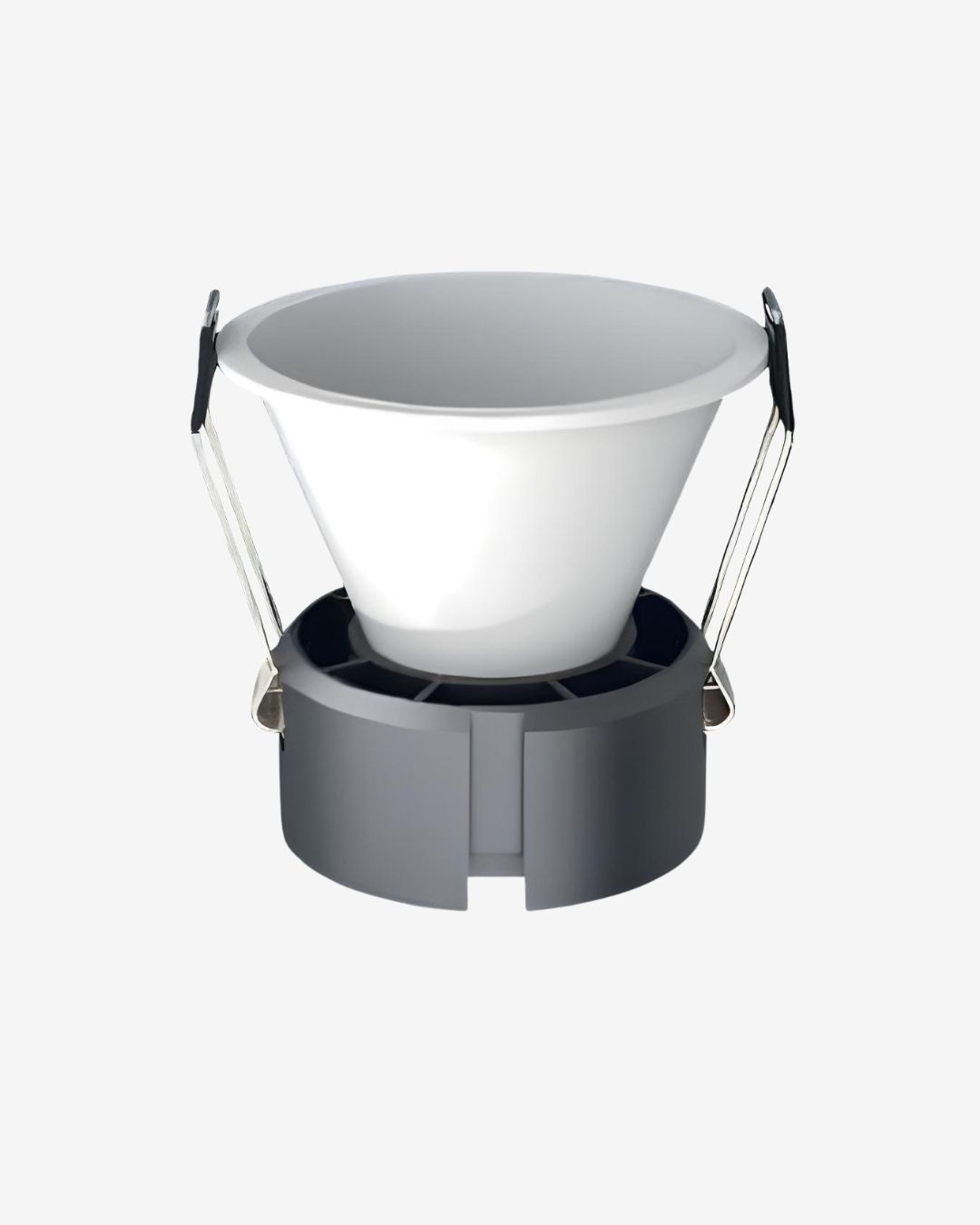

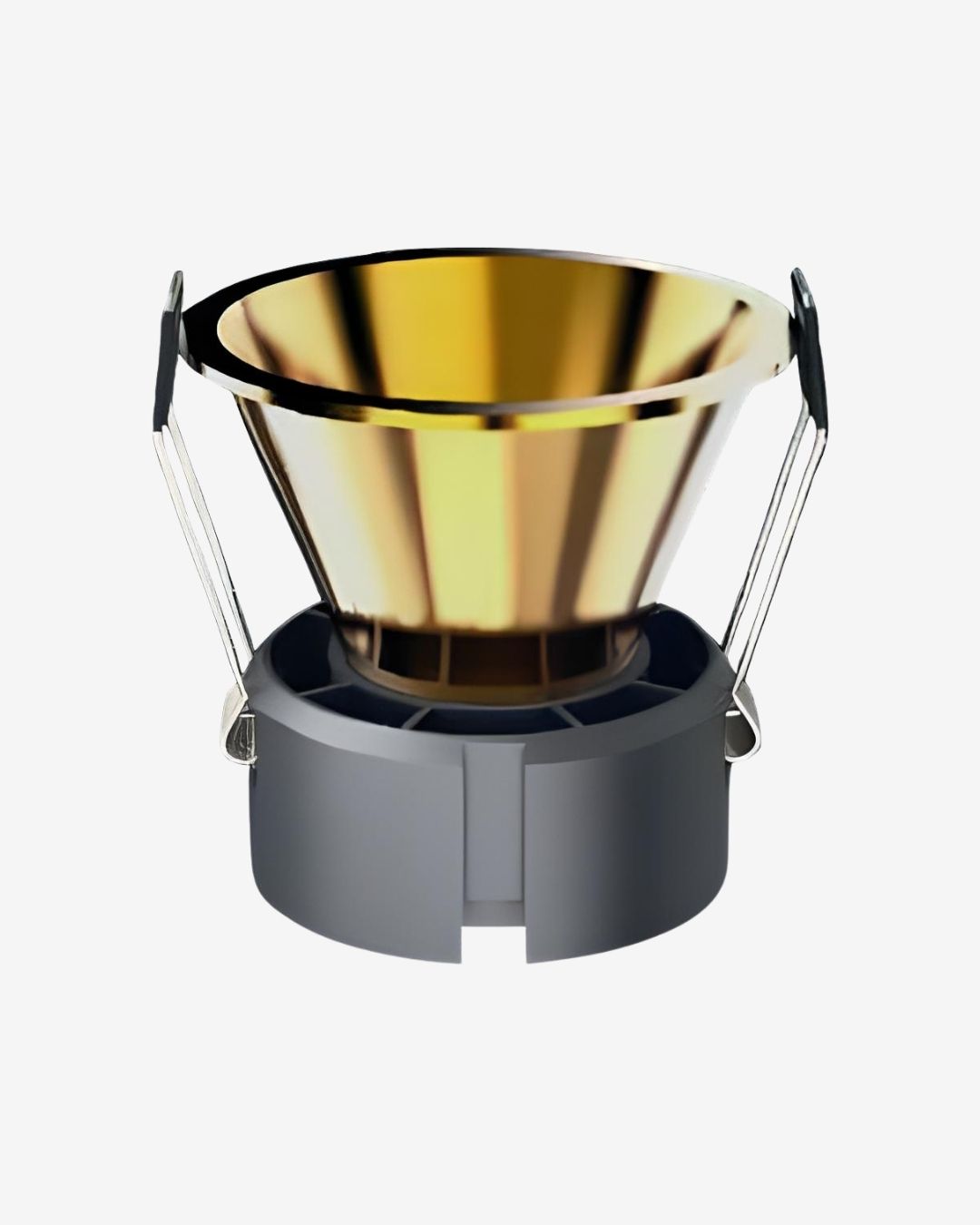

EN-CB40 Belleza
Model code EN-CB40
MODEL
POWER
OUTER SIZE
CUTOUT
EN-CB40-07
7W
Ø 61 x H62mm
Ø 55
EN-CB40-12
12W
Ø 81 x H78mm
Ø 75
EN-CB40-18
18W
Ø 101 x H90mm
Ø 95
LED
140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request)
Driver
BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V
Optional LEDs
Cree | Bridgelux | Edison
Optional Drivers
Fulham | Osram | Philips
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
