EN-CB29 Zia
Model code EN-CB29
A concealed spot in two sizes, each with a trim ring or a trimless POP ring. The cold-forged heatsink is compact yet dissipates a lot of heat passively, the inner cup is machined aluminium with a PVD coating that will not wear off, and the module tilts up to 30° and pulls out from below.
Two sizes Max 12W · max 18W

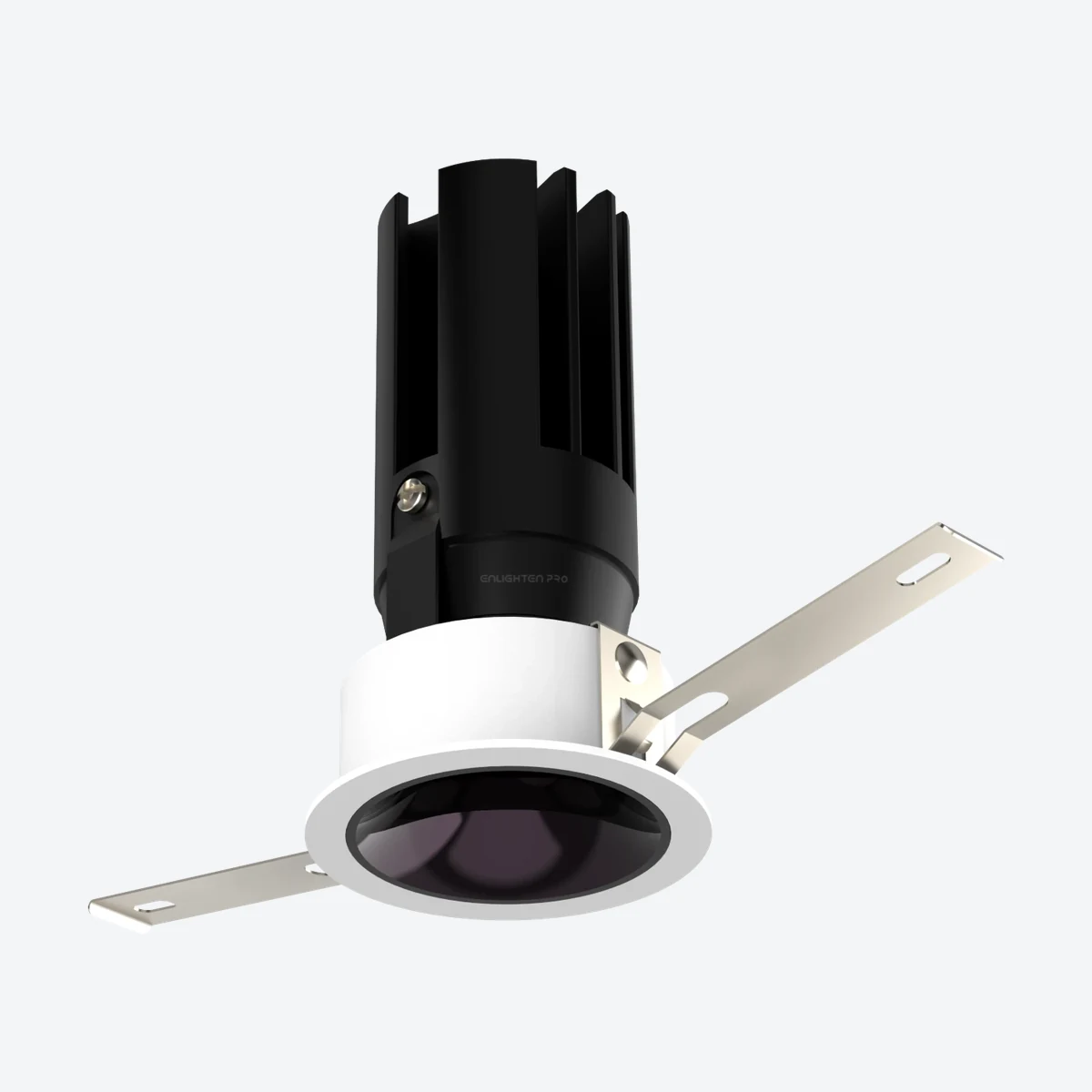

EN-CB29-07-12 · 12W
Max 12W · Ø55
The smaller Zia: Ø55 with the trim ring, Ø72 trimless, both for a Ø50 cutout. Beam 24° as standard; 15° or 36° on request.
- Power
- Max 12W
- Size
- Ø55 × 100mm
- Trimless
- Ø72 × 100mm
- Cutout
- Ø50mm
- Beam
- 24°
- Tilt
- 30°

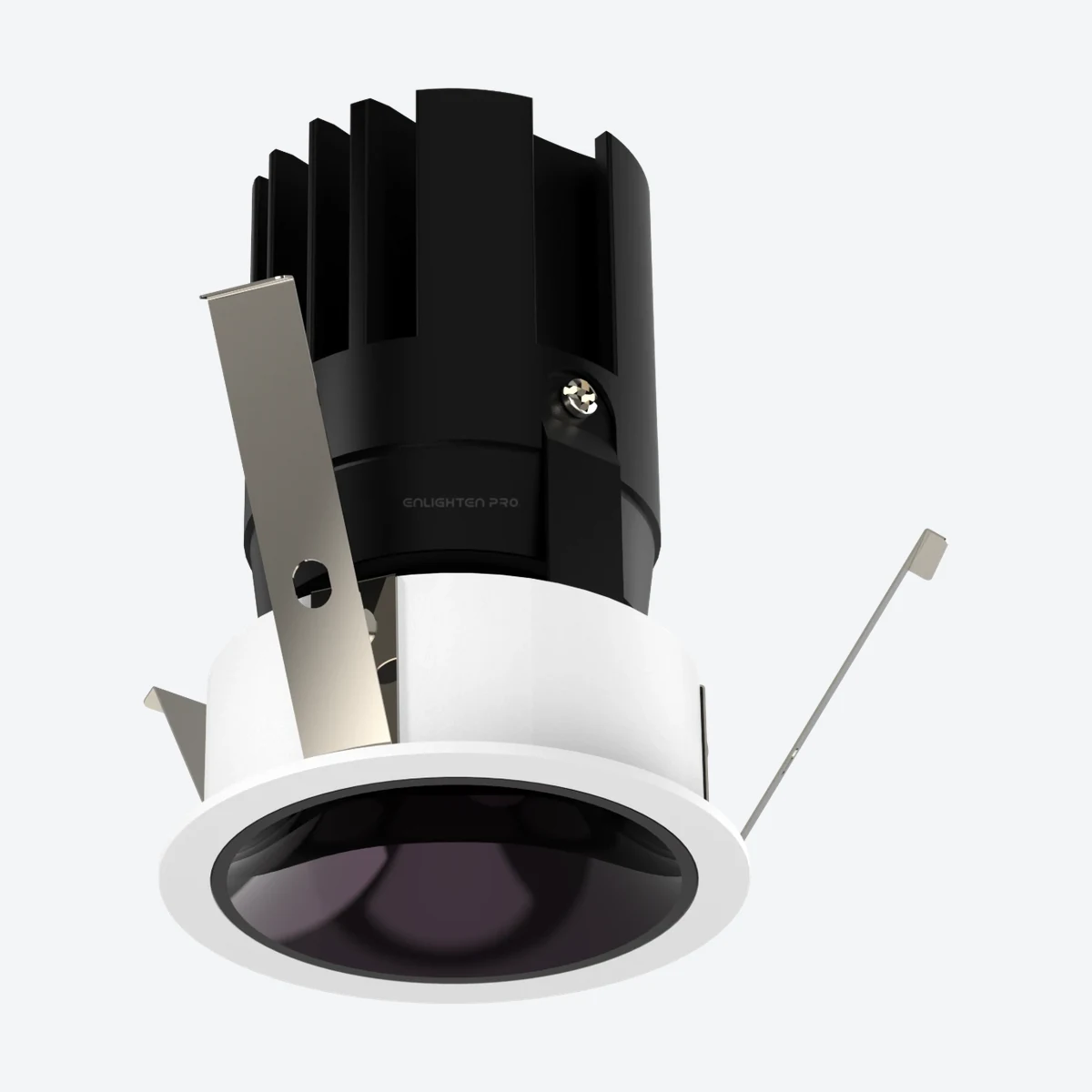

EN-CB29-15-18 · 18W
Max 18W · Ø75
The larger Zia: Ø75 with the trim ring, Ø85 trimless, both for a Ø65 cutout. Beam 24° as standard; 15° or 36° on request.
- Power
- Max 18W
- Size
- Ø75 × 100mm
- Trimless
- Ø85 × 105mm
- Cutout
- Ø65mm
- Beam
- 24°
- Tilt
- 30°
