Nido
Model code EN-CB25

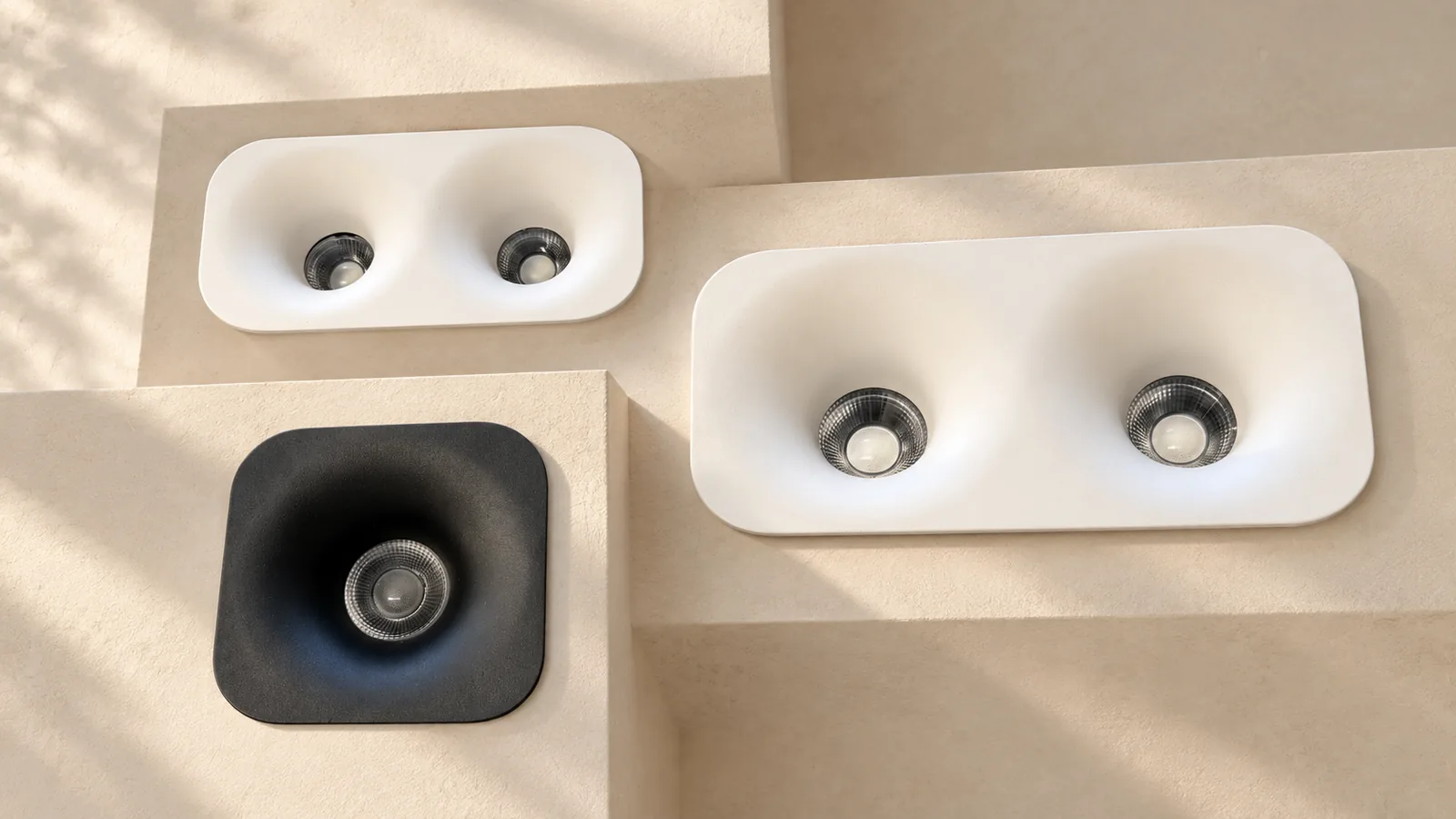

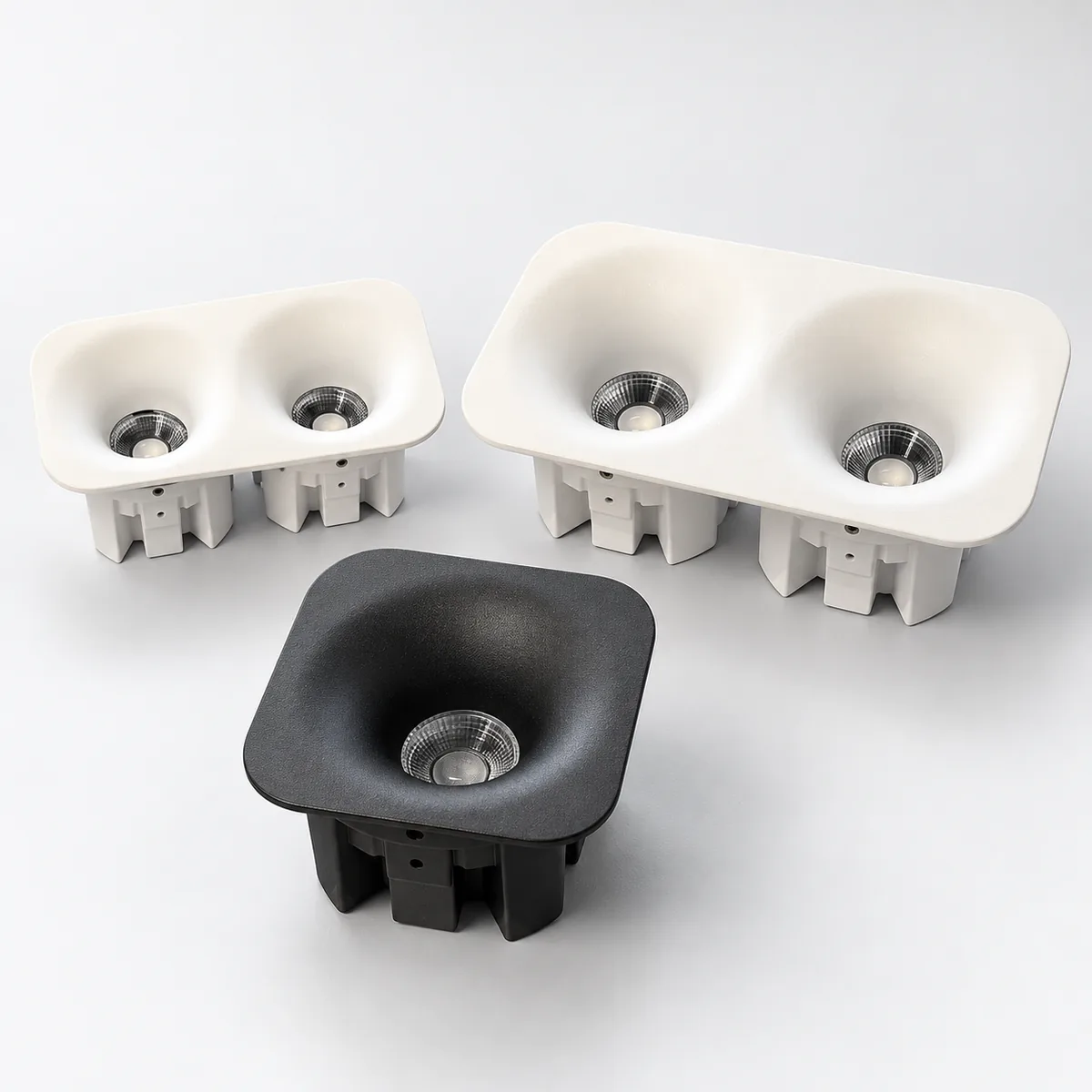

Nido is Italian for nest, and the face of this fitting is exactly that: a soft hollow sculpted into a flat, rounded-corner square, dipping to the COB at its bottom. The twin sets two hollows side by side in one rectangle, with a gentle ridge between them.
Two singles, 6-10W and 12-15W, and two twins at 2 × 6-10W and 2 × 12-15W. Cutouts run from 55mm for the smallest single to 153 × 75mm for the largest twin. 36° beam. Aluminium, in black or white.
Order codeWattageSize (mm)Cutout (mm)EN-CB25-076-10W65 × 65 × H46Ø55EN-CB25-1512-15W85 × 85 × H52Ø75EN-CB25-2x072 x 6-10W122 × 65 × H46113 × 55 pillEN-CB25-2x152 x 12-15W162 × 85 × H50153 × 75 pill- Trim
- Sculpted hollow, single or twin
- Body
- Aluminium
- Body colour
- White or black
- Sizes
- 6-10W · 12-15W · 2 × 6-10W · 2 × 12-15W
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Residential
- Commercial
- Hospitality
Mounting
- Recessed
