Favo
Model code EN-CB22

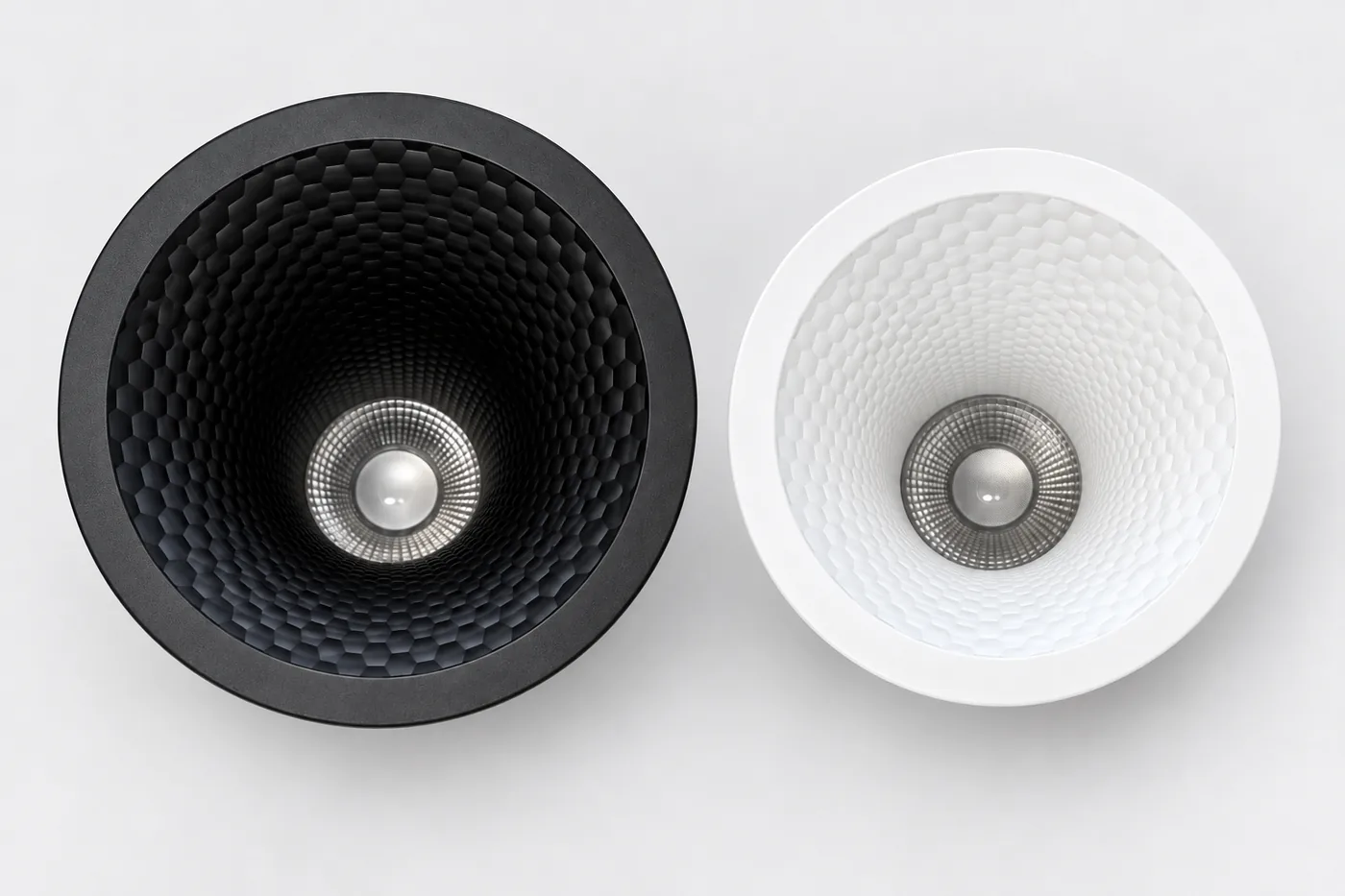

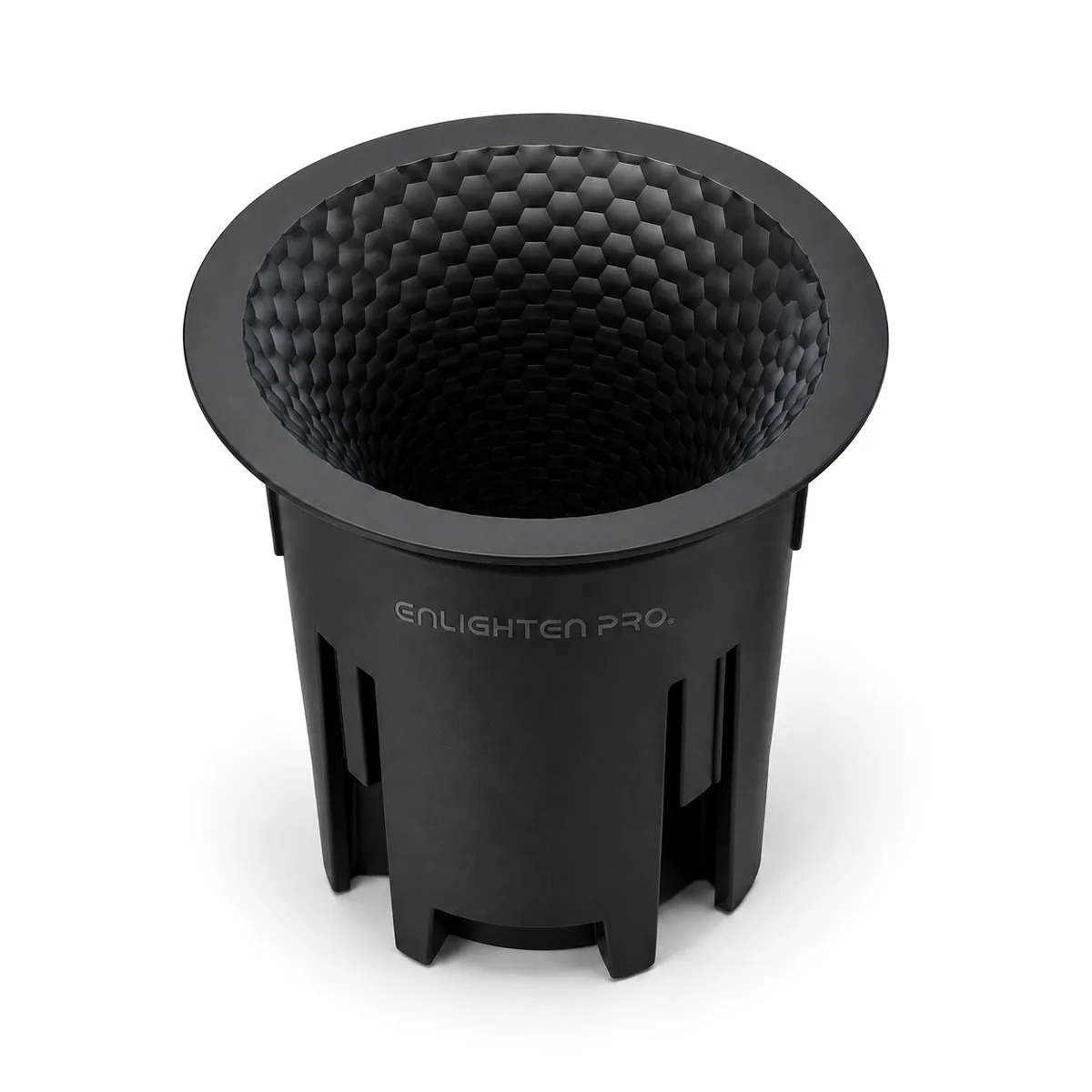

Favo is Italian for honeycomb, which is the whole idea of this fitting. The reflector is a deep cone faceted in a honeycomb pattern, with the COB set well back from the aperture.
One design in four sizes, from a 45mm cutout at 3-7W to a 75mm cutout at 15-18W, all with a 36° beam. Aluminium body in black or white.
Order codeWattageSize (mm)Cutout (mm)EN-CB22-073-7WØ52 × H71Ø45EN-CB22-108-10WØ62 × H80Ø55EN-CB22-1210-12WØ72 × H90Ø65EN-CB22-1515-18WØ82 × H90Ø75- Reflector
- Deep cone, honeycomb-faceted
- Body
- Aluminium
- Body colour
- White or black
- Sizes
- 3-7W · 8-10W · 10-12W · 15-18W
- Cutouts
- 45 · 55 · 65 · 75mm
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Residential
- Hospitality
- Commercial
Mounting
- Recessed
