Gimble
Model code EN-CB19G

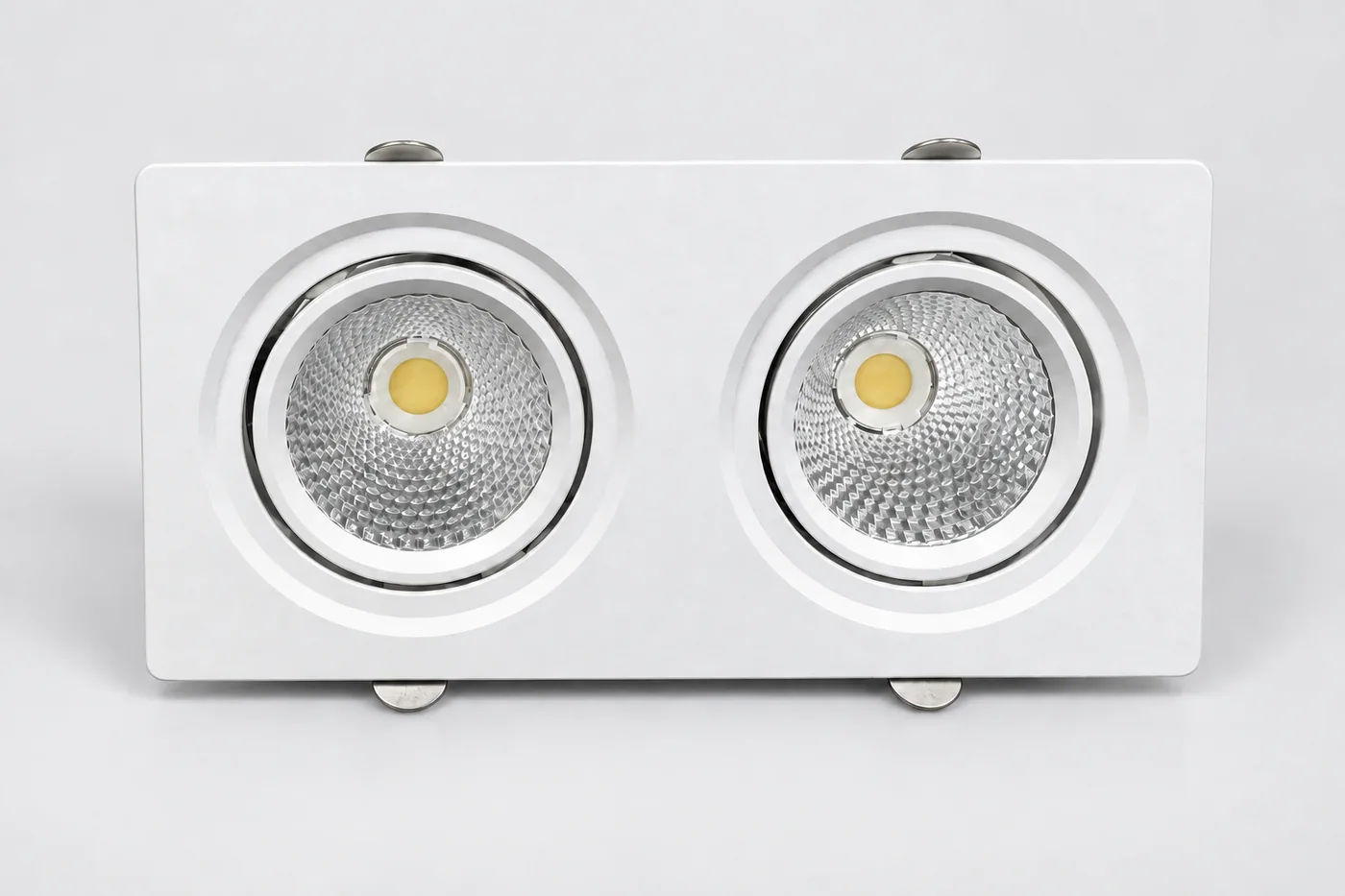

One, two or three COB heads in a single recessed frame, each aimed on its own. One cutout covers what would otherwise take two or three — a wash down a wall on one side, a pool over a counter on the other — without breaking the ceiling line more than once.
Cast aluminium frame and housing, with a faceted PC reflector that holds the source well back from the aperture. Spring clips take it into board. 40° is the standard beam; 24° and 60° are available to order. White or black.
Order codeWattageSize (mm)Cutout (mm)EN-CB19G-2x122 x 12W160 × 95 × H70150 × 85EN-CB19G-3022-30W140 × 140 × H100132 × 132EN-CB19G-2x302 x 22-30W280 × 140 × H110260 × 132EN-CB19G-4032-40W175 × 175 × H105161 × 161EN-CB19G-2x402 x 32-40W345 × 175 × H105325 × 161EN-CB19G-3x403 x 32-40W510 × 175 × H105495 × 161- Heads
- 1, 2 or 3, each tilting independently
- Power
- 12–40W per head
- Beam angle options
- 40° standard · 24° / 60° on request
- Reflector
- Faceted PC
- Body colour
- White or black
- Overall size
- 160 × 95mm to 510 × 175mm
- Cutout
- 150 × 85mm to 495 × 161mm
- Overall height
- 70 to 110mm
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Retail
- Hospitality
- Commercial
Mounting
- Recessed
