Fortis
Model code EN-CB19

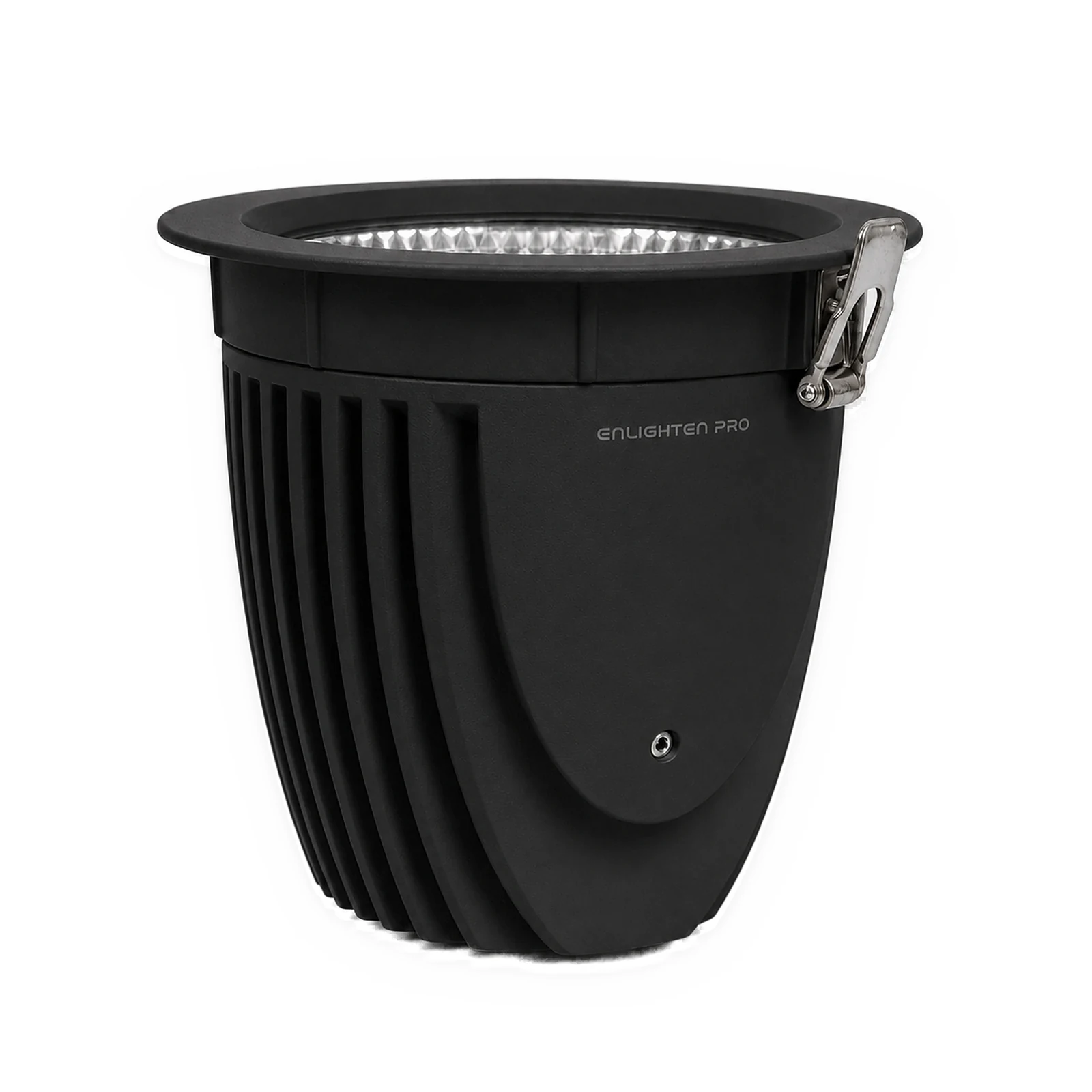

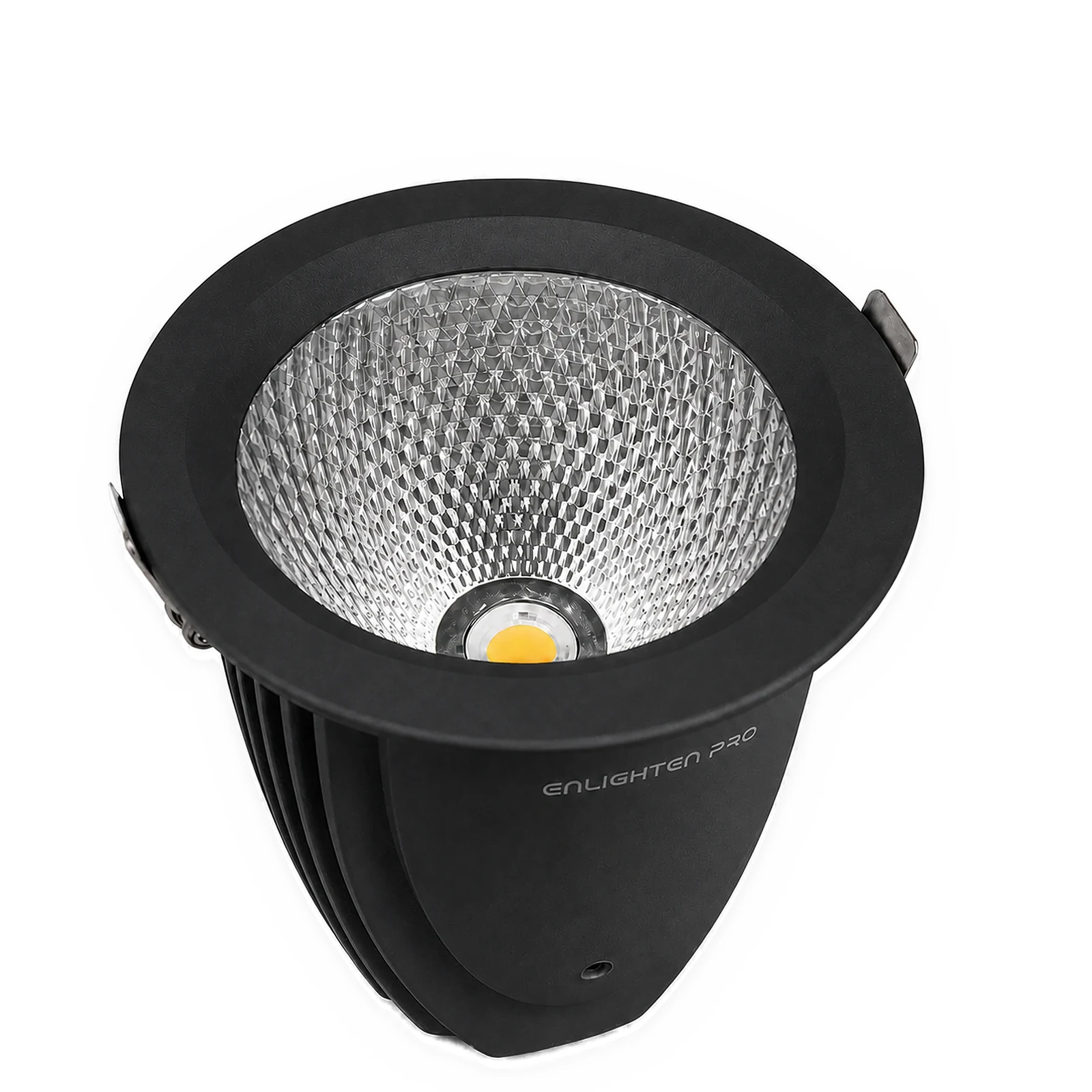

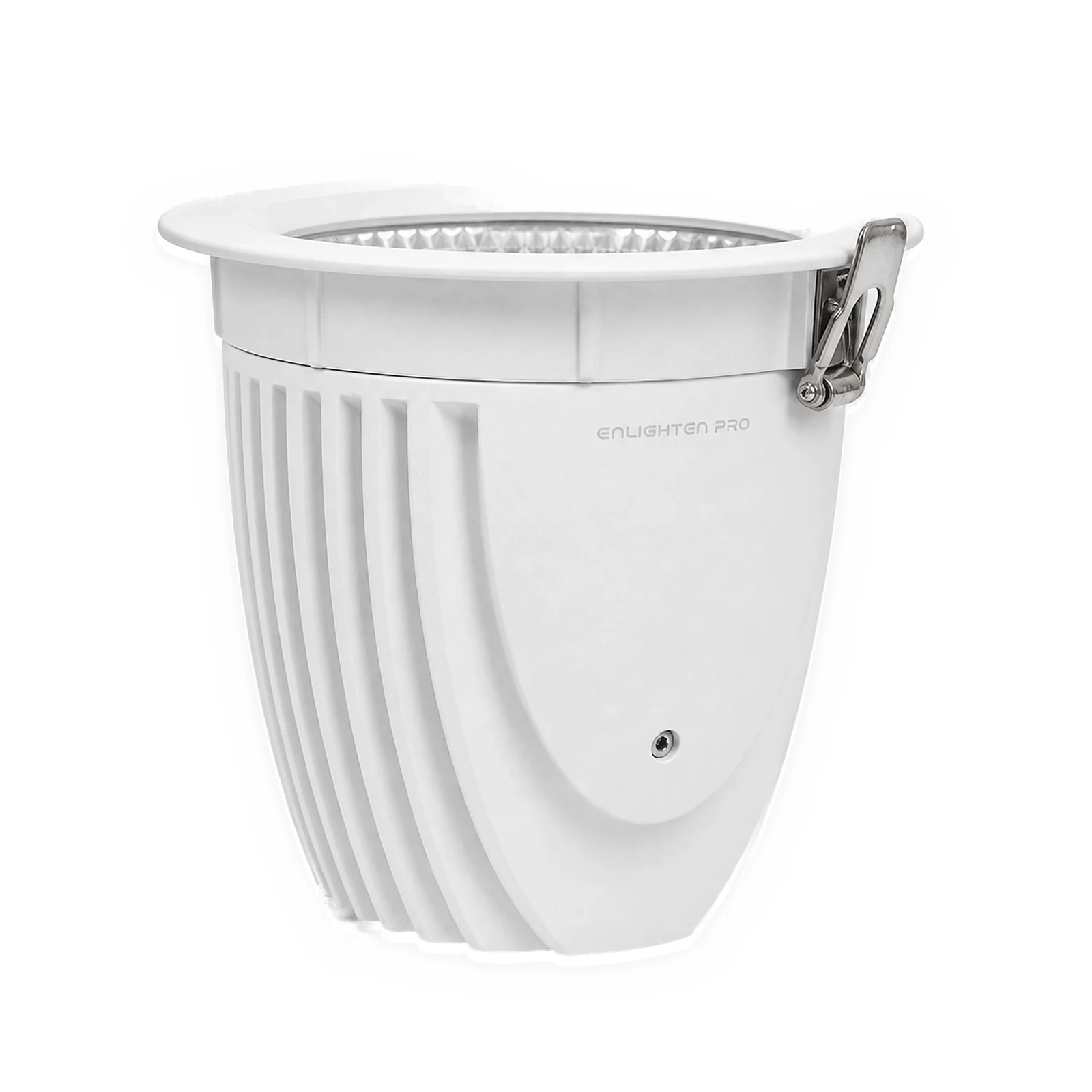

A deep-set COB downlight on a faceted reflector — the source sits well back from the aperture, so you read the light and not the LED. The finned cast body does the thermal work, which is what lets it hold output at 48W in a 124mm can.
MODELPOWERDIMENSIONSCUTOUT EN-CB19-2420-24WØ102 x H94Ø95 EN-CB19-3630-36WØ114.5 x H106Ø105 EN-CB19-4840-48WØ124.5 x H115Ø115LED: COB, gold-wire LM80 certified, CRI 80 (CRI 90 upon request)
CCT: 3000K / 4000K / 5700K / 6500K
Beam angle: 38°
Reflector: Faceted aluminium, deep-set anti-glare
Body: Die-cast aluminium with integral fins, white or black
Driver: BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV surge protection, OVP 440V
Controls: Bluetooth, TRIAC, 0/1-10V, DALI-2
Mounting: Recessed, spring clip
IP rating: IP20
Warranty: 2 years standard; 3 and 5 years upon request
Certifications: BIS · LM-80 · CE · RoHS
Applications: retail, hospitality, showrooms, lobbies and high-ceiling residential.
Contact for customized quotation
- beam angle
- 38° (other beam angles upon request)
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
Applications
- Retail
Mounting
- Recessed
