EN-CB14 Dazzle
Model code EN-CB14

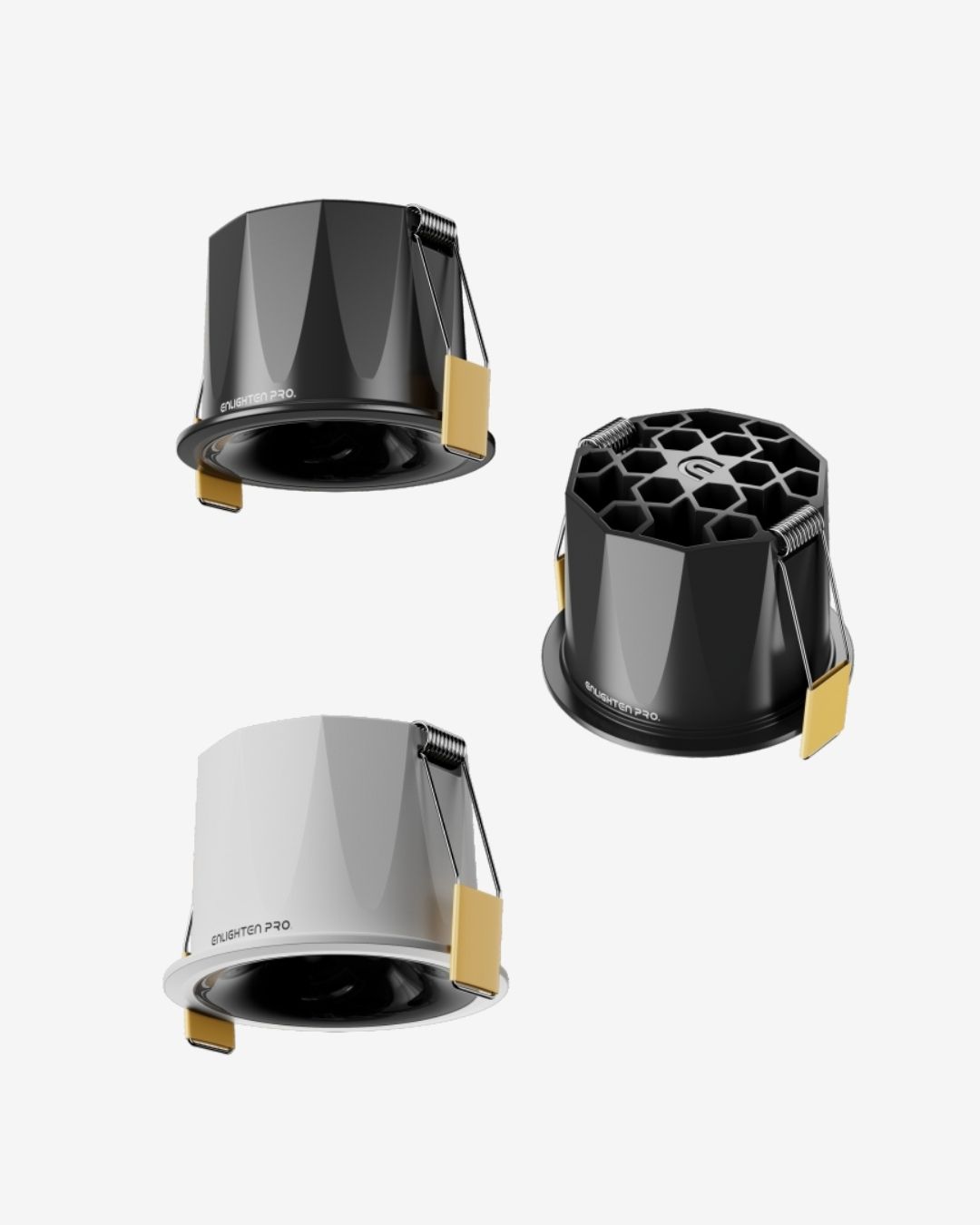

Dazzle is a compact recessed COB spotlight built around a single ADC-12 die-cast body whose hexagon-and-hexagram heatsink does the cooling passively — no fans, just mass and geometry. The deep-set Enlighten HD COB with our Pro series driver delivers crisp accent light, and the interchangeable inner cup lets the same fixture read jewelled or fully matte.
ModelPowerSize (mm)CutoutEN-CB14-77 WØ69 × H49Φ59EN-CB14-1212 WØ82 × H57Φ72EN-CB14-1818 WØ96 × H67Φ86LED140-150 lumens/watt gold-wire LM80 certified LED, CRI > 80 (90/96 upon request)DriverBIS-certified, HPF, THD < 10%, minimal ripple, 2.5–4 kV surge protection, OVP 440VOptional LEDsCree | Bridgelux | EdisonOptional DriversFulham | Osram | Philips- Application
- Hospitality, Retail, Premium residential, Office
- Power options
- 7 W, 12 W, 18 W
- Sizes
- Ø69 × H49 mm, Ø82 × H57 mm, Ø96 × H67 mm
- Cutouts
- Φ59 mm, Φ72 mm, Φ86 mm
- Body

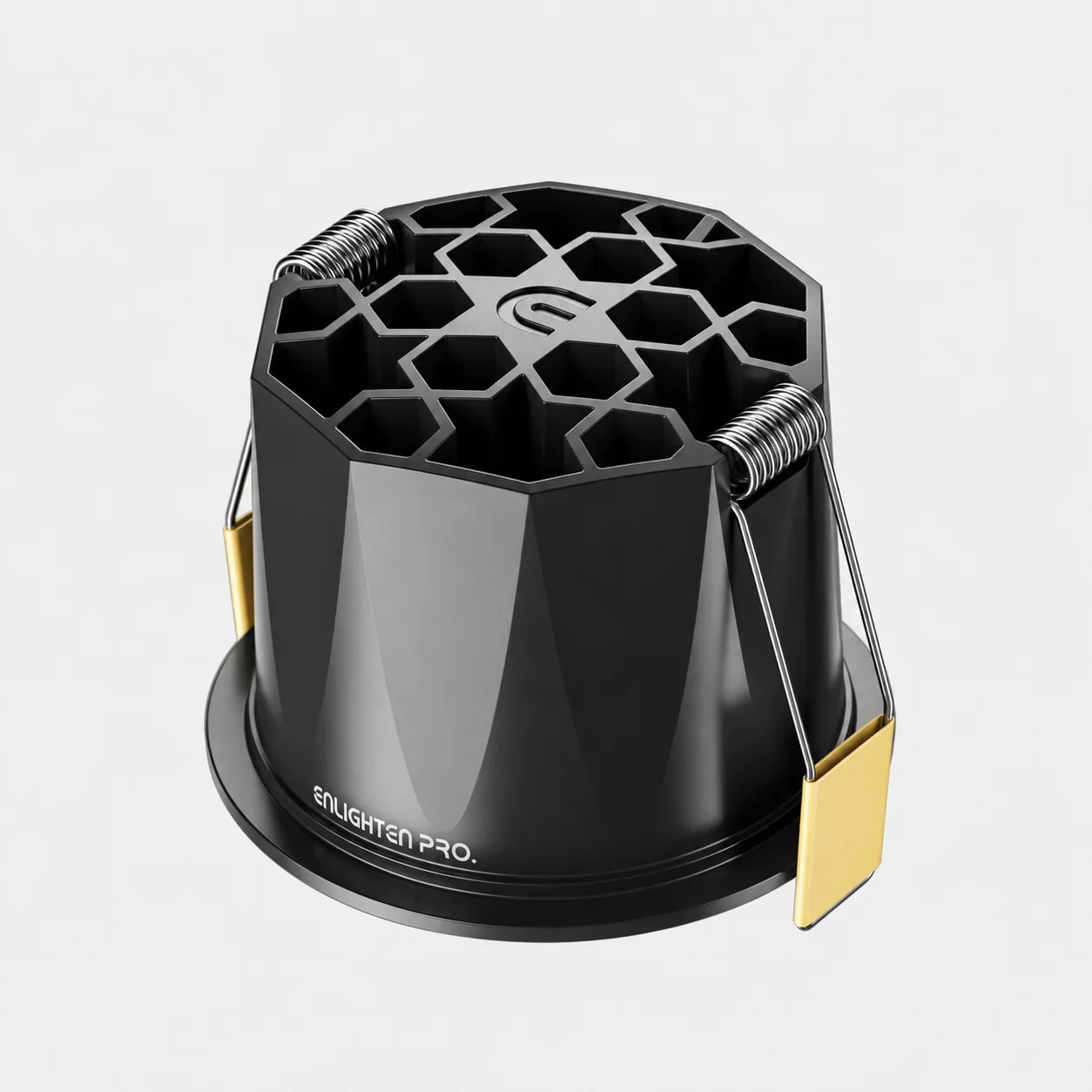

- ADC-12 die-cast aluminium, hexagon & hexagram heatsink
- Body finish
- White, Black
- Inner cup finishes

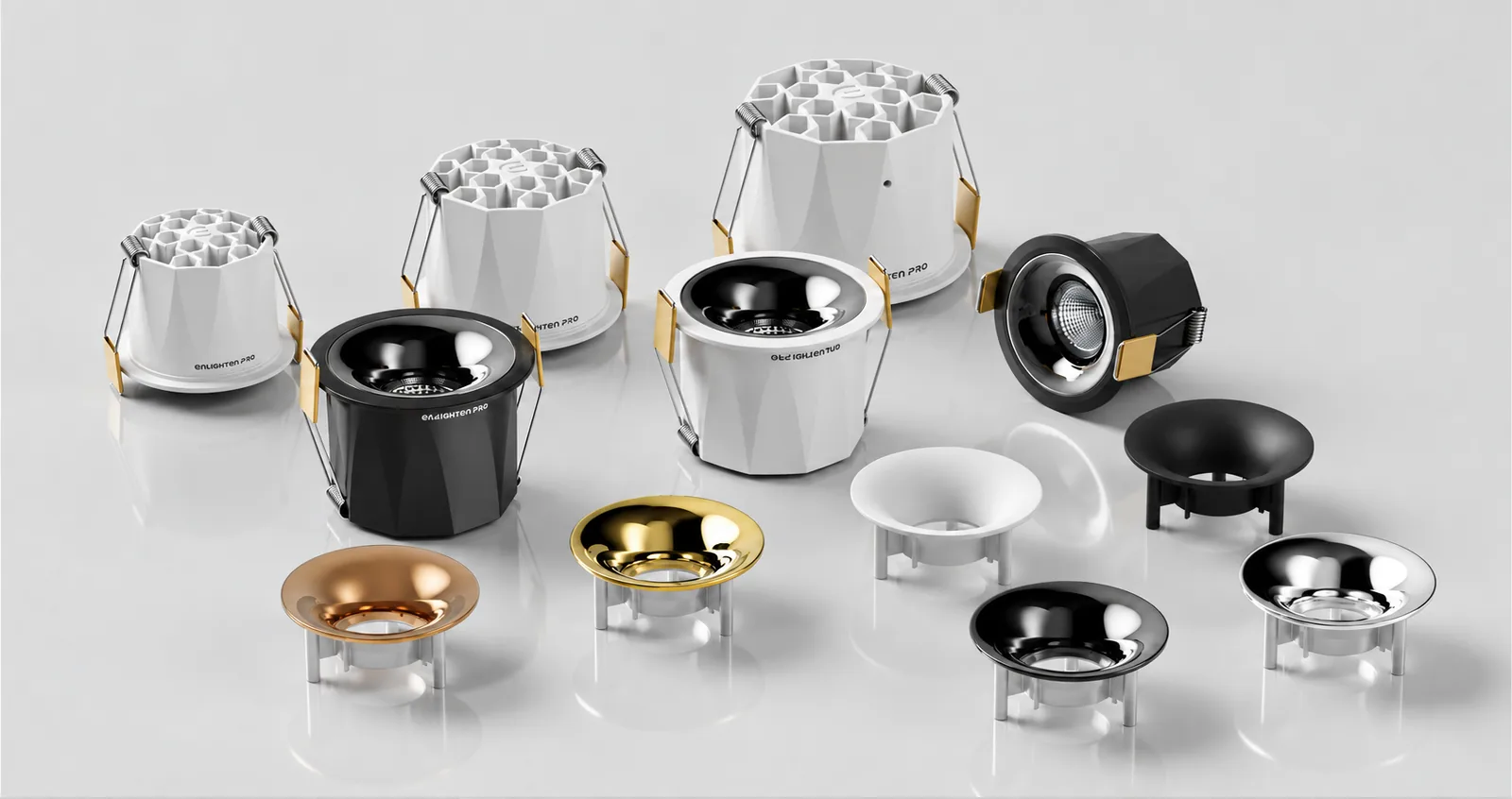

- Gunmetal Black, Light Gold, Rose Gold, Matte White, Matte Black, Chrome
- Source
- Enlighten HD COB
- Driver
- Constant-current, DALI-2, 0–10V, Triac
- Mounting
- Recessed, spring clips
- CCT options
- 3000K, 4000K, 5000K
- CRI
- Ra ≥ 80 (90/96 on request)
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
Specifications — typical, family defaults
- Light source
- COB LED
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
