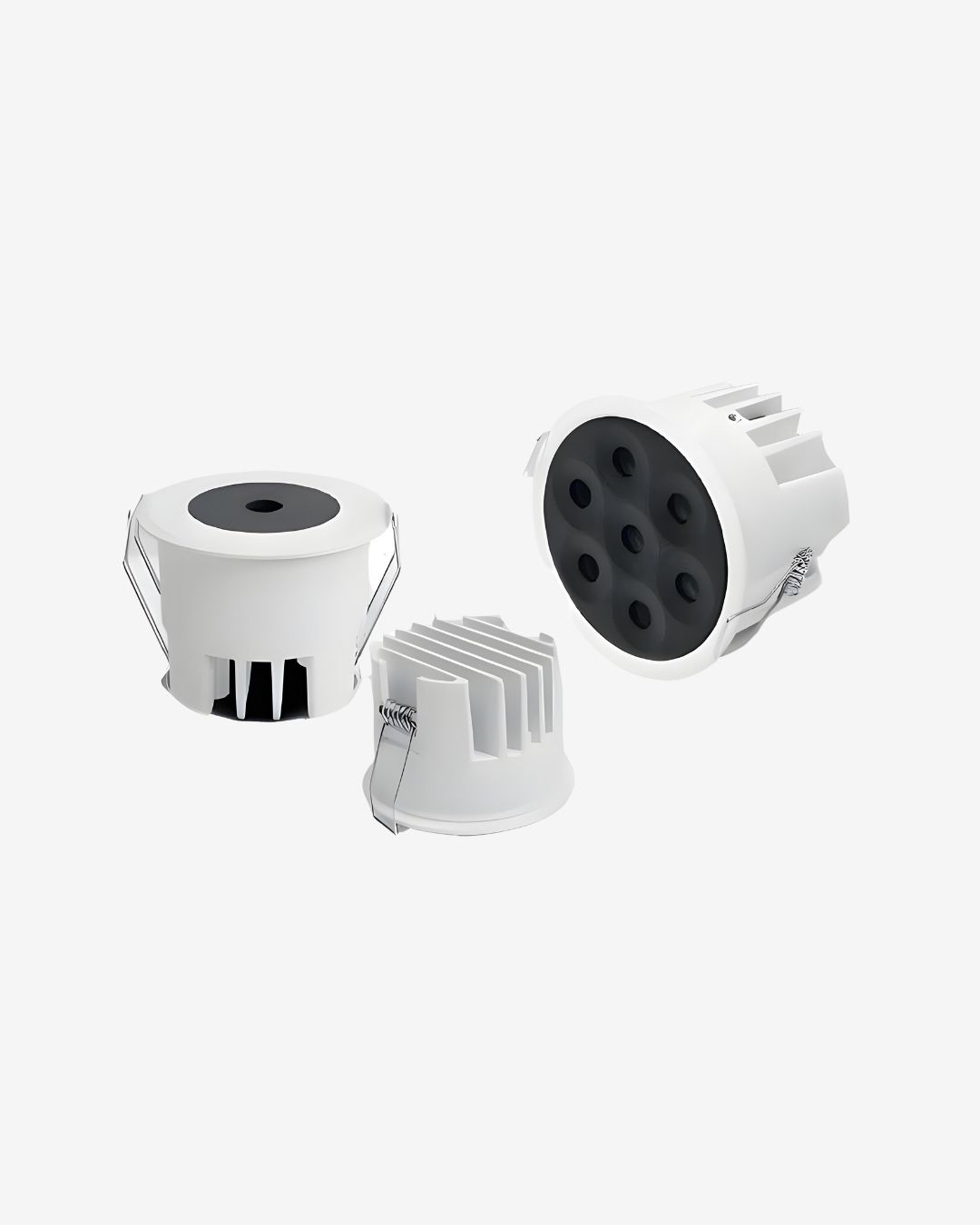

EN-CB09 Nox
Model code EN-CB09
Pin Hole Optics – low UGR < 9
MODEL POWER SIZE CUTOUT EN-CB09-3 3W Ø 40 x 32 Ø 35 EN-CB09-5 5W Ø 55 x 43 Ø 50 EN-CB09-9 3 x 3 W Ø 61 x 43 Ø 55 EN-CB09-15 7 x 2 W Ø 80 x 55 Ø 75 LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Cree | Bridgelux | Edison Optional Drivers Fulham | Osram | PhilipsSpecifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
