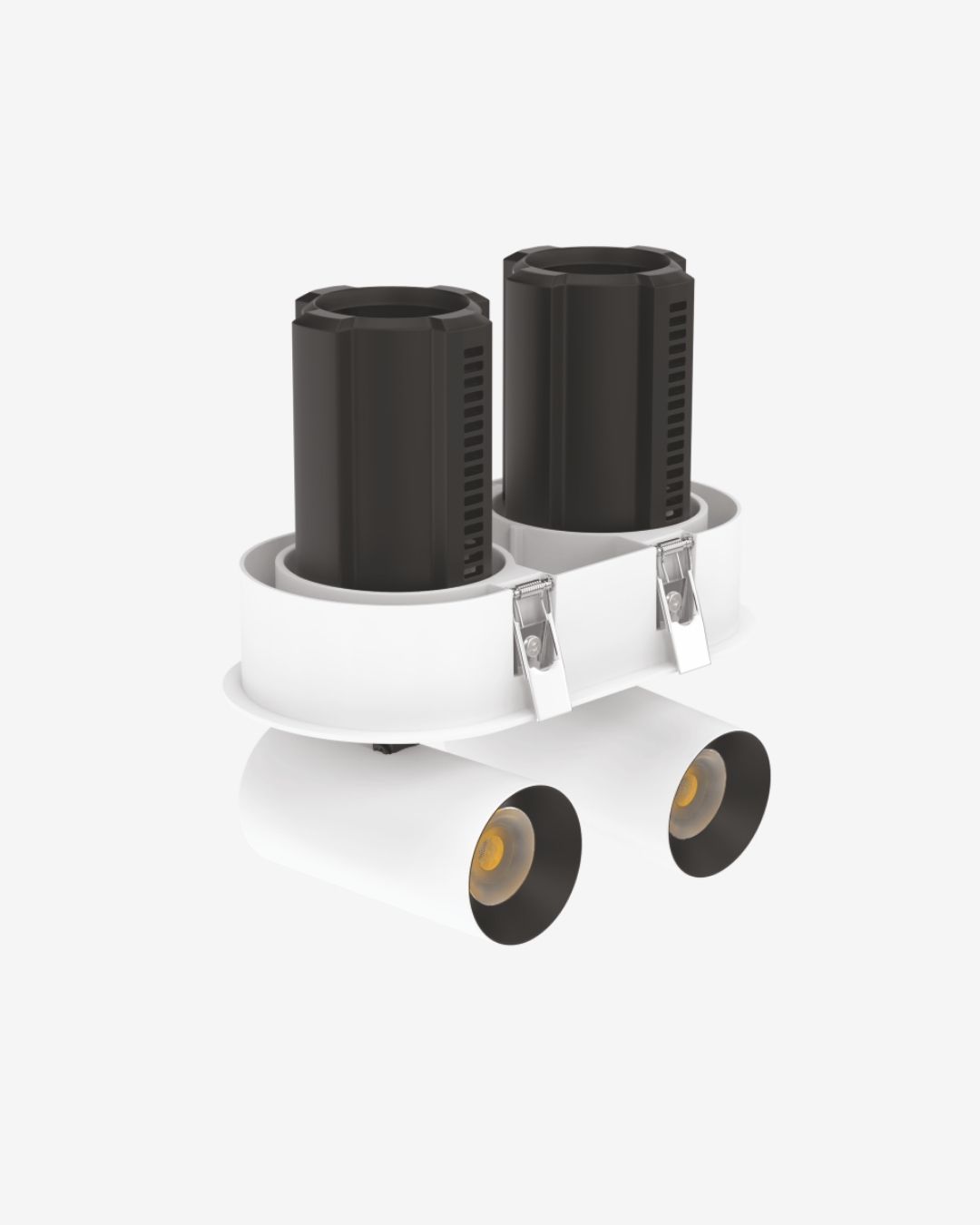

EN-CB07 Bamboo
Model code EN-CB07
Honeycomb Louvre Optional
Trimless option available
MODEL POWER SIZE CUTOUT BEAM ANGLE EN-CB07 – 7 07 W Ø 62 x H80 Ø 55 24° EN-CB07 – 12 12W Ø 84 x H100 Ø 75 38° EN-CB07 – 18 18W Ø 105 x H122 Ø 95 38° EN-CB07 – 14 2*7W Ø 140 x 79 x H85 Ø 128 x 67 24° EN-CB07 – 24 2*12W Ø 194 x 105 x H112 Ø 179 x 91 38° EN-CB07 – 36 2*18W Ø 239 x 125 x H134 Ø 223 x 112 38°LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Cree | Bridgelux | Edison Optional Drivers Fulham | Osram | Philips
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
