EN-CB05 Spark
Model code EN-CB05
Four miniature 3W spots in one family. The codes differ in their optic — eyeball, curved, deep and exposed LED — and in their size and cutout, given with each.
The range Four optics · 3W each

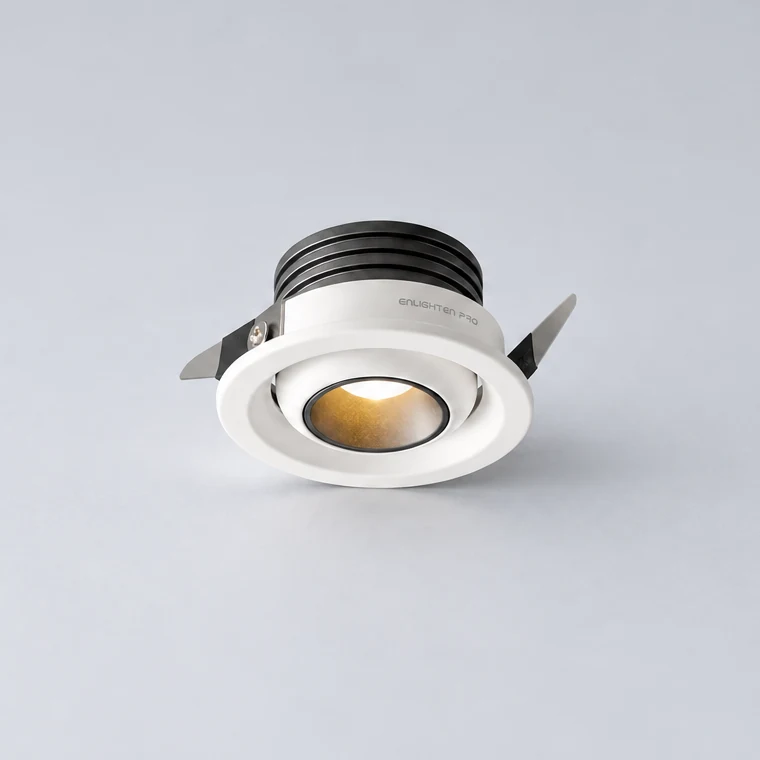

EN-CB05-3M · Eyeball
Eyeball · movable
The eyeball moves within its trim ring, so the light is aimed after the fitting is in the ceiling. Prismatic honeycomb lens.
- Power
- 3W
- Size
- Ø50 × 33mm
- Cutout
- Ø45mm

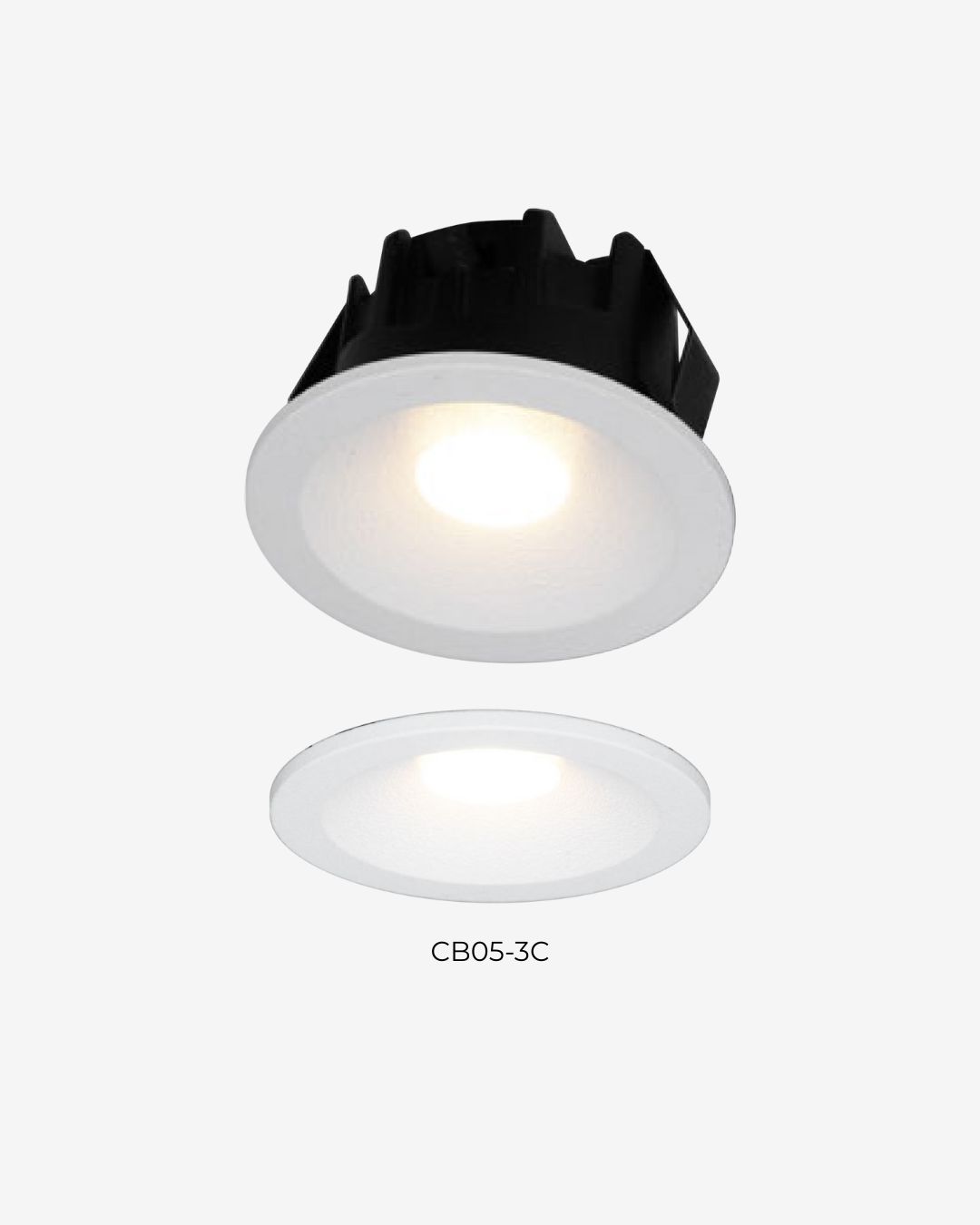

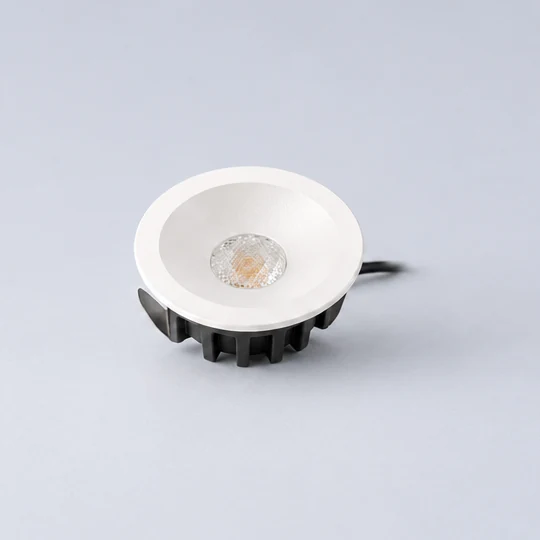

EN-CB05-3C · Curved
Curved · prismatic lens
A slightly curved face with a prismatic honeycomb lens.
- Power
- 3W
- Size
- Ø45 × 27mm
- Cutout
- Ø35mm

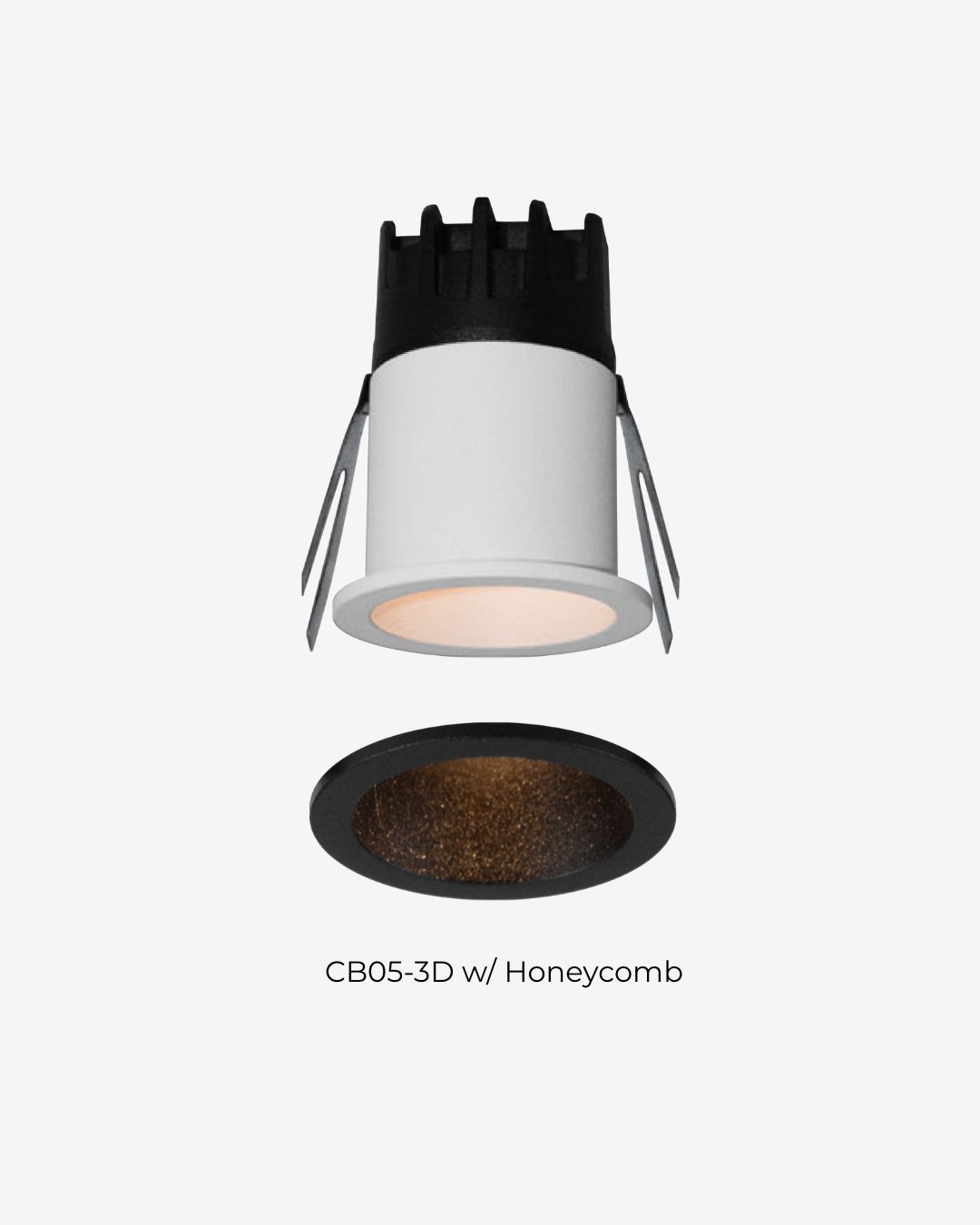

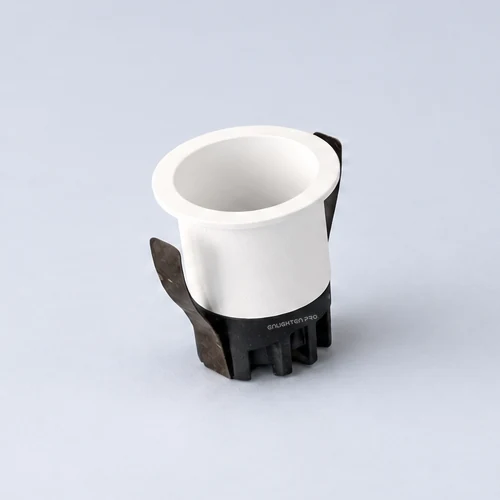

EN-CB05-3D · Deep
Deep · hex louver
A deep body with a honeycomb hex louver in front of the LED.
- Power
- 3W
- Size
- Ø41 × 53mm
- Cutout
- Ø35mm

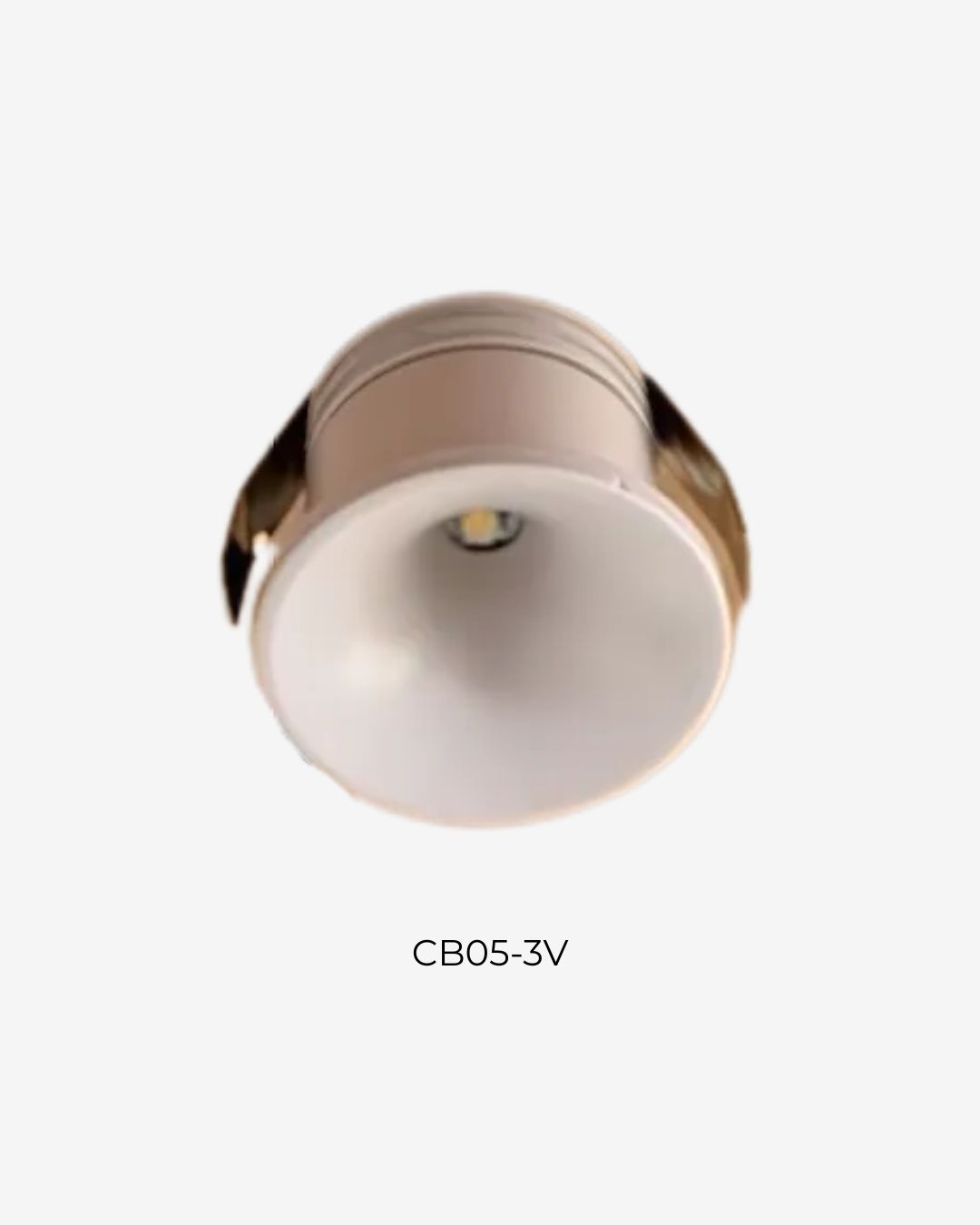

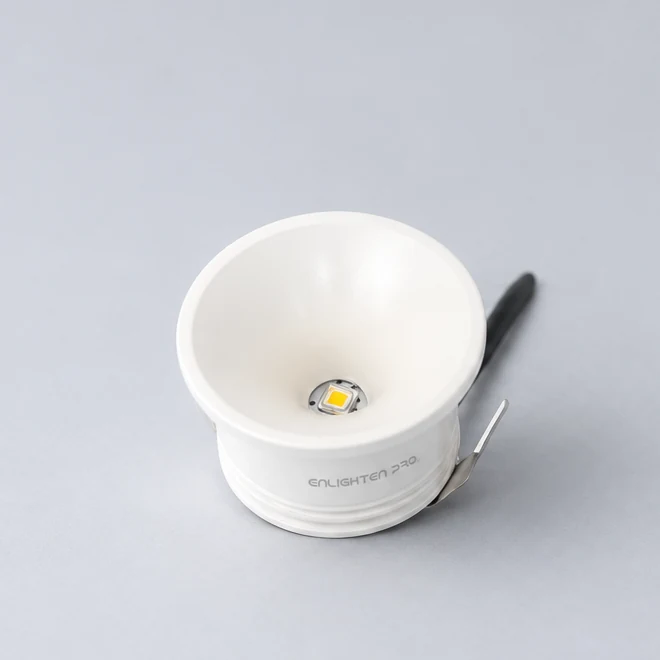

EN-CB05-3V · Deep curved
Deep curved · exposed LED
A deep curved trim around an exposed XTE LED — the highest output of the four.
- Power
- 3W
- Size
- Ø38 × 20mm
- Cutout
- Ø35mm
