EN-CB04 Brille'
Model code EN-CB04

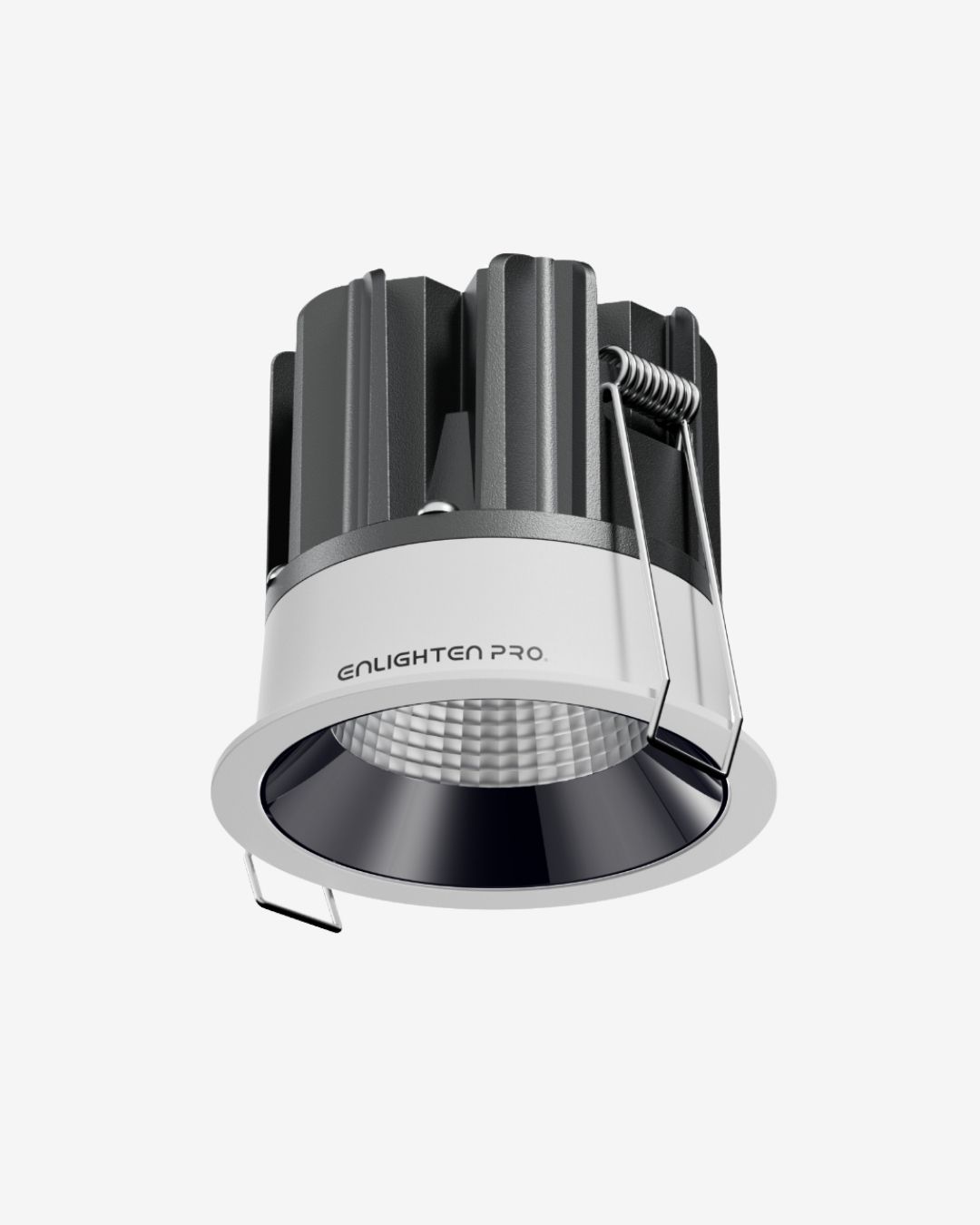

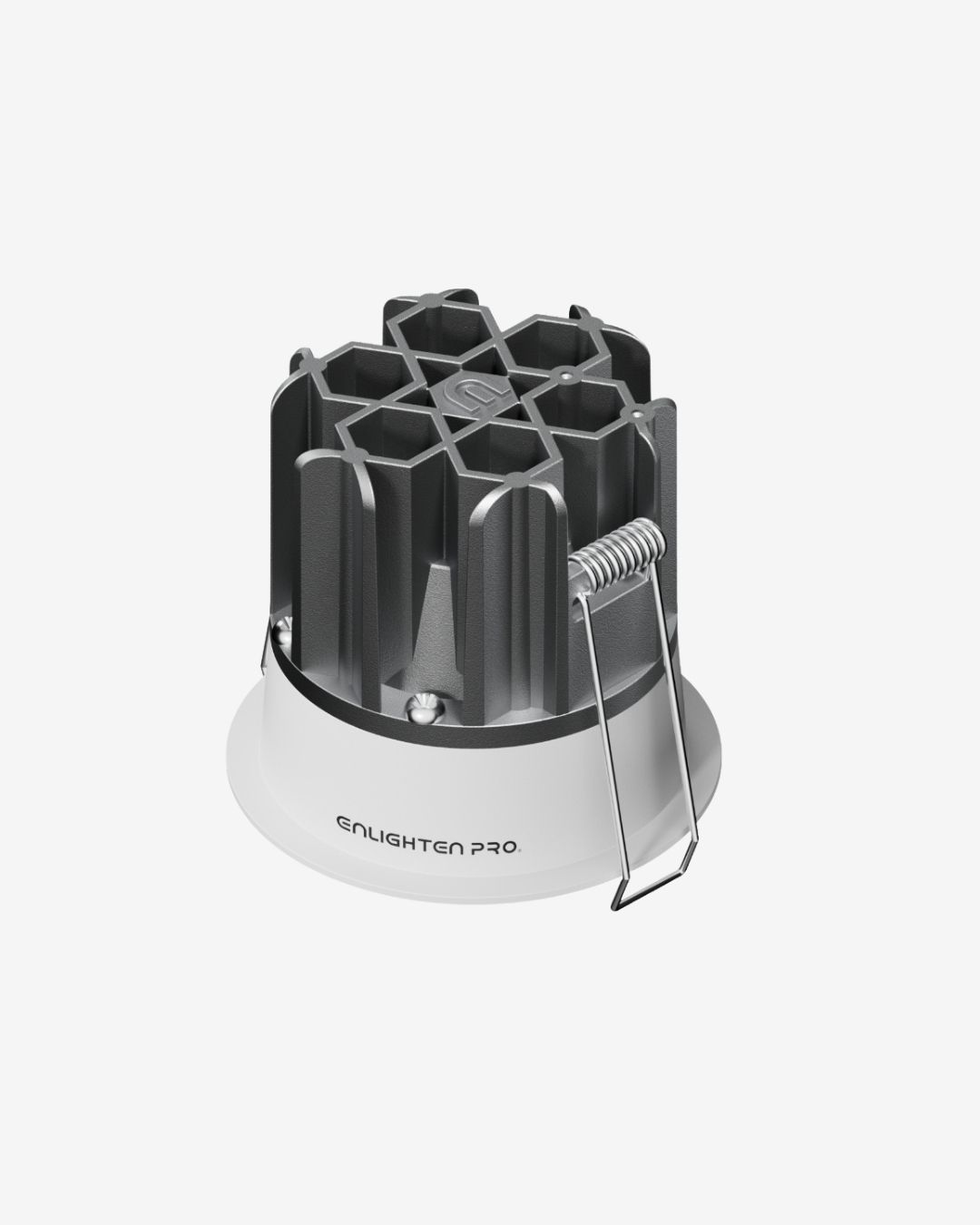

Brillé is the spotlight for the discerning eye: a proprietary unibody heatsink engineered for superior passive cooling, a crystal-clear glass lens set directly over the COB — no plastic cover, no stray side-glow — and an automotive-grade vacuum-metalised reflector. The result is an HD beam: crisp, clean and pure.

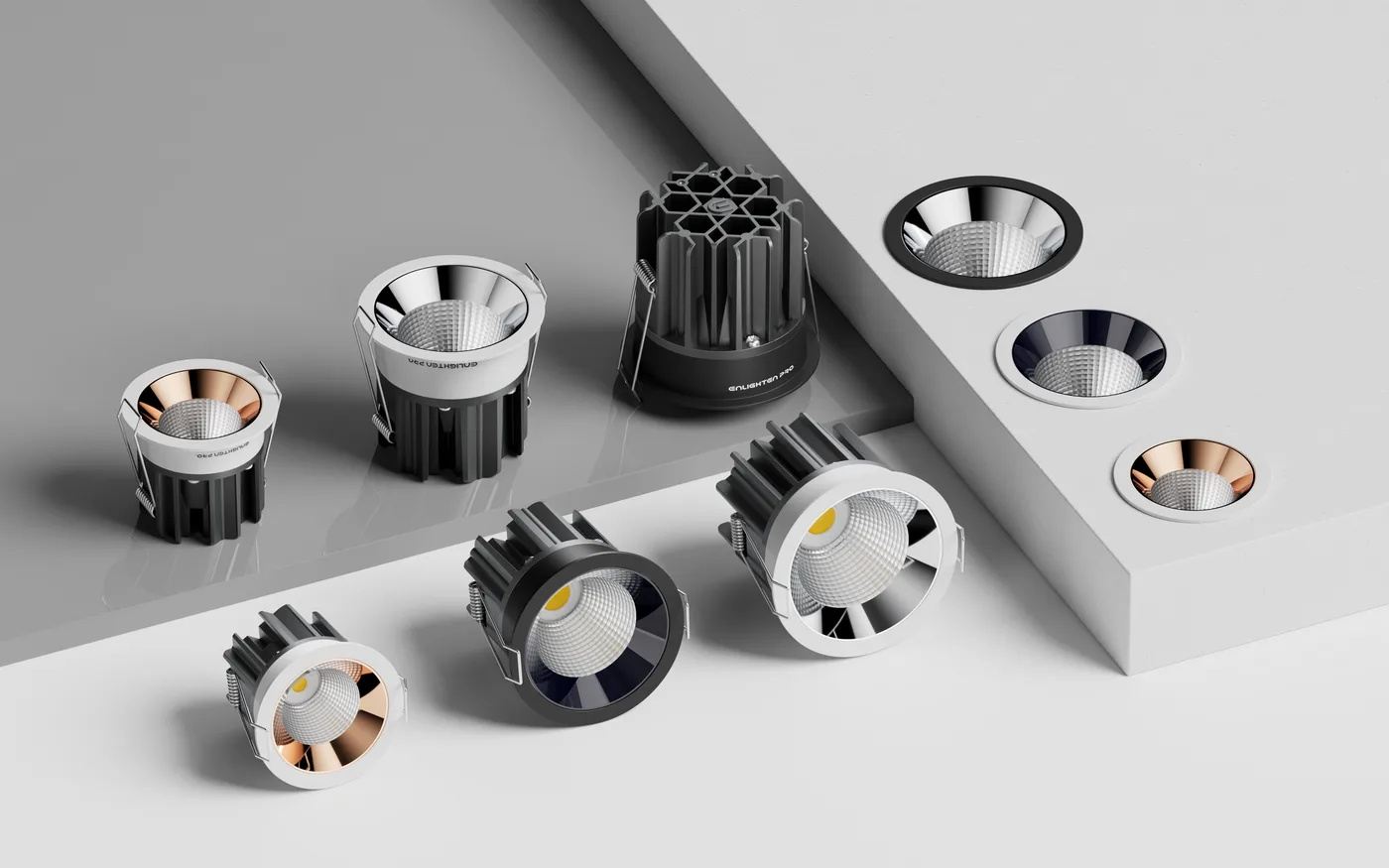

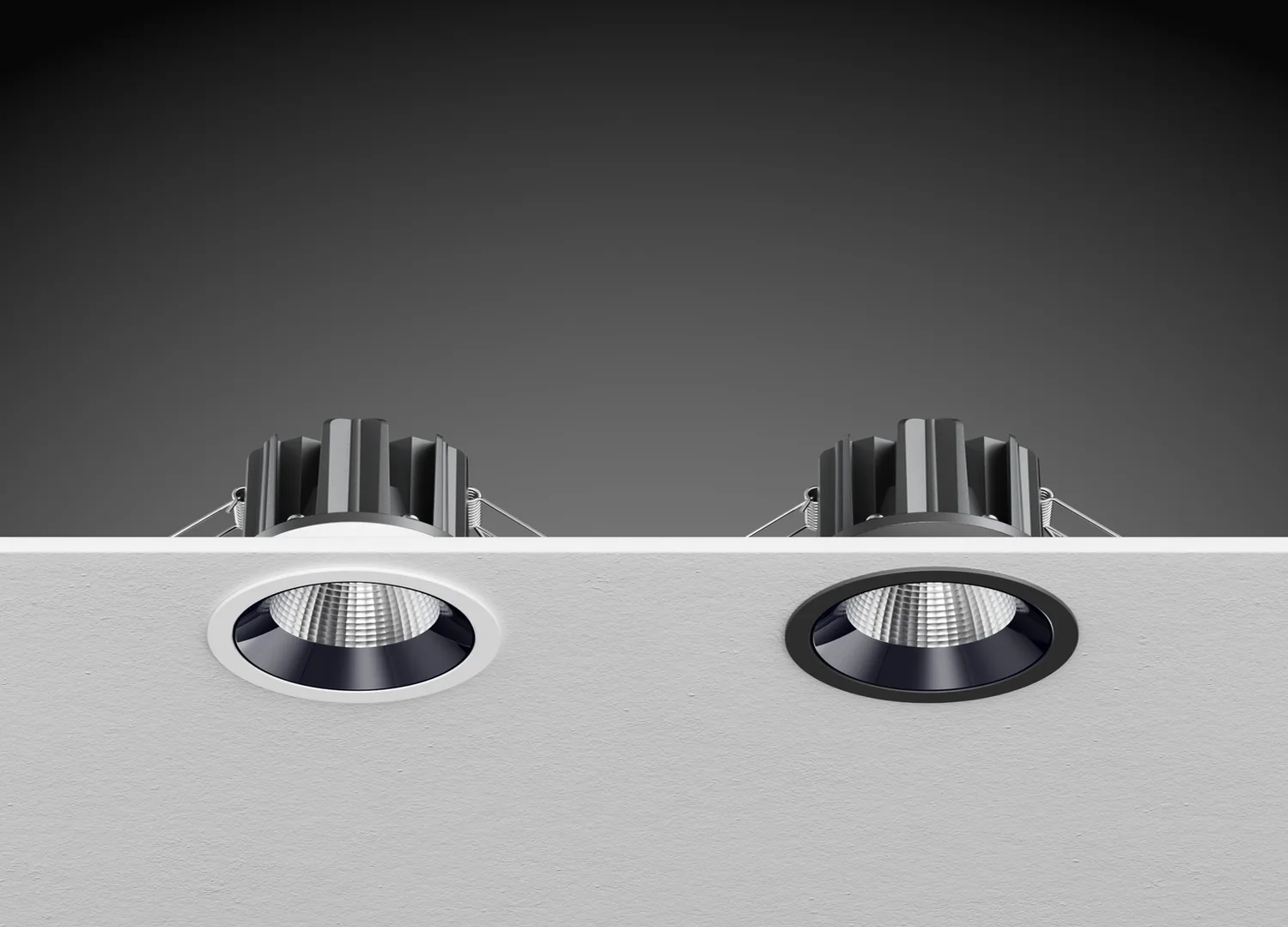

Each size runs at two wattages, in white or black trim, with anti-glare baffles in Gunmetal Black, Mirror Chrome or Rose Gold.
ModelPowerSize (mm)CutoutEN-CB046 W | 7 WØ60 × H52Φ50EN-CB0410 W | 12 WØ72 × H66Φ62EN-CB0415 W | 18 WØ78 × H71Φ66LEDCOB — PRO | Bridgelux | CREE, LM80 50,000 h, CRI 82 / 90 / 95+DriverPRO | Fulham | Osram | Philips — SELV 36 V output, PF > 0.95, THD < 10%, surge > 4 kV, OVP/OLP/OCP/SCPDimmingOn/Off | Triac | DALI-2 | RF/BTMesh- Application
- Premium residences, Corporate interiors, Galleries & showrooms, Hotels & high-end retail
- Power options
- 6/7 W, 10/12 W, 15/18 W
- Sizes
- Ø60 × H52 mm, Ø72 × H66 mm, Ø78 × H71 mm
- Cutouts
- Φ50 mm, Φ62 mm, Φ66 mm
- Body
- ADC-12 die-cast aluminium, matte powder coat, unibody heatsink
- Trim finish
- White, Black
- Inner baffle
- Gunmetal Black, Mirror Chrome, Rose Gold
- Optic
- Crystal-clear glass lens over COB (no PC cover), vacuum-metalised reflector
- Beam angle
- 15°, 24°, 36°, 55°
- Source
- COB — PRO, Bridgelux, CREE
- CCT options
- 3000K, 4000K, 5000K, 6500K
- CRI
- 82, 90, 95+ (SDCM 3–5)
- Lifetime
- LM80 50,000 hours
- Driver
- PRO, Fulham, Osram, Philips — SELV 36 V output
- Dimming
- On/Off, Triac, DALI-2, RF/BTMesh
- Protection
- THD < 10%, PF > 0.95, surge > 4 kV, OVP/OLP/OCP/SCP
- Mounting
- Recessed
- IP rating
- IP20 (indoor)
- Operating voltage
- 220–240 V AC
- Warranty
- 2–5 years
Specifications — typical, family defaults
- Light source
- COB LED
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
