EN-CB03 V-Series
Model code EN-CB03

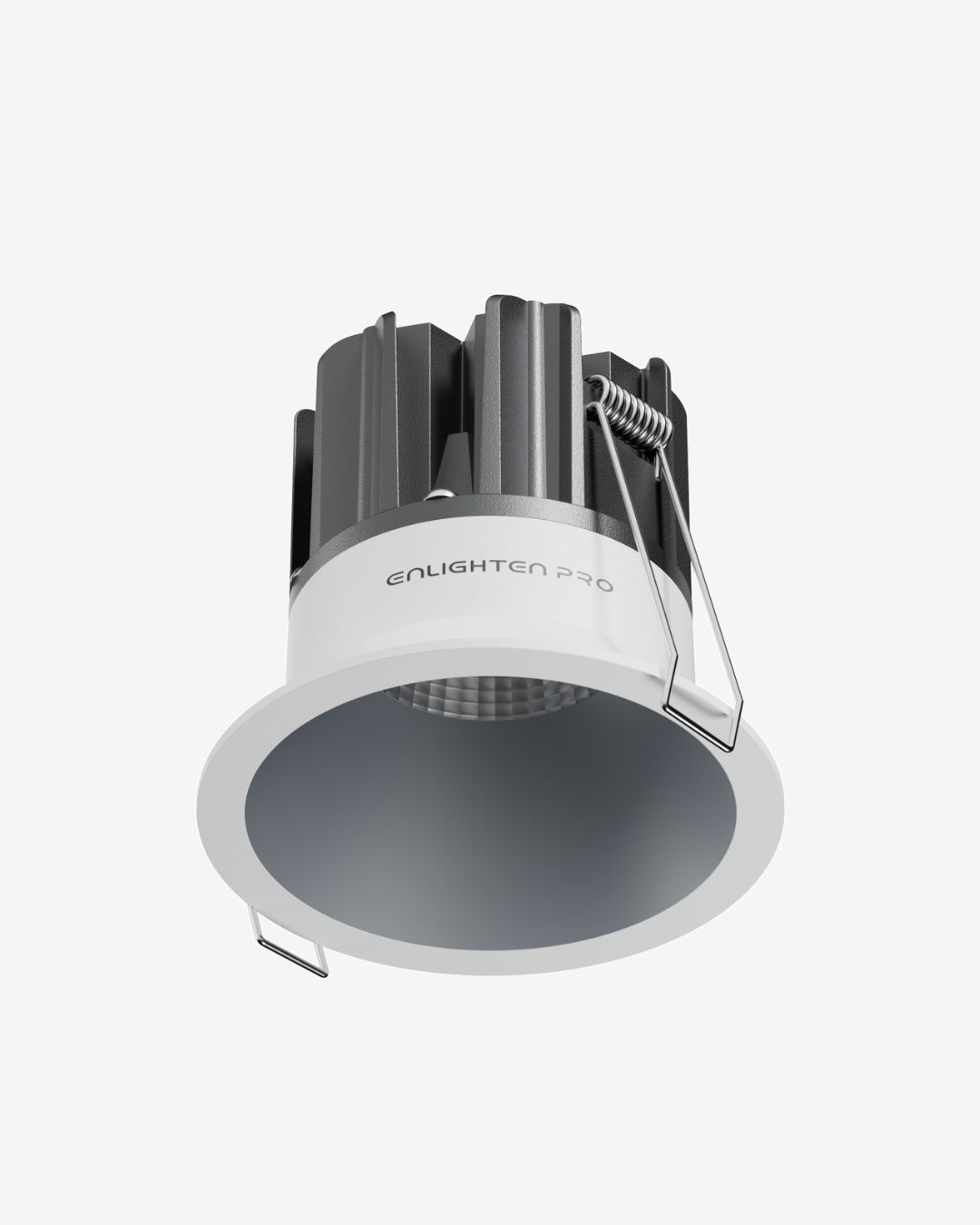

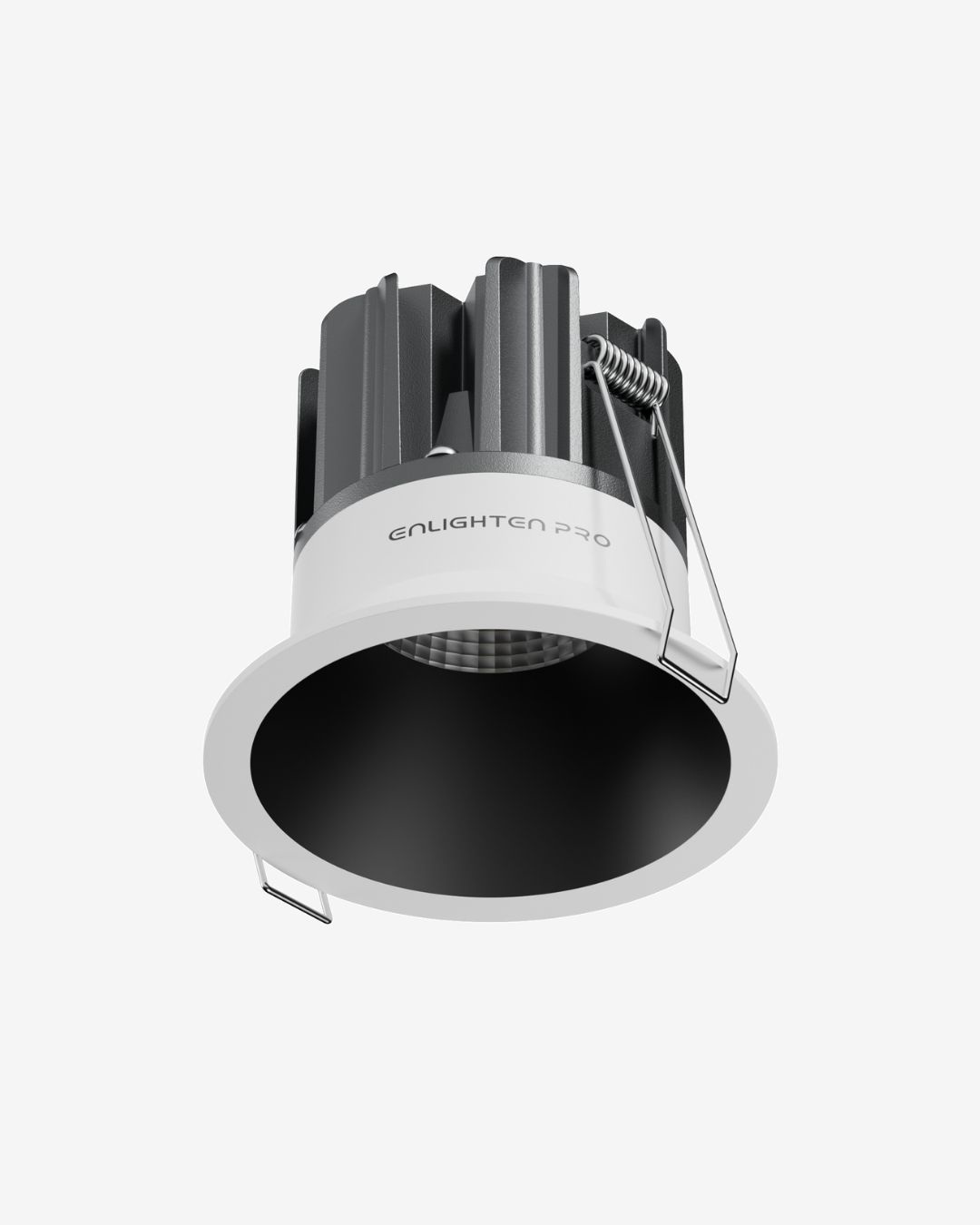

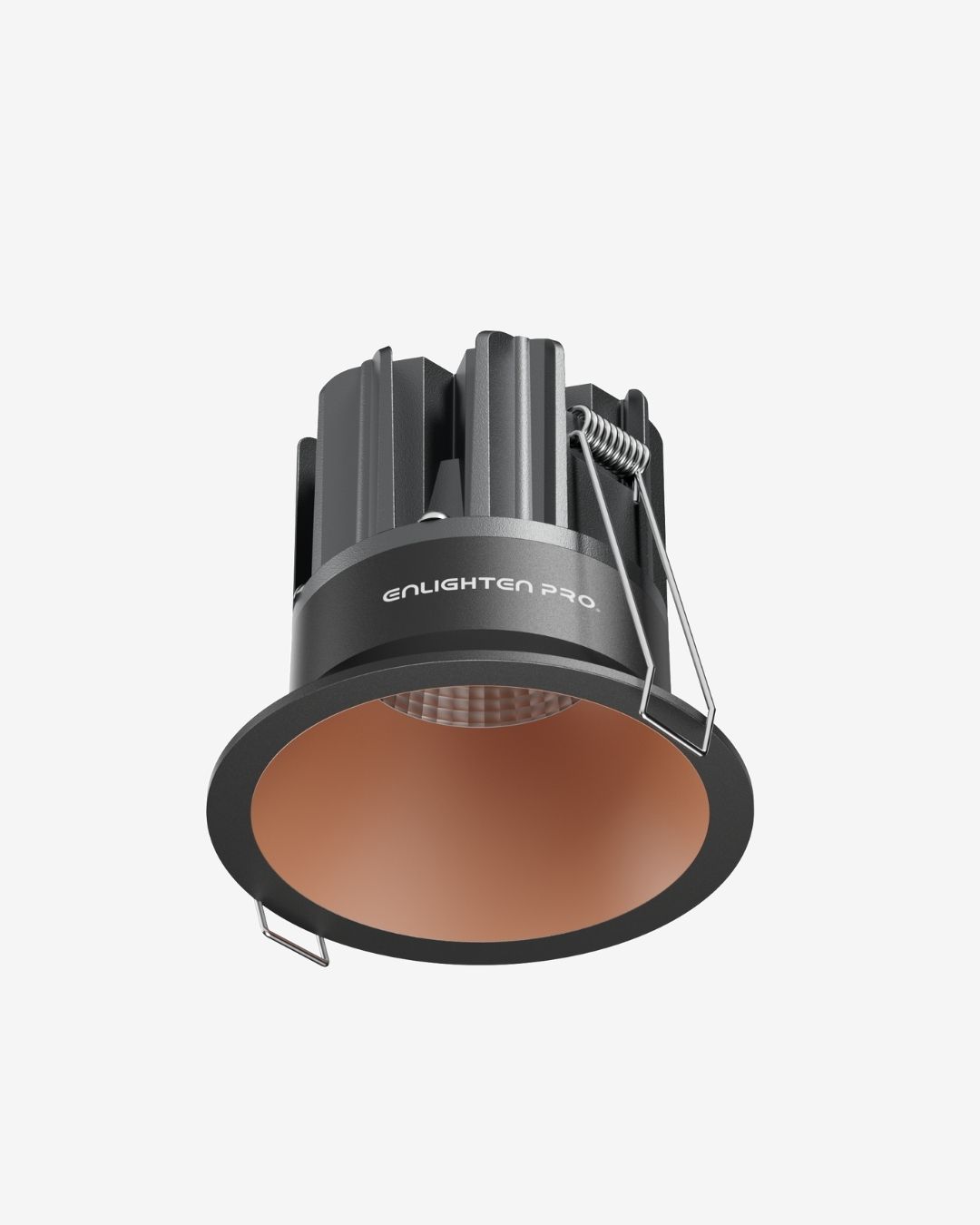

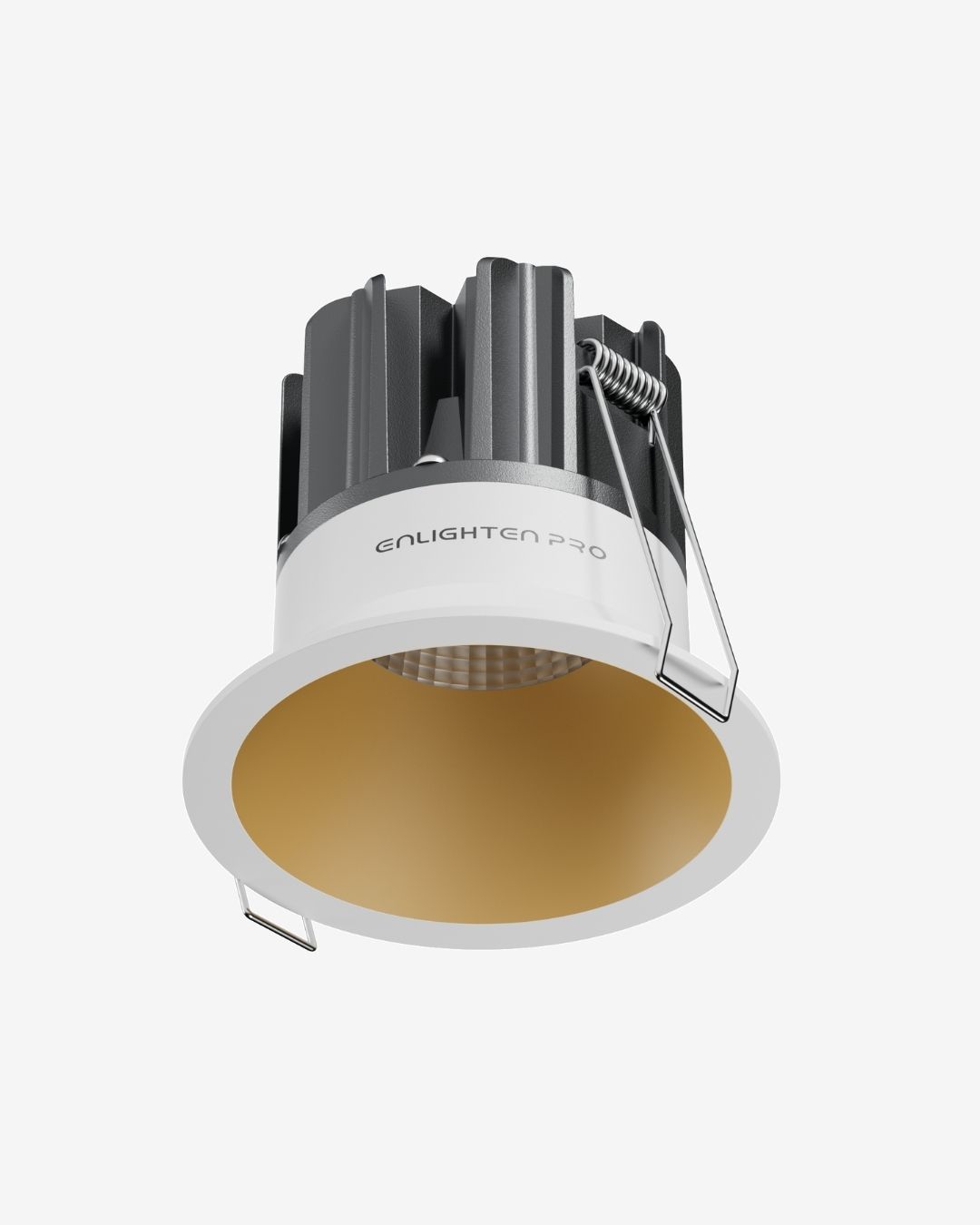

V-Series is a recessed COB spotlight in five sizes, from a 3W miniature for a Ø32mm cutout up to 30W for Ø108mm. The reflector and lens come in different beam angles; the body is white or black as standard, and on the 7W, 12W and 18W the inner walls can be PU-painted to order.
Optional – reflectors & lens in different beam angles
MODEL POWER SIZE CUTOUT BEAM ANGLE EN-CB03 – 3D 3W 36 x H34 Ø32 24° EN-CB03 – 7 7W 75 x H58 ∅65 24° EN-CB03 – 12 12W 85 x H73 ∅75 38° EN-CB03 – 18 18W 95 x H86 ∅85 38° EN-CB03 – 30 30W 118 x H130 ∅108 38°LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request) Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V Optional LEDs Cree | Bridgelux | Edison Optional Drivers Fulham | Osram | Philips
Specifications — typical, family defaults
- Light source
- COB LED
- Color temperature options
- 3000K · 4000K · 5000K · 6000K — any CCT 2700K–6500K to order
- Color rendering index
- Ra 80+ · Ra 90+ · Ra 96+ on COB ranges
- Beam angle options
- 36° standard · 15° / 24° / 55° optional at additional cost
- Mounting
- Recessed
- Driver
- Constant current · external
- Input voltage
- 220–240 V AC
- IP rating
- IP20
- Warranty
- 2 years
- Lumen figures stated at
- 4000K · CRI 80
- Tunable white
- 2700K–6500K, tuned over Bluetooth, RF or DALI-2
Exact values vary by model and wattage — request the variant datasheet for certified figures.
